Torlesse Details

PropertyValue
Rupture Count147
Ruptures Above Sect Min Mag142
Ruptures w/ Nonzero Rates5
Magnitude Range[6.59, 8.01]
Length Range[13, 218] km
Total Rate1.7776545E-4 /yr
Multi-Fault Rate1.7776545E-4 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults12

Table Of Contents

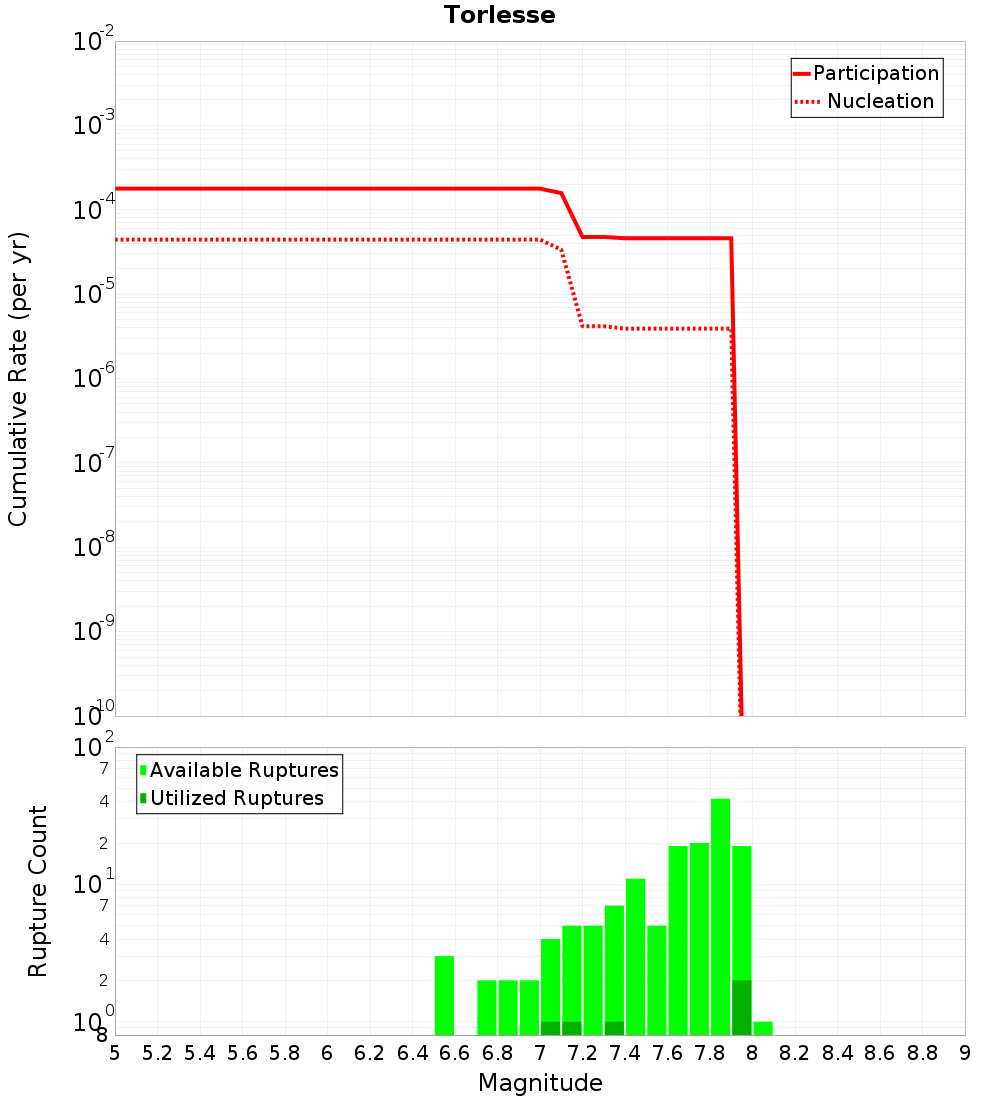

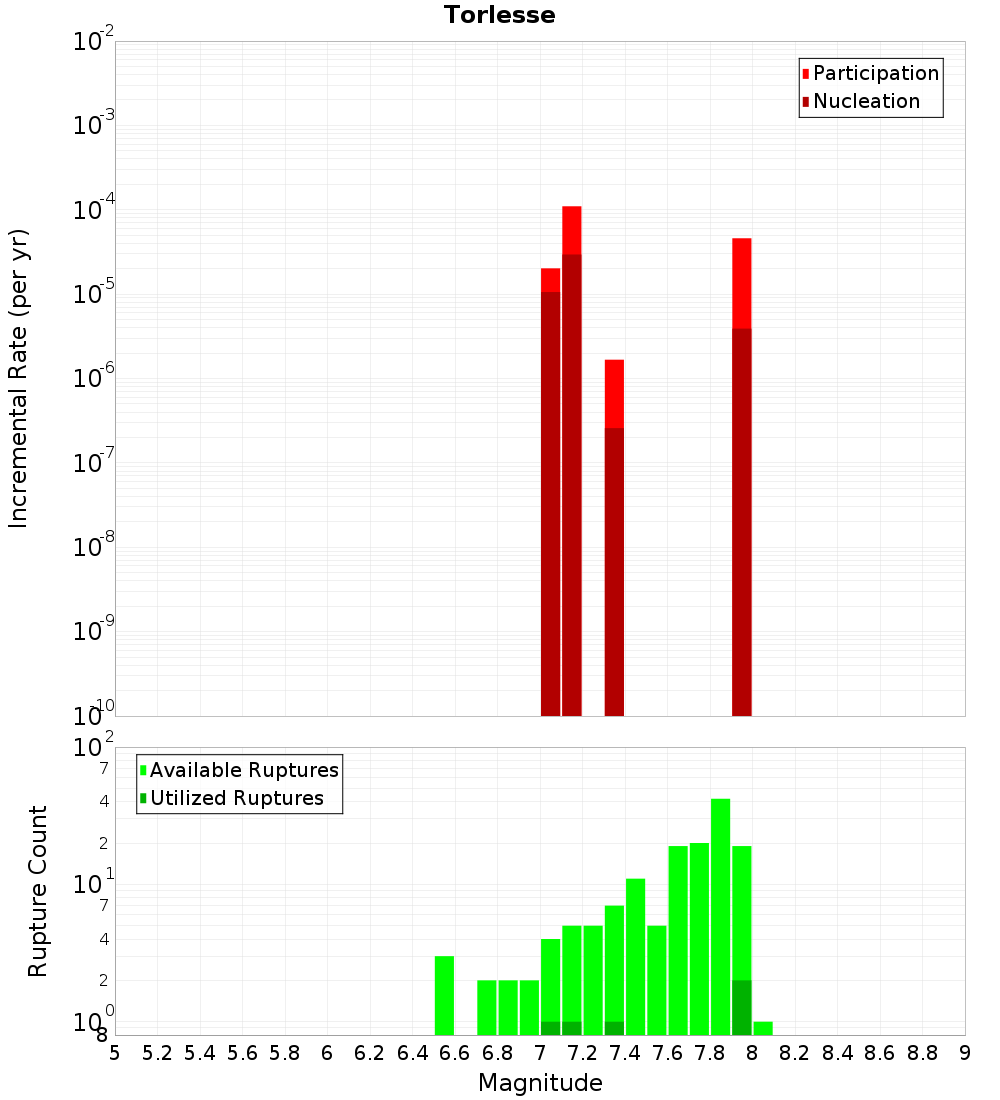

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

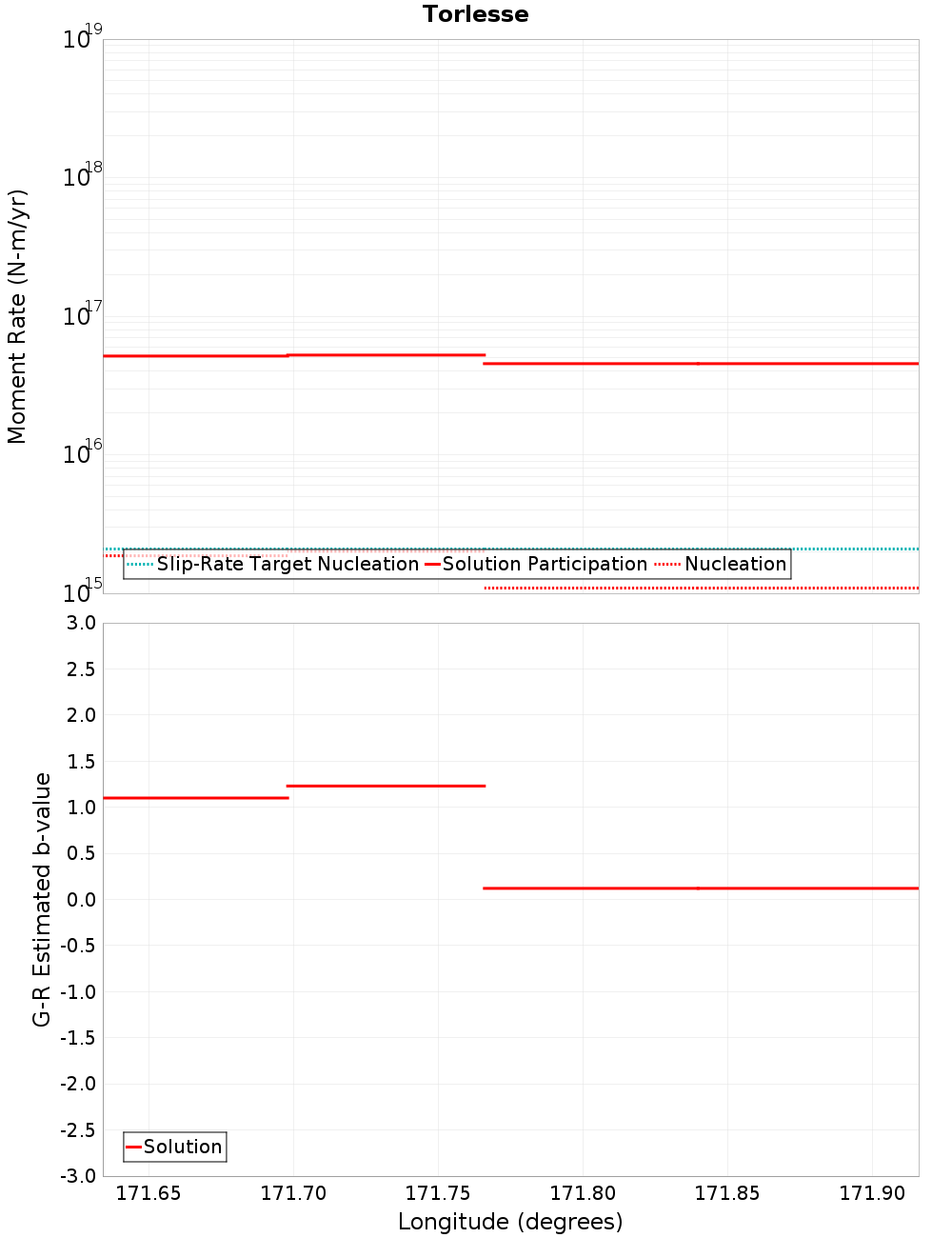

Moment-Rates and b-Values

(top)

Along-strike plot

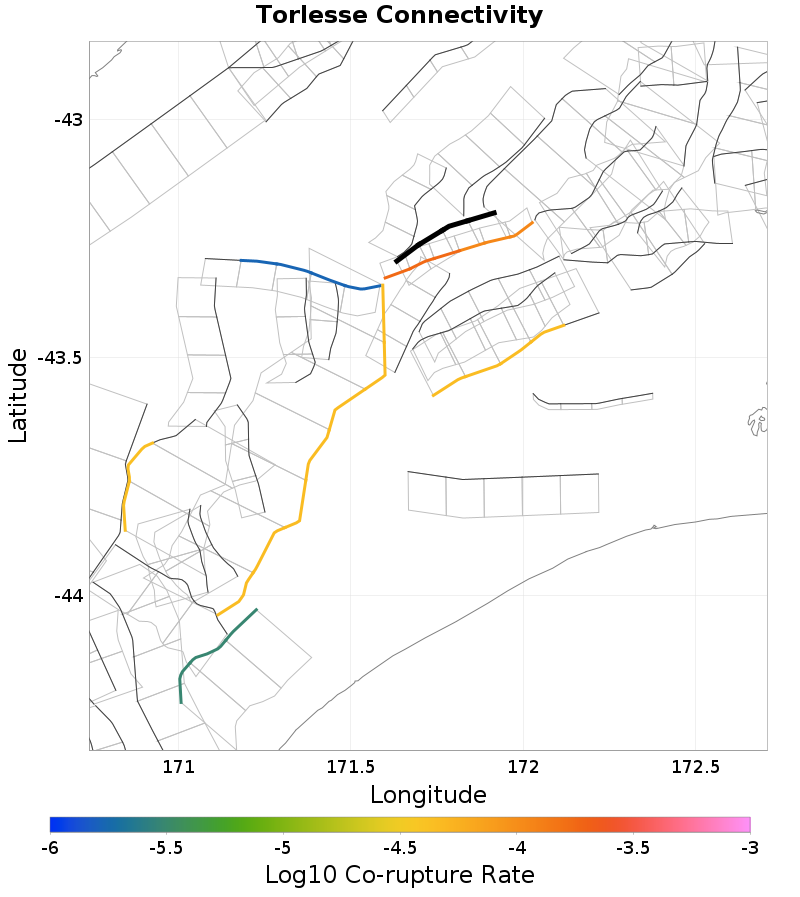

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Porters Pass, 0.31 km away
Big Ben, 0.37 km away
Esk South, 0.4 km away
Cheeseman, 0.67 km away
Sailor, 1.39 km away
Hutt Peel, 6.36 km away
Double Hill, 6.89 km away
Lees Valley, 9.41 km away
Knowles Top, 11.34 km away
Hororata, 12.36 km away
Starvation - Ashley, 12.83 km away
Kowai - View Hill, 13.54 km away
Redcliffe, 15.35 km away
High Peak - Sheffield, 17.34 km away

Porters Pass, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTUuMDVNRnlw
Connected?true
Directly Connected?true
Co-rupture Count178
Co-rupture Rate2.8938643E-4

Big Ben, 0.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTUuMDVNRnlw
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Esk South, 0.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTUuMDVNRnlw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cheeseman, 0.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTUuMDVNRnlw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Sailor, 1.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTUuMDVNRnlw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hutt Peel, 6.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTUuMDVNRnlw
Connected?true
Directly Connected?false
Co-rupture Count115
Co-rupture Rate4.5926867E-5

Double Hill, 6.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTUuMDVNRnlw
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate1.6709371E-6

Lees Valley, 9.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTUuMDVNRnlw
Connected?true
Directly Connected?false
Co-rupture Count21
Co-rupture Rate0.0

Knowles Top, 11.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTUuMDVNRnlw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hororata, 12.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTUuMDVNRnlw
Connected?true
Directly Connected?true
Co-rupture Count32
Co-rupture Rate4.5926867E-5

Starvation - Ashley, 12.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTUuMDVNRnlw
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Kowai - View Hill, 13.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTUuMDVNRnlw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Redcliffe, 15.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTUuMDVNRnlw
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate0.0

High Peak - Sheffield, 17.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyNTUuMDVNRnlw
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0
