Alpine: Resolution - Dagg Details

PropertyValue
Rupture Count105,169
Ruptures Above Sect Min Mag105,164
Ruptures w/ Nonzero Rates178
Magnitude Range[6.79, 8.44]
Length Range[22, 1,156] km
Total Rate0.0045879427 /yr
Multi-Fault Rate0.0045879427 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults91

Table Of Contents

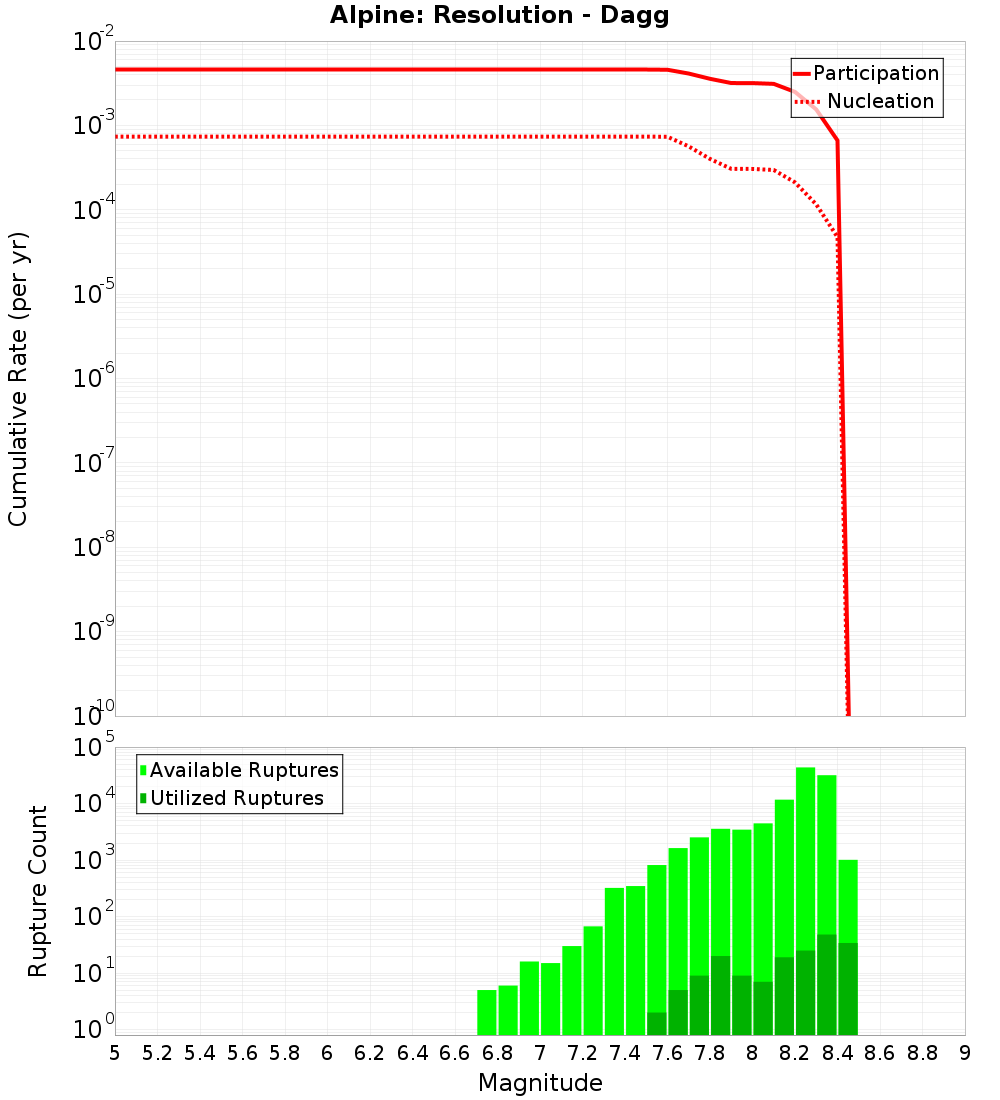

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

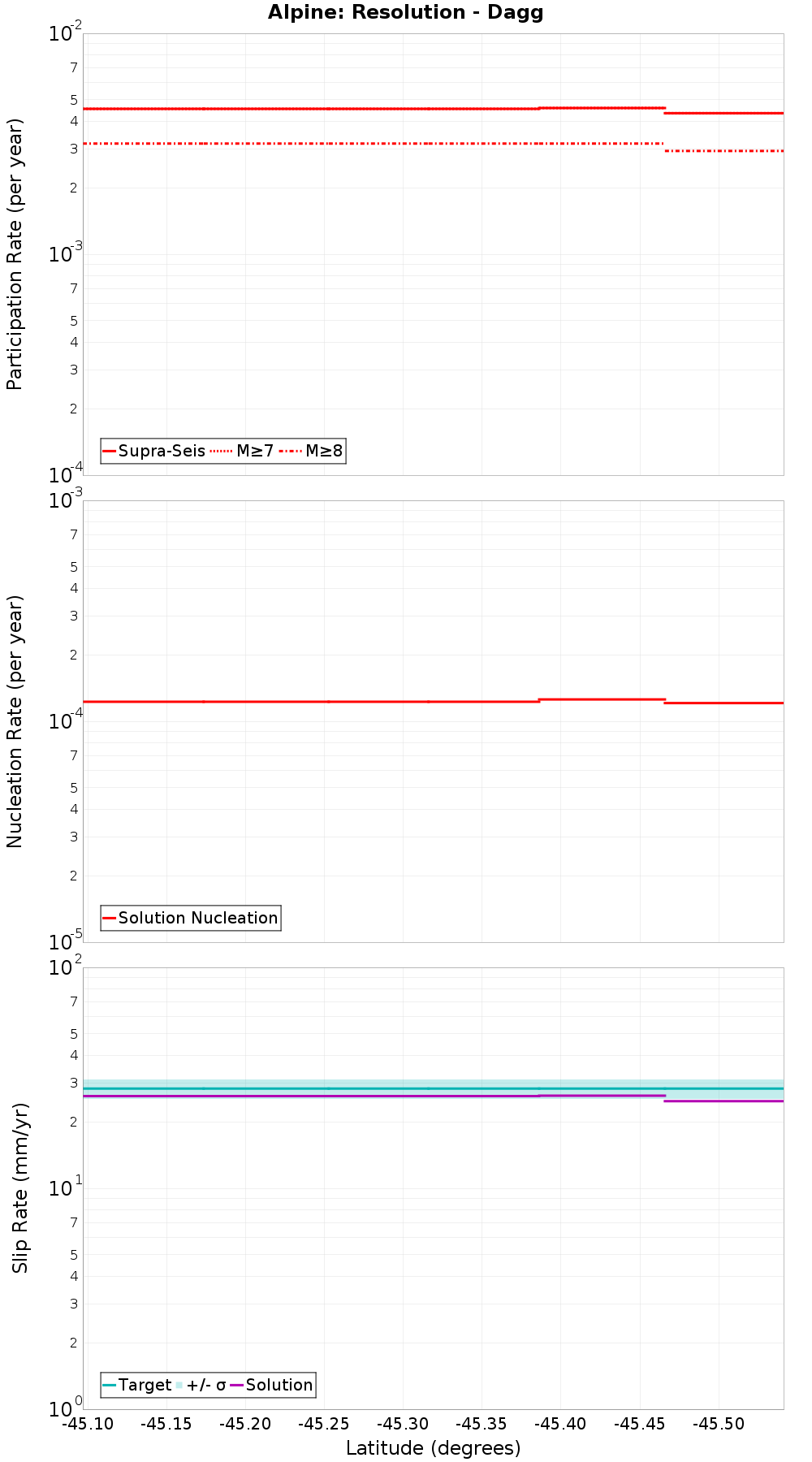

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Resolution - Charles, 0 km away
South Wedge 1, 0.07 km away
South Wedge 2, 0.17 km away
Alpine: Resolution - Five Fingers, 0.91 km away
South Wedge 3-6-10, 1.76 km away
Alpine: Nancy, 2.58 km away
Central Wedge 4 - South Wedge 411, 4.03 km away
South Wedge 5, 5.57 km away
Alpine: Caswell, 11.24 km away
Central Wedge 1 & 2 & 3, 12.75 km away
Five Fingers, 18.37 km away

Alpine: Resolution - Charles, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw
Connected?true
Directly Connected?true
Co-rupture Count42,384
Co-rupture Rate0.0022746269

South Wedge 1, 0.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw
Connected?true
Directly Connected?true
Co-rupture Count2,931
Co-rupture Rate1.8224524E-5

South Wedge 2, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw
Connected?true
Directly Connected?true
Co-rupture Count2,775
Co-rupture Rate1.9279784E-4

Alpine: Resolution - Five Fingers, 0.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw
Connected?true
Directly Connected?true
Co-rupture Count62,778
Co-rupture Rate0.004341147

South Wedge 3-6-10, 1.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw
Connected?true
Directly Connected?true
Co-rupture Count6,579
Co-rupture Rate1.5649047E-4

Alpine: Nancy, 2.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw
Connected?true
Directly Connected?true
Co-rupture Count61,163
Co-rupture Rate0.0022175803

Central Wedge 4 - South Wedge 411, 4.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw
Connected?true
Directly Connected?false
Co-rupture Count2,362
Co-rupture Rate9.739789E-5

South Wedge 5, 5.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw
Connected?true
Directly Connected?true
Co-rupture Count19,688
Co-rupture Rate2.782283E-4

Alpine: Caswell, 11.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw
Connected?true
Directly Connected?false
Co-rupture Count103,000
Co-rupture Rate0.0044922074

Central Wedge 1 & 2 & 3, 12.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw
Connected?true
Directly Connected?false
Co-rupture Count342
Co-rupture Rate0.0

Five Fingers, 18.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
