Caswell High 10 Details
| Property | Value |
|---|---|
| Rupture Count | 7,488 |
| Ruptures Above Sect Min Mag | 6,830 |
| Ruptures w/ Nonzero Rates | 34 |
| Magnitude Range | [5.55, 7.93] |
| Length Range | [5, 293] km |
| Total Rate | 4.8598895E-4 /yr |
| Multi-Fault Rate | 4.8598895E-4 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 22 |
Table Of Contents

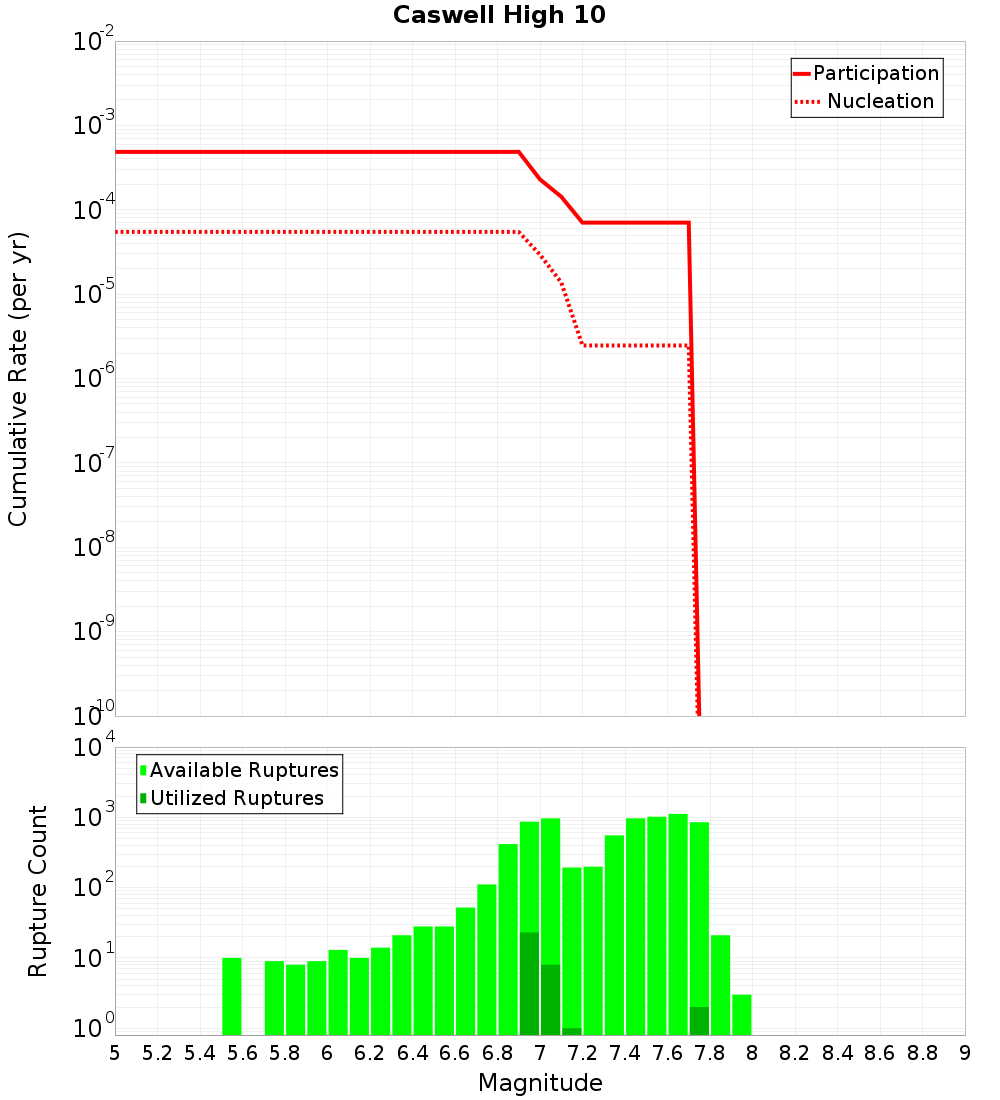

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

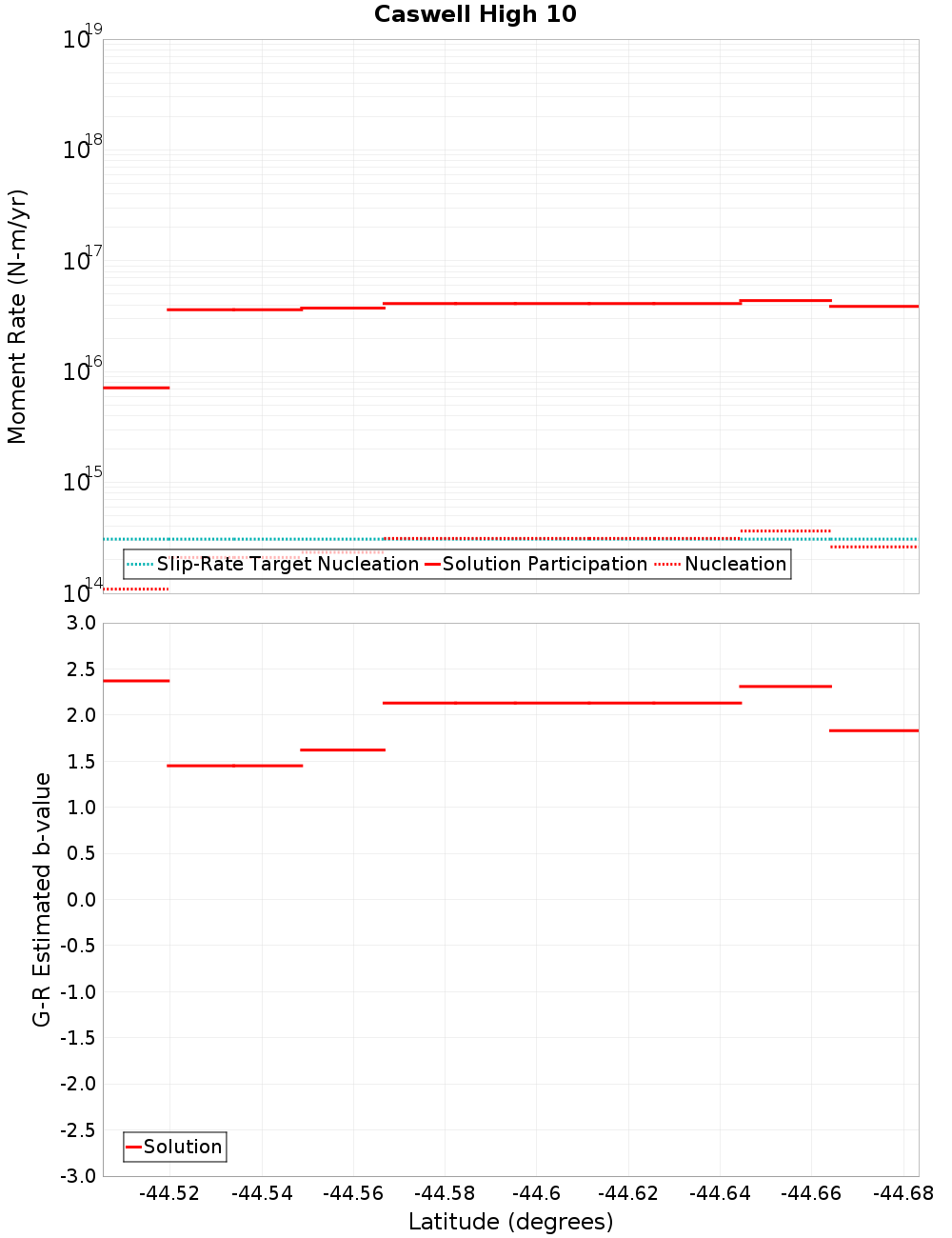

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Central Wedge 1 & 2 & 3, 1.11 km away |
| Caswell High 9, 2.99 km away |
| Milford Basin 5 to George R2, 6.14 km away |
| Caswell High 67, 6.39 km away |
| Caswell High 8, 6.85 km away |
Central Wedge 1 & 2 & 3, 1.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5,106 |
| Co-rupture Rate | 2.2859001E-4 |
Caswell High 9, 2.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 351 |
| Co-rupture Rate | 1.5829231E-4 |
Milford Basin 5 to George R2, 6.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,133 |
| Co-rupture Rate | 1.5156061E-4 |
Caswell High 67, 6.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3,566 |
| Co-rupture Rate | 2.5739893E-4 |
Caswell High 8, 6.85 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 658 |
| Co-rupture Rate | 7.02977E-5 |
