Dryburgh Details

Property	Value
Rupture Count	9
Ruptures Above Sect Min Mag	8
Ruptures w/ Nonzero Rates	2
Magnitude Range	[6.72, 7.62]
Length Range	[19, 117] km
Total Rate	2.272754E-5 /yr
Multi-Fault Rate	2.272754E-5 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	4

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

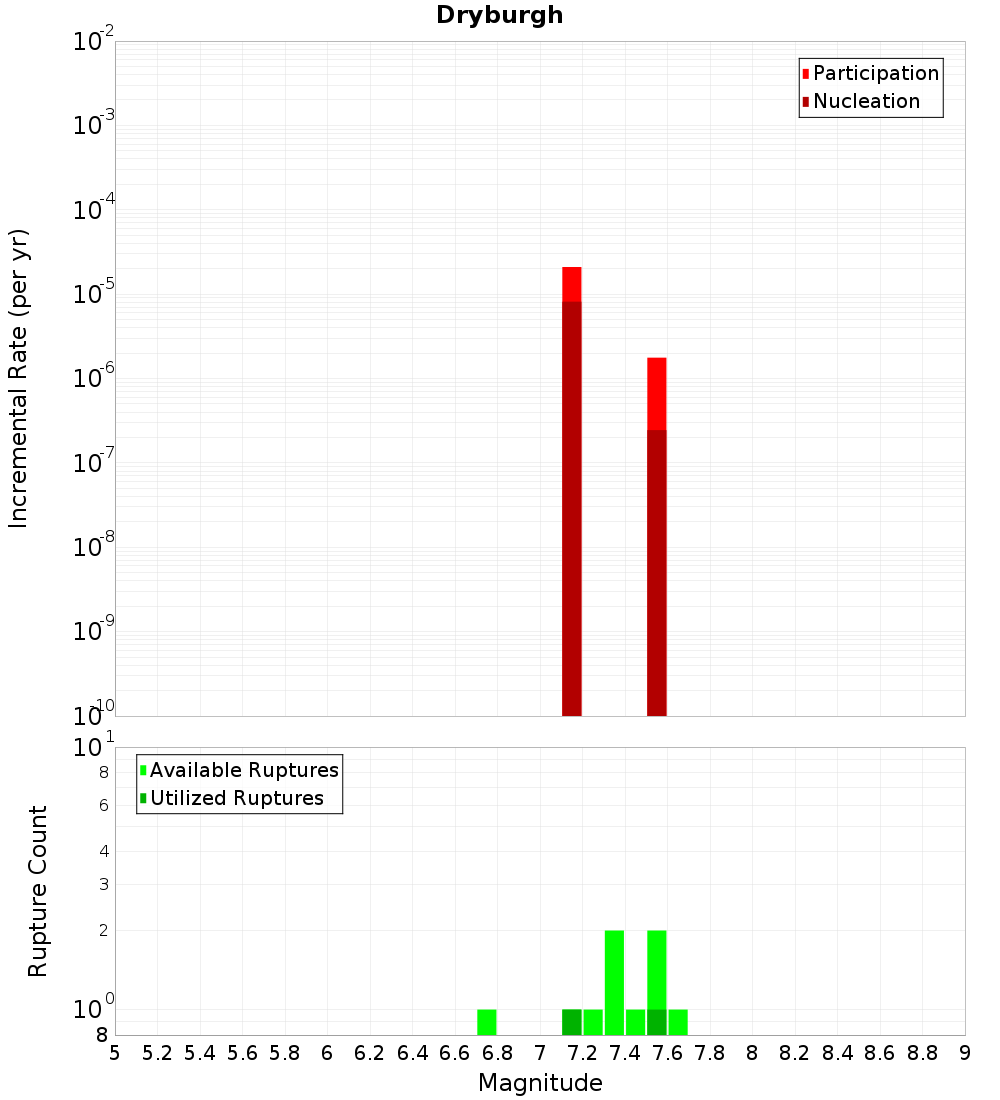

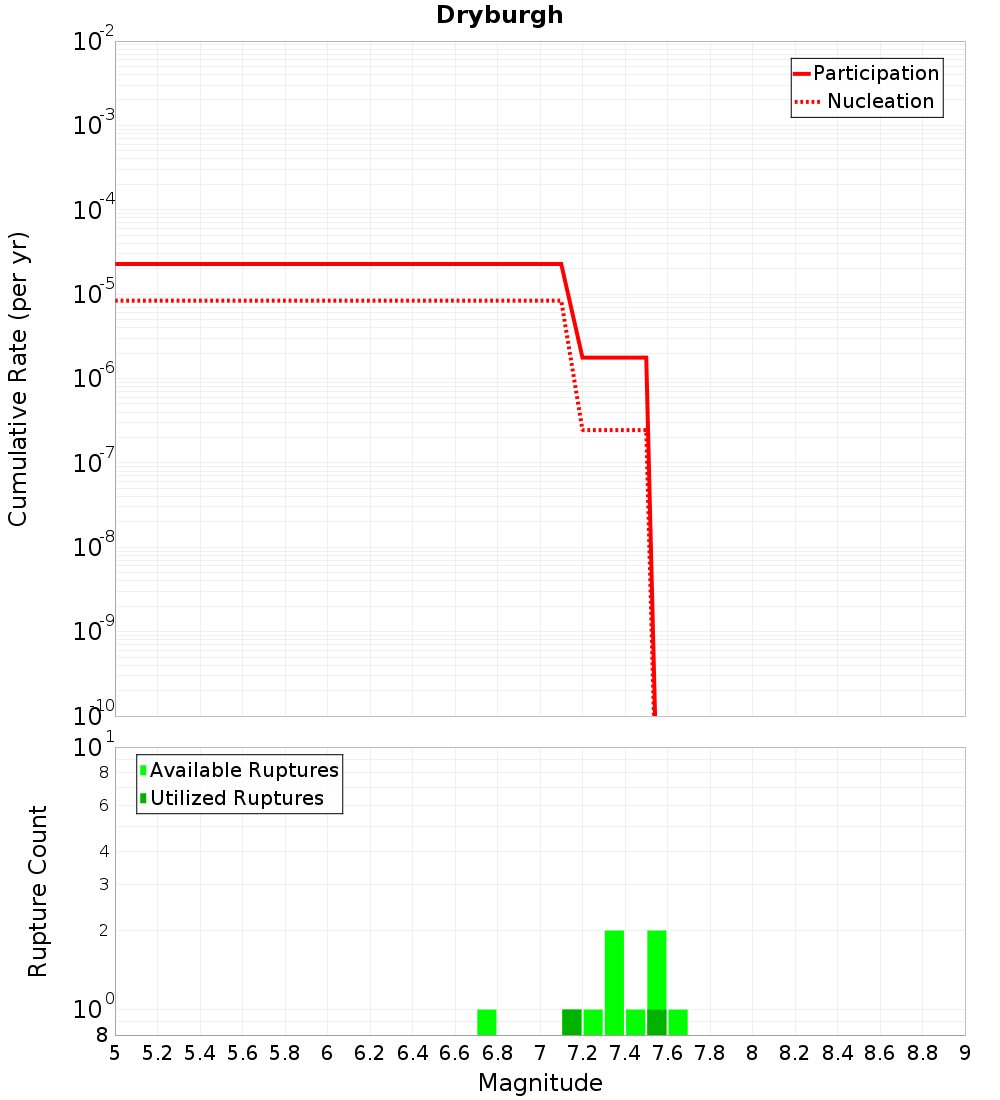

Magnitude-Frequency Distribution

Incremental	Cumulative

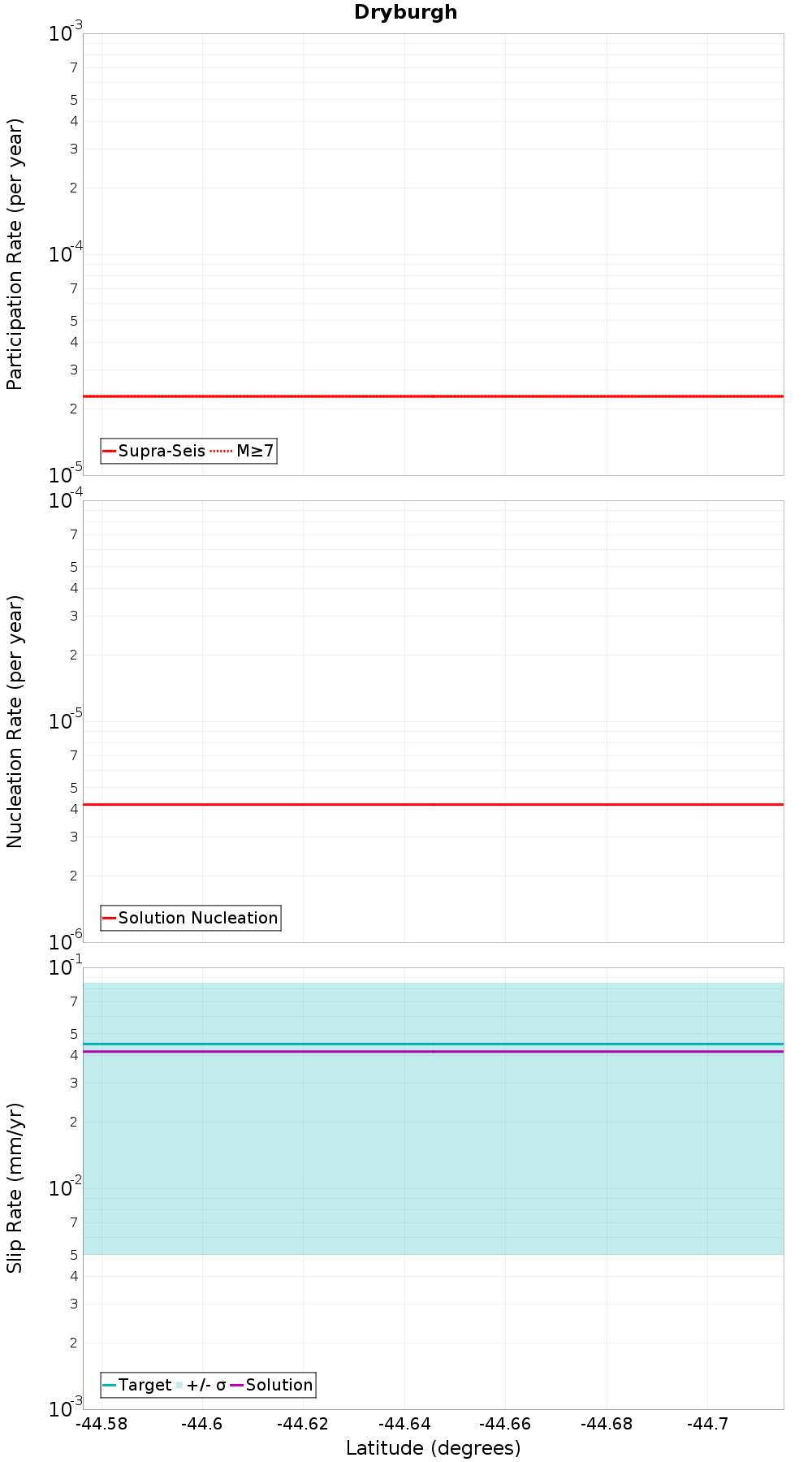

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Campbell Hills, 0.11 km away
Kirkliston, 0.2 km away
Stonewall, 0.31 km away
Mt Sutton, 0.34 km away
Waitangi, 1.08 km away
Gibson, 3.37 km away
Awahokomo, 3.91 km away
Fern Gully, 4.21 km away
Grampian, 13.34 km away
Middle Range, 14.1 km away
Falstone, 14.51 km away
Chamberlain, 15.21 km away
Dalgety, 15.61 km away
Black Hill, 16 km away

Campbell Hills, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kirkliston, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw
Connected?	true
Directly Connected?	true
Co-rupture Count	5
Co-rupture Rate	2.272754E-5

Stonewall, 0.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mt Sutton, 0.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw
Connected?	true
Directly Connected?	true
Co-rupture Count	3
Co-rupture Rate	0.0

Waitangi, 1.08 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Gibson, 3.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Awahokomo, 3.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Fern Gully, 4.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Grampian, 13.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	1.7662526E-6

Middle Range, 14.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Falstone, 14.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Chamberlain, 15.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Dalgety, 15.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Black Hill, 16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
