Uruti Basin Details

PropertyValue
Rupture Count17,430
Ruptures Above Sect Min Mag17,274
Ruptures w/ Nonzero Rates18
Magnitude Range[5.94, 8.18]
Length Range[8, 691] km
Total Rate8.713785E-4 /yr
Multi-Fault Rate8.713785E-4 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults55

Table Of Contents

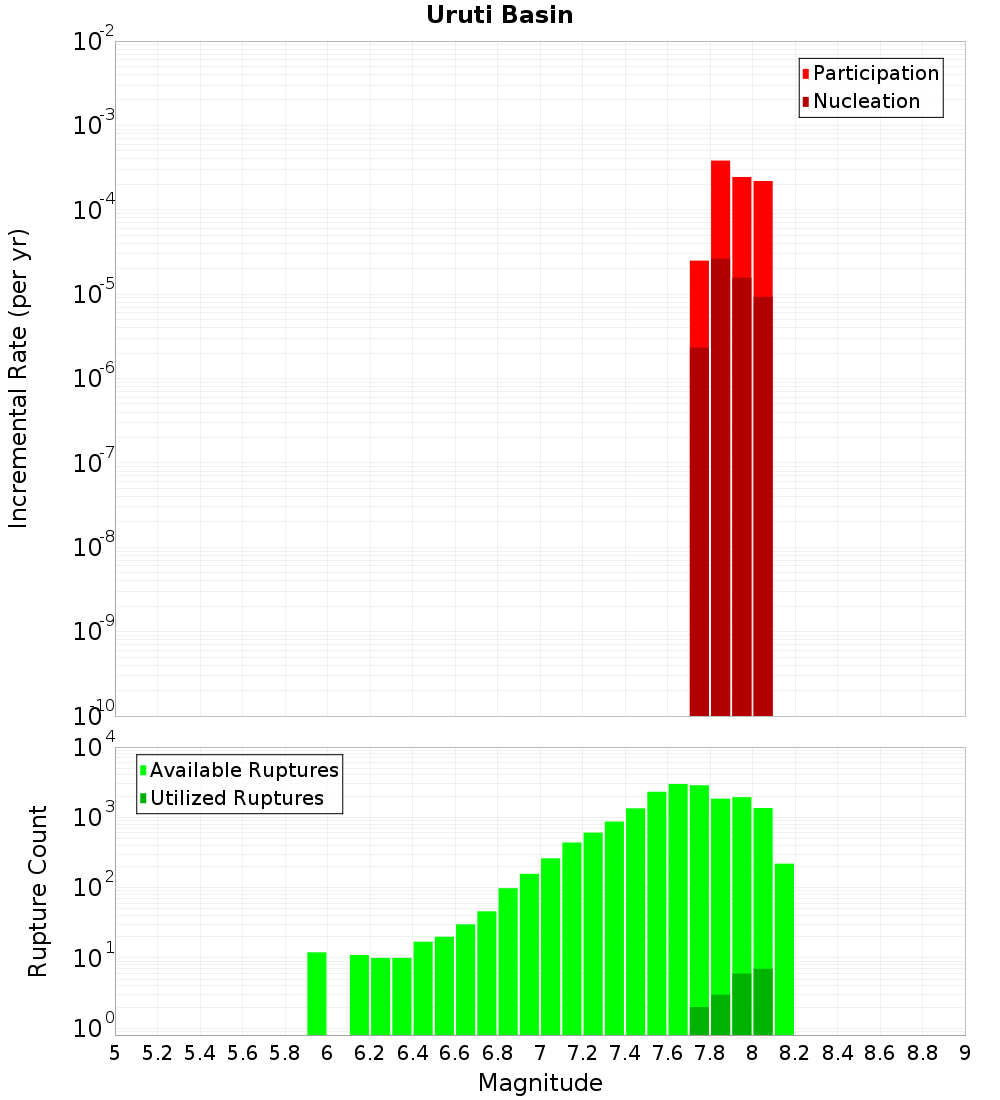

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

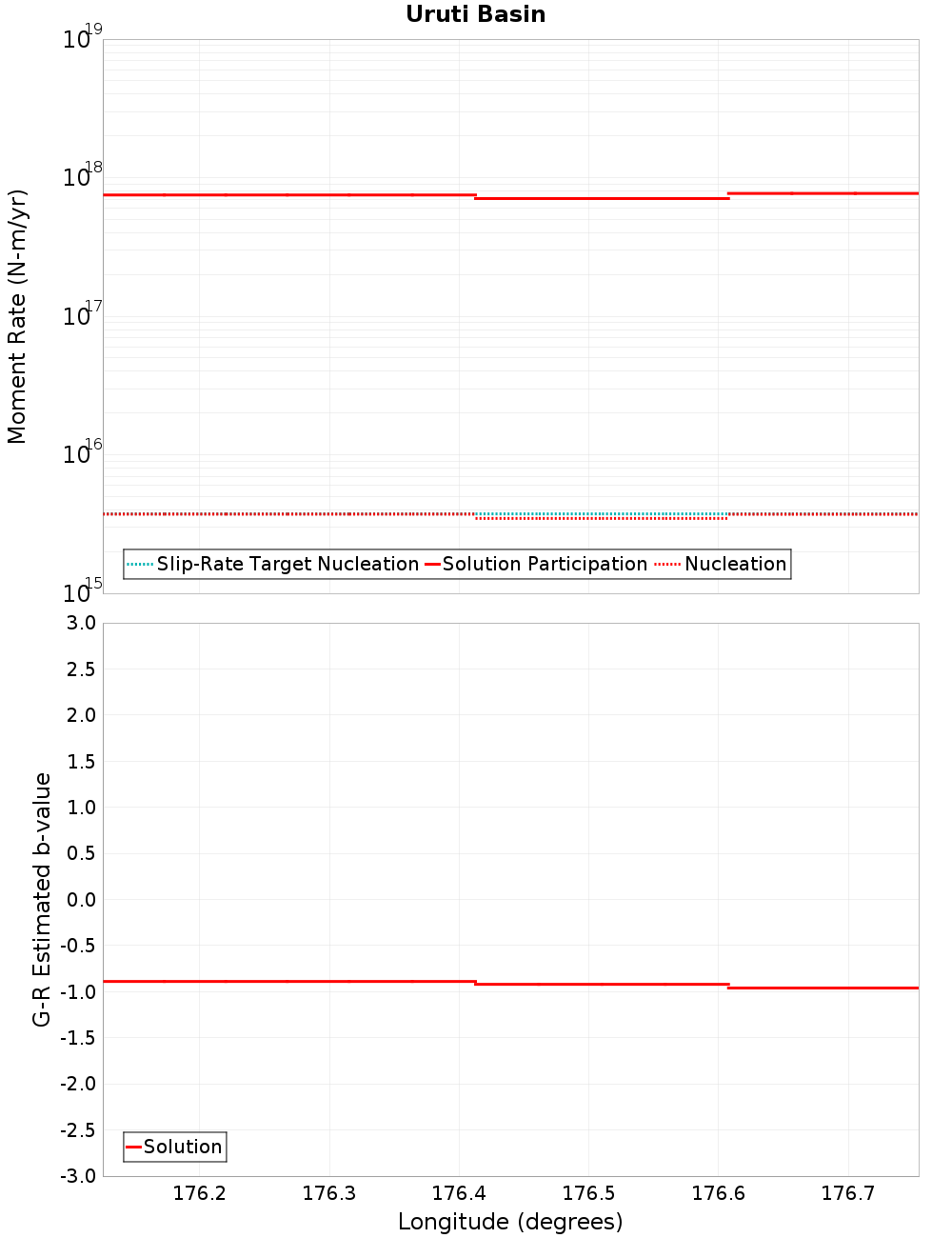

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Uruti Ridge 2, 0 km away
Uruti East - PorWest 1, 0.19 km away
Opouawe - Uruti, 0.2 km away
Uruti Basin 2, 0.22 km away
Honeycomb, 0.51 km away
Palliser - Kaiwhata, 1.36 km away
Pahaua, 1.79 km away
Whareama Bank, 3.51 km away
Riversdale, 8.5 km away
Uruti Point, 17.49 km away
Uruti North, 18.96 km away

Uruti Ridge 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw
Connected?true
Directly Connected?true
Co-rupture Count7,763
Co-rupture Rate3.7761114E-4

Uruti East - PorWest 1, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw
Connected?true
Directly Connected?true
Co-rupture Count10,058
Co-rupture Rate3.388896E-4

Opouawe - Uruti, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw
Connected?true
Directly Connected?true
Co-rupture Count5,897
Co-rupture Rate4.799881E-5

Uruti Basin 2, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw
Connected?true
Directly Connected?true
Co-rupture Count477
Co-rupture Rate6.0881852E-5

Honeycomb, 0.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw
Connected?true
Directly Connected?true
Co-rupture Count2,211
Co-rupture Rate2.2832809E-4

Palliser - Kaiwhata, 1.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw
Connected?true
Directly Connected?true
Co-rupture Count9,745
Co-rupture Rate5.7982386E-4

Pahaua, 1.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw
Connected?true
Directly Connected?true
Co-rupture Count2,026
Co-rupture Rate2.646821E-4

Whareama Bank, 3.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Riversdale, 8.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw
Connected?true
Directly Connected?true
Co-rupture Count28
Co-rupture Rate0.0

Uruti Point, 17.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw
Connected?true
Directly Connected?false
Co-rupture Count455
Co-rupture Rate0.0

Uruti North, 18.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyODcuME1oTmNw
Connected?true
Directly Connected?false
Co-rupture Count2,056
Co-rupture Rate2.0692495E-4
