Akatore Details

Property	Value
Rupture Count	38
Ruptures Above Sect Min Mag	37
Ruptures w/ Nonzero Rates	13
Magnitude Range	[7.23, 7.96]
Length Range	[27, 154] km
Total Rate	9.9789875E-5 /yr
Multi-Fault Rate	6.499E-5 /yr (65.13%)
Directly-Connected Faults	4
All Co-Rupturing Faults	8

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

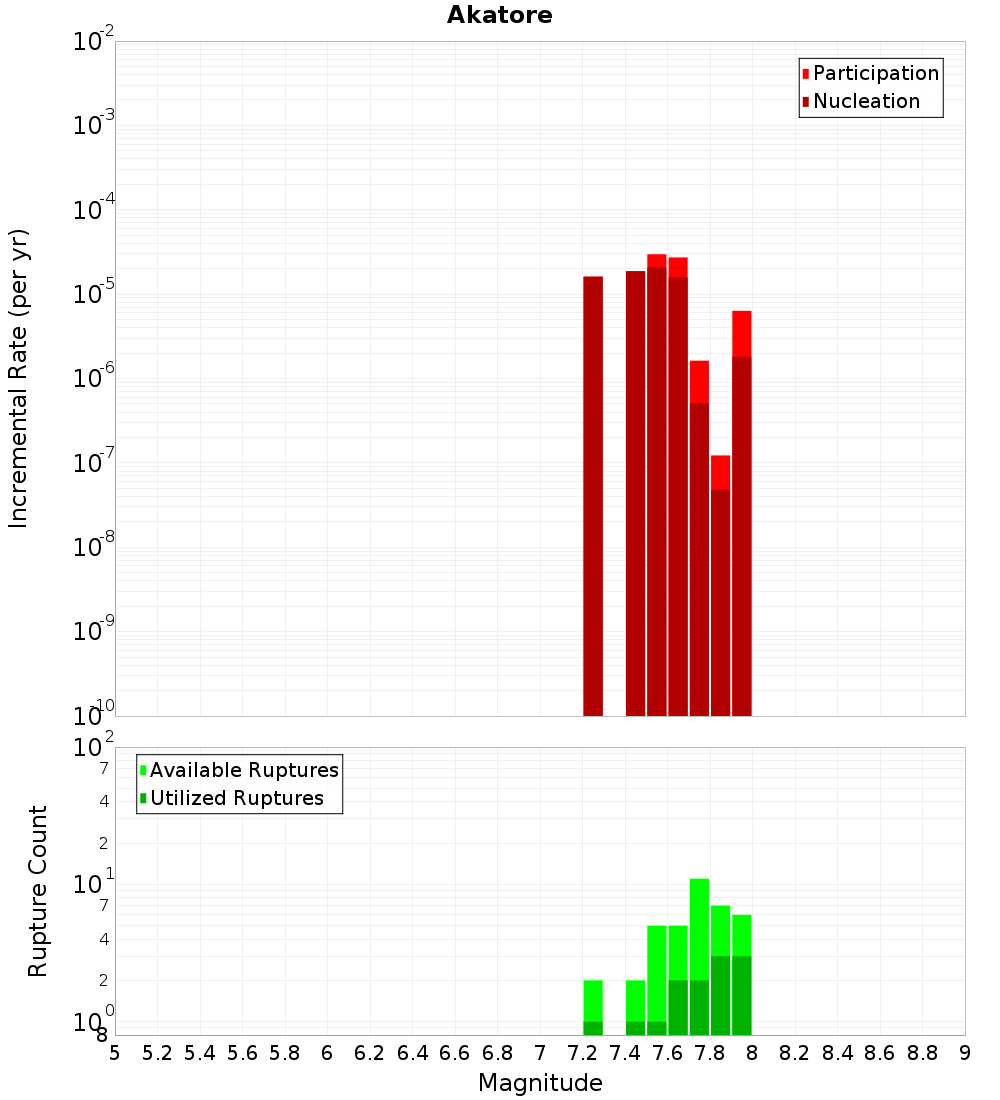

Magnitude-Frequency Distribution

Incremental	Cumulative

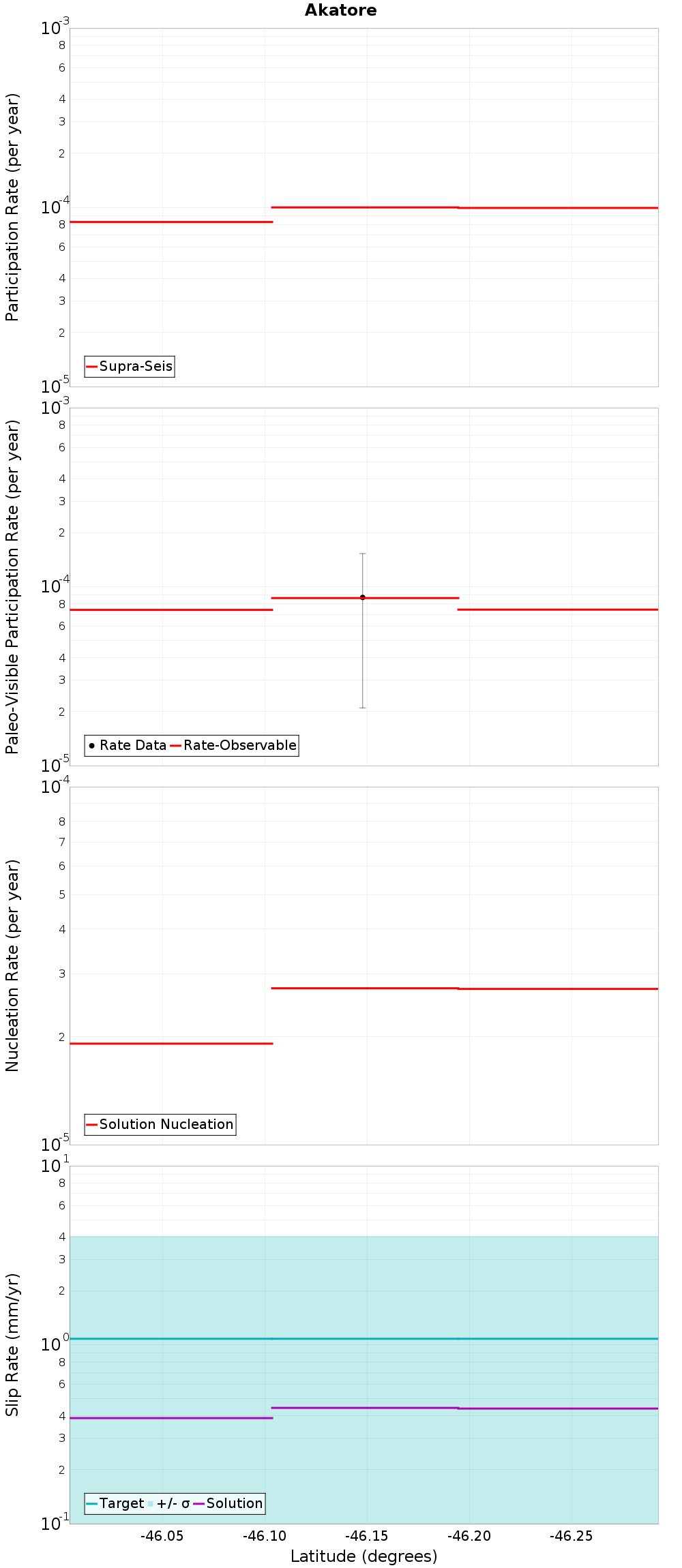

Along-Strike Values

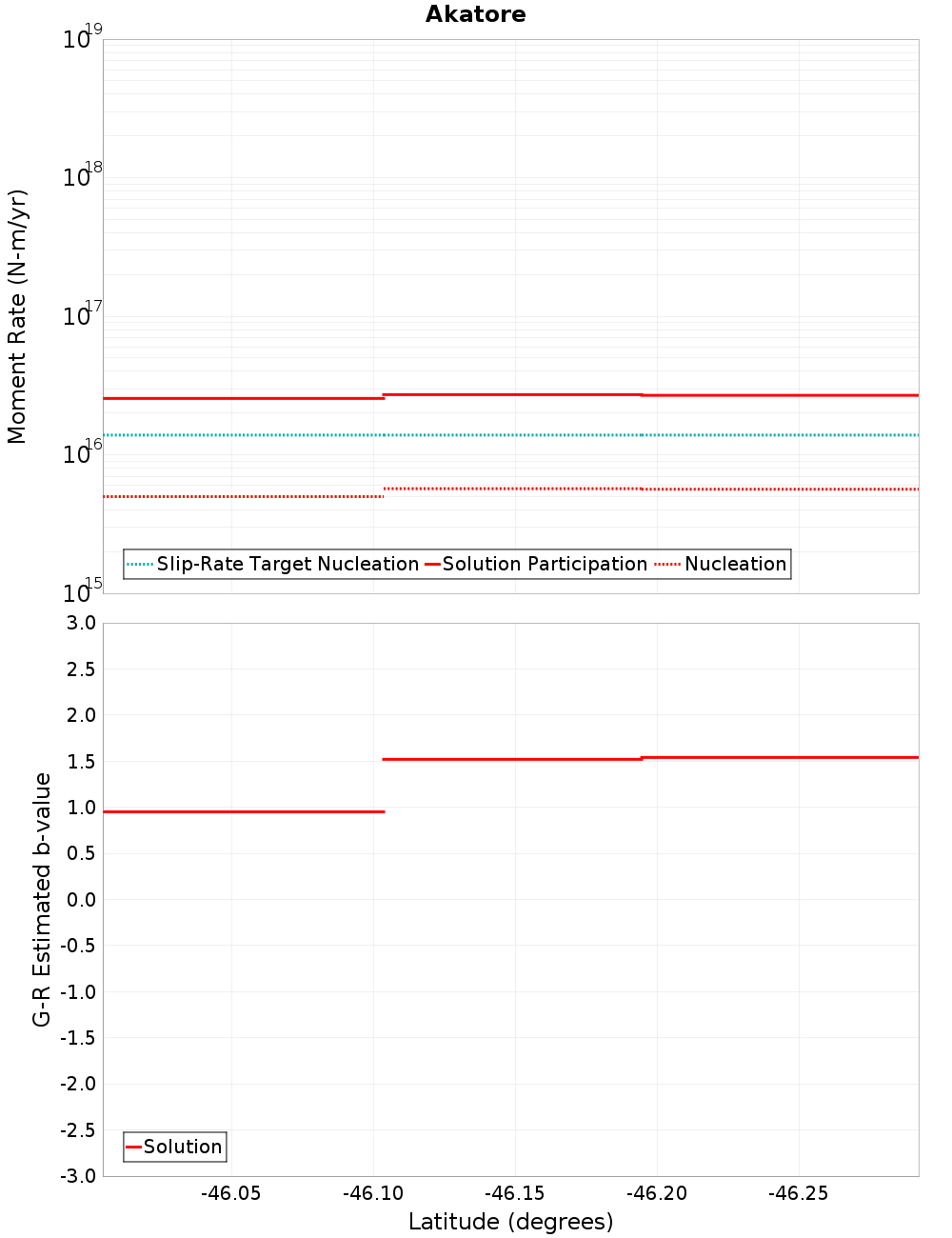

Moment-Rates and b-Values

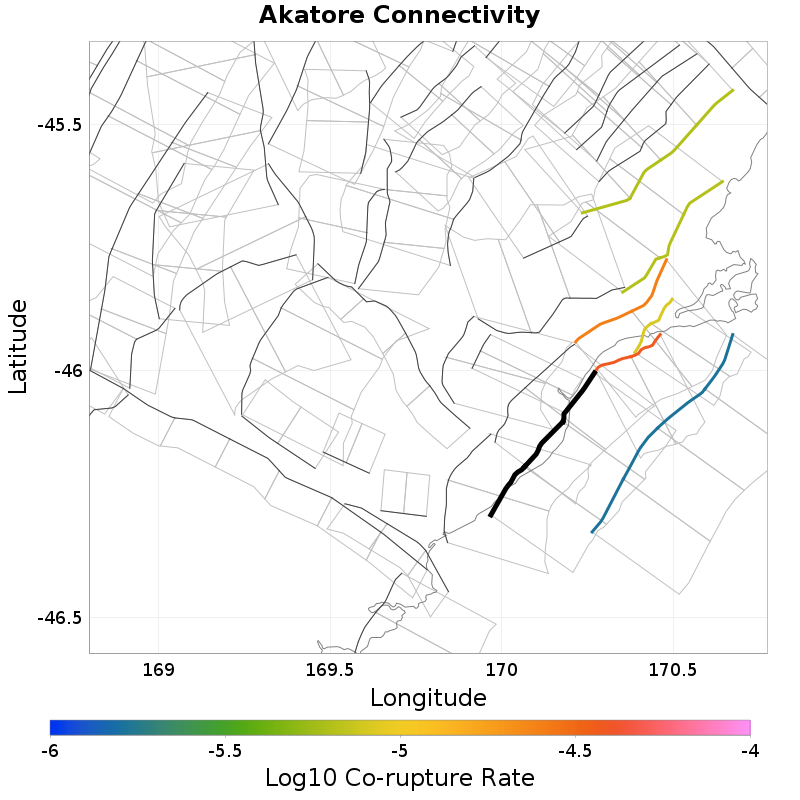

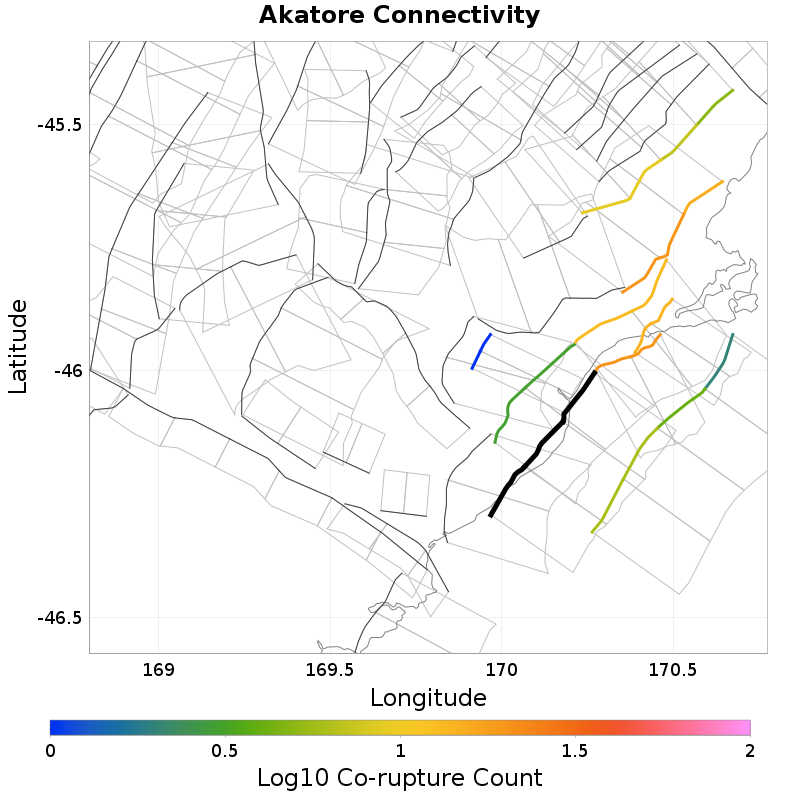

Connectivity

Nearby Sections

Fault Section
Green Island, 0.18 km away
Titri South, 5.15 km away
Titri North, 5.17 km away
Titri Central, 5.52 km away
Kaikorai, 9.64 km away
Takapu, 12.82 km away
Otanomomo, 14.48 km away
Tuapeka, 14.57 km away
Maungatua - North Taieri, 15.44 km away
Waitahuna 1, 15.54 km away
Waitahuna 2, 16.32 km away
Little Hillfoot, 16.66 km away
Hillfoot, 18.87 km away
Sliver Stream - Merton, 19.3 km away

Green Island, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo
Connected?	true
Directly Connected?	true
Co-rupture Count	20
Co-rupture Rate	3.7977374E-5

Titri South, 5.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Titri North, 5.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo
Connected?	true
Directly Connected?	true
Co-rupture Count	13
Co-rupture Rate	2.5385552E-5

Titri Central, 5.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo
Connected?	true
Directly Connected?	true
Co-rupture Count	3
Co-rupture Rate	0.0

Kaikorai, 9.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo
Connected?	true
Directly Connected?	false
Co-rupture Count	14
Co-rupture Rate	8.29284E-6

Takapu, 12.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo
Connected?	true
Directly Connected?	true
Co-rupture Count	6
Co-rupture Rate	1.6316277E-6

Otanomomo, 14.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Tuapeka, 14.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Maungatua - North Taieri, 15.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waitahuna 1, 15.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waitahuna 2, 16.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Little Hillfoot, 16.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hillfoot, 18.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Sliver Stream - Merton, 19.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo
Connected?	true
Directly Connected?	false
Co-rupture Count	20
Co-rupture Rate	6.4647306E-6
