Awanui Details
| Property | Value |
|---|---|
| Rupture Count | 1,456 |
| Ruptures Above Sect Min Mag | 1,454 |
| Ruptures w/ Nonzero Rates | 10 |
| Magnitude Range | [7.35, 8.37] |
| Length Range | [32, 500] km |
| Total Rate | 1.3006944E-4 /yr |
| Multi-Fault Rate | 1.3006944E-4 /yr (100.00%) |
| Directly-Connected Faults | 6 |
| All Co-Rupturing Faults | 46 |
Table Of Contents

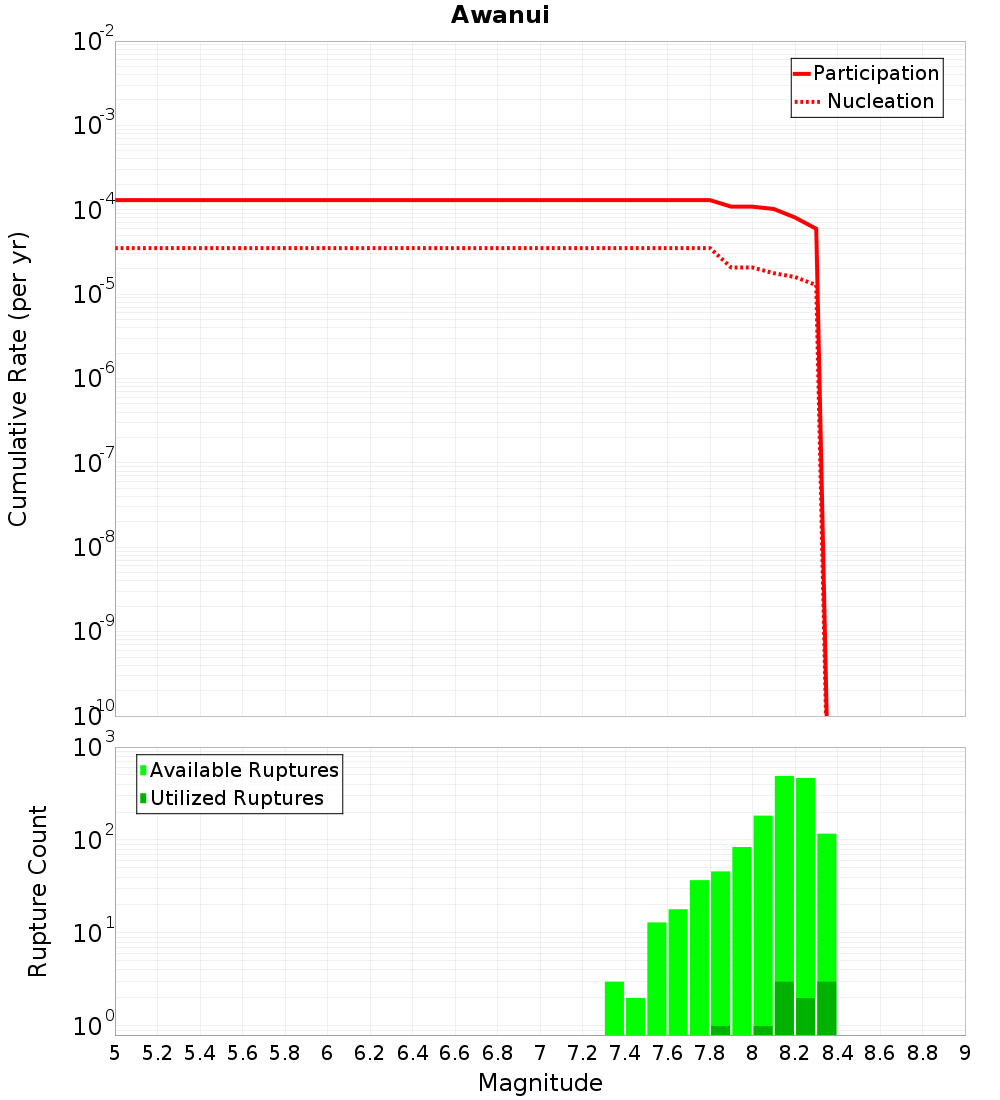

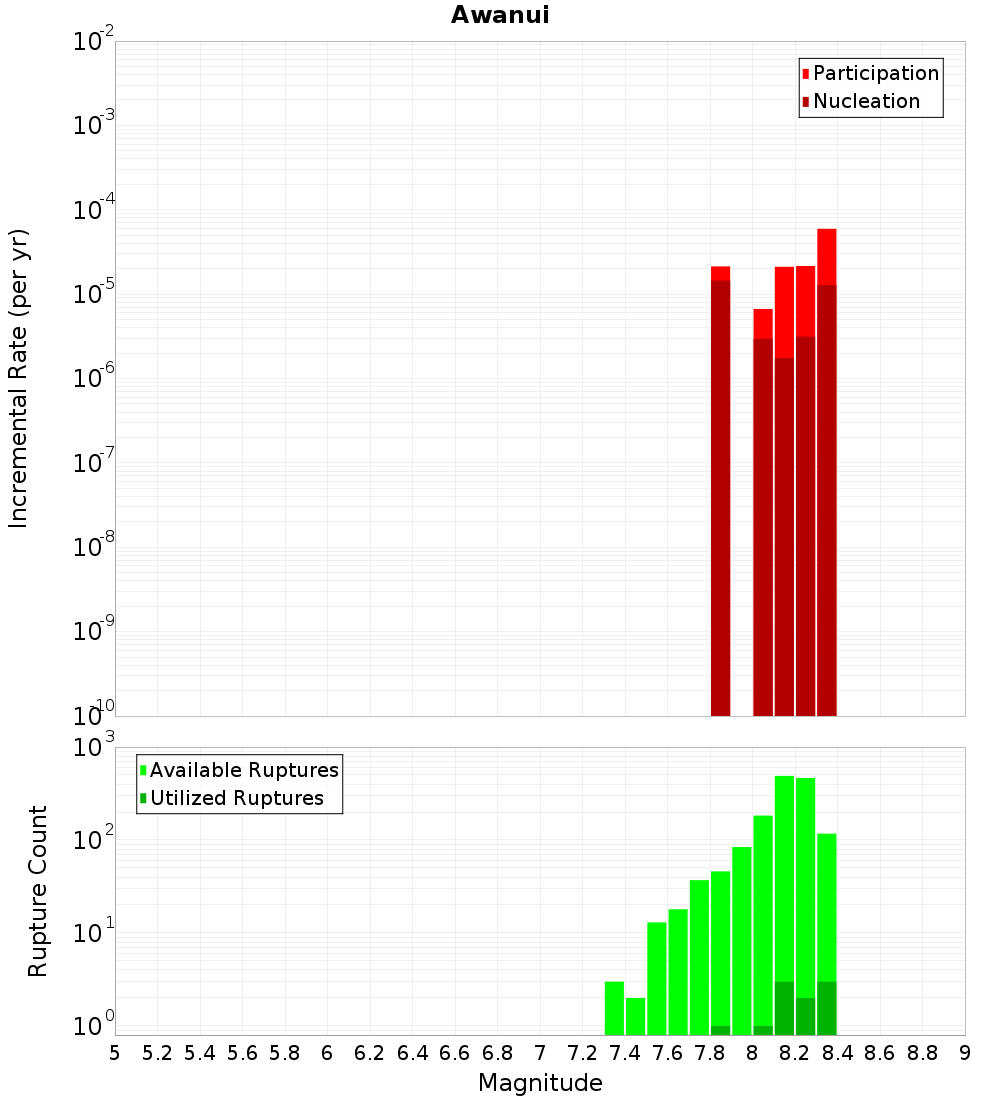

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

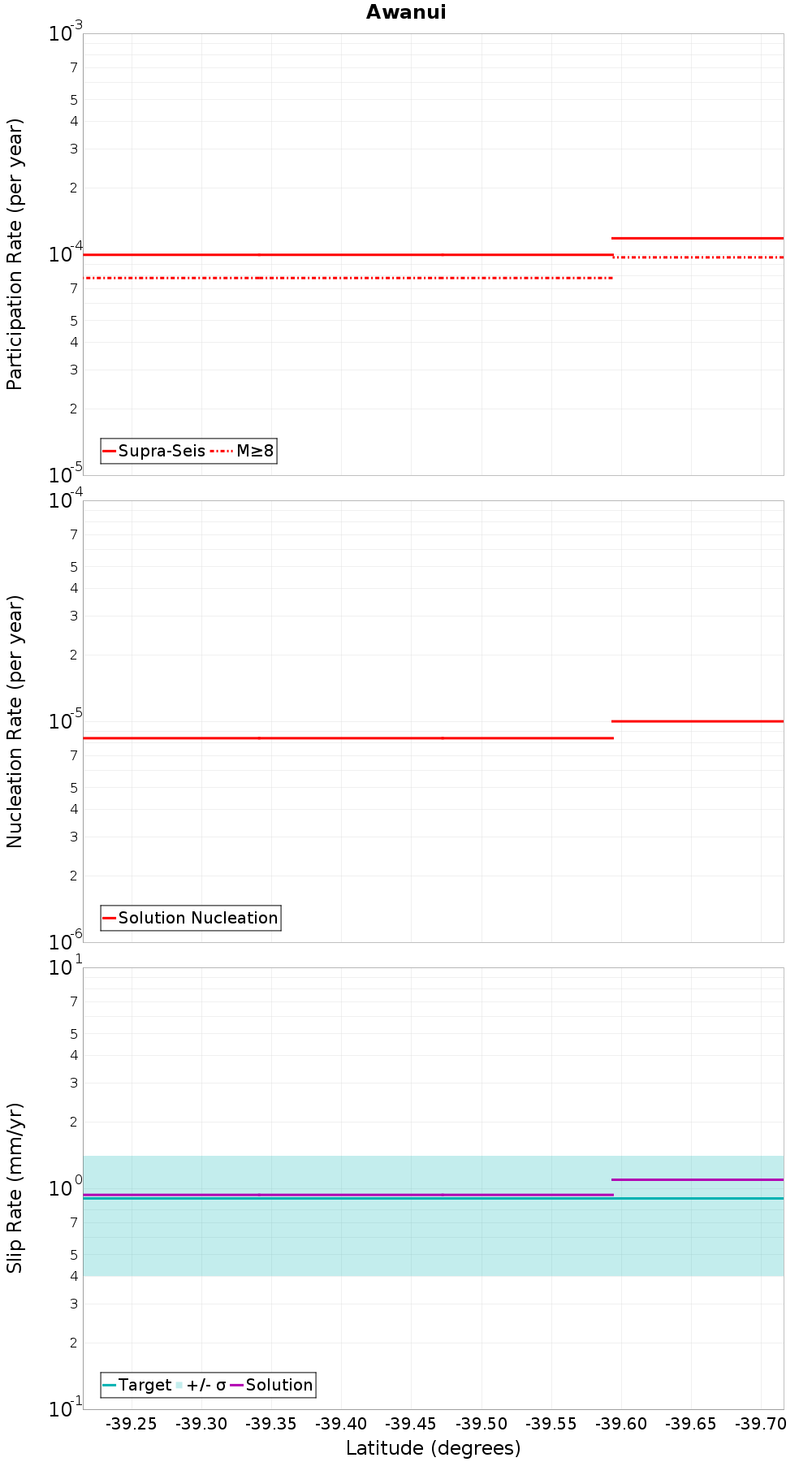

Along-Strike Values
Moment-Rates and b-Values

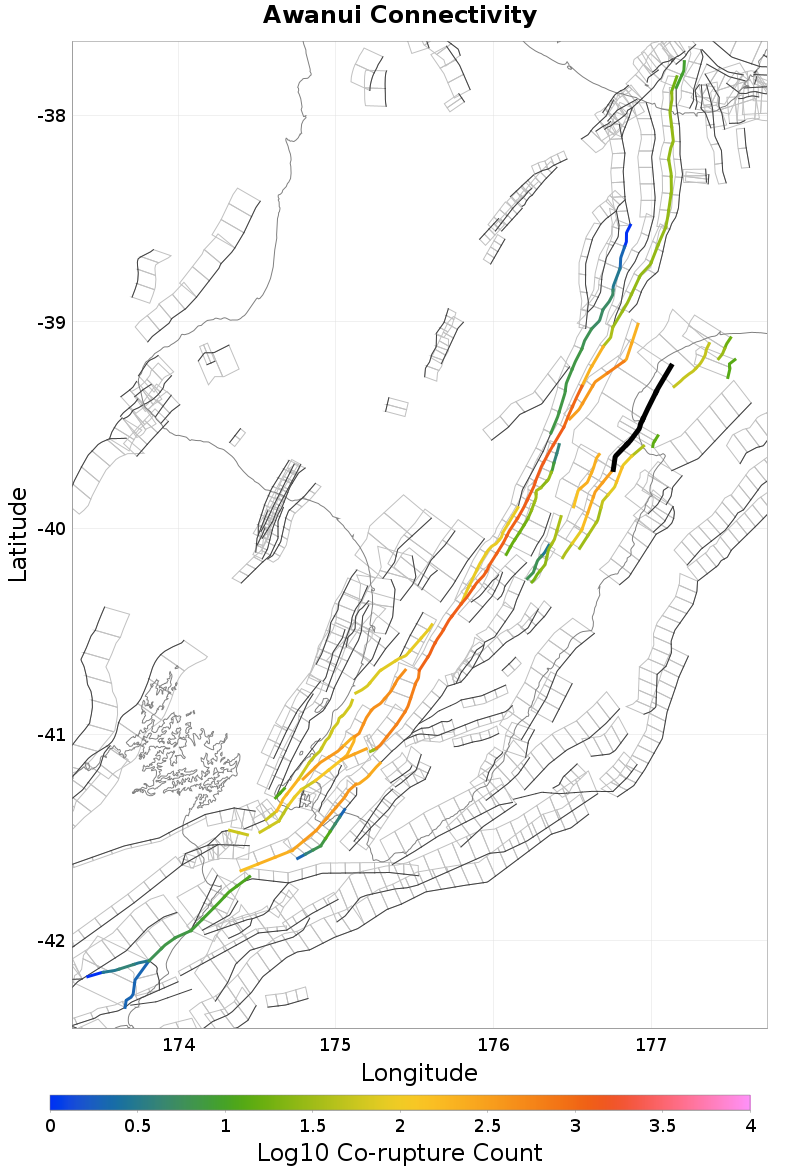

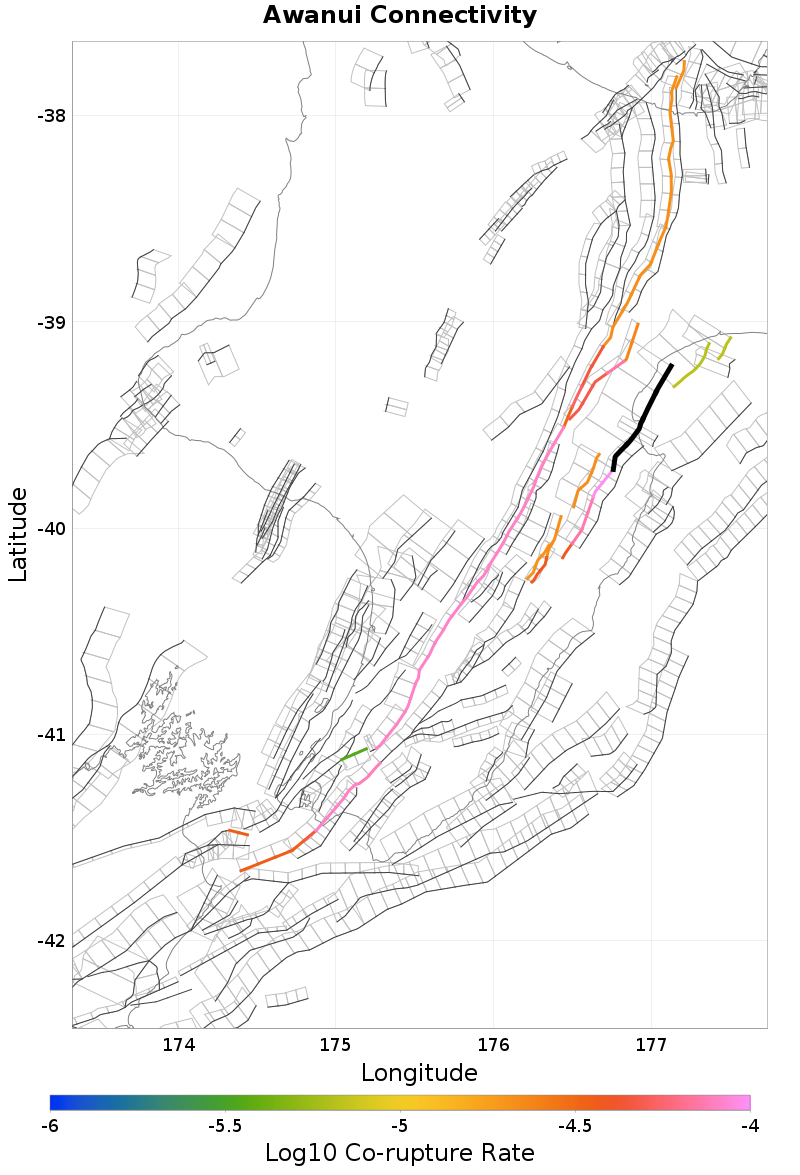

Connectivity
 |  |
|---|
Nearby Sections
Waipukurau - Poukawa, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 307 |
| Co-rupture Rate | 9.7038814E-5 |
Te Heka, 0.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 223 |
| Co-rupture Rate | 2.1086671E-5 |
Patoka - Rangiora, 0.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 657 |
| Co-rupture Rate | 7.13774E-5 |
Tukituki Thrust, 3.54 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 196 |
| Co-rupture Rate | 0.0 |
Hawke Bay 1, 4.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 52 |
| Co-rupture Rate | 6.67351E-6 |
Hawke Bay 8, 6.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 14 |
| Co-rupture Rate | 0.0 |
Mohaka: North, 7.77 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 1,047 |
| Co-rupture Rate | 5.417823E-5 |
Mohaka: South, 9.59 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1,300 |
| Co-rupture Rate | 8.099284E-5 |
Ruahine: North, 14.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 7 |
| Co-rupture Rate | 0.0 |
Whakatane: South, 15.26 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waimana: South, 15.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 29 |
| Co-rupture Rate | 2.1086671E-5 |
Ruahine: Central, 15.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waiotahi: South, 16.94 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Wakarara, 17.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 28 |
| Co-rupture Rate | 0.0 |
Kidnappers Ridge, 18.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waimarama 1 & 2, 19.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
