Kelly Details

PropertyValue
Rupture Count105,413
Ruptures Above Sect Min Mag105,352
Ruptures w/ Nonzero Rates65
Magnitude Range[6.23, 8.64]
Length Range[9, 1,156] km
Total Rate0.0017384823 /yr
Multi-Fault Rate0.0017384823 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults103

Table Of Contents

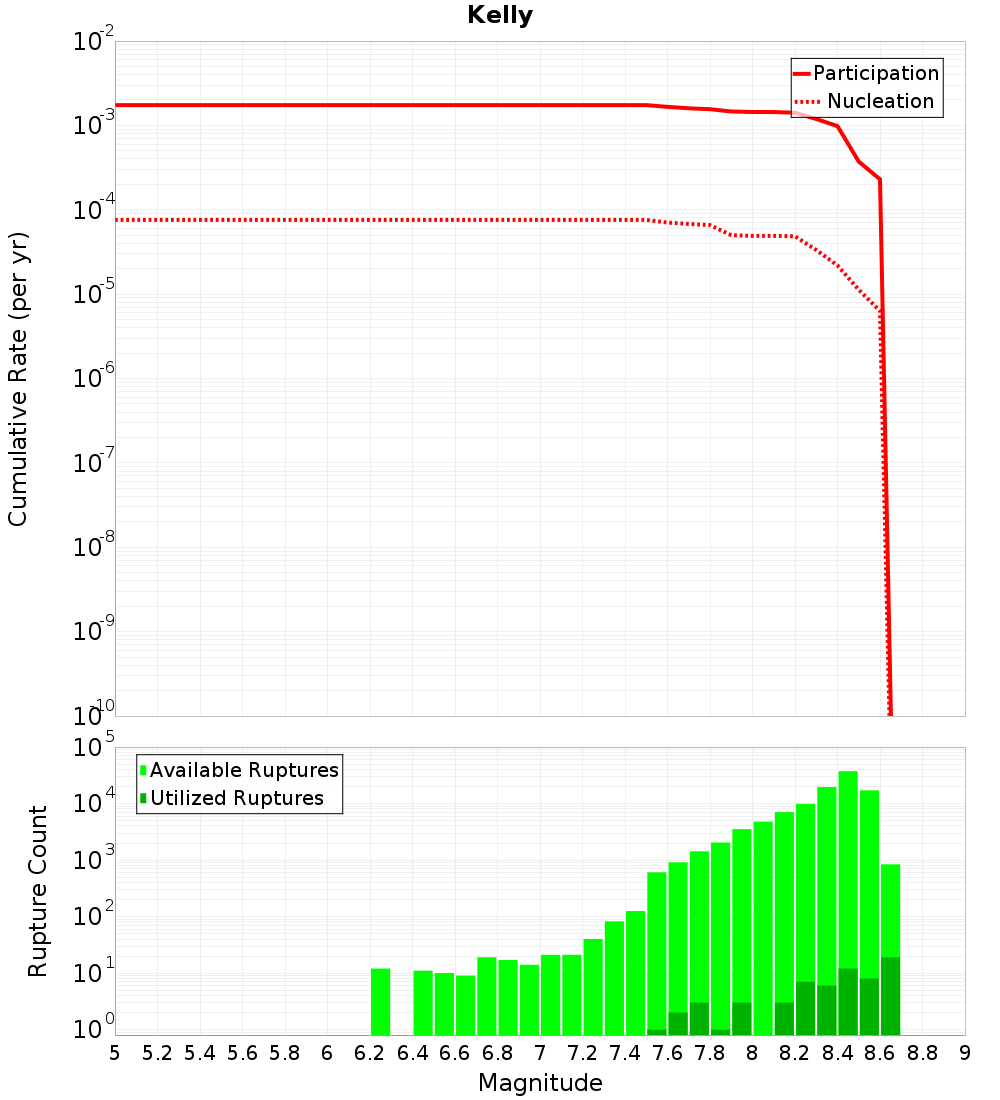

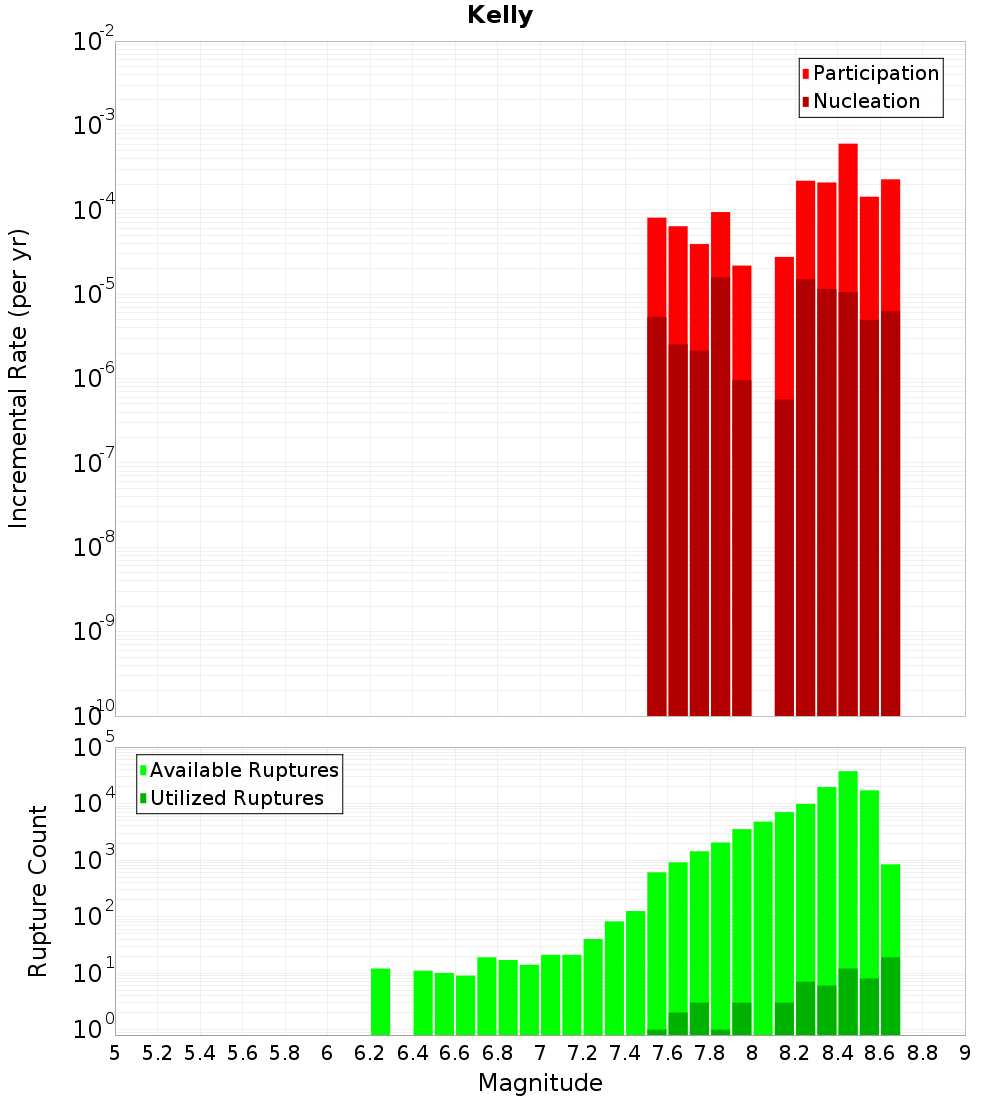

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

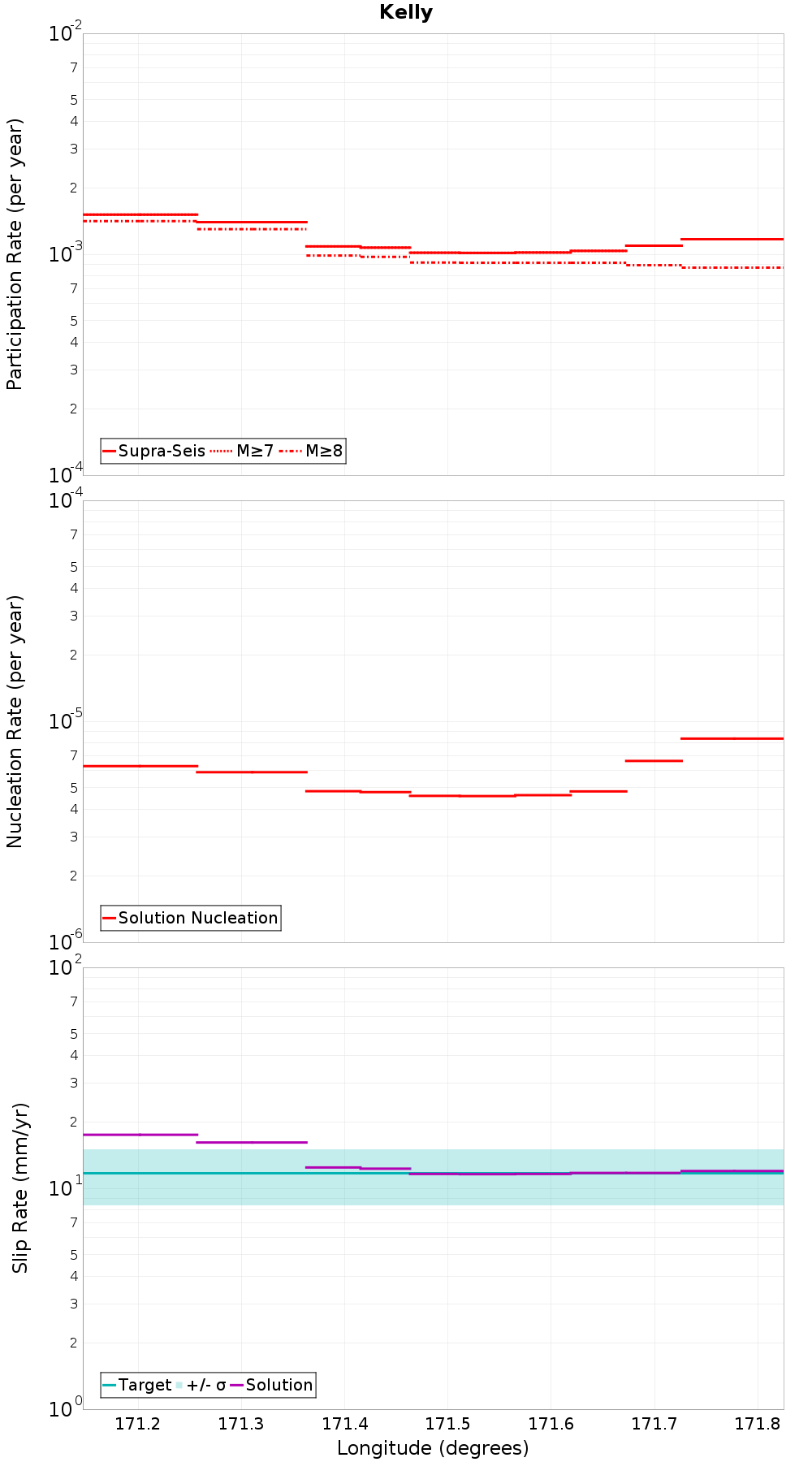

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

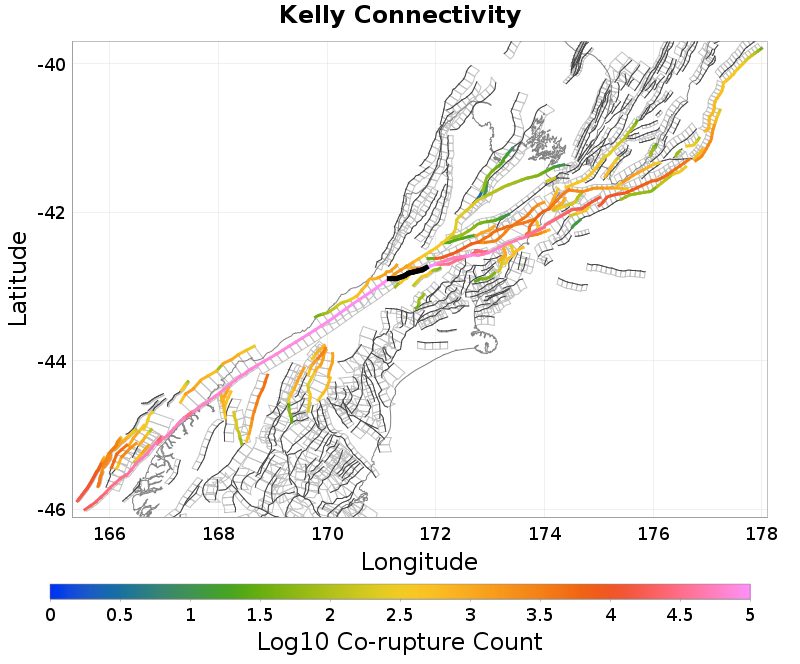

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Jacksons to Kaniere, 0 km away
Hope: Hurunui, 0 km away
Hope: Taramakau, 0 km away
Alpine: Kaniere to Springs Junction, 0 km away
Browning Pass, 0.05 km away
Hohonu: South, 0.17 km away
Poulter, 9.51 km away
Clarence: Southwest, 13.21 km away
Kakapo, 14.38 km away
Hope: Hope River, 14.38 km away
Cape Foulwind 1, 16.69 km away
Maimai: South, 17.54 km away

Alpine: Jacksons to Kaniere, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo
Connected?true
Directly Connected?true
Co-rupture Count93,471
Co-rupture Rate0.0014115822

Hope: Hurunui, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo
Connected?true
Directly Connected?true
Co-rupture Count97,453
Co-rupture Rate0.0011689987

Hope: Taramakau, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo
Connected?true
Directly Connected?true
Co-rupture Count8,156
Co-rupture Rate1.0784253E-4

Alpine: Kaniere to Springs Junction, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo
Connected?true
Directly Connected?true
Co-rupture Count1,805
Co-rupture Rate9.891826E-5

Browning Pass, 0.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo
Connected?true
Directly Connected?true
Co-rupture Count416
Co-rupture Rate0.0

Hohonu: South, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo
Connected?true
Directly Connected?true
Co-rupture Count1,301
Co-rupture Rate0.0

Poulter, 9.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo
Connected?true
Directly Connected?true
Co-rupture Count374
Co-rupture Rate9.7996985E-5

Clarence: Southwest, 13.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo
Connected?true
Directly Connected?false
Co-rupture Count7,820
Co-rupture Rate2.4487827E-5

Kakapo, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo
Connected?true
Directly Connected?false
Co-rupture Count33,991
Co-rupture Rate4.5966468E-4

Hope: Hope River, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo
Connected?true
Directly Connected?false
Co-rupture Count62,680
Co-rupture Rate7.09334E-4

Cape Foulwind 1, 16.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maimai: South, 17.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
