Te Anau Details
| Property | Value |
|---|---|
| Rupture Count | 25 |
| Ruptures Above Sect Min Mag | 21 |
| Ruptures w/ Nonzero Rates | 1 |
| Magnitude Range | [7.06, 7.73] |
| Length Range | [24, 110] km |
| Total Rate | 7.4876756E-5 /yr |
| Multi-Fault Rate | 7.4876756E-5 /yr (100.00%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 1 |
Table Of Contents

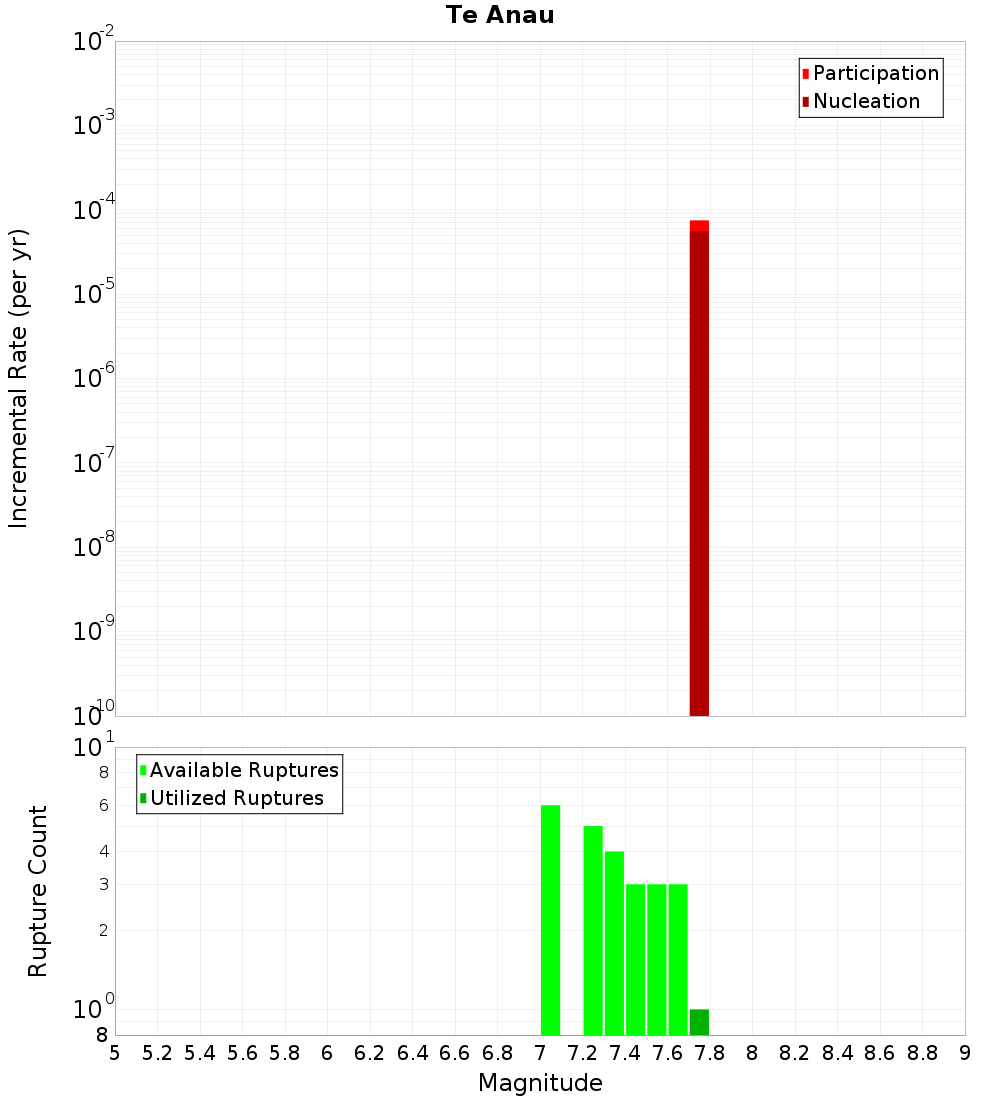

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

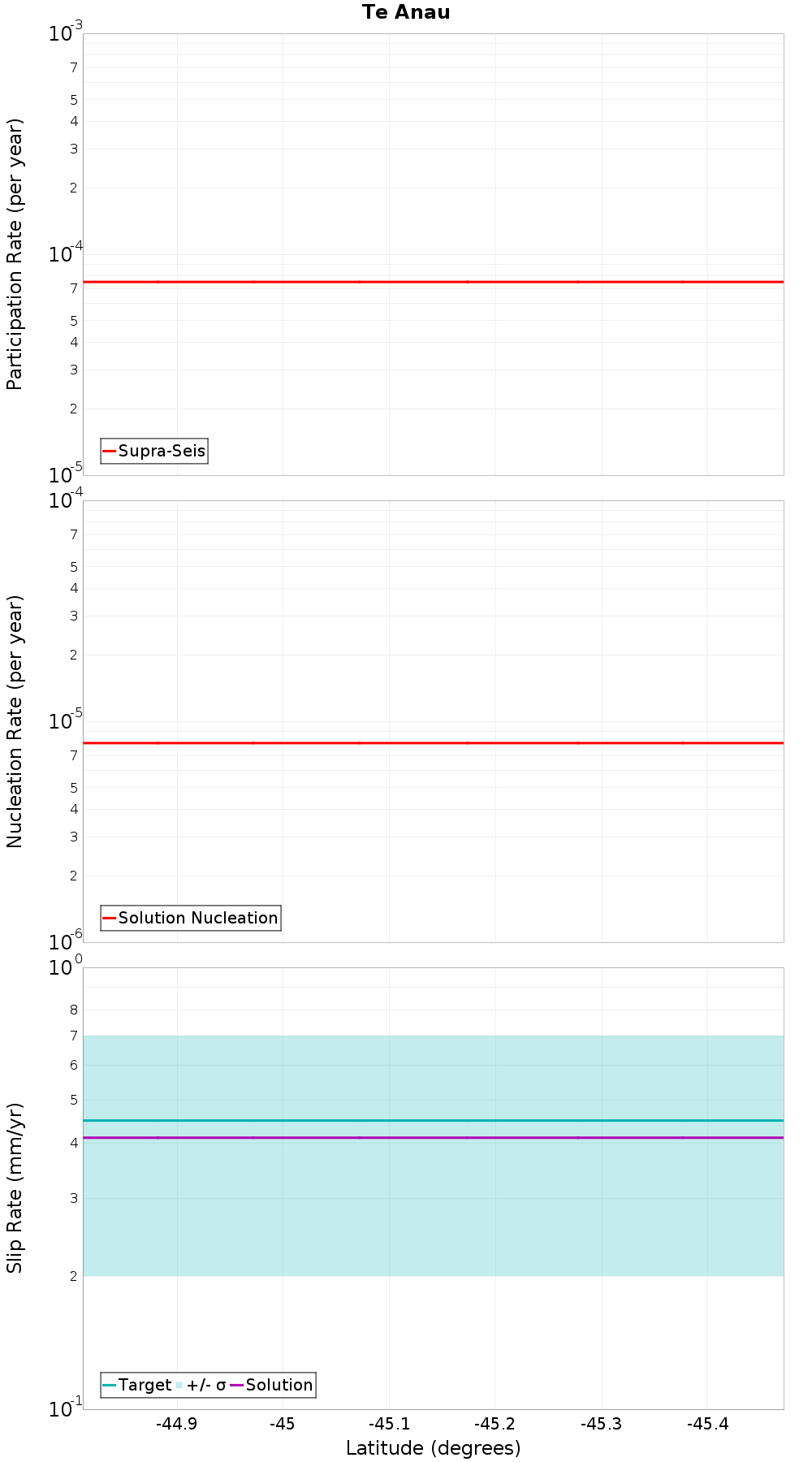

Along-Strike Values
Moment-Rates and b-Values

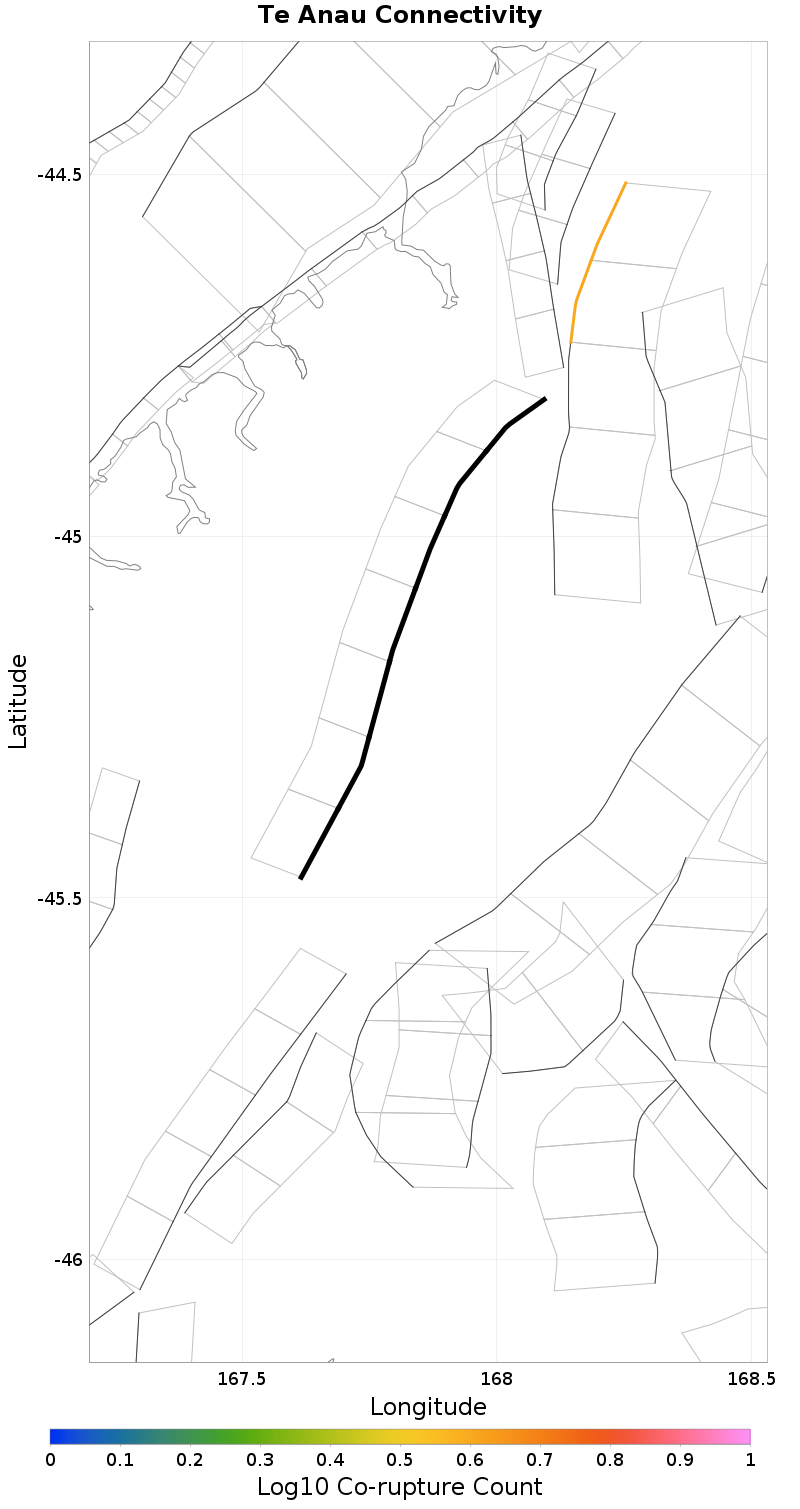

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Livingstone, 3.81 km away |
| Darran, 4.52 km away |
| Hauroko: North, 15.13 km away |
| West Wakatipu, 17.12 km away |
| Hollyford, 17.17 km away |
Livingstone, 3.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4 |
| Co-rupture Rate | 7.4876756E-5 |
Darran, 4.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hauroko: North, 15.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
West Wakatipu, 17.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hollyford, 17.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYyOTkuMFdRcVlo | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
