Madagascar Details

Property	Value
Rupture Count	3,191
Ruptures Above Sect Min Mag	3,189
Ruptures w/ Nonzero Rates	12
Magnitude Range	[7.03, 8.37]
Length Range	[29, 807] km
Total Rate	2.2560188E-4 /yr
Multi-Fault Rate	2.2560188E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	54

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

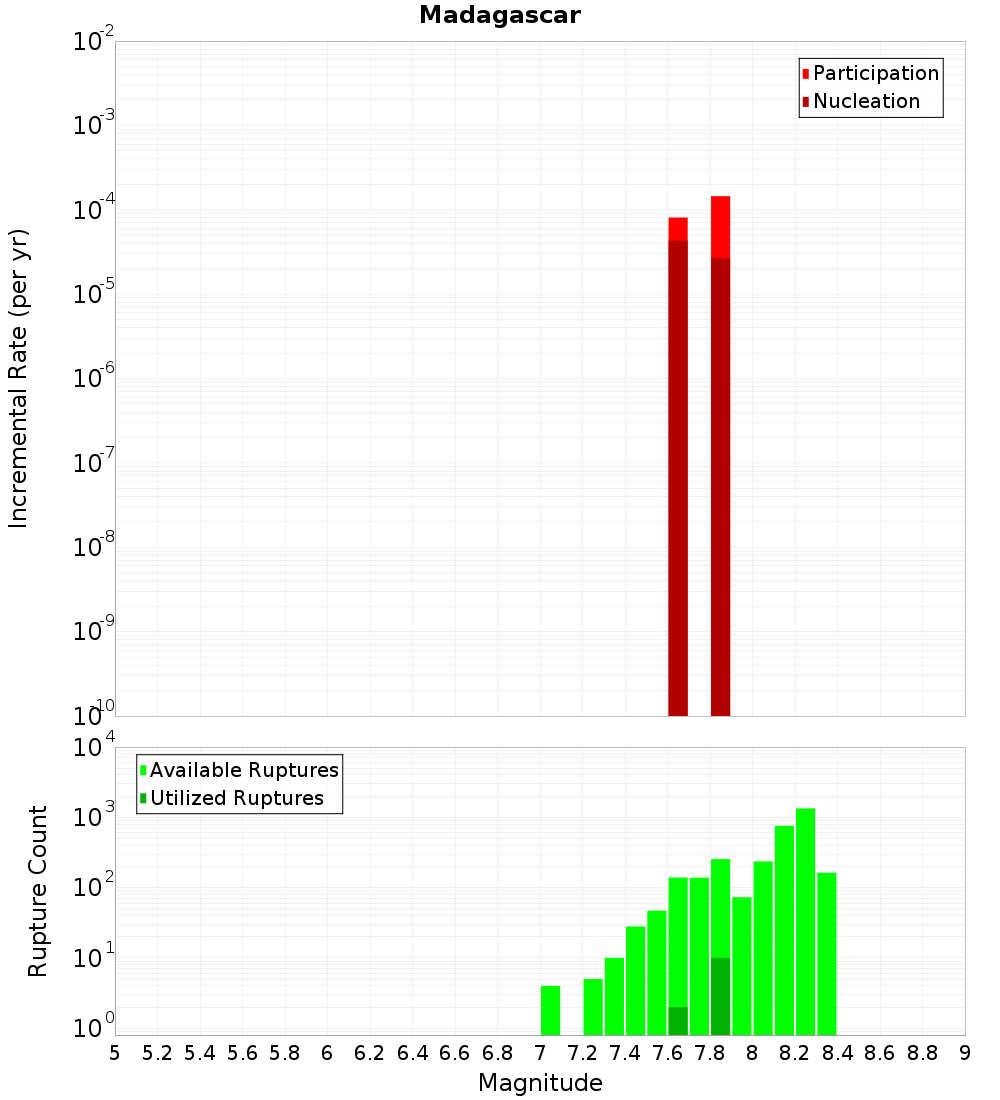

Magnitude-Frequency Distribution

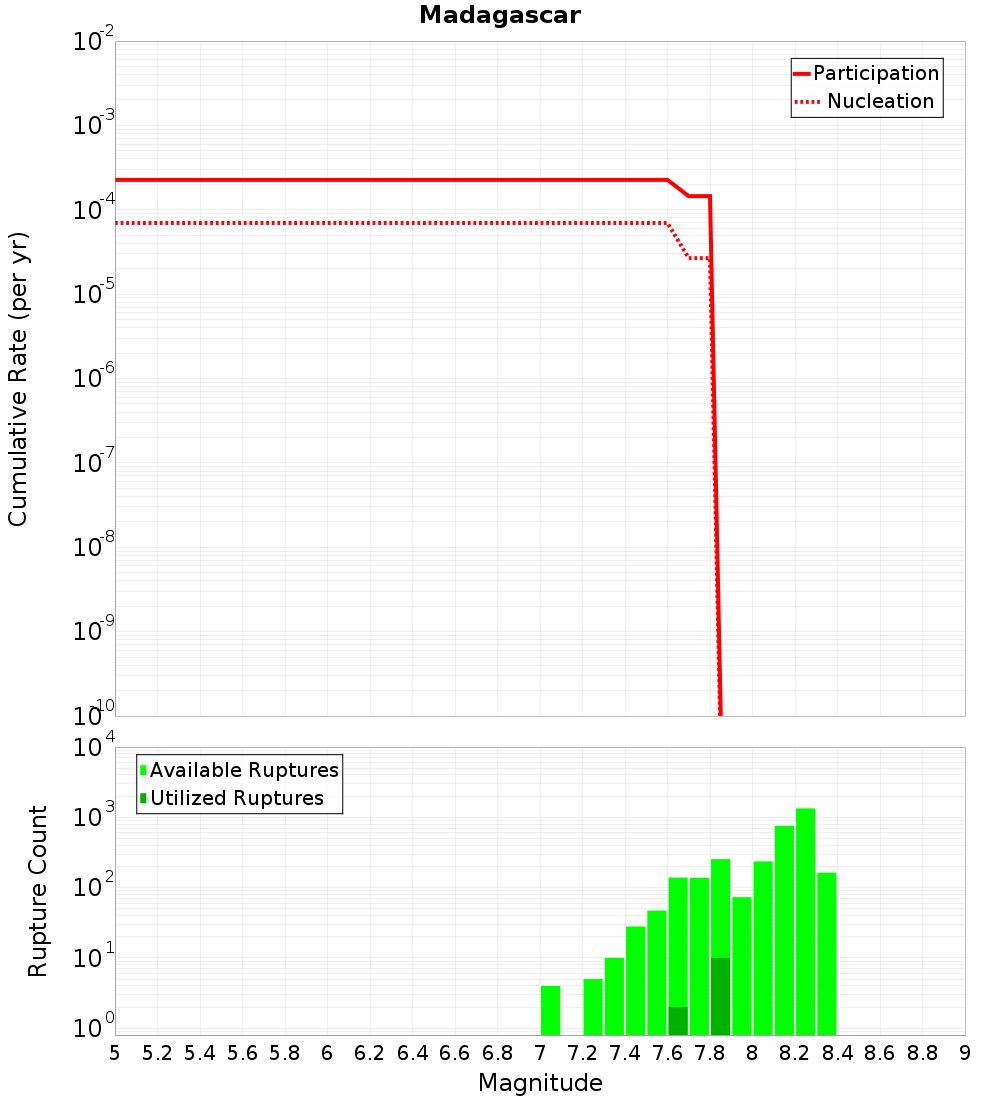

Incremental	Cumulative

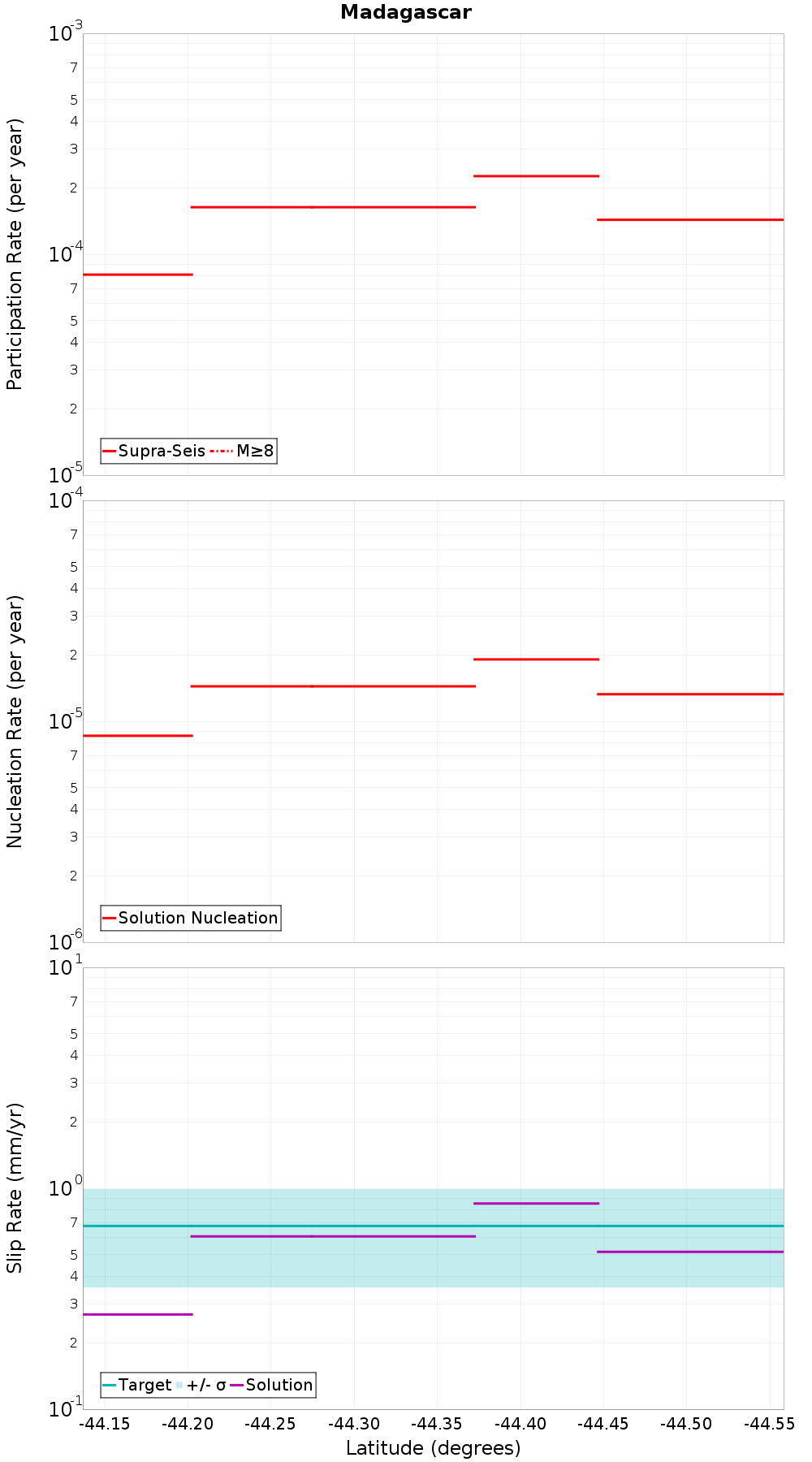

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Barn, 0 km away
Alpine: George landward, 0.16 km away
Alpine: George seaward, 0.27 km away
Alpine: George to Jacksons, 0.81 km away
Skippers, 1.59 km away
Milford Basin 5 to George R2, 7.3 km away
Darran, 7.33 km away
Hollyford, 8.84 km away
Alpine: Caswell - South George, 12.23 km away

Barn, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDEuMFlHc1Nx
Connected?	true
Directly Connected?	true
Co-rupture Count	766
Co-rupture Rate	8.080485E-5

Alpine: George landward, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDEuMFlHc1Nx
Connected?	true
Directly Connected?	false
Co-rupture Count	168
Co-rupture Rate	4.552546E-5

Alpine: George seaward, 0.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDEuMFlHc1Nx
Connected?	true
Directly Connected?	false
Co-rupture Count	174
Co-rupture Rate	9.9271565E-5

Alpine: George to Jacksons, 0.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDEuMFlHc1Nx
Connected?	true
Directly Connected?	true
Co-rupture Count	3,005
Co-rupture Rate	1.4479703E-4

Skippers, 1.59 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDEuMFlHc1Nx
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Milford Basin 5 to George R2, 7.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDEuMFlHc1Nx
Connected?	true
Directly Connected?	true
Co-rupture Count	1,081
Co-rupture Rate	1.1819209E-4

Darran, 7.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDEuMFlHc1Nx
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hollyford, 8.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDEuMFlHc1Nx
Connected?	true
Directly Connected?	true
Co-rupture Count	2
Co-rupture Rate	0.0

Alpine: Caswell - South George, 12.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDEuMFlHc1Nx
Connected?	true
Directly Connected?	false
Co-rupture Count	342
Co-rupture Rate	1.4479703E-4
