South Wedge 5 Details

Property	Value
Rupture Count	24,268
Ruptures Above Sect Min Mag	24,262
Ruptures w/ Nonzero Rates	45
Magnitude Range	[6.76, 8.40]
Length Range	[21, 903] km
Total Rate	7.33313E-4 /yr
Multi-Fault Rate	7.33313E-4 /yr (100.00%)
Directly-Connected Faults	9
All Co-Rupturing Faults	59

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

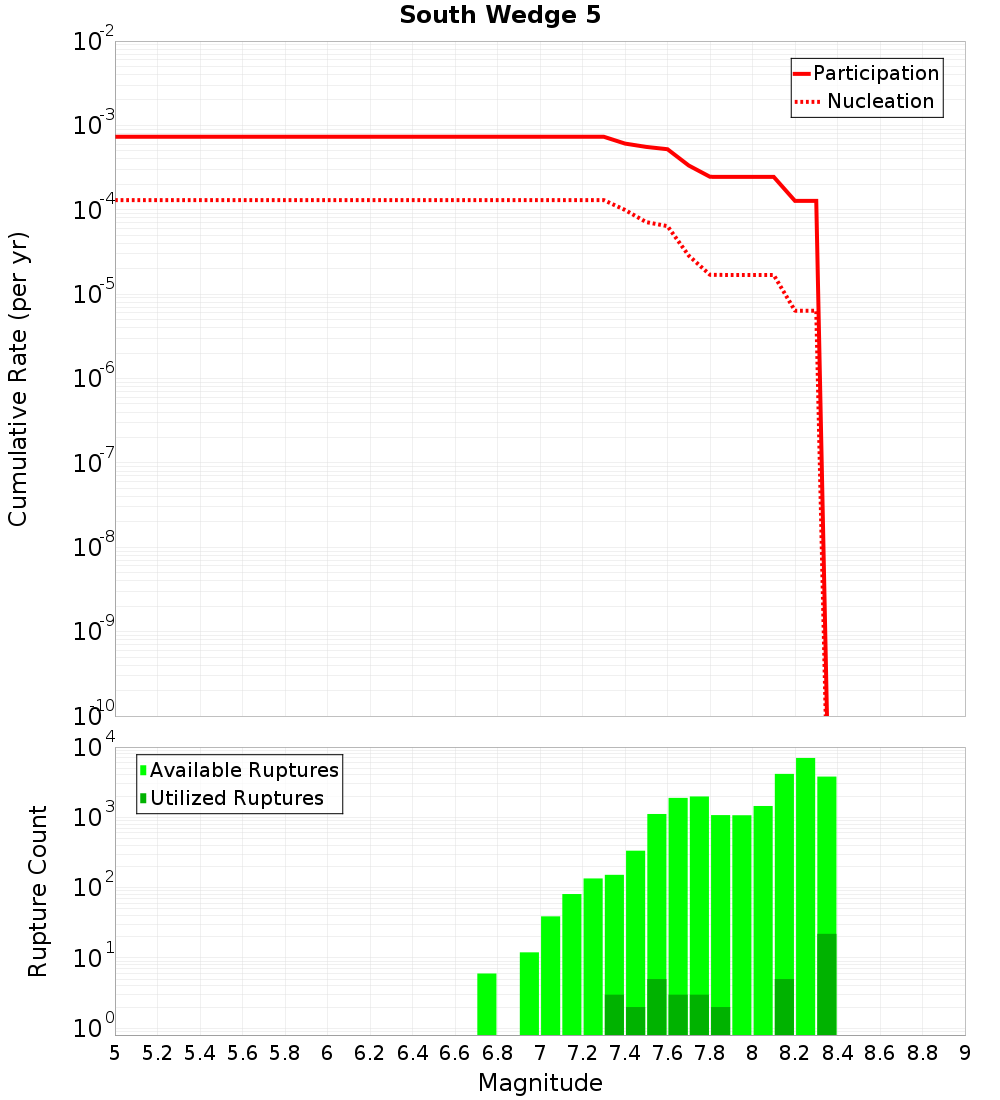

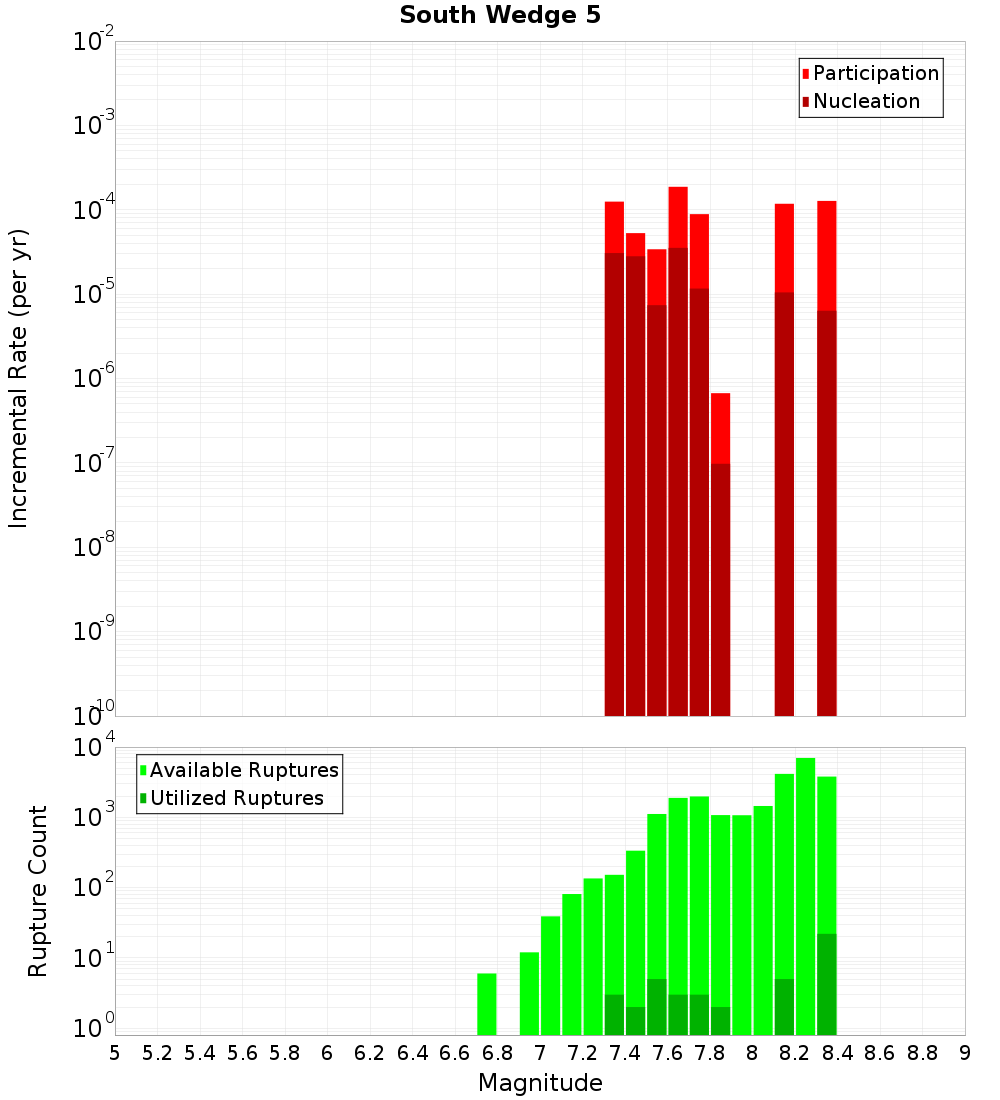

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Alpine: Resolution - Five Fingers, 0.13 km away
South Wedge 3-6-10, 0.46 km away
Central Wedge 4 - South Wedge 411, 1.31 km away
Alpine: Resolution - Dagg, 5.57 km away
Caswell High 5, 6.15 km away
Caswell High 3, 6.15 km away
South Wedge 2, 6.48 km away
Caswell High 4, 7.73 km away
Caswell 211, 9.47 km away
South Wedge 1, 10.53 km away
Caswell High 1, 13.27 km away
Five Fingers, 15.44 km away
Caswell High 67, 15.54 km away

Alpine: Resolution - Five Fingers, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDEuMFlHc1Nx
Connected?	true
Directly Connected?	true
Co-rupture Count	247
Co-rupture Rate	1.3672172E-4

South Wedge 3-6-10, 0.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDEuMFlHc1Nx
Connected?	true
Directly Connected?	true
Co-rupture Count	2,476
Co-rupture Rate	5.8302307E-4

Central Wedge 4 - South Wedge 411, 1.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDEuMFlHc1Nx
Connected?	true
Directly Connected?	true
Co-rupture Count	4,844
Co-rupture Rate	2.6255695E-4

Alpine: Resolution - Dagg, 5.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDEuMFlHc1Nx
Connected?	true
Directly Connected?	true
Co-rupture Count	19,688
Co-rupture Rate	3.8246735E-4

Caswell High 5, 6.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDEuMFlHc1Nx
Connected?	true
Directly Connected?	true
Co-rupture Count	7,251
Co-rupture Rate	2.9356697E-5

Caswell High 3, 6.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDEuMFlHc1Nx
Connected?	true
Directly Connected?	true
Co-rupture Count	4,399
Co-rupture Rate	1.9183946E-5

South Wedge 2, 6.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDEuMFlHc1Nx
Connected?	true
Directly Connected?	false
Co-rupture Count	1,201
Co-rupture Rate	1.4430998E-4

Caswell High 4, 7.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDEuMFlHc1Nx
Connected?	true
Directly Connected?	true
Co-rupture Count	8,025
Co-rupture Rate	5.1861192E-5

Caswell 211, 9.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDEuMFlHc1Nx
Connected?	true
Directly Connected?	true
Co-rupture Count	1,950
Co-rupture Rate	7.694642E-5

South Wedge 1, 10.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDEuMFlHc1Nx
Connected?	true
Directly Connected?	false
Co-rupture Count	36
Co-rupture Rate	1.2486246E-4

Caswell High 1, 13.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDEuMFlHc1Nx
Connected?	true
Directly Connected?	true
Co-rupture Count	619
Co-rupture Rate	5.284259E-5

Five Fingers, 15.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDEuMFlHc1Nx
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Caswell High 67, 15.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDEuMFlHc1Nx
Connected?	true
Directly Connected?	false
Co-rupture Count	1,139
Co-rupture Rate	5.1386414E-6
