Palliser - Kaiwhata Details

PropertyValue
Rupture Count15,651
Ruptures Above Sect Min Mag15,644
Ruptures w/ Nonzero Rates32
Magnitude Range[6.74, 8.50]
Length Range[18, 1,017] km
Total Rate0.0010561805 /yr
Multi-Fault Rate0.0010561805 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults81

Table Of Contents

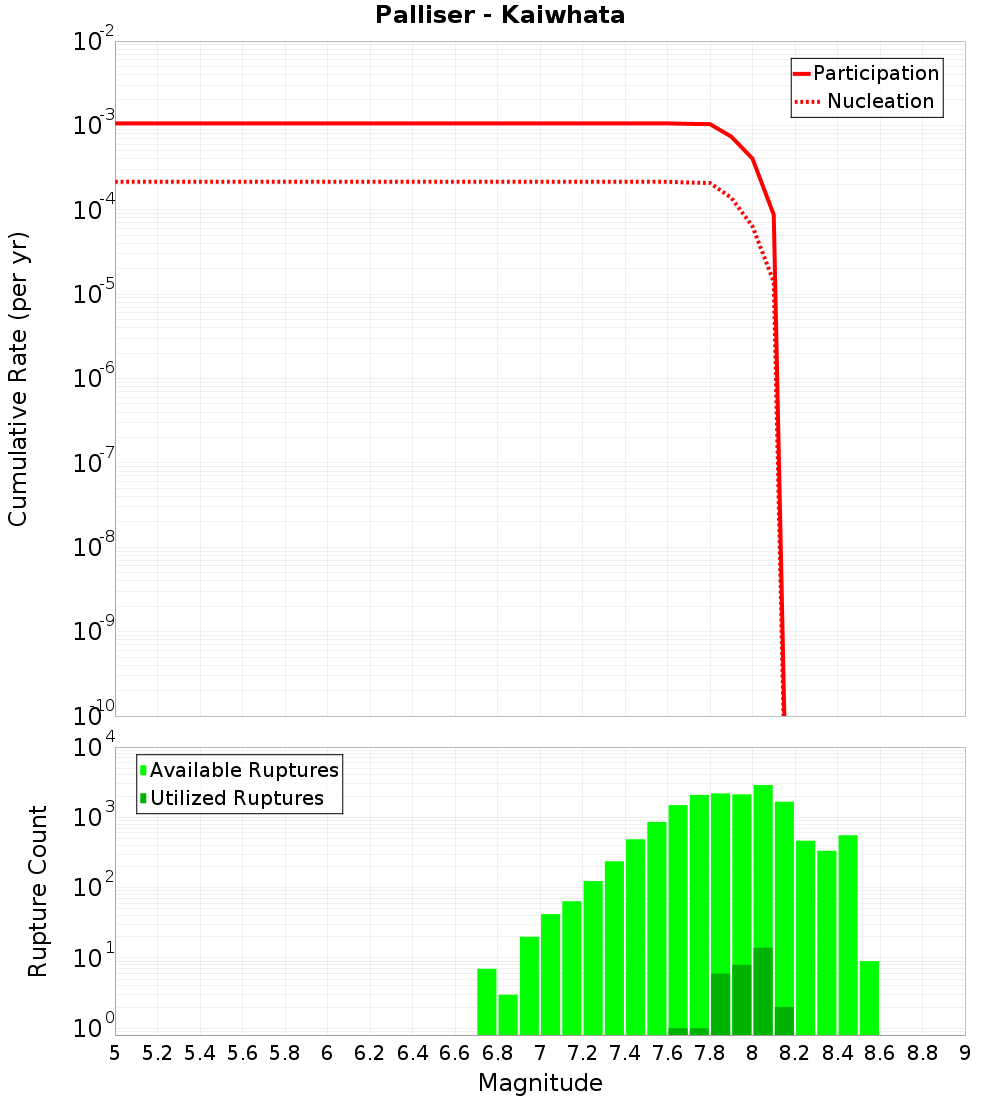

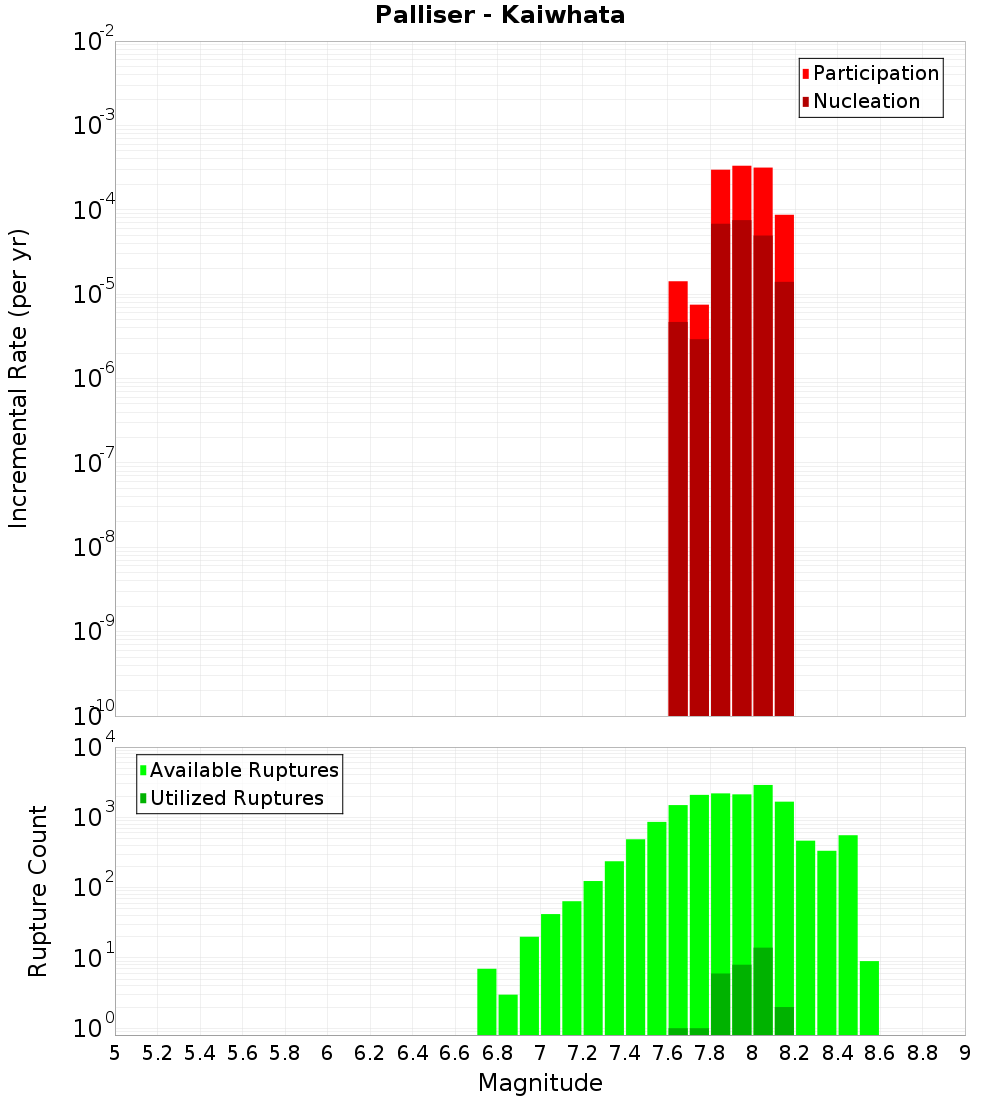

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

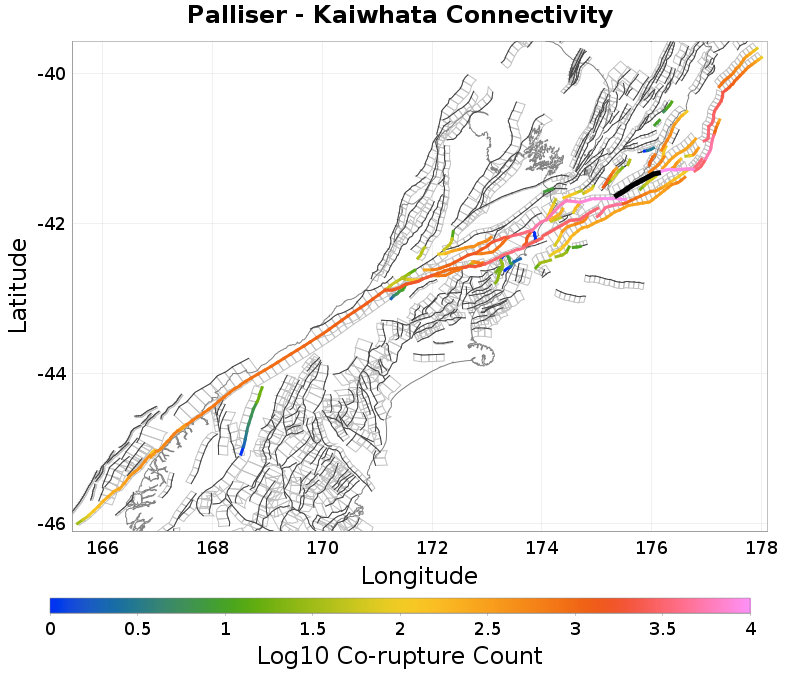

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Honeycomb, 1.24 km away
Uruti Basin, 1.36 km away
Riversdale, 3.26 km away
Otaraia, 3.3 km away
BooBoo, 4.22 km away
Uruti Point, 4.46 km away
Whareama Bank, 6.96 km away
Opouawe - Uruti, 8.63 km away
Dry River - Huangarua: 1, 12.51 km away
Pahaua, 13.66 km away
Riversdale North, 15.29 km away
Dry River - Huangarua: 3, 19.02 km away
Dry River - Huangarua: 2, 19.35 km away

Honeycomb, 1.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDYuMDJuejlo
Connected?true
Directly Connected?true
Co-rupture Count63
Co-rupture Rate0.0

Uruti Basin, 1.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDYuMDJuejlo
Connected?true
Directly Connected?true
Co-rupture Count9,745
Co-rupture Rate4.492221E-4

Riversdale, 3.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDYuMDJuejlo
Connected?true
Directly Connected?true
Co-rupture Count594
Co-rupture Rate4.153917E-4

Otaraia, 3.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDYuMDJuejlo
Connected?true
Directly Connected?true
Co-rupture Count1,298
Co-rupture Rate3.746927E-5

BooBoo, 4.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDYuMDJuejlo
Connected?true
Directly Connected?true
Co-rupture Count9,338
Co-rupture Rate7.692316E-4

Uruti Point, 4.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDYuMDJuejlo
Connected?true
Directly Connected?true
Co-rupture Count1,145
Co-rupture Rate3.777813E-5

Whareama Bank, 6.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDYuMDJuejlo
Connected?true
Directly Connected?false
Co-rupture Count280
Co-rupture Rate2.3770855E-4

Opouawe - Uruti, 8.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDYuMDJuejlo
Connected?true
Directly Connected?true
Co-rupture Count5,054
Co-rupture Rate0.0

Dry River - Huangarua: 1, 12.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDYuMDJuejlo
Connected?true
Directly Connected?true
Co-rupture Count66
Co-rupture Rate9.6618125E-5

Pahaua, 13.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDYuMDJuejlo
Connected?true
Directly Connected?false
Co-rupture Count622
Co-rupture Rate1.7410648E-5

Riversdale North, 15.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDYuMDJuejlo
Connected?true
Directly Connected?false
Co-rupture Count111
Co-rupture Rate5.6601108E-5

Dry River - Huangarua: 3, 19.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDYuMDJuejlo
Connected?true
Directly Connected?false
Co-rupture Count44
Co-rupture Rate0.0

Dry River - Huangarua: 2, 19.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDYuMDJuejlo
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
