Waitotara 8 & 9 Details
| Property | Value |
|---|---|
| Rupture Count | 858 |
| Ruptures Above Sect Min Mag | 741 |
| Ruptures w/ Nonzero Rates | 27 |
| Magnitude Range | [6.28, 7.33] |
| Length Range | [11, 123] km |
| Total Rate | 2.6201428E-4 /yr |
| Multi-Fault Rate | 2.2000907E-4 /yr (83.97%) |
| Directly-Connected Faults | 7 |
| All Co-Rupturing Faults | 7 |
Table Of Contents

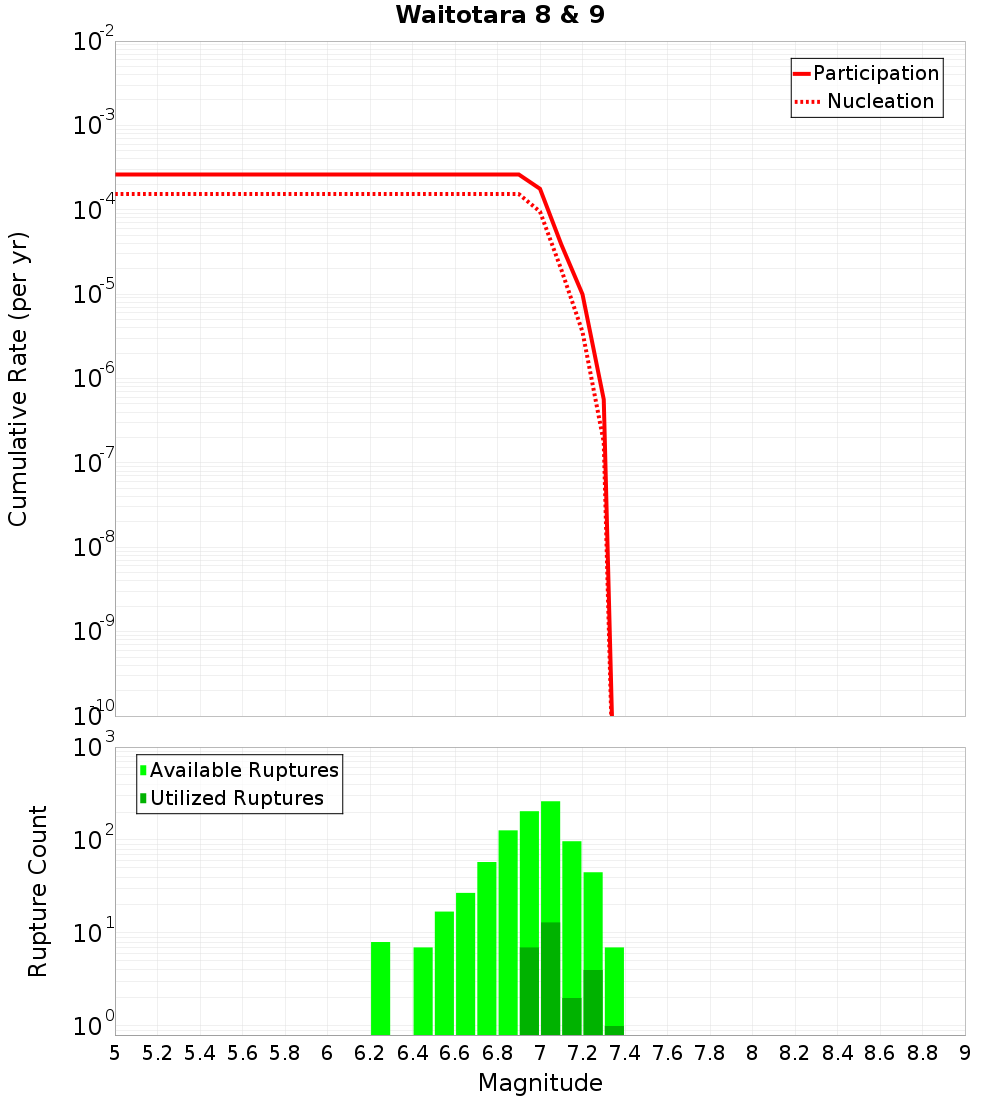

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

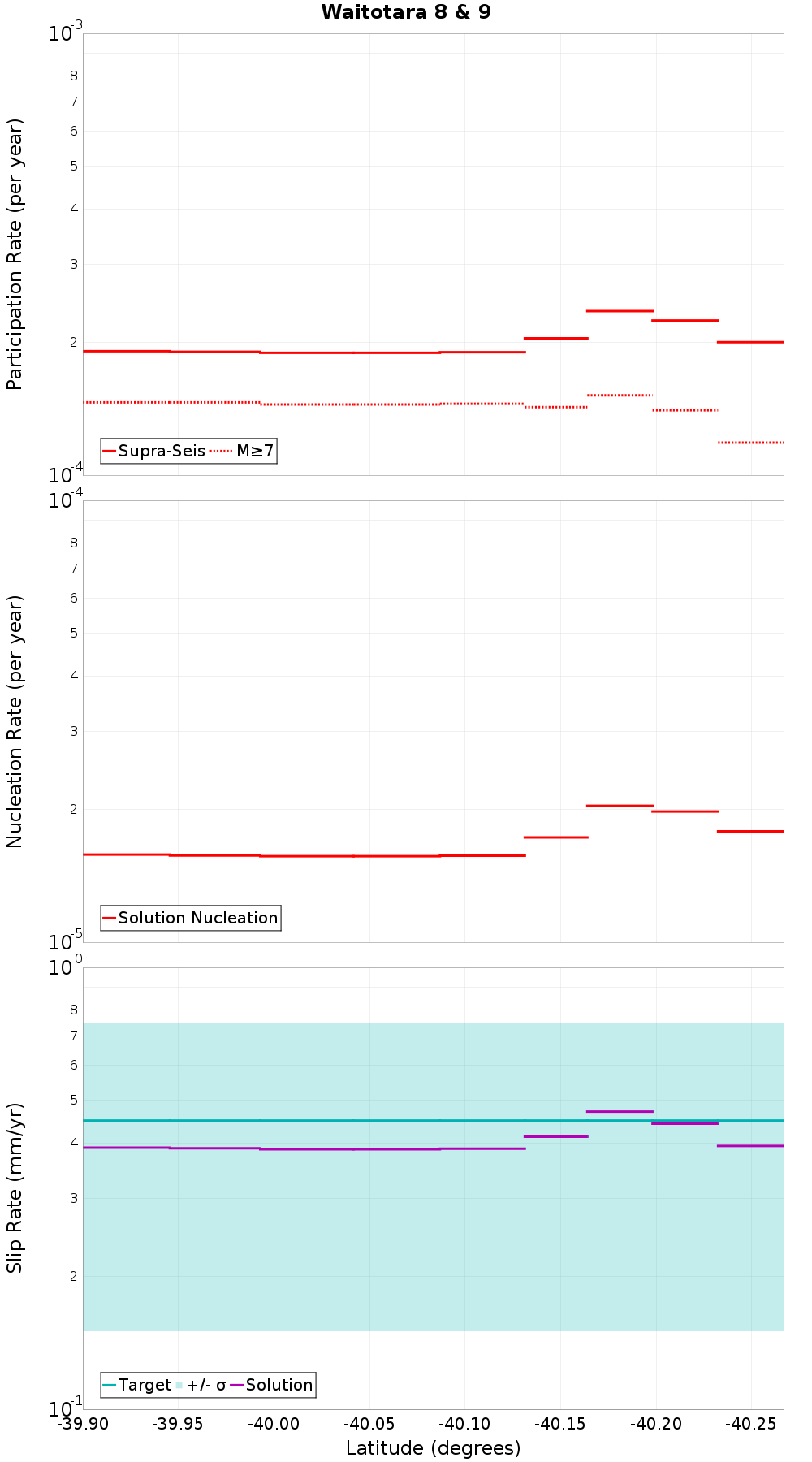

Along-Strike Values

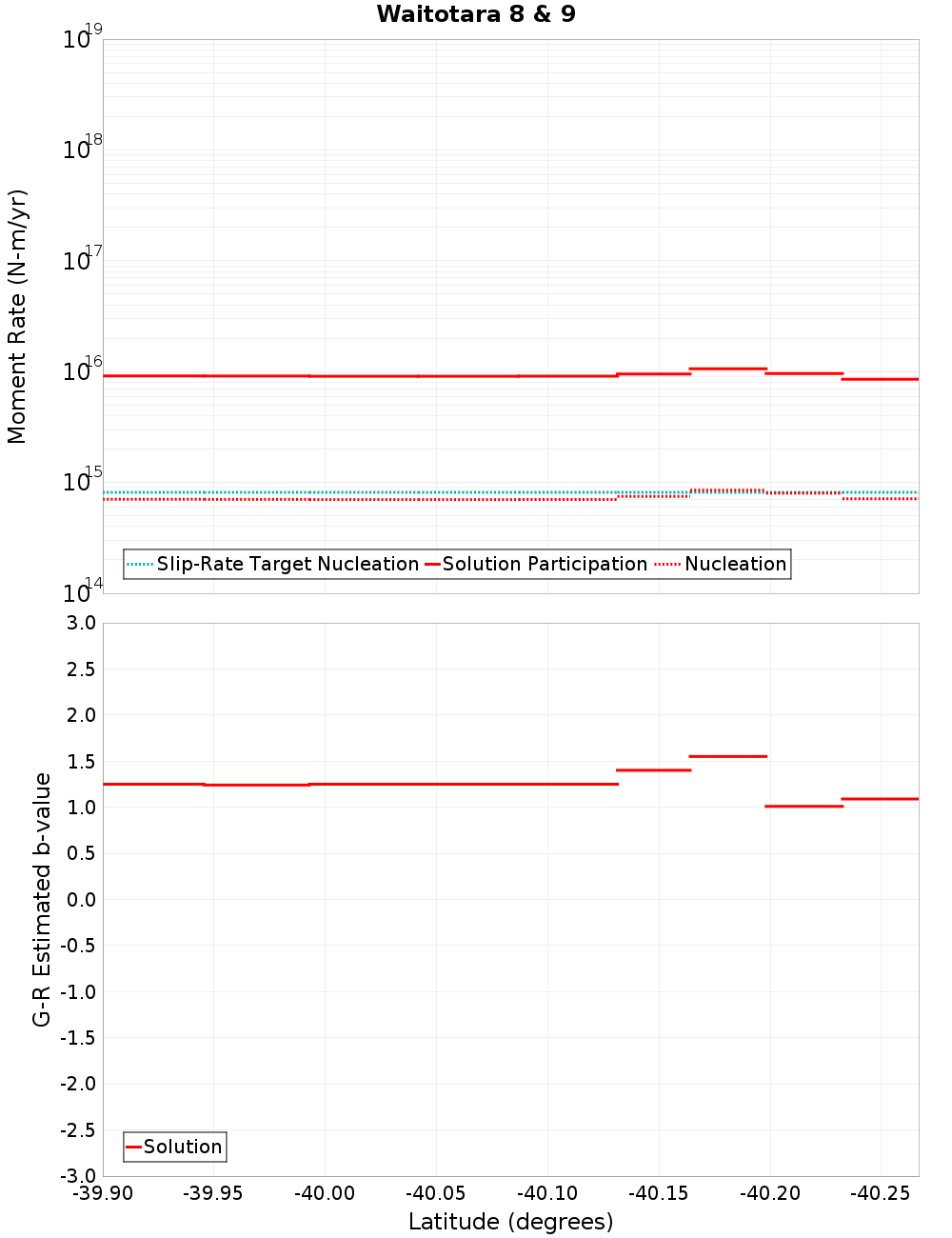

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Okaia 5, 0.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDYuMDJuejlo | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 134 |
| Co-rupture Rate | 5.447752E-7 |
Okaia 3, 0.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDYuMDJuejlo | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 171 |
| Co-rupture Rate | 1.7736602E-5 |
Waverley - Okaia 1, 0.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDYuMDJuejlo | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 196 |
| Co-rupture Rate | 1.792342E-5 |
Moumahaki - Okaia 4, 0.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDYuMDJuejlo | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 273 |
| Co-rupture Rate | 6.9175585E-5 |
Nukumuru - Waitotara 1-6, 0.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDYuMDJuejlo | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 182 |
| Co-rupture Rate | 2.3715165E-5 |
Waitotara 10 & 11, 0.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDYuMDJuejlo | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 410 |
| Co-rupture Rate | 1.02699974E-4 |
Ridge Road - Okaia 2, 2.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMDYuMDJuejlo | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 270 |
| Co-rupture Rate | 4.824574E-5 |
