Chancet Details
| Property | Value |
|---|---|
| Rupture Count | 1,048 |
| Ruptures Above Sect Min Mag | 1,036 |
| Ruptures w/ Nonzero Rates | 7 |
| Magnitude Range | [6.46, 8.41] |
| Length Range | [14, 925] km |
| Total Rate | 4.6353342E-4 /yr |
| Multi-Fault Rate | 4.6353342E-4 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 62 |
Table Of Contents

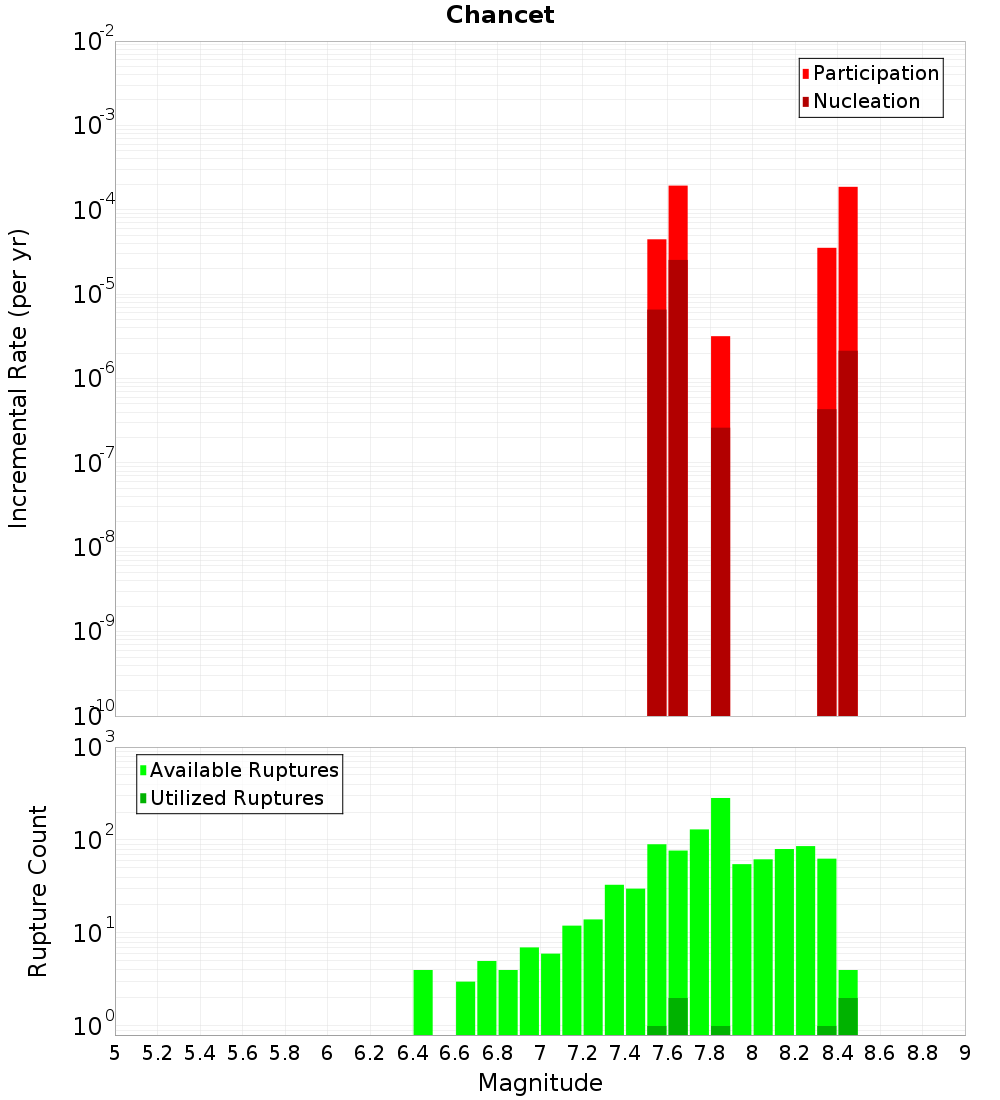

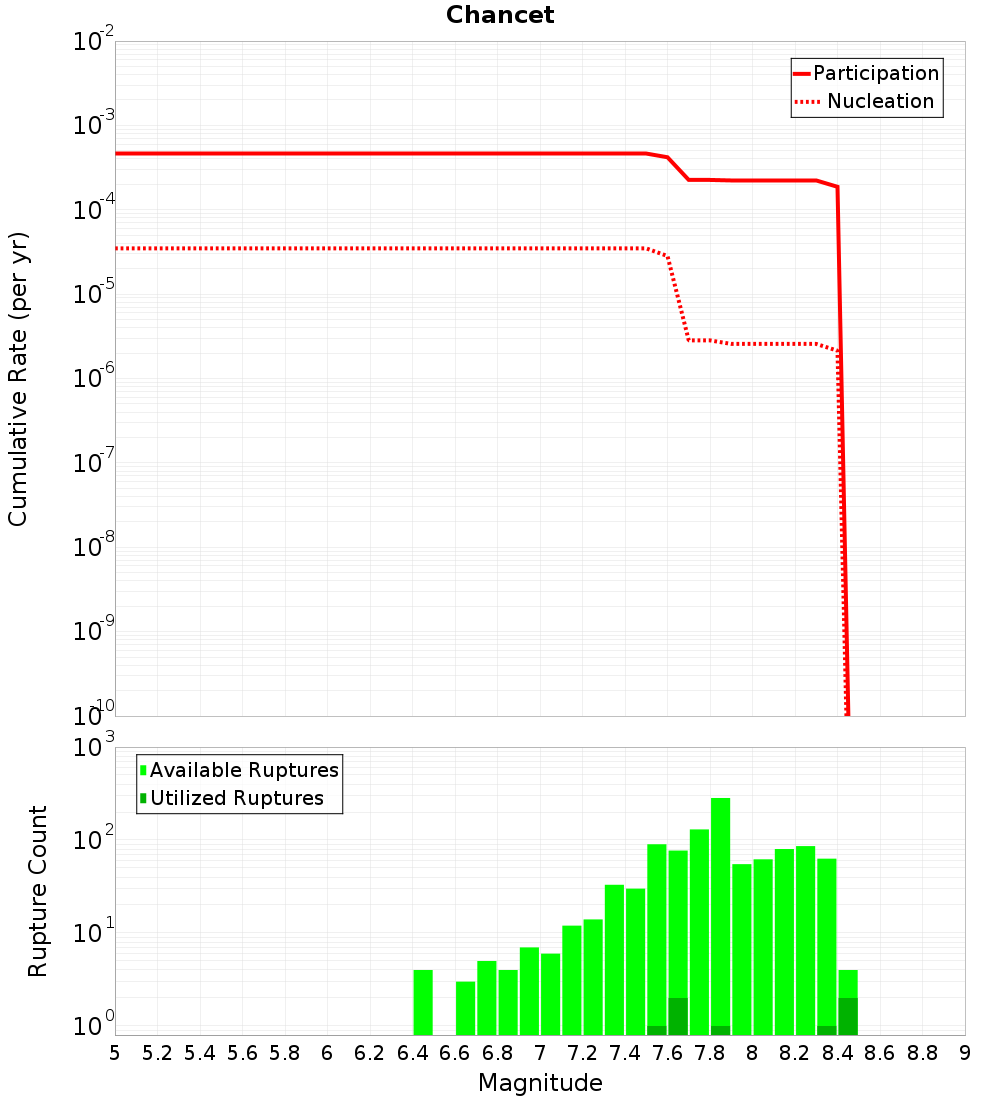

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

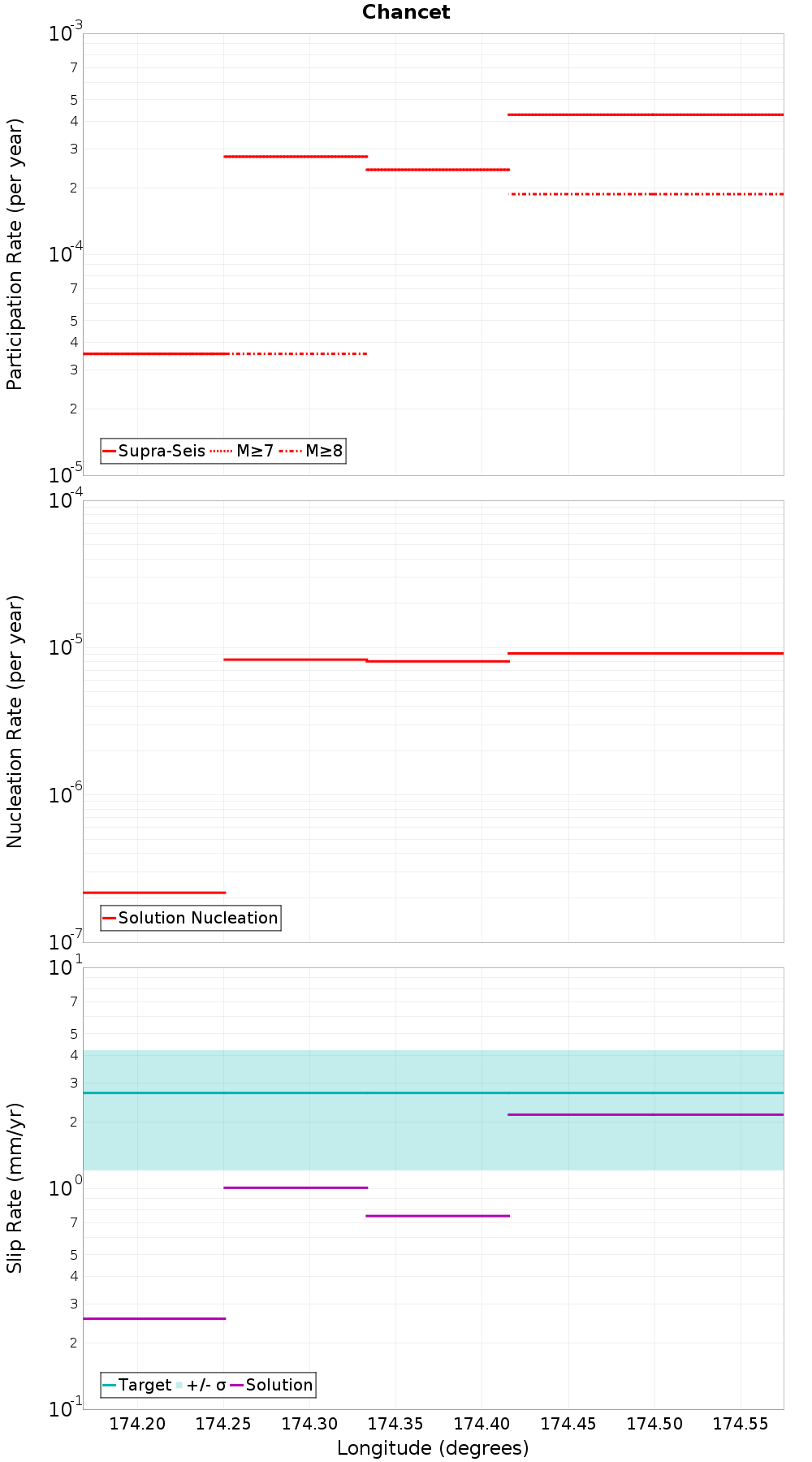

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Campbell Bank, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 441 |
| Co-rupture Rate | 4.2812413E-4 |
Wharanui, 0.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
London Hill, 0.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 11 |
| Co-rupture Rate | 0.0 |
Upper Slope, 0.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Needles East 2, 2.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 244 |
| Co-rupture Rate | 3.5409284E-5 |
Needles, 6.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 292 |
| Co-rupture Rate | 1.8701609E-4 |
Kekerengu 1, 7.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 327 |
| Co-rupture Rate | 2.2242538E-4 |
Te Rapa 1, 8.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 7 |
| Co-rupture Rate | 0.0 |
Hope: Te Rapa, 8.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 563 |
| Co-rupture Rate | 2.4110802E-4 |
Te Rapa 2, 11.58 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 7 |
| Co-rupture Rate | 0.0 |
BooBoo, 15.89 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 286 |
| Co-rupture Rate | 1.8701609E-4 |
Kekerengu Bank, 16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Clarence: Northeast, 18.61 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
