Dingle Details

PropertyValue
Rupture Count583
Ruptures Above Sect Min Mag580
Ruptures w/ Nonzero Rates5
Magnitude Range[6.78, 8.09]
Length Range[20, 324] km
Total Rate1.8287543E-5 /yr
Multi-Fault Rate1.8287543E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults19

Table Of Contents

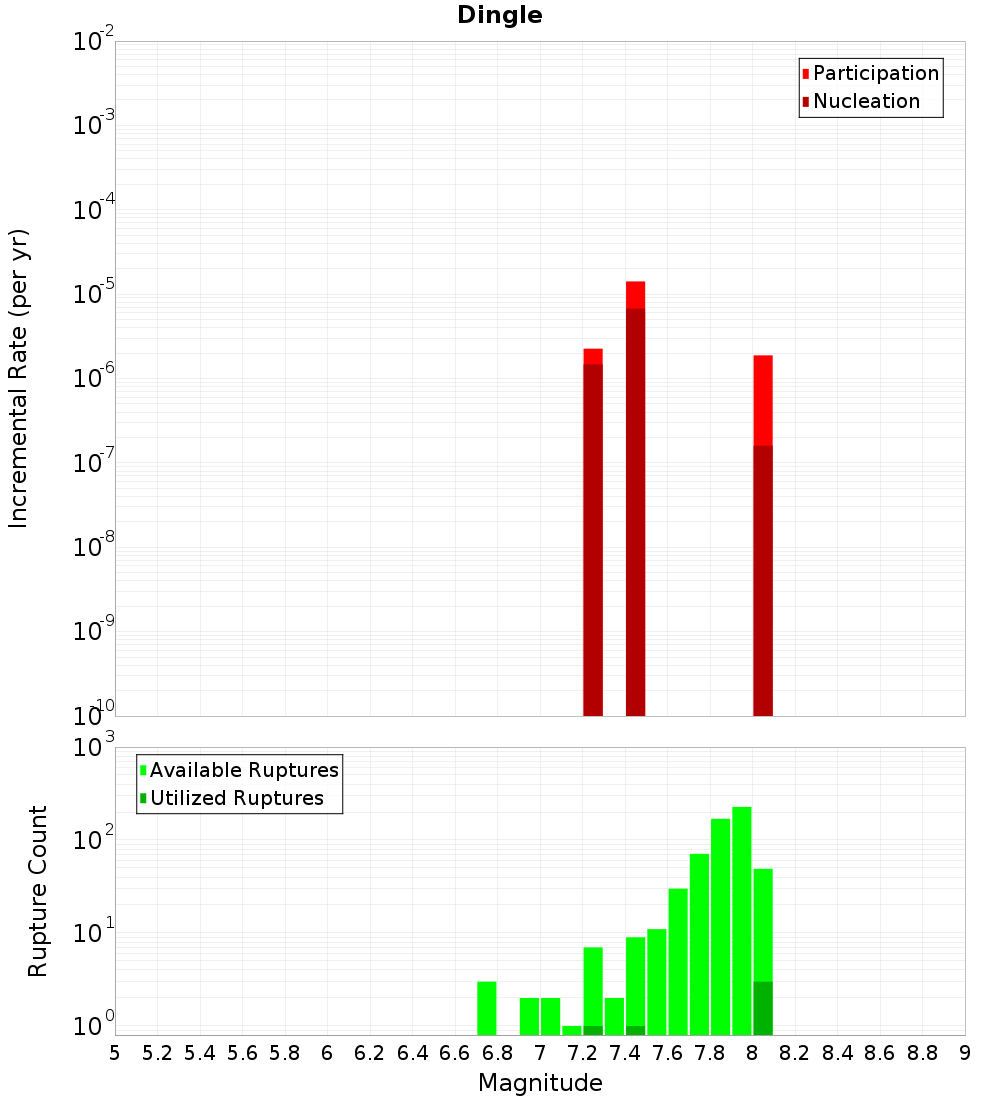

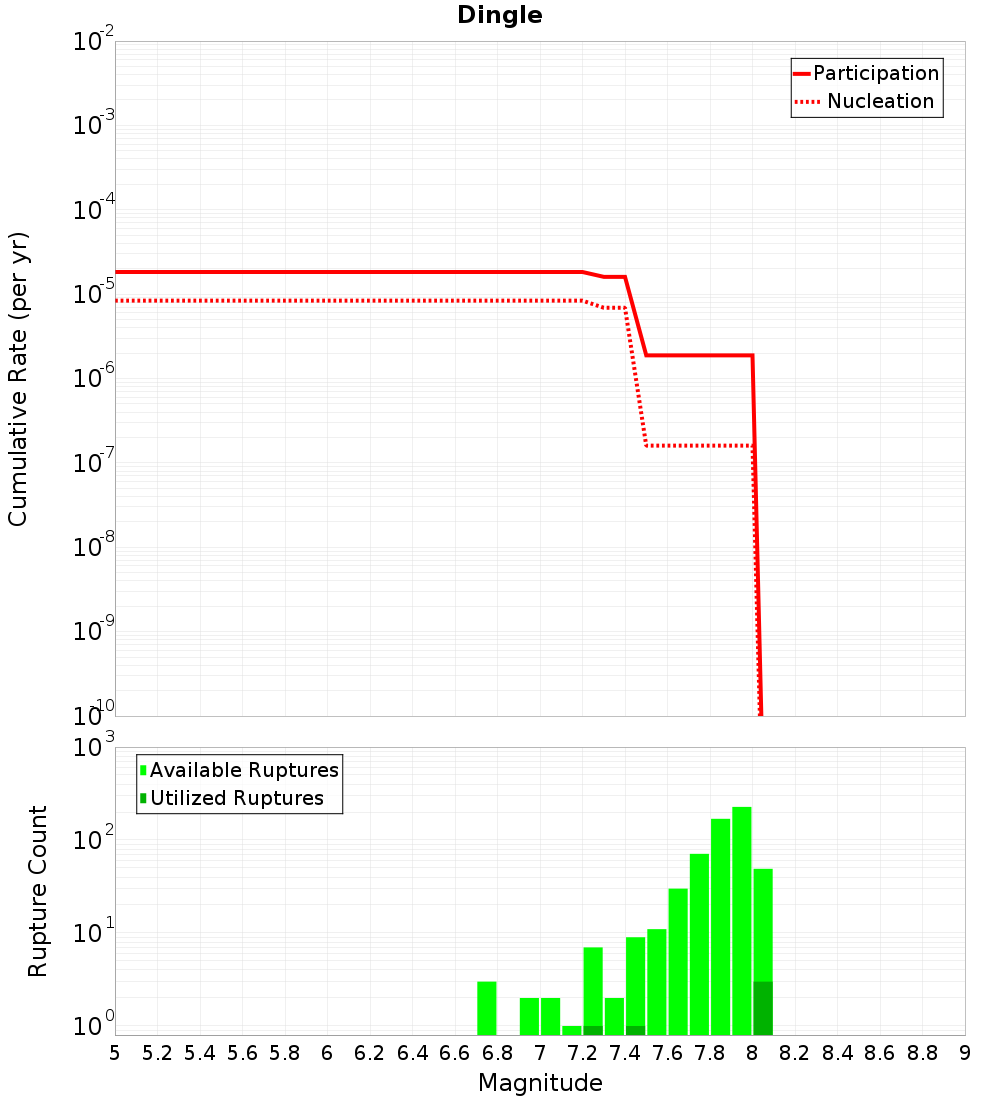

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

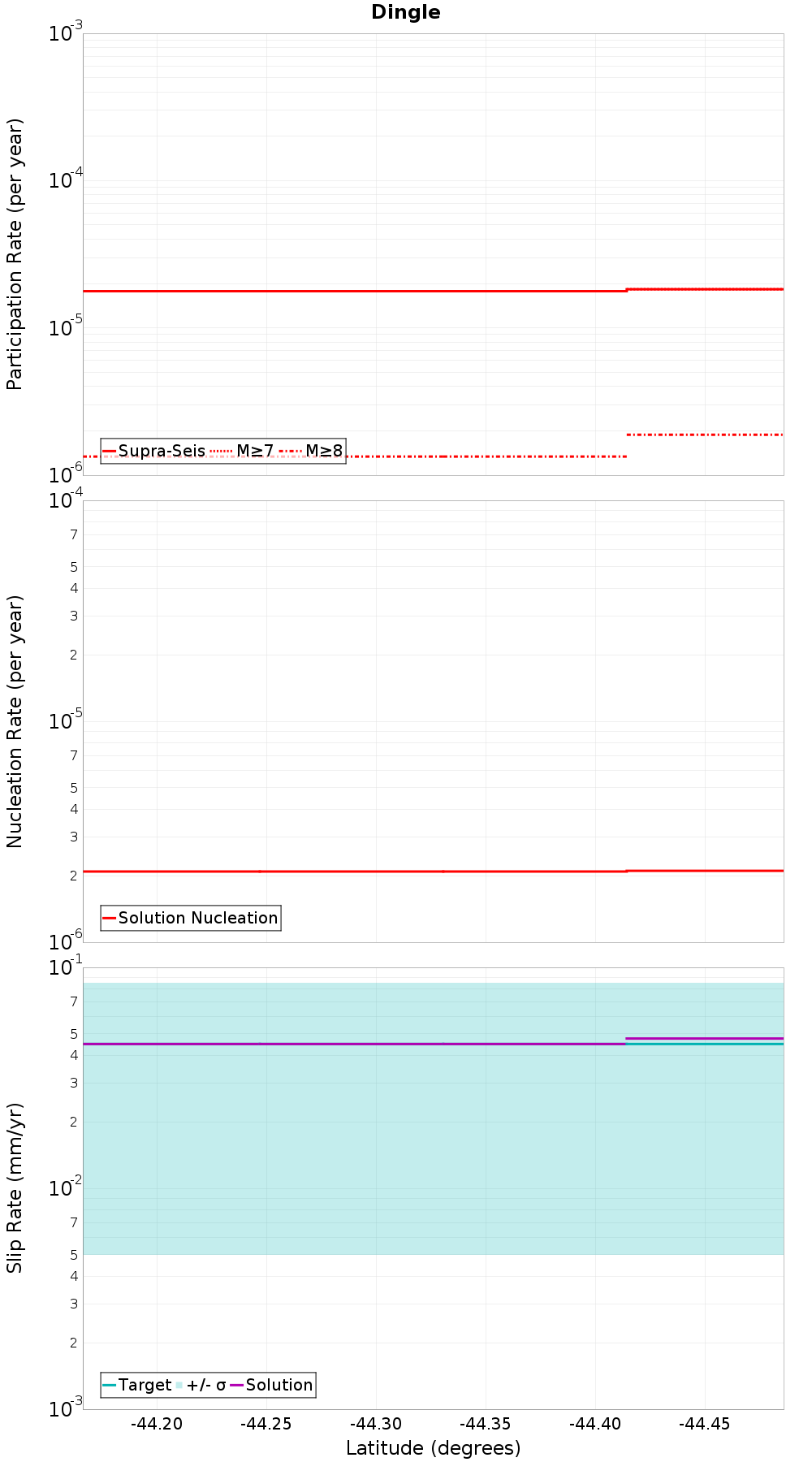

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Wanaka, 0.43 km away
Hopkins, 1.8 km away
Timaru Creek, 5.03 km away
Hunter Valley, 6.56 km away
Barrier Range, 7.44 km away
Dromedary, 7.73 km away
Grandview, 9.64 km away
Lindis River, 10.56 km away
Cardrona - Hawea, 12.01 km away
Motatapu, 17.28 km away
Ostler South, 18.49 km away
Ostler North, 19.29 km away

Wanaka, 0.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?true
Co-rupture Count458
Co-rupture Rate1.6029533E-5

Hopkins, 1.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Timaru Creek, 5.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?true
Co-rupture Count513
Co-rupture Rate1.8814291E-6

Hunter Valley, 6.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Barrier Range, 7.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate0.0

Dromedary, 7.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?false
Co-rupture Count218
Co-rupture Rate1.8814291E-6

Grandview, 9.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?false
Co-rupture Count553
Co-rupture Rate1.8814291E-6

Lindis River, 10.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cardrona - Hawea, 12.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?true
Co-rupture Count6
Co-rupture Rate1.6406113E-5

Motatapu, 17.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ostler South, 18.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ostler North, 19.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
