Hope: Conway Details

PropertyValue
Rupture Count89,019
Ruptures Above Sect Min Mag88,989
Ruptures w/ Nonzero Rates91
Magnitude Range[6.66, 8.44]
Length Range[18, 1,156] km
Total Rate0.003119353 /yr
Multi-Fault Rate0.003119353 /yr (100.00%)
Directly-Connected Faults13
All Co-Rupturing Faults143

Table Of Contents

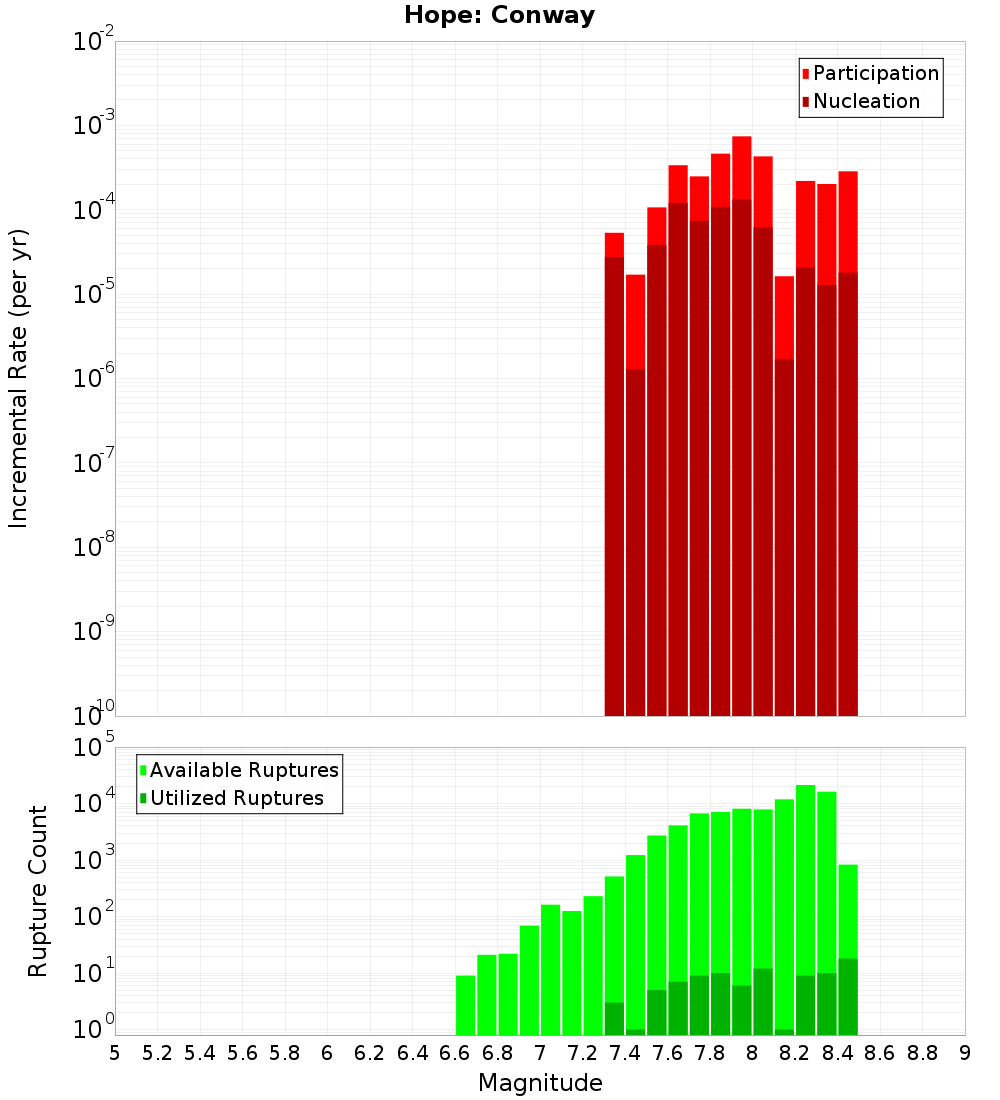

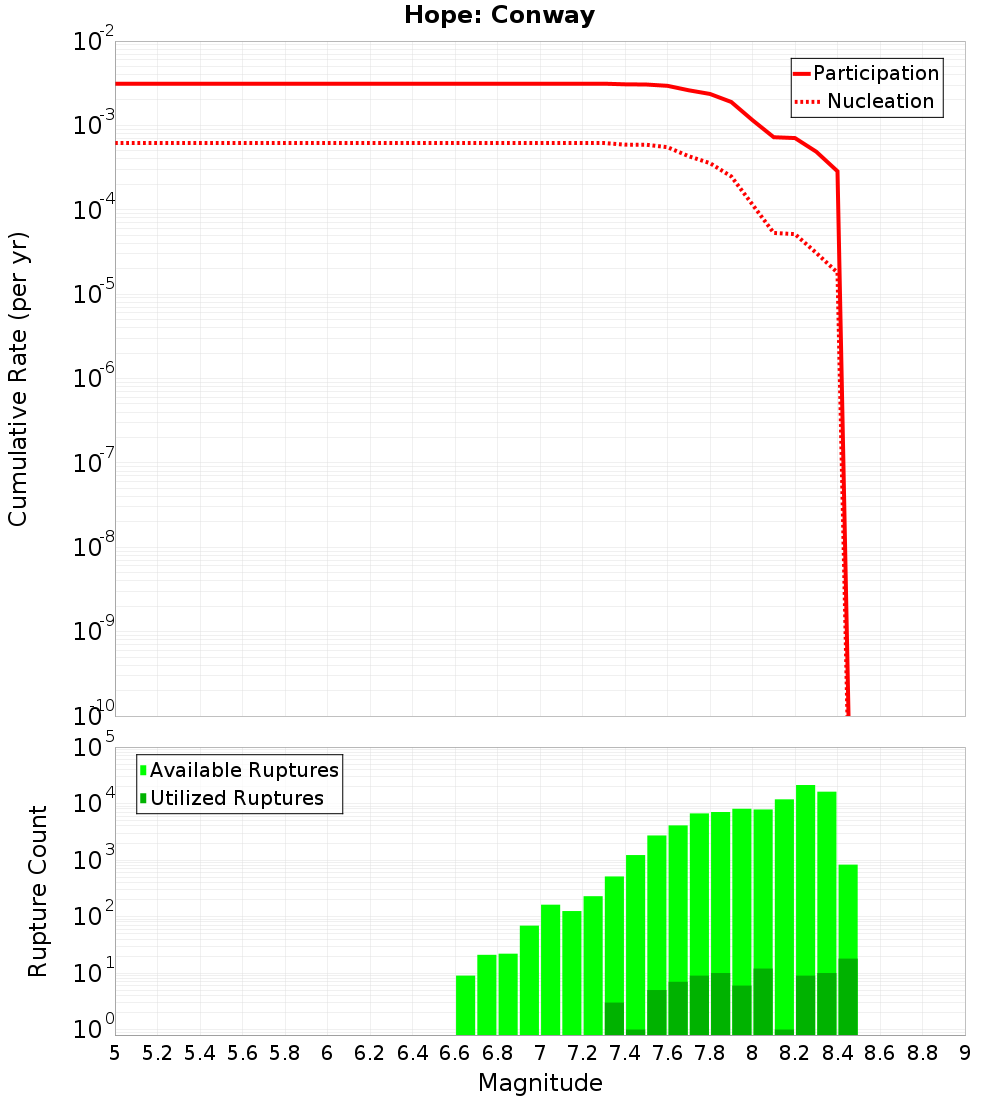

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Jordan, 0 km awayPapatea, 7.91 km away
Hanmer, 0 km awayThe Humps, 10.44 km away
Hope: Hanmer SE, 0 km awayElliott, 11.08 km away
Hope: Seaward, 0 km awayMt Culverden, 12.62 km away
Leader: North, 0.16 km awayHope: Hanmer SW, 13.51 km away
StoneJug, 0.28 km awayHope: Hanmer NW, 15.41 km away
Kaikoura - Mangamaunu, 3.18 km awayFidget, 17.08 km away
Leader: South, 3.52 km awayLeonard Mound, 18.07 km away
Hundalee, 4.6 km awayHawkswood, 18.44 km away
Leader: Central, 4.87 km awayConway Trough West, 19.66 km away
Kaiwara North, 5.81 km away

Jordan, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?true
Co-rupture Count10,789
Co-rupture Rate0.0020449897

Hanmer, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?true
Co-rupture Count29,443
Co-rupture Rate5.316717E-4

Hope: Hanmer SE, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?true
Co-rupture Count60,069
Co-rupture Rate0.0022709437

Hope: Seaward, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?true
Co-rupture Count46,246
Co-rupture Rate5.5895856E-4

Leader: North, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?true
Co-rupture Count352
Co-rupture Rate1.28018E-5

StoneJug, 0.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?true
Co-rupture Count353
Co-rupture Rate4.4660537E-5

Kaikoura - Mangamaunu, 3.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?true
Co-rupture Count4,716
Co-rupture Rate1.5972629E-4

Leader: South, 3.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?true
Co-rupture Count1,214
Co-rupture Rate5.6477464E-5

Hundalee, 4.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?true
Co-rupture Count1,461
Co-rupture Rate9.296025E-5

Leader: Central, 4.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?true
Co-rupture Count1,378
Co-rupture Rate2.2536187E-5

Kaiwara North, 5.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?true
Co-rupture Count546
Co-rupture Rate7.455076E-5

Papatea, 7.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?true
Co-rupture Count943
Co-rupture Rate2.6511154E-4

The Humps, 10.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?false
Co-rupture Count63
Co-rupture Rate4.0515628E-5

Elliott, 11.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?true
Co-rupture Count3,609
Co-rupture Rate1.4050717E-4

Mt Culverden, 12.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?false
Co-rupture Count151
Co-rupture Rate1.0361669E-4

Hope: Hanmer SW, 13.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?false
Co-rupture Count69,422
Co-rupture Rate0.0012447456

Hope: Hanmer NW, 15.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?false
Co-rupture Count18,641
Co-rupture Rate6.3869846E-4

Fidget, 17.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?false
Co-rupture Count520
Co-rupture Rate0.0

Leonard Mound, 18.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?false
Co-rupture Count54
Co-rupture Rate1.4429688E-5

Hawkswood, 18.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?false
Co-rupture Count549
Co-rupture Rate9.296025E-5

Conway Trough West, 19.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate0.0
