Madden Banks Details
| Property | Value |
|---|---|
| Rupture Count | 13,382 |
| Ruptures Above Sect Min Mag | 13,319 |
| Ruptures w/ Nonzero Rates | 14 |
| Magnitude Range | [6.33, 8.33] |
| Length Range | [13, 953] km |
| Total Rate | 5.928588E-4 /yr |
| Multi-Fault Rate | 5.928588E-4 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 42 |
Table Of Contents

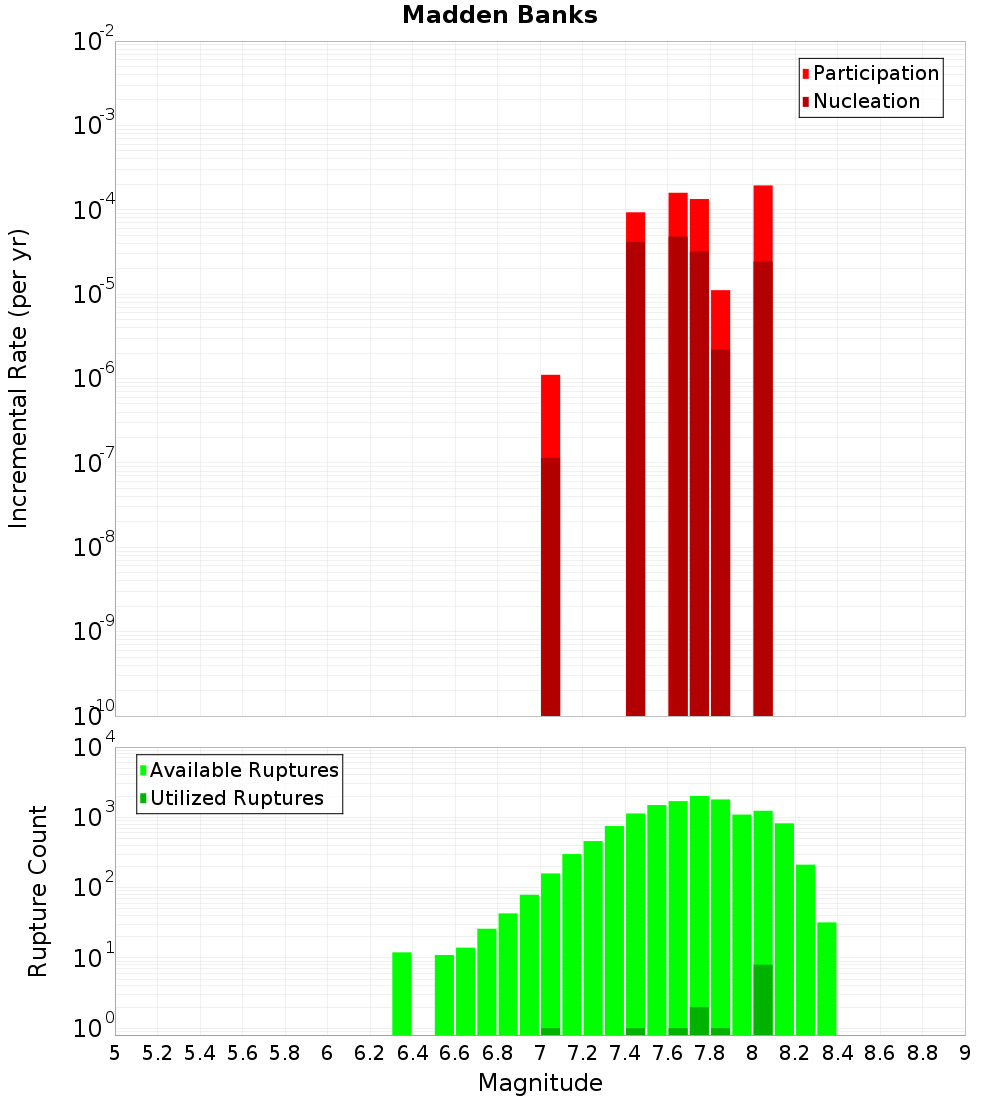

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

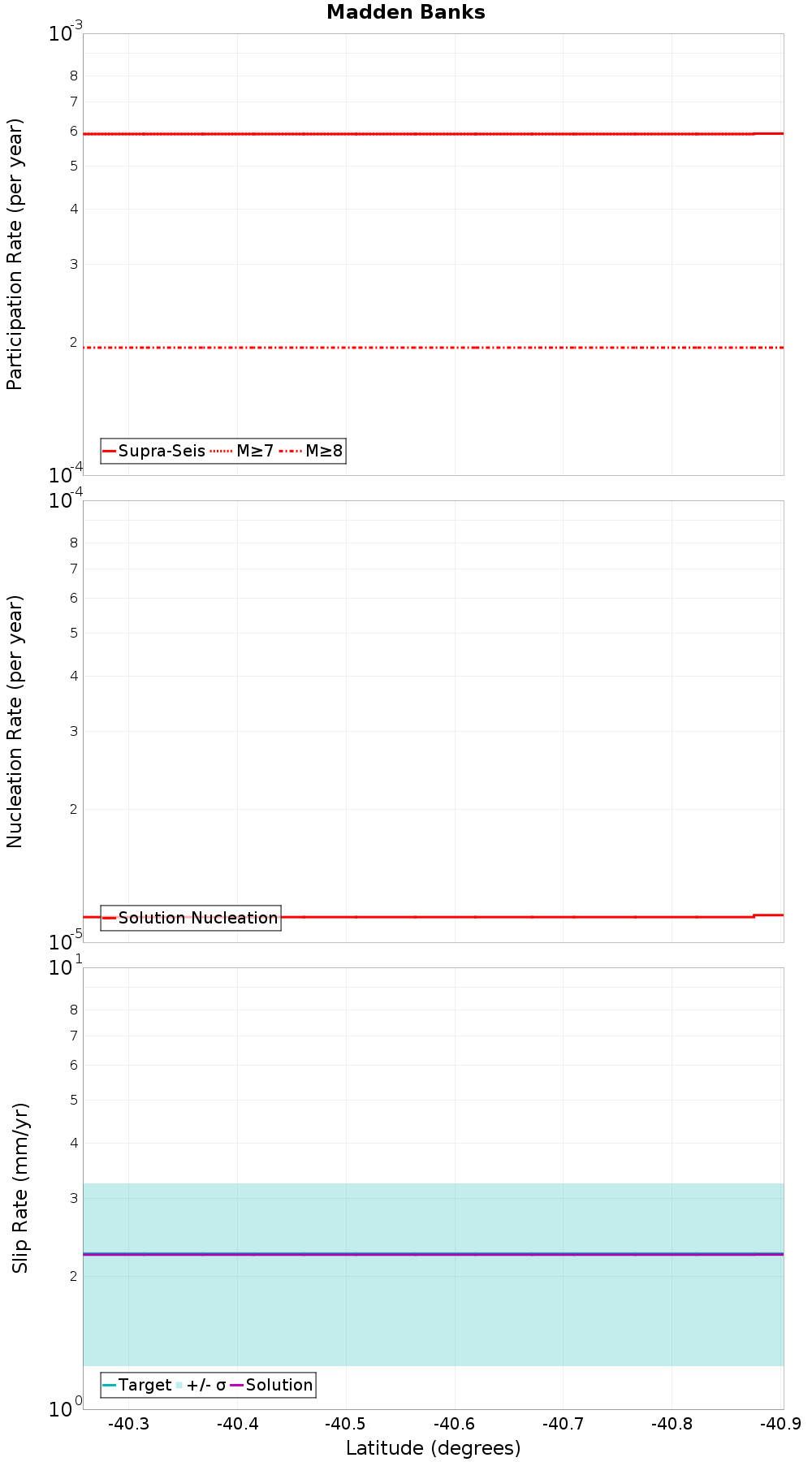

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Motu o Kura East, 0.5 km away |
| Uruti East - PorWest 1, 4.32 km away |
| Uruti North, 6.83 km away |
| Motu o Kura Ridge, 7.97 km away |
| Whareama Bank, 8.19 km away |
Motu o Kura East, 0.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7,854 |
| Co-rupture Rate | 5.917523E-4 |
Uruti East - PorWest 1, 4.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 9,633 |
| Co-rupture Rate | 2.723172E-4 |
Uruti North, 6.83 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2,853 |
| Co-rupture Rate | 1.7480037E-5 |
Motu o Kura Ridge, 7.97 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2,199 |
| Co-rupture Rate | 1.6303532E-4 |
Whareama Bank, 8.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 533 |
| Co-rupture Rate | 3.0416812E-4 |
