Masterton Details

PropertyValue
Rupture Count668
Ruptures Above Sect Min Mag662
Ruptures w/ Nonzero Rates6
Magnitude Range[6.31, 8.03]
Length Range[11, 397] km
Total Rate4.2365937E-4 /yr
Multi-Fault Rate4.2365937E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults36

Table Of Contents

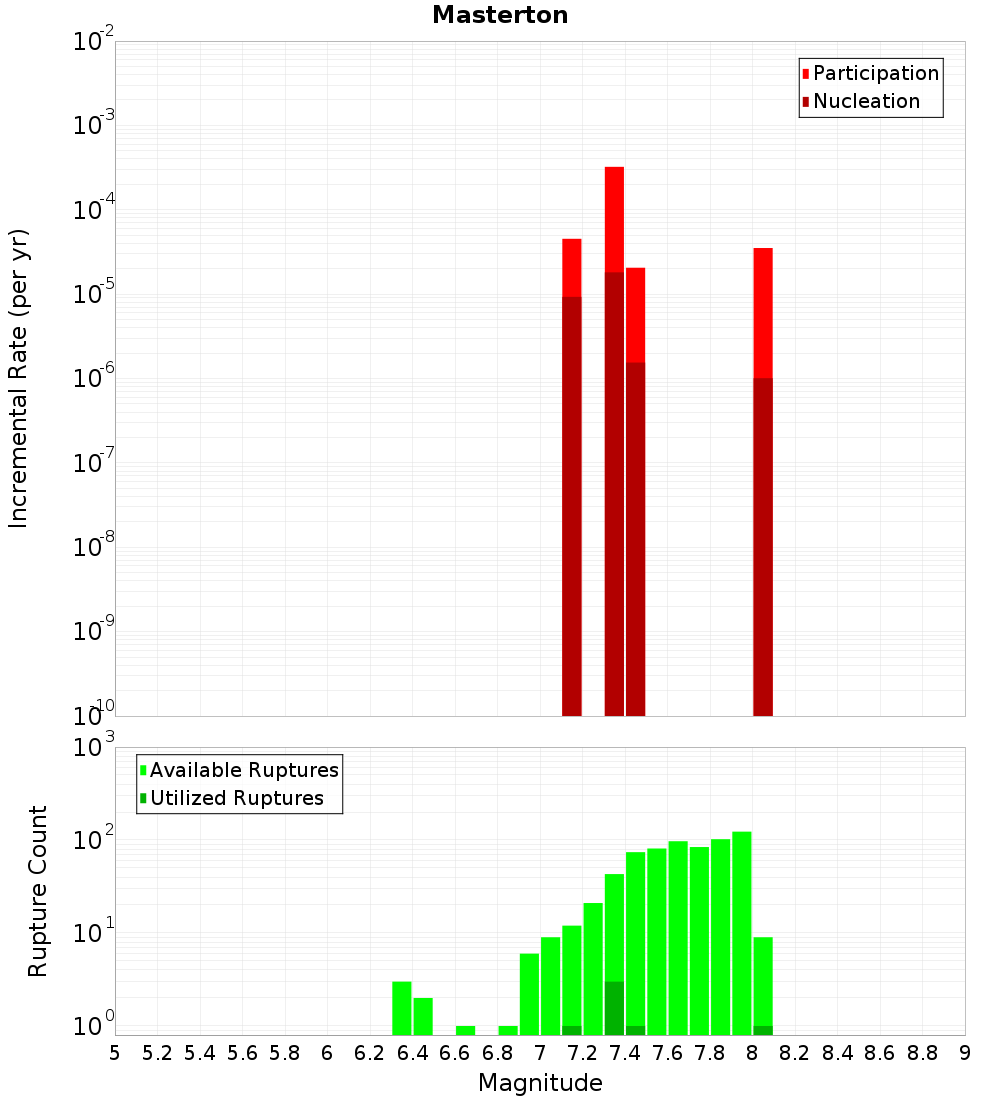

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

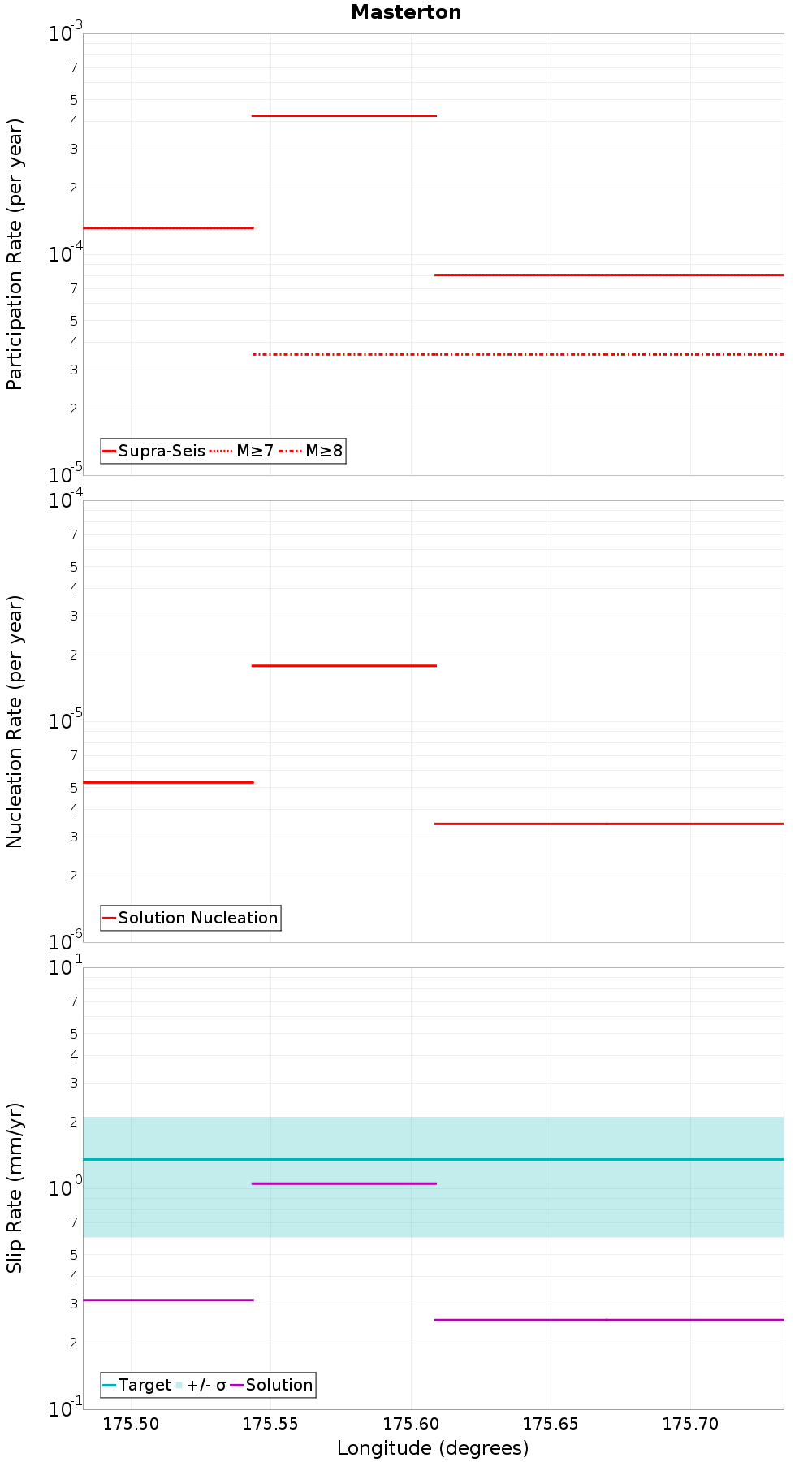

Along-Strike Values

(top)

Along-strike plot

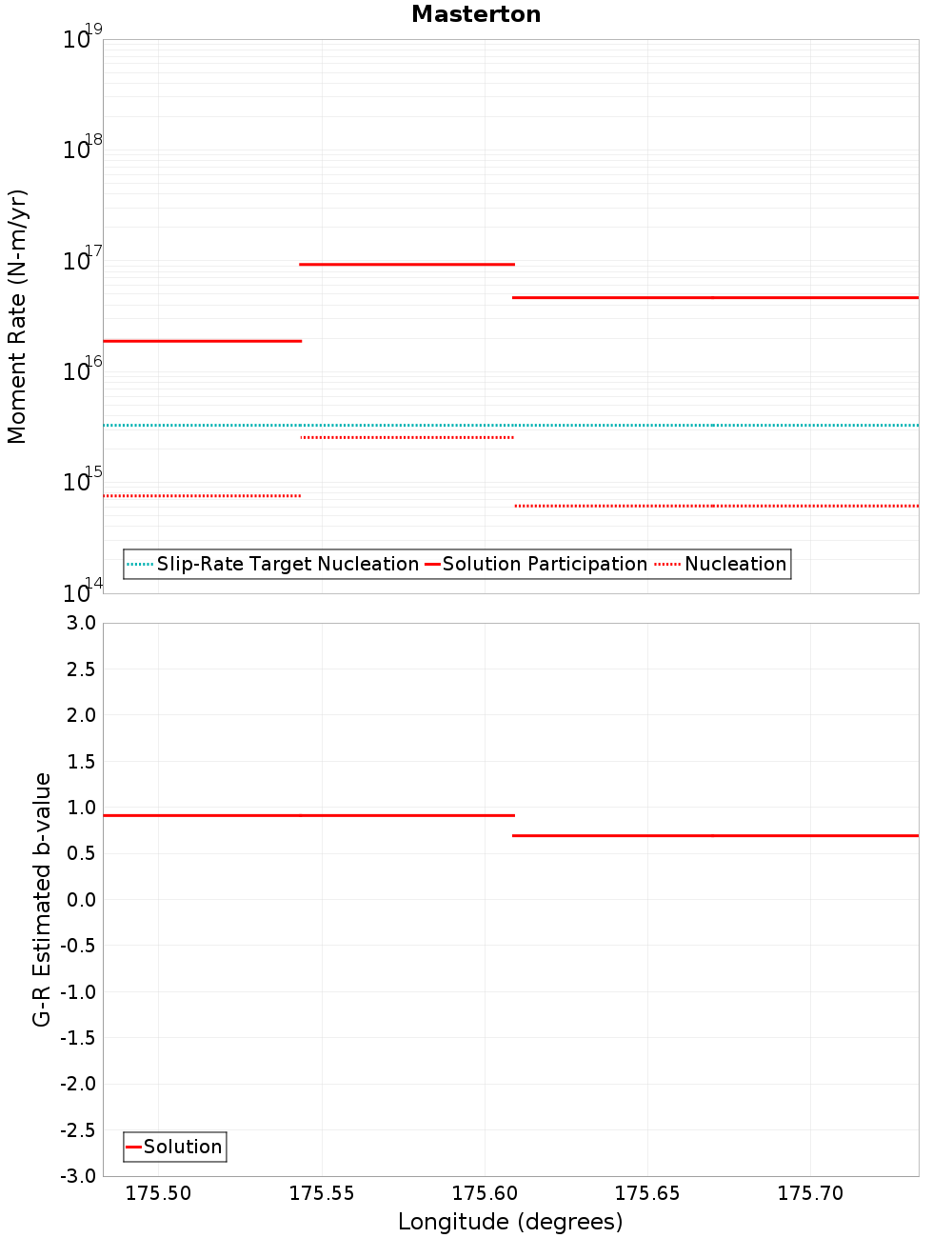

Moment-Rates and b-Values

(top)

Along-strike plot

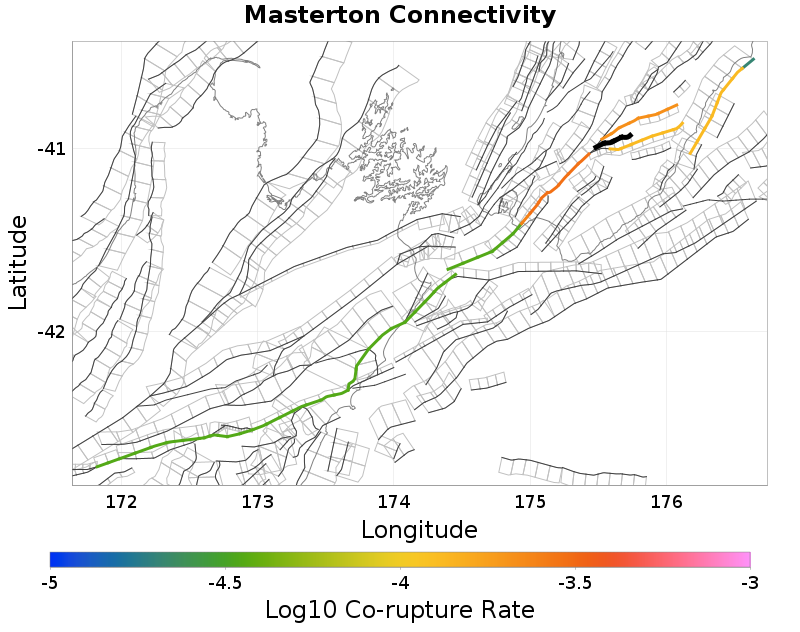

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Carterton, 0.31 km away
Wairarapa: 3, 0.33 km away
Martinborough, 2.53 km away
Mokonui Southwest, 2.89 km away
Kaumingi, 4.03 km away
Wairarapa: 2, 5.69 km away
Bidwill, 8.57 km away
Wellington: Tararua 2, 9.41 km away
Dry River - Huangarua: 3, 10.11 km away
Mokonui Northeast, 11.3 km away
Wellington: Tararua 3, 11.85 km away
Dry River - Huangarua: 2, 13.59 km away
Dreyers Rock, 18.15 km away

Carterton, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?true
Co-rupture Count116
Co-rupture Rate1.314364E-4

Wairarapa: 3, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?false
Co-rupture Count148
Co-rupture Rate0.0

Martinborough, 2.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mokonui Southwest, 2.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?true
Co-rupture Count453
Co-rupture Rate2.1175866E-4

Kaumingi, 4.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairarapa: 2, 5.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?true
Co-rupture Count649
Co-rupture Rate2.9222298E-4

Bidwill, 8.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington: Tararua 2, 9.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dry River - Huangarua: 3, 10.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mokonui Northeast, 11.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?false
Co-rupture Count175
Co-rupture Rate2.1175866E-4

Wellington: Tararua 3, 11.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dry River - Huangarua: 2, 13.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dreyers Rock, 18.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
