Pakarae Details

PropertyValue
Rupture Count29
Ruptures Above Sect Min Mag26
Ruptures w/ Nonzero Rates6
Magnitude Range[5.79, 7.34]
Length Range[4, 106] km
Total Rate0.0010315826 /yr
Multi-Fault Rate0.0010315826 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults4

Table Of Contents

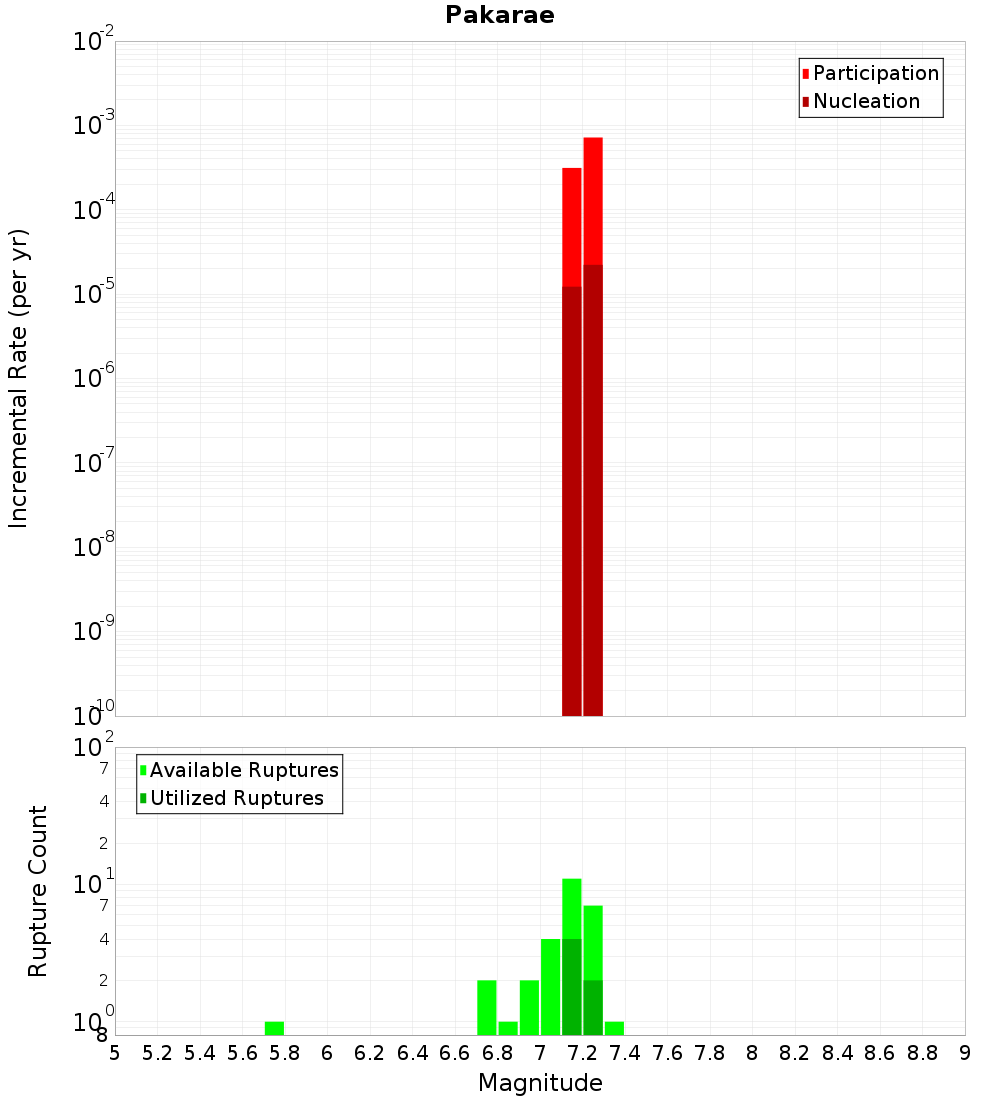

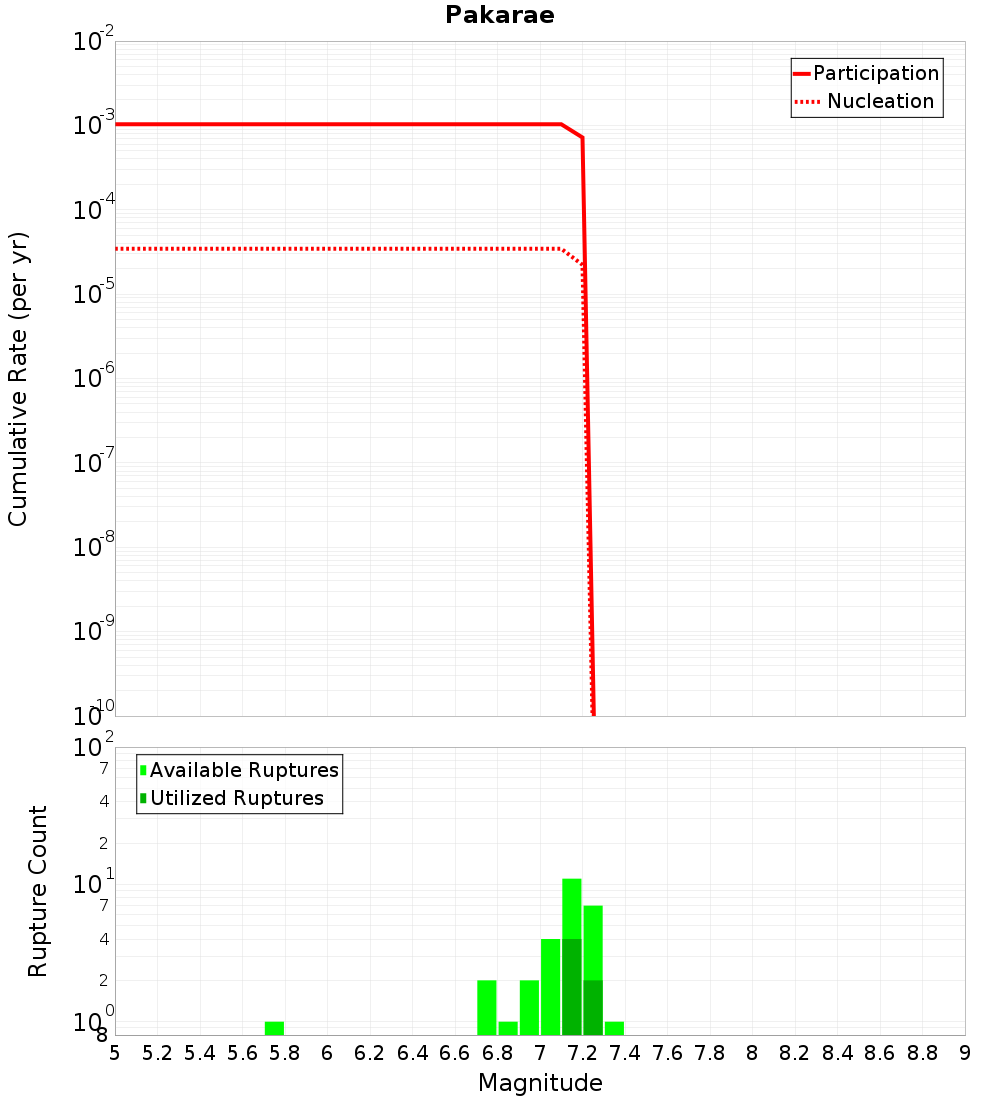

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

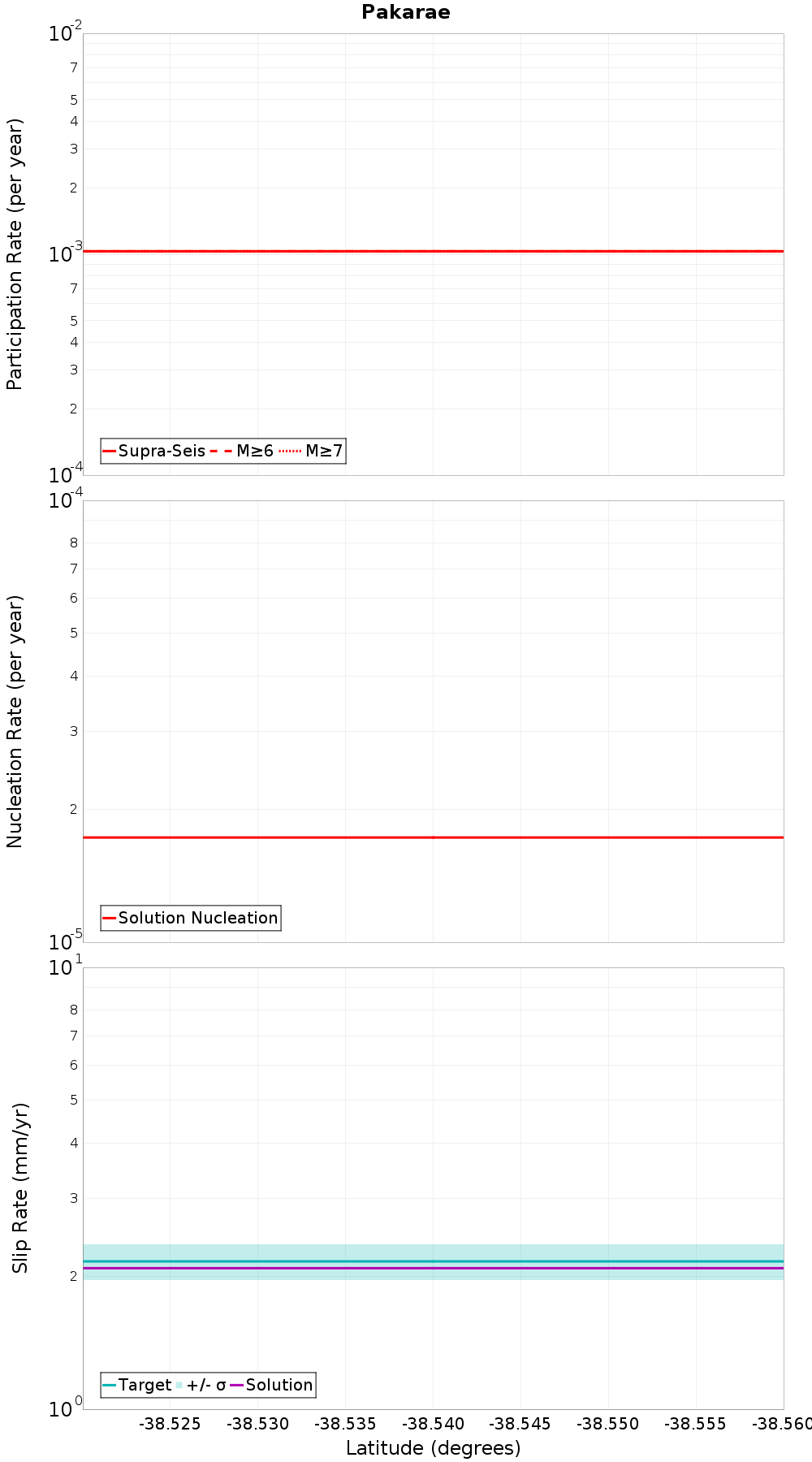

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Gable End North, 0.38 km away
Te Ikaarongamai, 1.64 km away
Ariel Bank 2, 3.93 km away
Gable End South, 5.55 km away
Ariel Bank, 10.5 km away
Ariel East, 19.45 km away

Gable End North, 0.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?true
Co-rupture Count19
Co-rupture Rate0.00100298

Te Ikaarongamai, 1.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ariel Bank 2, 3.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?true
Co-rupture Count26
Co-rupture Rate0.0010315826

Gable End South, 5.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ariel Bank, 10.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ariel East, 19.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
