Ruahine: South Details

PropertyValue
Rupture Count31,403
Ruptures Above Sect Min Mag31,398
Ruptures w/ Nonzero Rates21
Magnitude Range[6.78, 8.28]
Length Range[20, 655] km
Total Rate2.2801451E-4 /yr
Multi-Fault Rate2.2801451E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults115

Table Of Contents

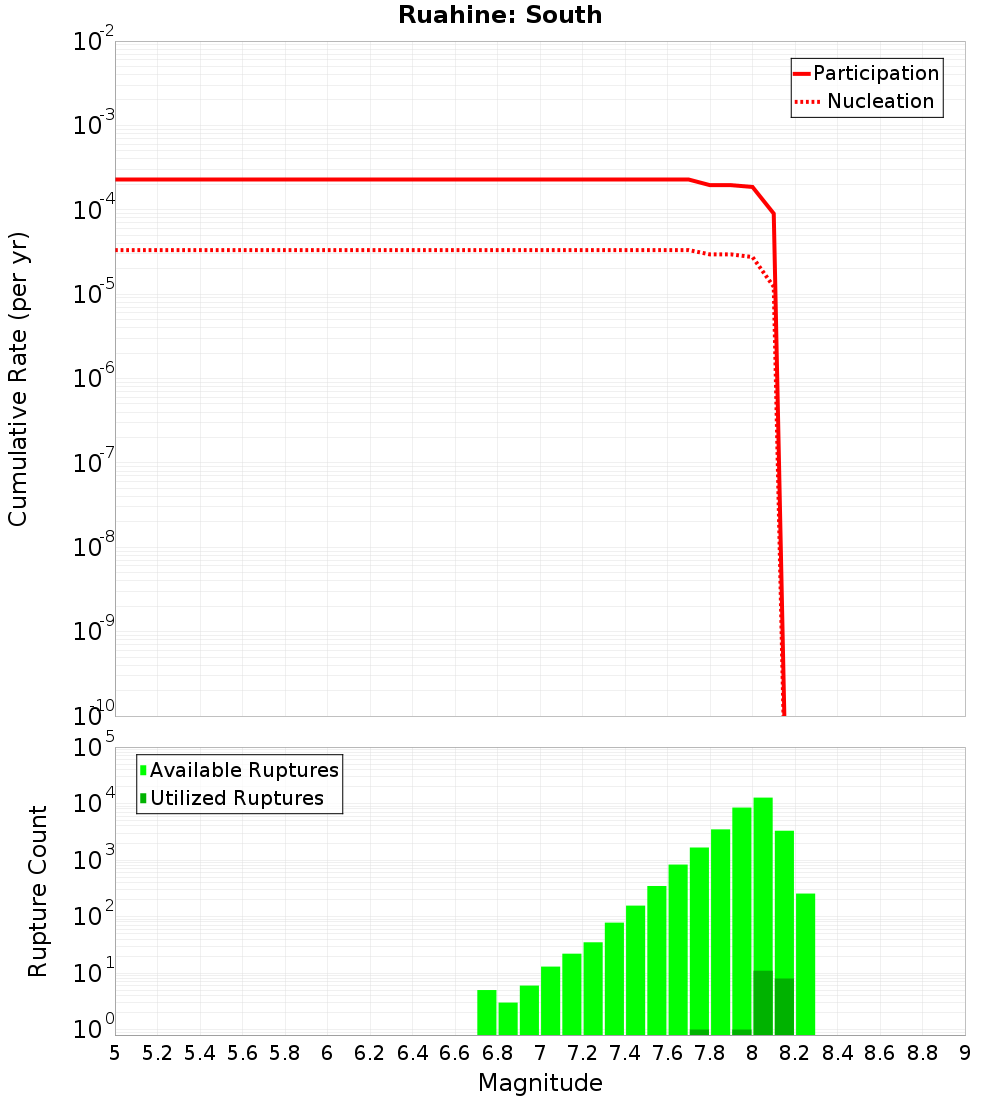

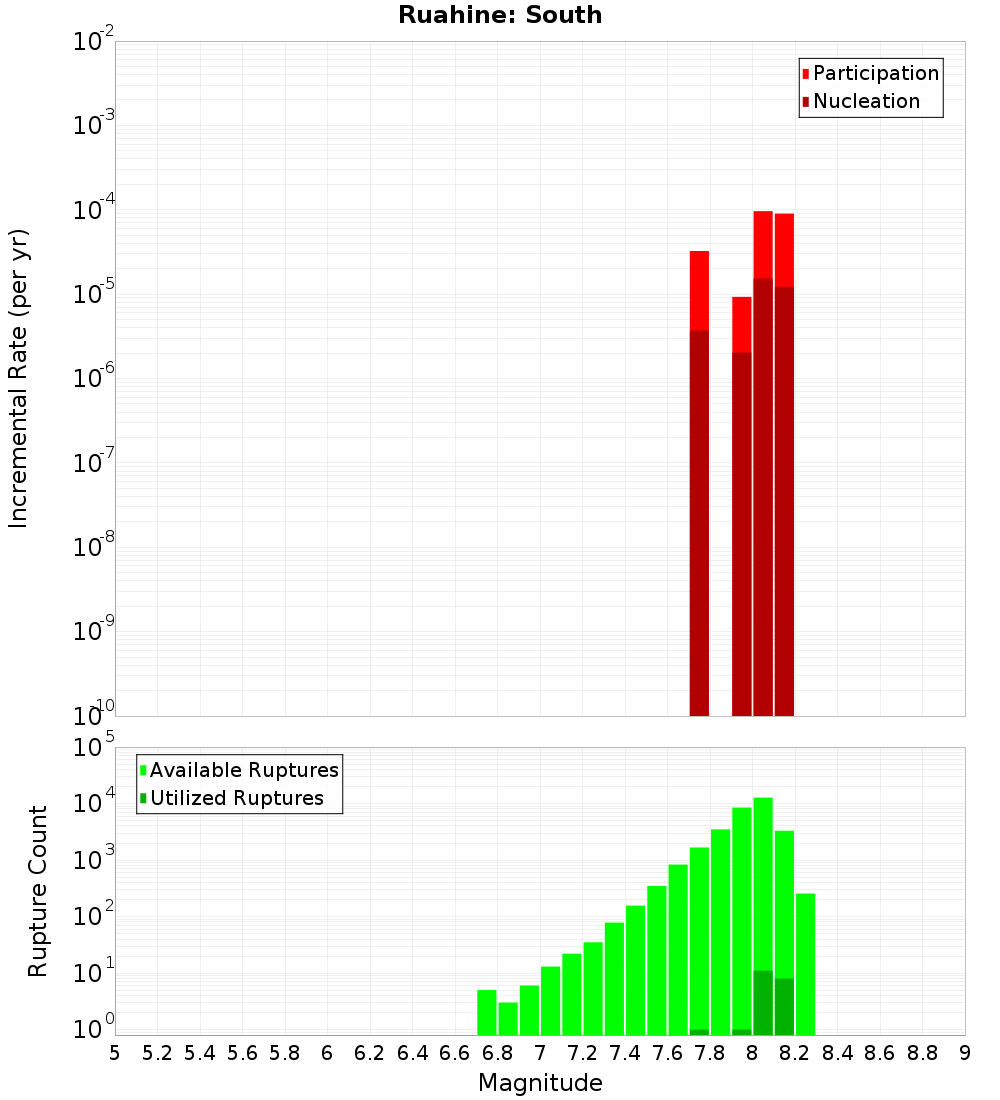

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

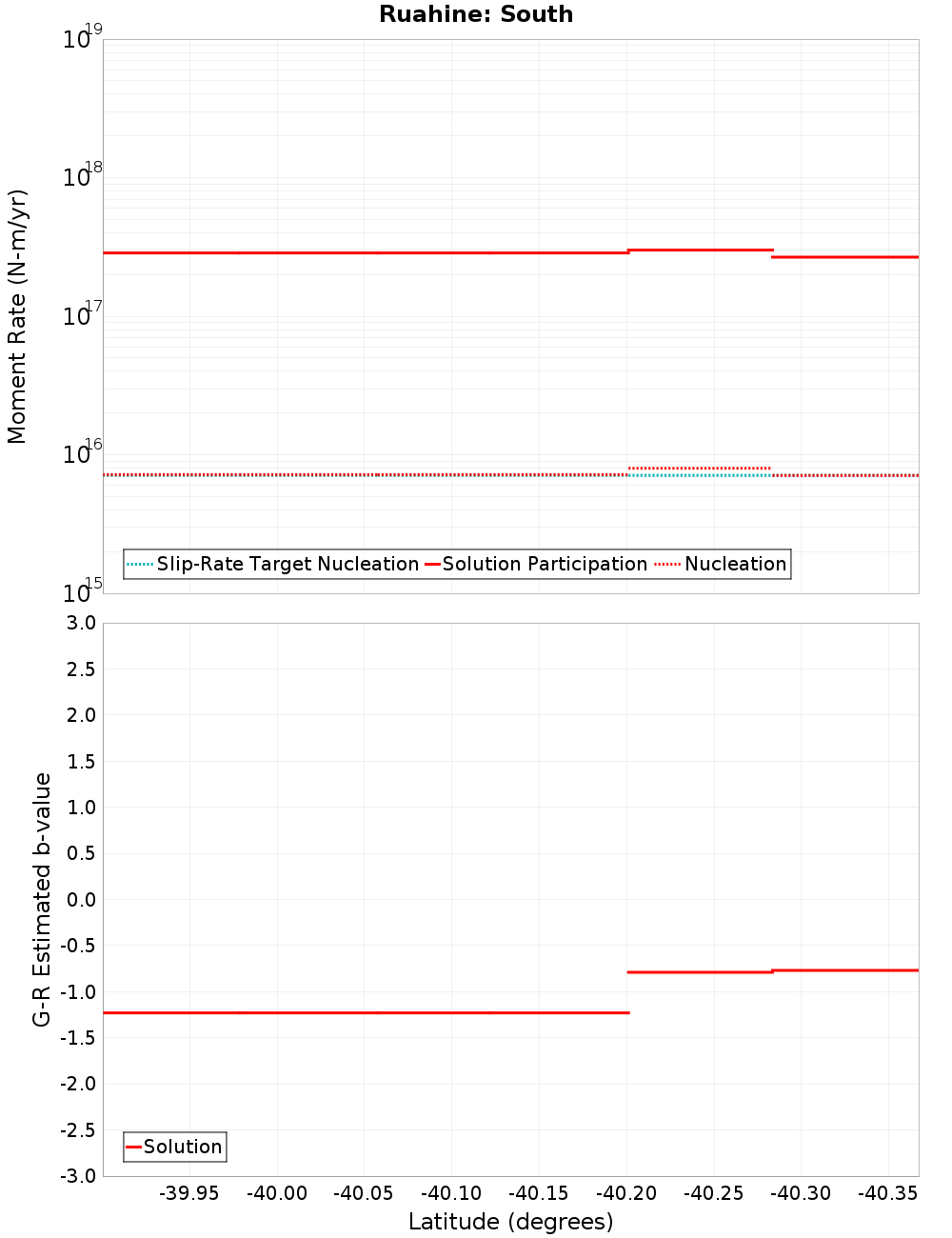

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Wellington: Pahiatua, 0 km away
Mohaka: South, 0 km away
Ruahine: Central, 0.1 km away
Woodville, 1.17 km away
Rangefront, 3.35 km away
Pohangina, 5.27 km away
Pahiatua, 5.89 km away
Ruataniwha, 9.28 km away
Maunga, 13.36 km away
Wakarara, 14.78 km away
Tokomaru, 15.11 km away
Northern Ohariu, 18.38 km away
Taonui, 18.79 km away

Wellington: Pahiatua, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?true
Co-rupture Count25,892
Co-rupture Rate2.2801451E-4

Mohaka: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?true
Co-rupture Count7,144
Co-rupture Rate0.0

Ruahine: Central, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?true
Co-rupture Count23,669
Co-rupture Rate1.9556373E-4

Woodville, 1.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate0.0

Rangefront, 3.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?true
Co-rupture Count1,263
Co-rupture Rate0.0

Pohangina, 5.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?true
Co-rupture Count504
Co-rupture Rate5.7333305E-5

Pahiatua, 5.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?true
Co-rupture Count370
Co-rupture Rate0.0

Ruataniwha, 9.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maunga, 13.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wakarara, 14.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?false
Co-rupture Count2,633
Co-rupture Rate0.0

Tokomaru, 15.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?false
Co-rupture Count363
Co-rupture Rate3.2450786E-5

Northern Ohariu, 18.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?false
Co-rupture Count4,844
Co-rupture Rate3.4708428E-5

Taonui, 18.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
