Volkner 4 Details

PropertyValue
Rupture Count9,984
Ruptures Above Sect Min Mag9,982
Ruptures w/ Nonzero Rates22
Magnitude Range[6.72, 8.17]
Length Range[17, 552] km
Total Rate0.0012134812 /yr
Multi-Fault Rate0.0012134812 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults71

Table Of Contents

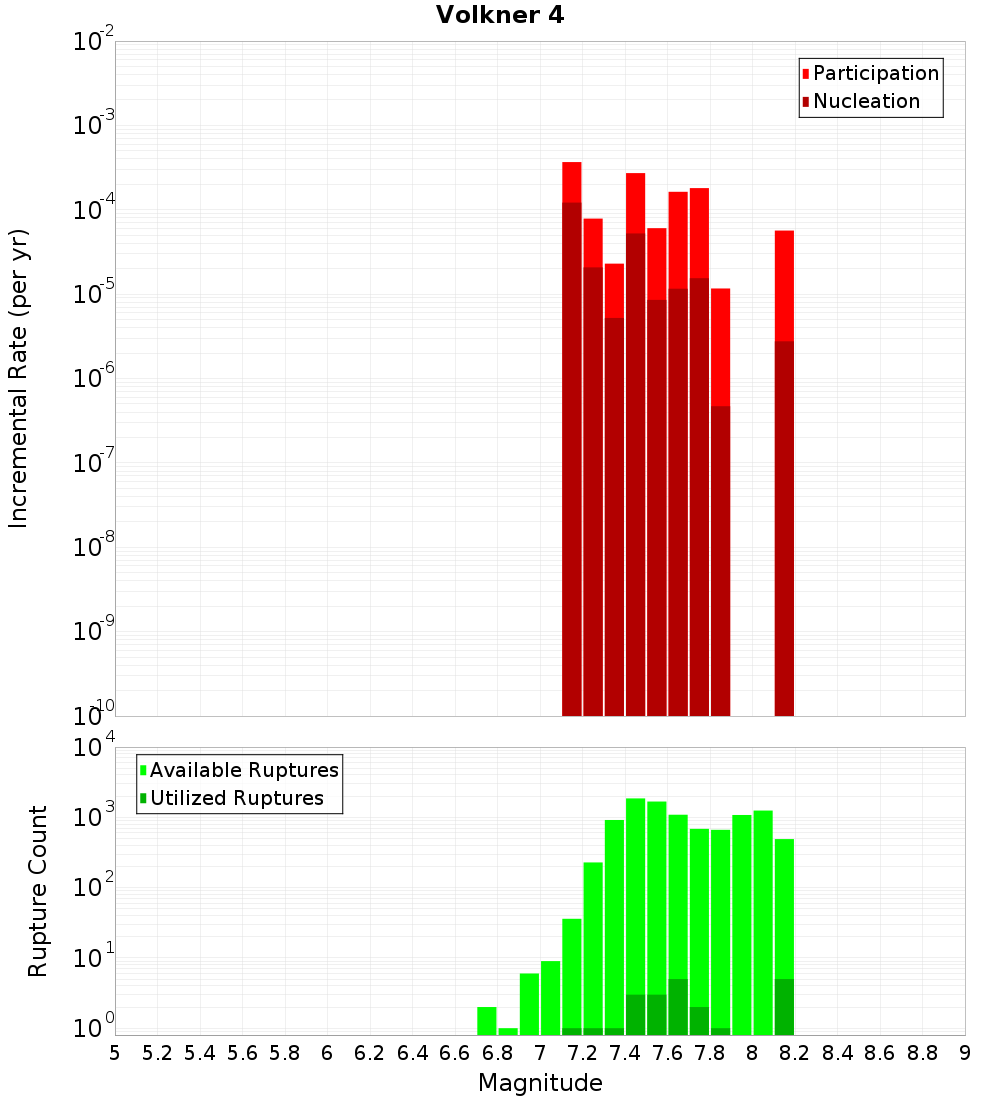

Magnitude-Frequency Distribution

(top)

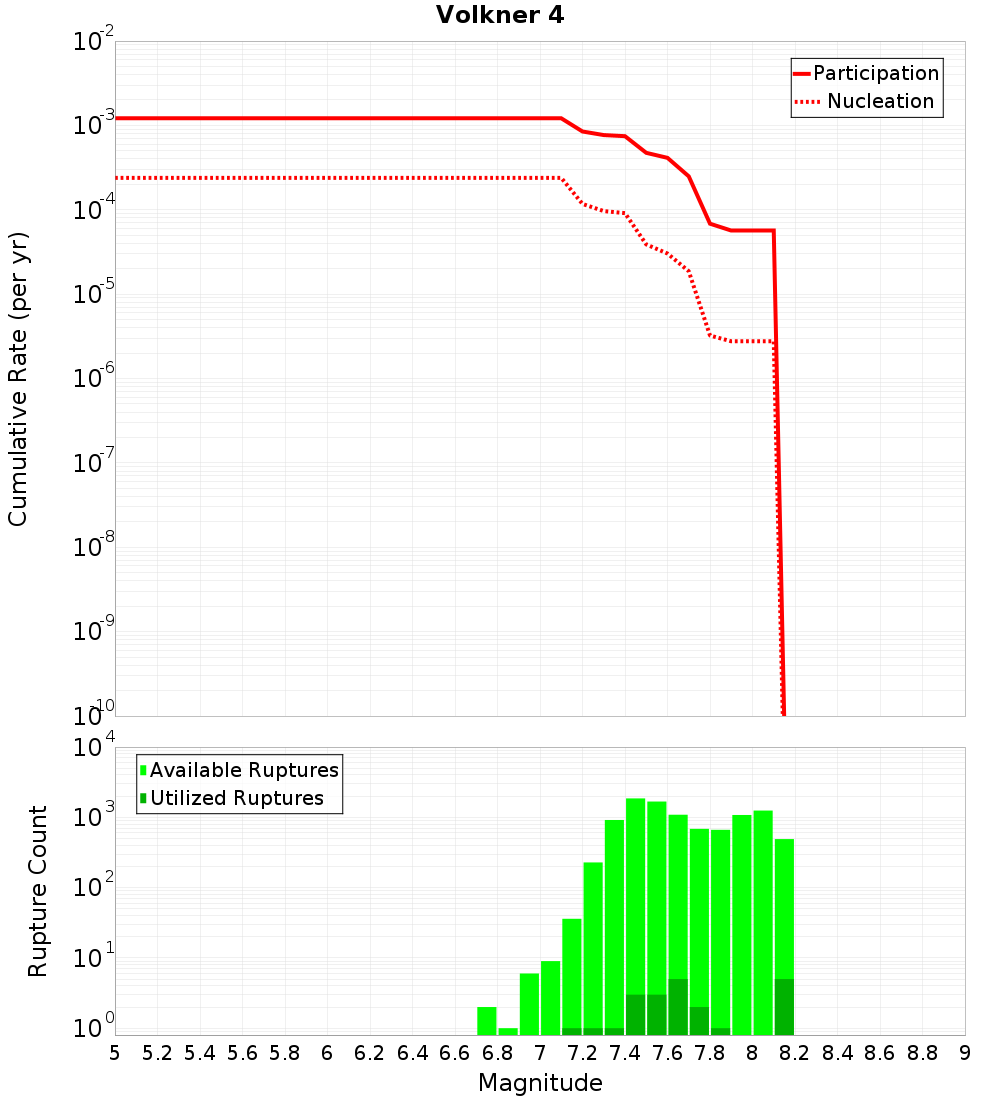

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

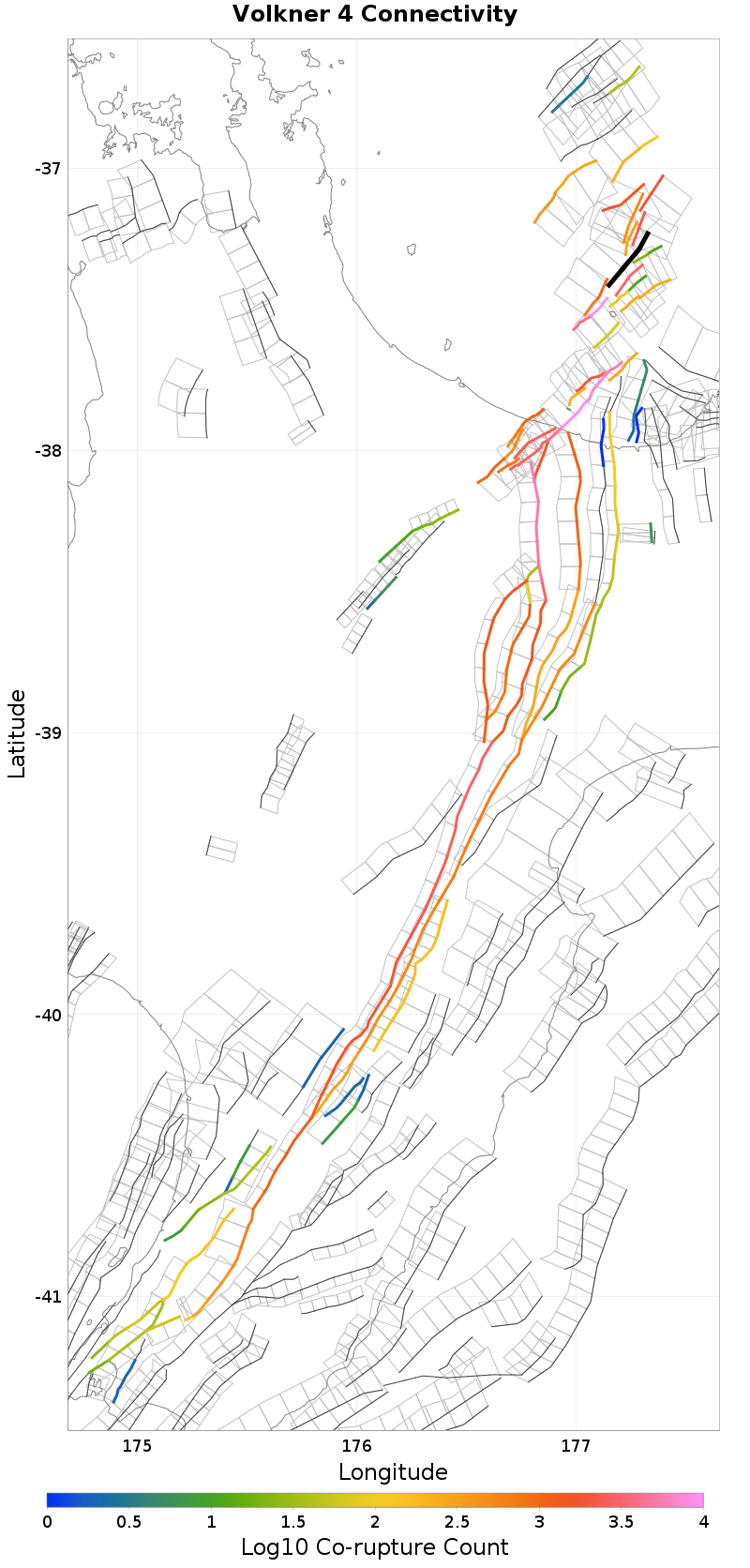

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Otara East 1, 0.31 km awayOtara East 2, 5.35 km away
Otara West 3, 0.37 km awayTuakana 7, 5.62 km away
Volkner 3, 1.38 km awayTe Arawa 1, 6.45 km away
Otara West 1, 1.61 km awayTuakana 6, 8.2 km away
Te Arawa 3, 1.72 km awayTuatoru 2, 10.03 km away
Te Arawa 2, 4.02 km awayTuatoru 1, 11.02 km away
Otara West 2, 4.57 km awayCalypso 2, 12.19 km away
Whakaari 4, 5.31 km awayTauranga Trough East 2, 19.49 km away

Otara East 1, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?true
Co-rupture Count2,534
Co-rupture Rate9.289663E-5

Otara West 3, 0.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?true
Co-rupture Count1,543
Co-rupture Rate2.9131465E-4

Volkner 3, 1.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?true
Co-rupture Count1,038
Co-rupture Rate2.0450137E-4

Otara West 1, 1.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?true
Co-rupture Count316
Co-rupture Rate5.4620375E-4

Te Arawa 3, 1.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?false
Co-rupture Count22
Co-rupture Rate0.0

Te Arawa 2, 4.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?true
Co-rupture Count3,085
Co-rupture Rate4.326209E-4

Otara West 2, 4.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?true
Co-rupture Count471
Co-rupture Rate5.4620375E-4

Whakaari 4, 5.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?true
Co-rupture Count9,691
Co-rupture Rate7.0660654E-4

Otara East 2, 5.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?true
Co-rupture Count1,887
Co-rupture Rate1.714614E-4

Tuakana 7, 5.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?false
Co-rupture Count273
Co-rupture Rate2.0450137E-4

Te Arawa 1, 6.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?false
Co-rupture Count85
Co-rupture Rate2.2984017E-5

Tuakana 6, 8.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?false
Co-rupture Count408
Co-rupture Rate2.0450137E-4

Tuatoru 2, 10.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?false
Co-rupture Count232
Co-rupture Rate0.0

Tuatoru 1, 11.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?false
Co-rupture Count255
Co-rupture Rate7.856477E-5

Calypso 2, 12.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?false
Co-rupture Count65
Co-rupture Rate1.0154879E-4

Tauranga Trough East 2, 19.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMTIuNUFFaEtQ
Connected?true
Directly Connected?false
Co-rupture Count217
Co-rupture Rate2.0450137E-4
