Alpine: Resolution - Five Fingers Details

PropertyValue
Rupture Count63,248
Ruptures Above Sect Min Mag63,244
Ruptures w/ Nonzero Rates162
Magnitude Range[6.92, 8.64]
Length Range[20, 1,156] km
Total Rate0.0020948069 /yr
Multi-Fault Rate0.0020948069 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults90

Table Of Contents

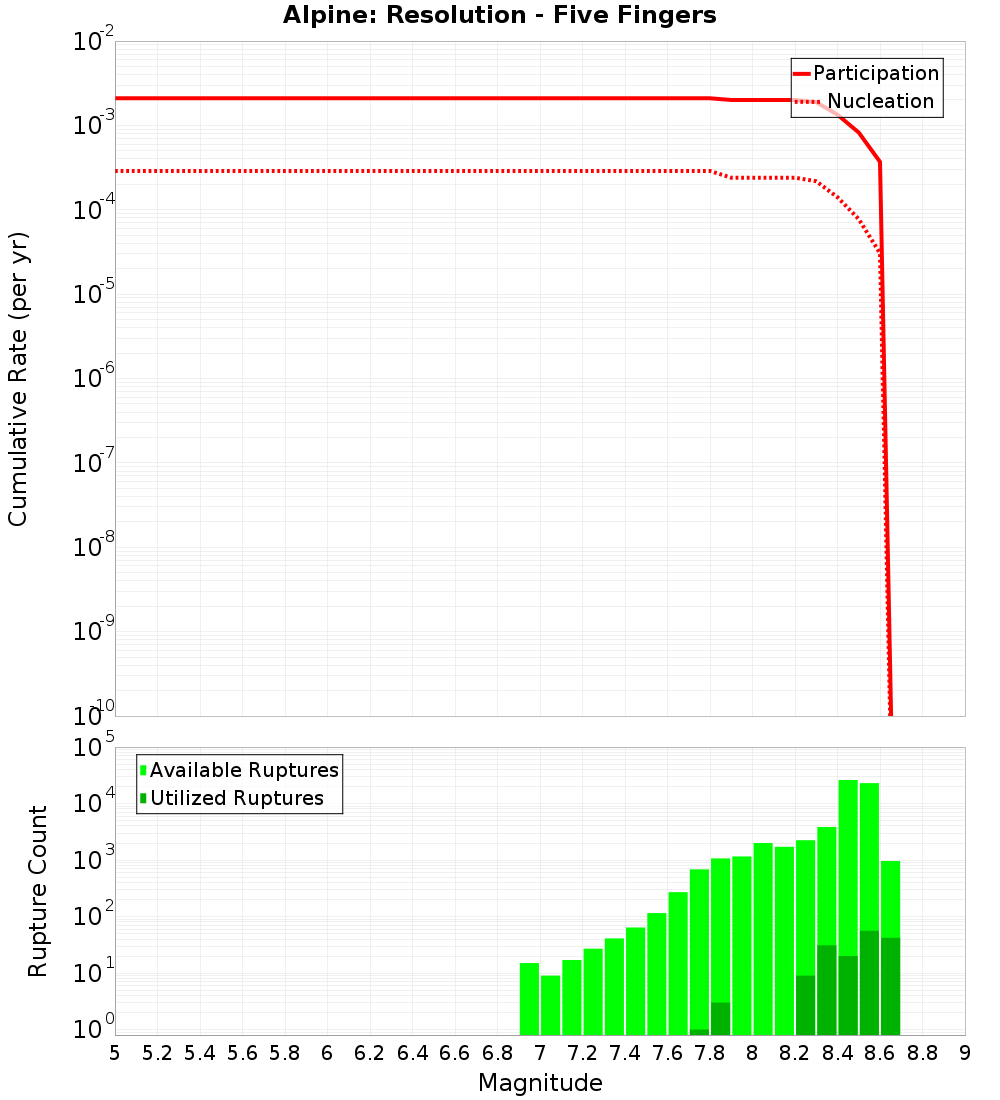

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

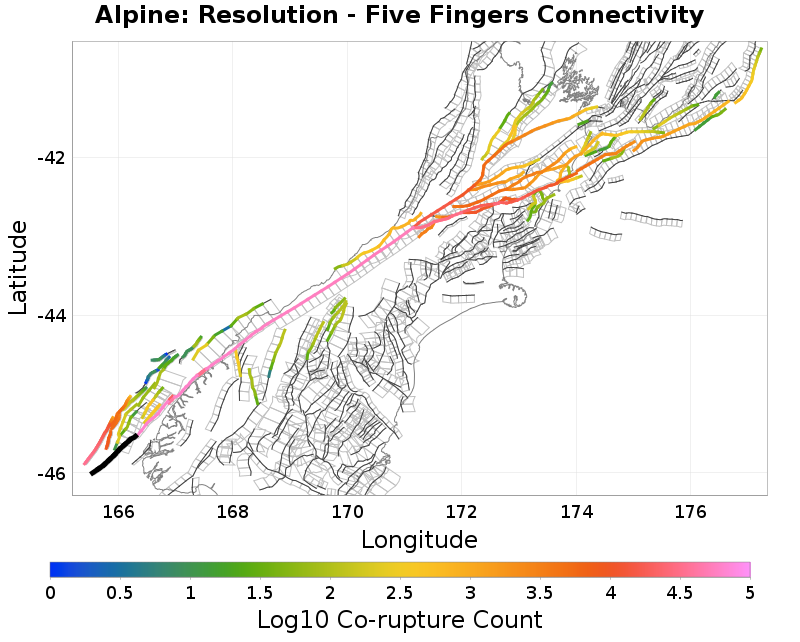

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
South Wedge 5, 0.13 km away
South Wedge 3-6-10, 0.3 km away
Alpine: Resolution - Dagg, 0.91 km away
Caswell 211, 12.73 km away
Caswell High 1, 14.93 km away

South Wedge 5, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?true
Directly Connected?true
Co-rupture Count247
Co-rupture Rate6.7095934E-5

South Wedge 3-6-10, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?true
Directly Connected?true
Co-rupture Count67
Co-rupture Rate6.709366E-5

Alpine: Resolution - Dagg, 0.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?true
Directly Connected?true
Co-rupture Count62,778
Co-rupture Rate0.0020948045

Caswell 211, 12.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?true
Directly Connected?true
Co-rupture Count9,095
Co-rupture Rate5.3346983E-5

Caswell High 1, 14.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?true
Directly Connected?true
Co-rupture Count33,592
Co-rupture Rate4.7282614E-5
