Ohariu Details

PropertyValue
Rupture Count9,987
Ruptures Above Sect Min Mag9,984
Ruptures w/ Nonzero Rates17
Magnitude Range[6.94, 8.38]
Length Range[21, 540] km
Total Rate0.0011733074 /yr
Multi-Fault Rate6.9988257E-4 /yr (59.65%)
Directly-Connected Faults17
All Co-Rupturing Faults88

Table Of Contents

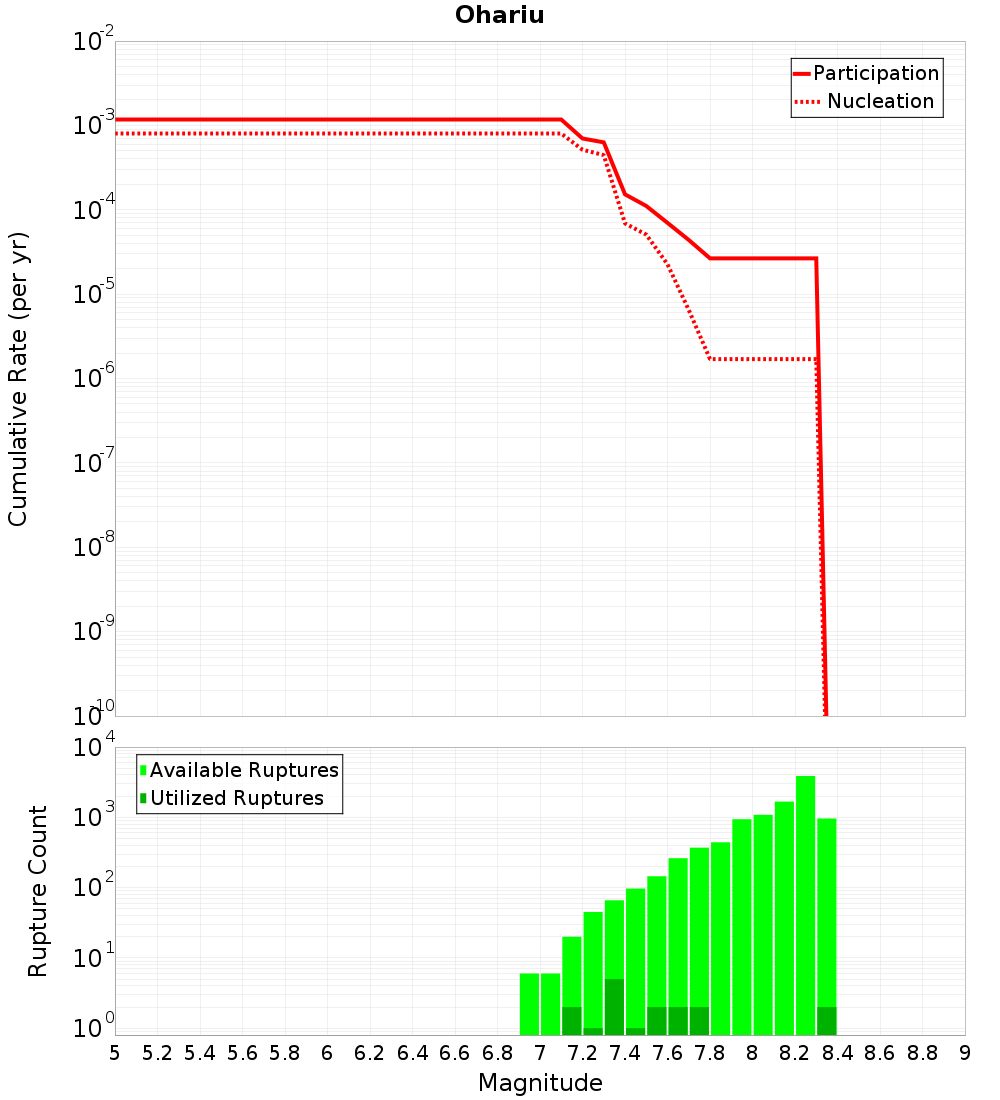

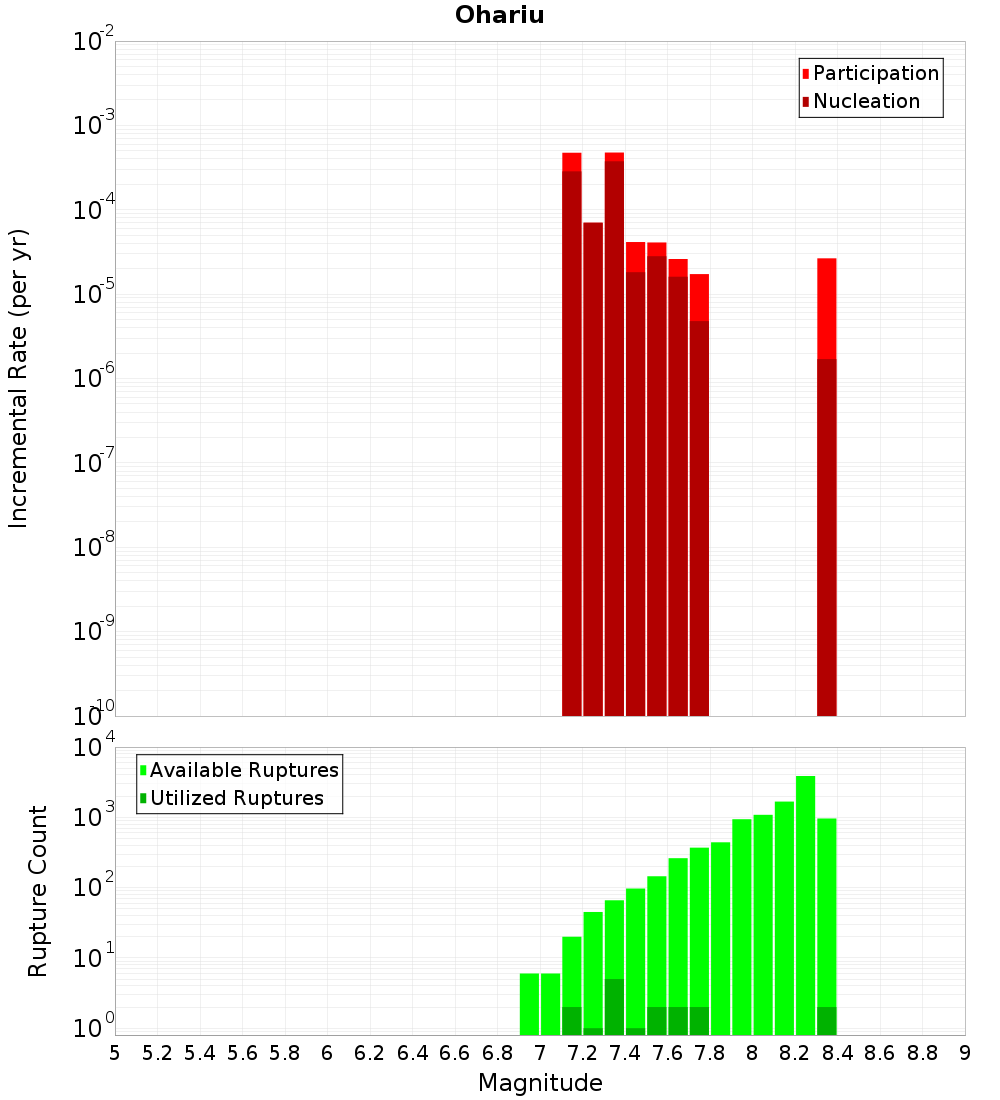

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

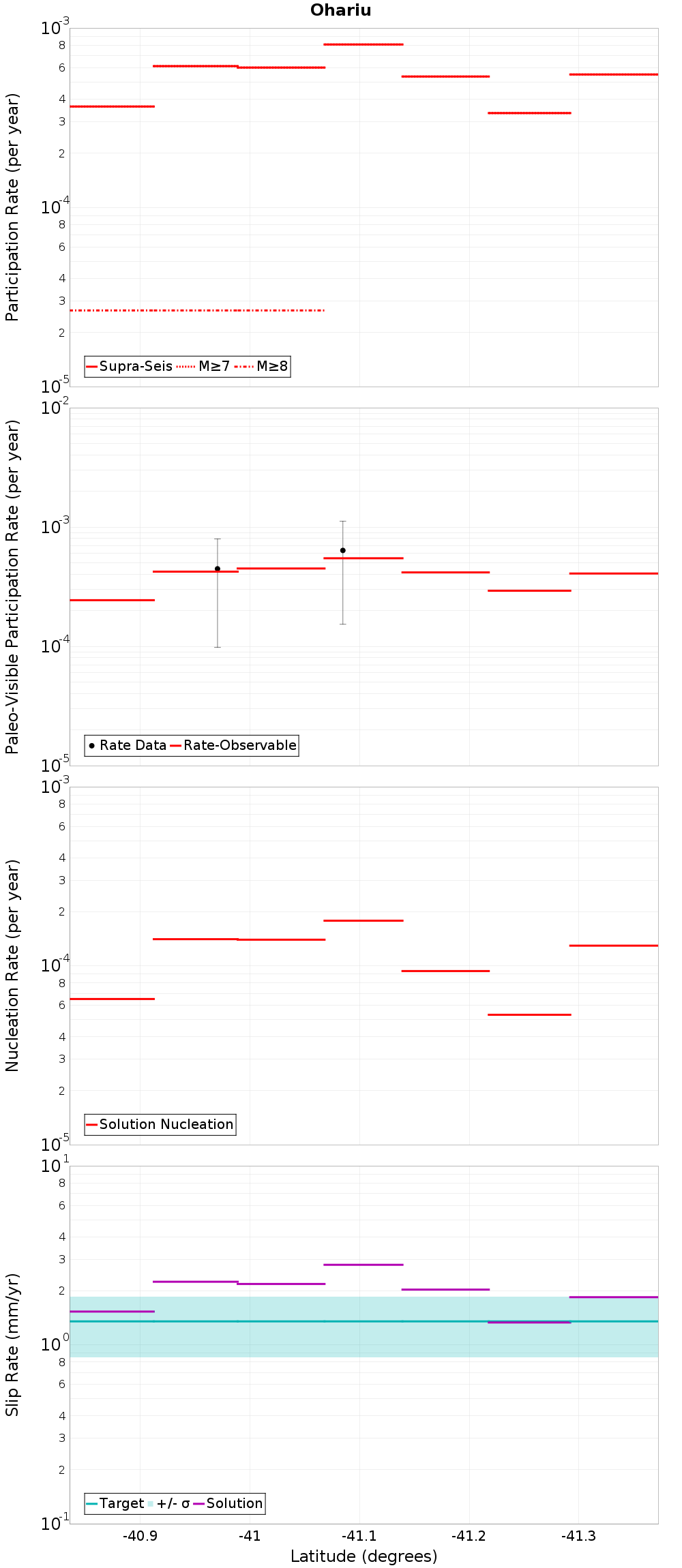

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault SectionFault Section
Ohariu South 2, 0 km awayWellington Hutt Valley: 4, 4.6 km awayWellington Hutt Valley: 5, 12.34 km away
Wellington Hutt Valley: 2, 0.17 km awayOtaki Forks: 1, 5.2 km awayOnepoto, 14.67 km away
Wellington Hutt Valley: 1, 1.7 km awayAotea - Evans Bay, 6 km awayWairarapa: 1, 14.99 km away
Moonshine, 2.04 km awayAkatarawa, 6.35 km awayWairarapa: Needles, 15.68 km away
Whitemans Valley, 2.29 km awayOhariu South 1, 6.95 km awayWellington: Tararua 1, 15.88 km away
Pukerua - Shepherds Gully: 1, 2.91 km awayOtaheke South, 8.6 km awayWellington: Tararua 3, 17.09 km away
Pukerua - Shepherds Gully: 2, 2.91 km awayOkupe 1, 9.22 km awayFisherman 1, 17.14 km away
Pukerua - Shepherds Gully: 3, 3.18 km awayPoroutawhao, 11.17 km awayWellington: Tararua 2, 18.15 km away
Shepherds Gully - Mana, 3.79 km awayWairau 3, 11.37 km awayFisherman 3, 18.64 km away
Wellington Hutt Valley: 3, 3.96 km awayOtaki Forks: 2, 11.39 km awayMascarin, 19.56 km away
Northern Ohariu, 4.32 km awayOtaheke North, 11.65 km awayFisherman 2, 19.84 km away

Ohariu South 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?true
Directly Connected?true
Co-rupture Count1,268
Co-rupture Rate0.0

Wellington Hutt Valley: 2, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?true
Directly Connected?true
Co-rupture Count464
Co-rupture Rate0.0

Wellington Hutt Valley: 1, 1.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?true
Directly Connected?true
Co-rupture Count1,131
Co-rupture Rate1.7260546E-4

Moonshine, 2.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?true
Directly Connected?true
Co-rupture Count1,652
Co-rupture Rate0.0

Whitemans Valley, 2.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?true
Directly Connected?true
Co-rupture Count376
Co-rupture Rate0.0

Pukerua - Shepherds Gully: 1, 2.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?true
Directly Connected?true
Co-rupture Count1,277
Co-rupture Rate7.2315415E-5

Pukerua - Shepherds Gully: 2, 2.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?true
Directly Connected?true
Co-rupture Count1,385
Co-rupture Rate8.1484504E-5

Pukerua - Shepherds Gully: 3, 3.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?true
Directly Connected?true
Co-rupture Count1,919
Co-rupture Rate1.472604E-4

Shepherds Gully - Mana, 3.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?true
Directly Connected?true
Co-rupture Count237
Co-rupture Rate0.0

Wellington Hutt Valley: 3, 3.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?true
Directly Connected?true
Co-rupture Count195
Co-rupture Rate2.7174642E-4

Northern Ohariu, 4.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?true
Directly Connected?true
Co-rupture Count7,120
Co-rupture Rate4.384511E-5

Wellington Hutt Valley: 4, 4.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?true
Directly Connected?true
Co-rupture Count846
Co-rupture Rate0.0

Otaki Forks: 1, 5.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?true
Directly Connected?true
Co-rupture Count1,820
Co-rupture Rate1.7463295E-6

Aotea - Evans Bay, 6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?true
Directly Connected?true
Co-rupture Count199
Co-rupture Rate0.0

Akatarawa, 6.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?true
Directly Connected?false
Co-rupture Count682
Co-rupture Rate0.0

Ohariu South 1, 6.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?true
Directly Connected?true
Co-rupture Count525
Co-rupture Rate0.0

Otaheke South, 8.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?true
Directly Connected?true
Co-rupture Count62
Co-rupture Rate0.0

Okupe 1, 9.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?true
Directly Connected?false
Co-rupture Count388
Co-rupture Rate2.6566906E-5

Poroutawhao, 11.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?true
Directly Connected?false
Co-rupture Count22
Co-rupture Rate0.0

Wairau 3, 11.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?true
Directly Connected?true
Co-rupture Count242
Co-rupture Rate3.7755645E-4

Otaki Forks: 2, 11.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?true
Directly Connected?false
Co-rupture Count1,616
Co-rupture Rate0.0

Otaheke North, 11.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 5, 12.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?true
Directly Connected?false
Co-rupture Count628
Co-rupture Rate0.0

Onepoto, 14.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairarapa: 1, 14.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairarapa: Needles, 15.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington: Tararua 1, 15.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Wellington: Tararua 3, 17.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?true
Directly Connected?false
Co-rupture Count580
Co-rupture Rate0.0

Fisherman 1, 17.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?true
Directly Connected?false
Co-rupture Count18
Co-rupture Rate6.5775894E-5

Wellington: Tararua 2, 18.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?true
Directly Connected?false
Co-rupture Count564
Co-rupture Rate0.0

Fisherman 3, 18.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mascarin, 19.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Fisherman 2, 19.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
