Old Man Details
| Property | Value |
|---|---|
| Rupture Count | 551 |
| Ruptures Above Sect Min Mag | 551 |
| Ruptures w/ Nonzero Rates | 3 |
| Magnitude Range | [7.39, 8.26] |
| Length Range | [35, 316] km |
| Total Rate | 9.4116467E-7 /yr |
| Multi-Fault Rate | 9.4116467E-7 /yr (100.00%) |
| Directly-Connected Faults | 6 |
| All Co-Rupturing Faults | 33 |
Table Of Contents

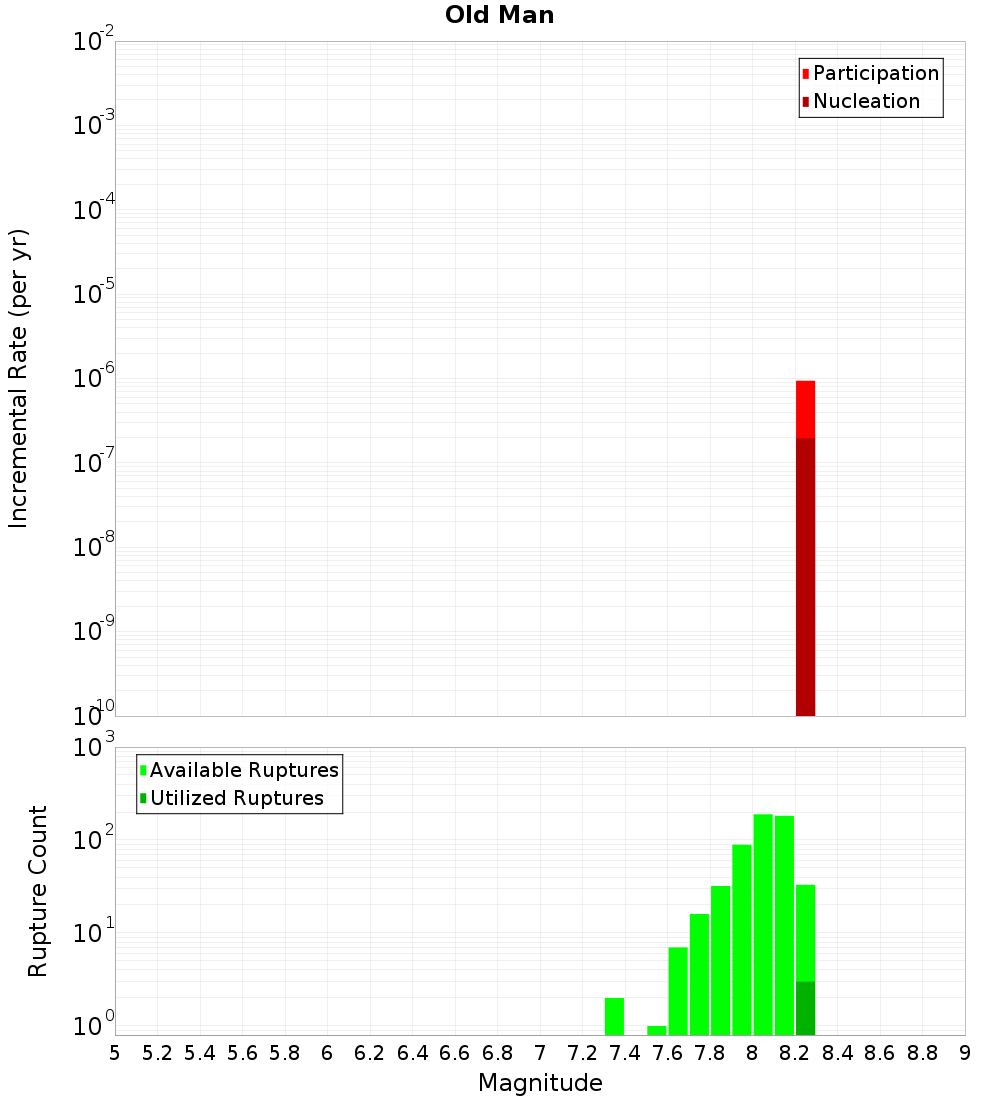

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

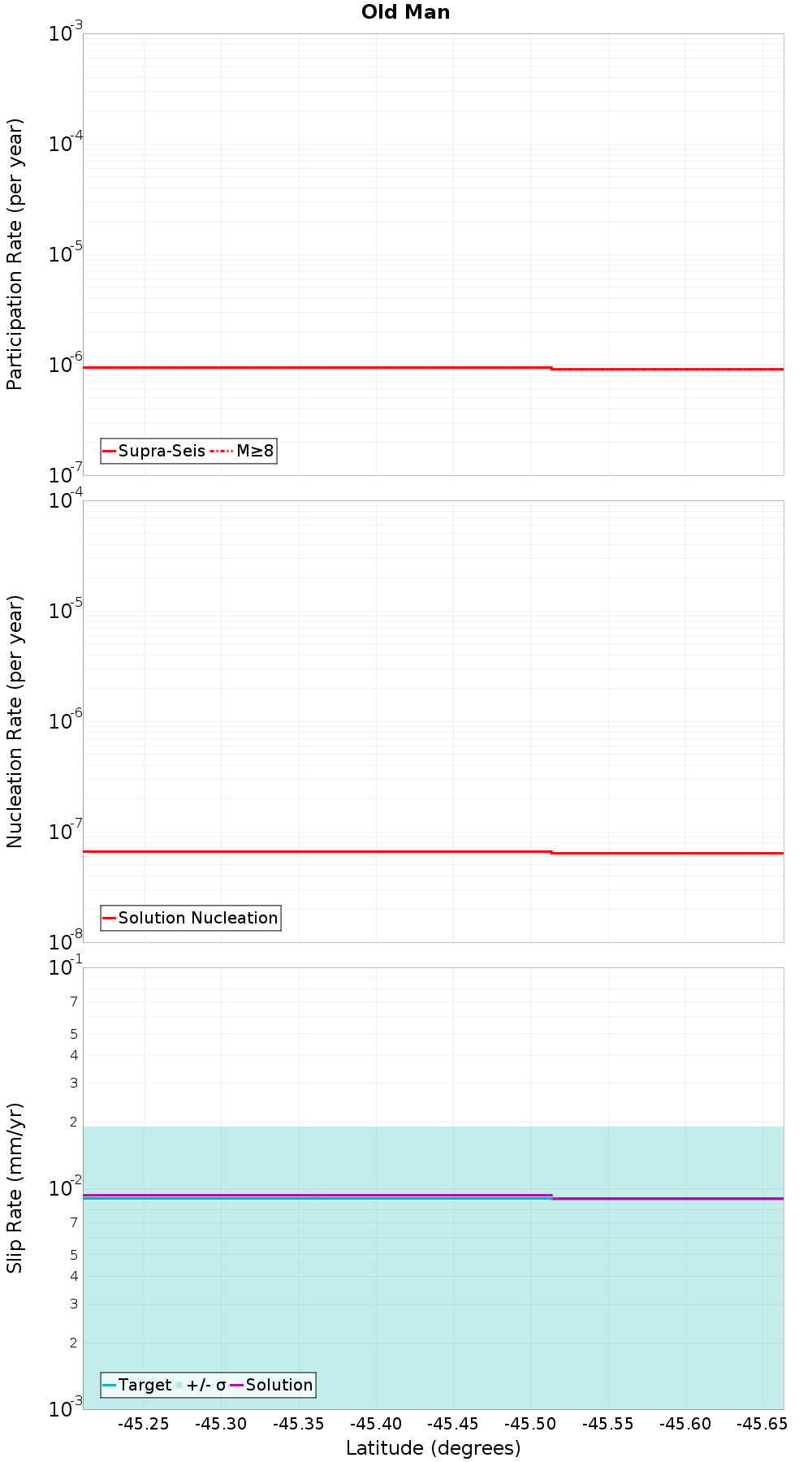

Along-Strike Values
Moment-Rates and b-Values

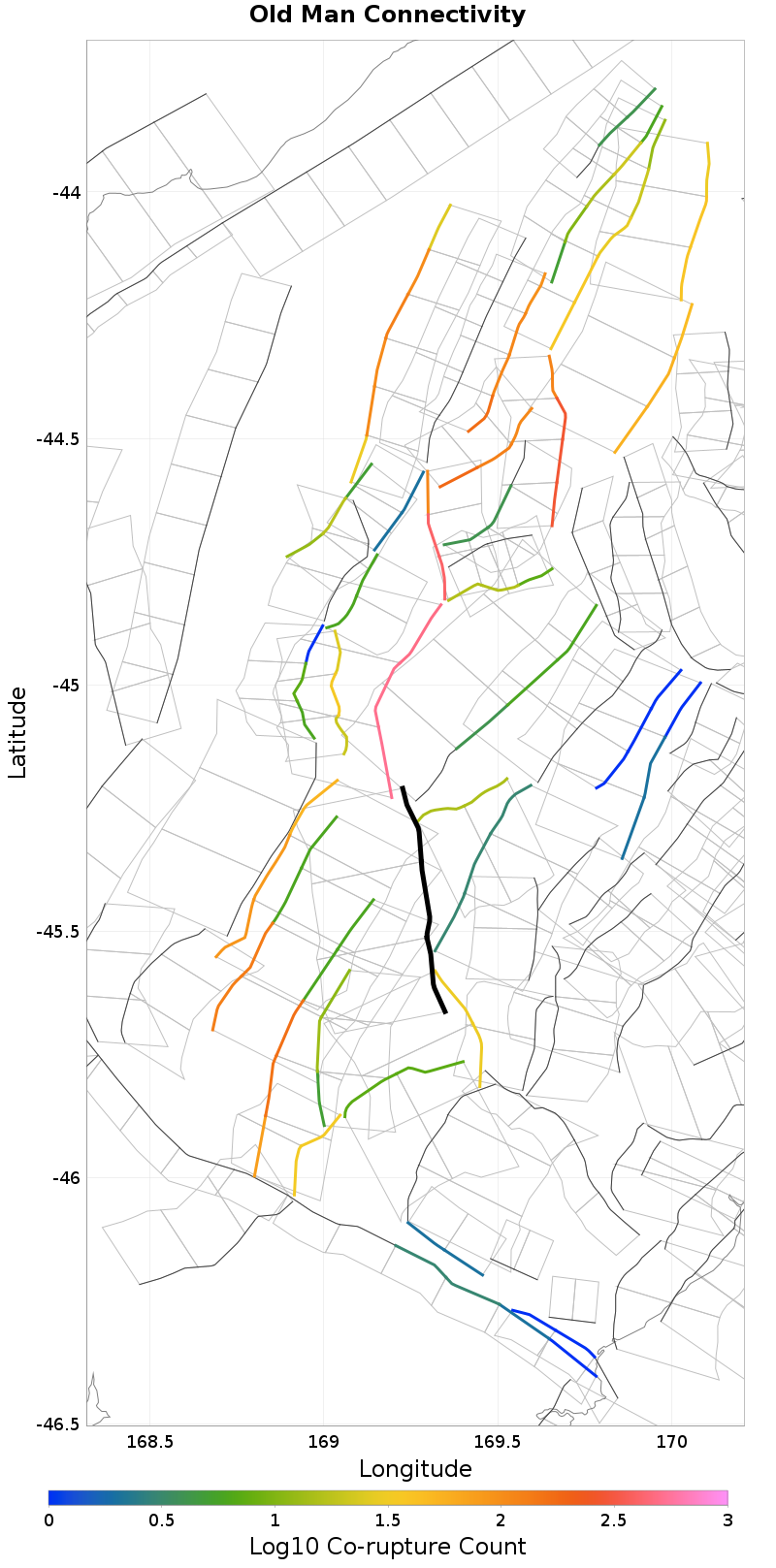

Connectivity
 |  |
|---|
Nearby Sections
Garvie, 0.09 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 135 |
| Co-rupture Rate | 3.4229505E-8 |
Waikaia, 0.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 161 |
| Co-rupture Rate | 9.0693516E-7 |
Roaring Lion, 0.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 89 |
| Co-rupture Rate | 0.0 |
Wendon Valley, 0.28 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 13 |
| Co-rupture Rate | 0.0 |
Teviot, 0.66 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 30 |
| Co-rupture Rate | 0.0 |
Galloway, 0.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 15 |
| Co-rupture Rate | 0.0 |
Little Valley, 1.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3 |
| Co-rupture Rate | 0.0 |
Pisa, 1.75 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 520 |
| Co-rupture Rate | 9.4116467E-7 |
Dunstan, 1.91 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 6 |
| Co-rupture Rate | 0.0 |
Roaring Meg, 11.24 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 35 |
| Co-rupture Rate | 0.0 |
Spylaw, 11.99 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 7 |
| Co-rupture Rate | 0.0 |
Mid Dome, 12.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Nevis, 14.68 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tuapeka, 16.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waikaka, 16.41 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 33 |
| Co-rupture Rate | 3.4229505E-8 |
Backbone, 17.64 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Lake Onslow, 17.7 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
NW Cardrona South, 18.78 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 7 |
| Co-rupture Rate | 0.0 |
Blue Mountain, 19.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
