Waikaka Details

Property	Value
Rupture Count	86
Ruptures Above Sect Min Mag	86
Ruptures w/ Nonzero Rates	5
Magnitude Range	[7.15, 8.25]
Length Range	[23, 308] km
Total Rate	8.899451E-6 /yr
Multi-Fault Rate	3.5536127E-6 /yr (39.93%)
Directly-Connected Faults	1
All Co-Rupturing Faults	21

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

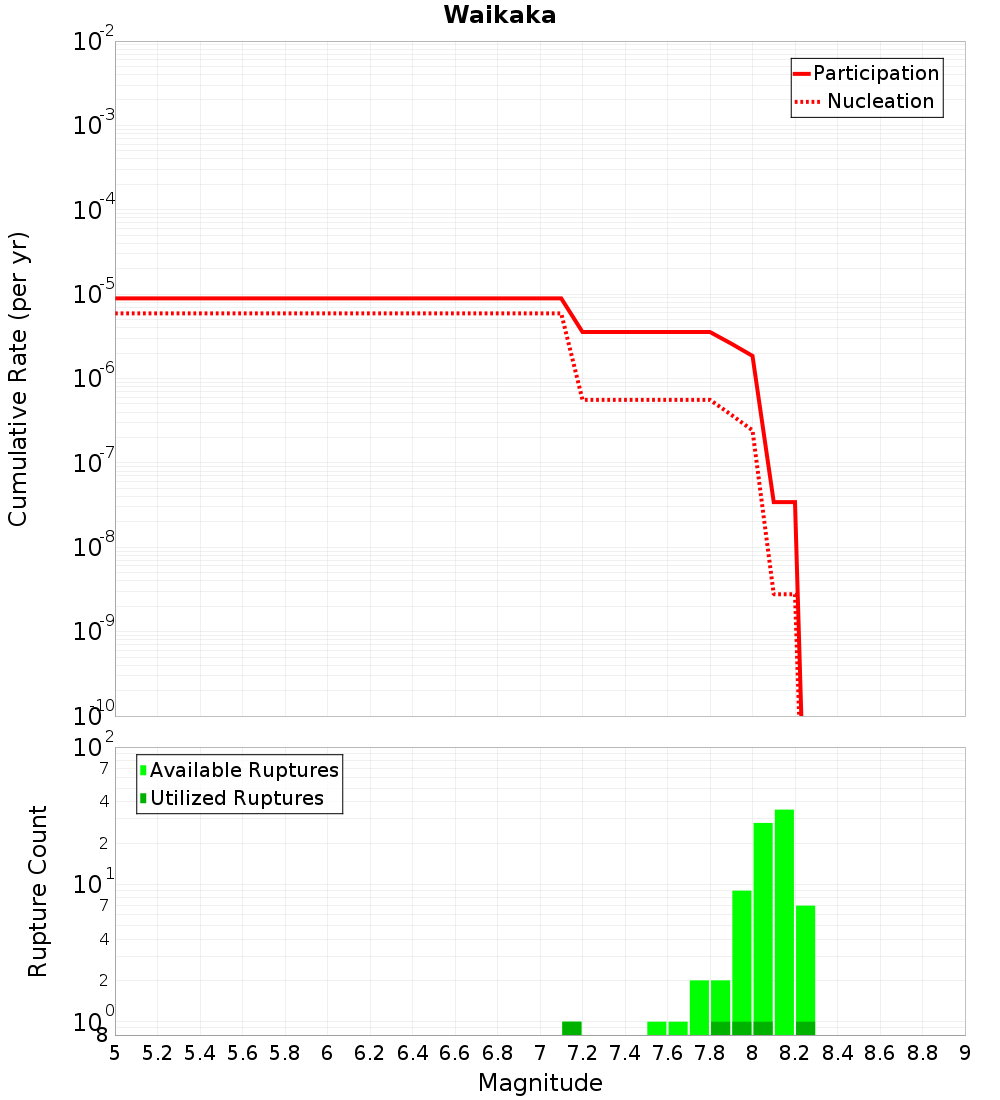

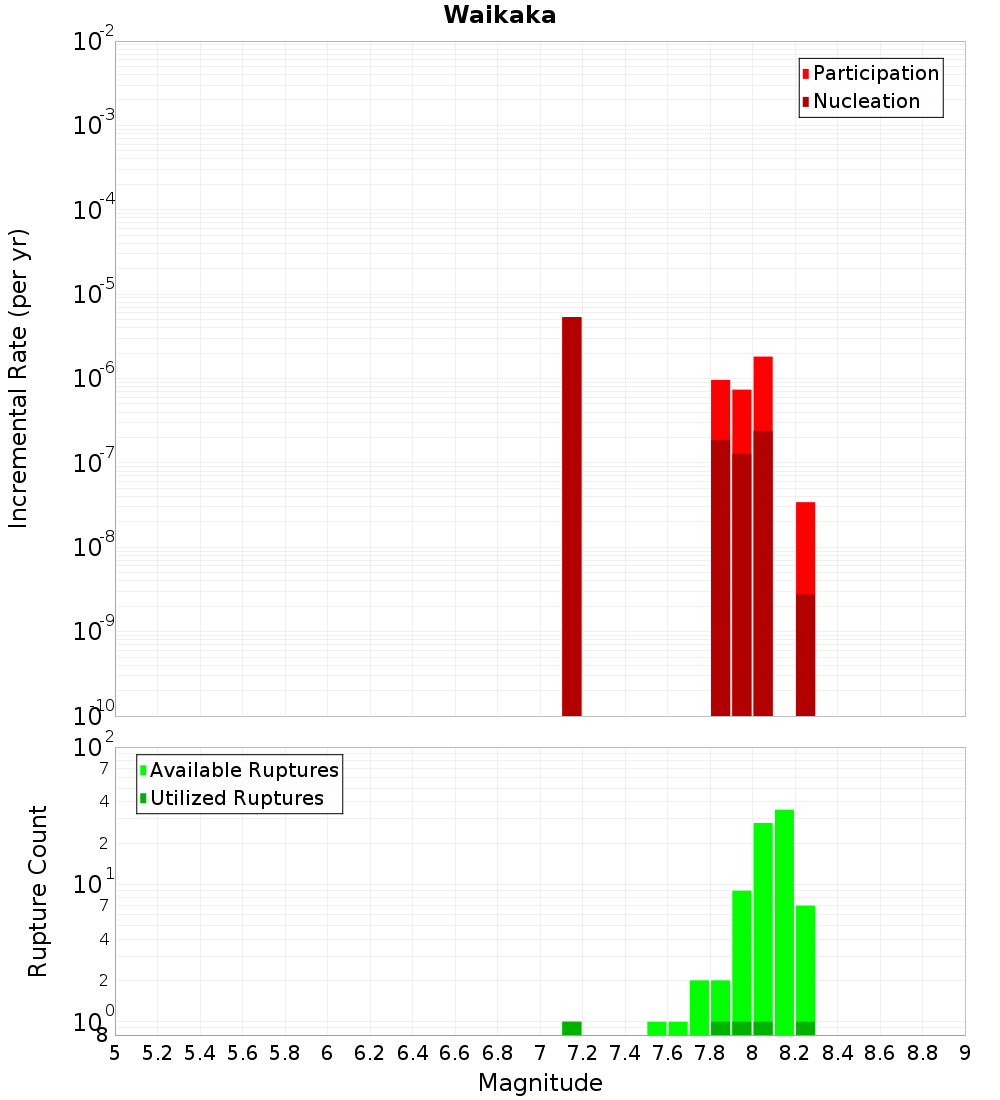

Magnitude-Frequency Distribution

Incremental	Cumulative

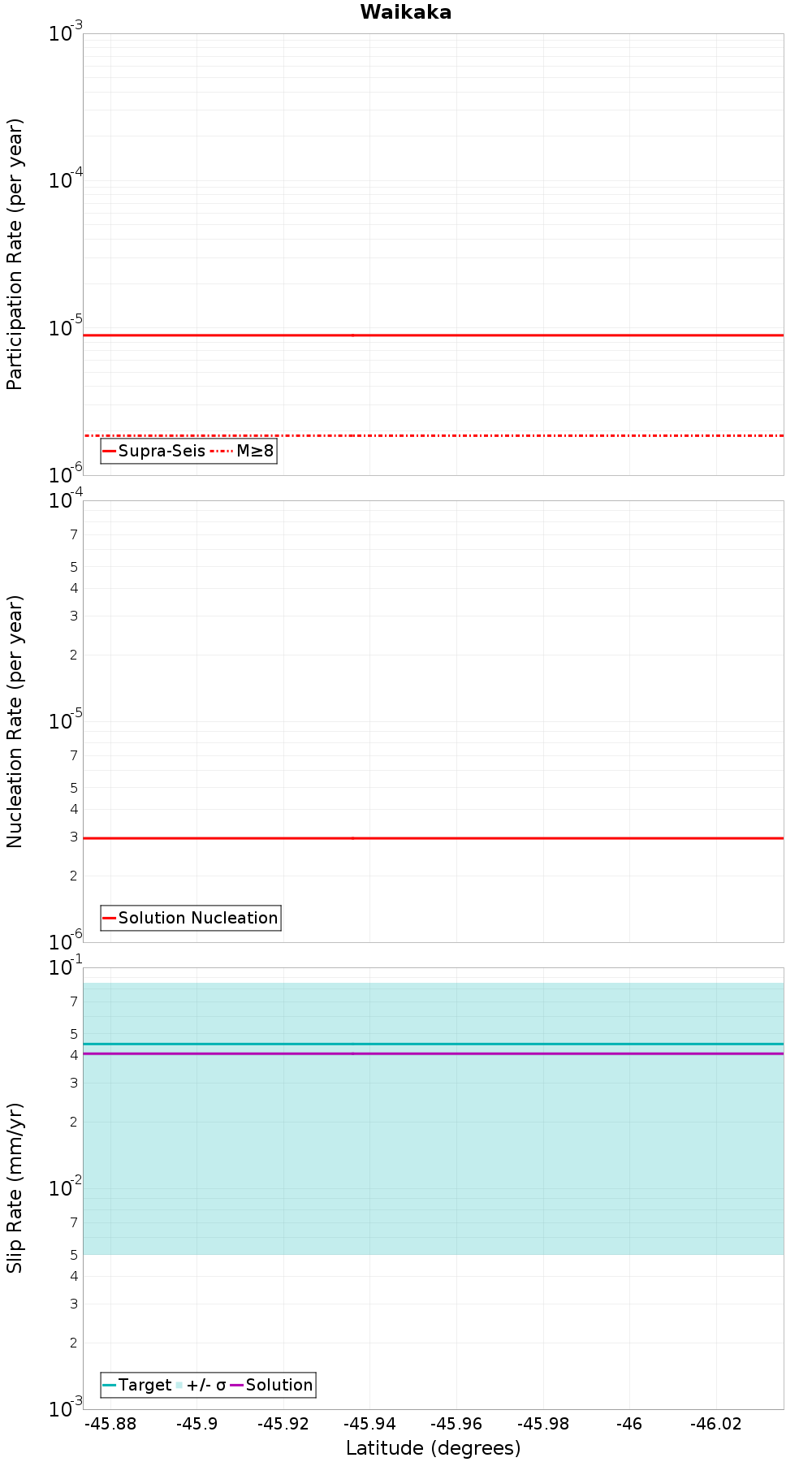

Along-Strike Values

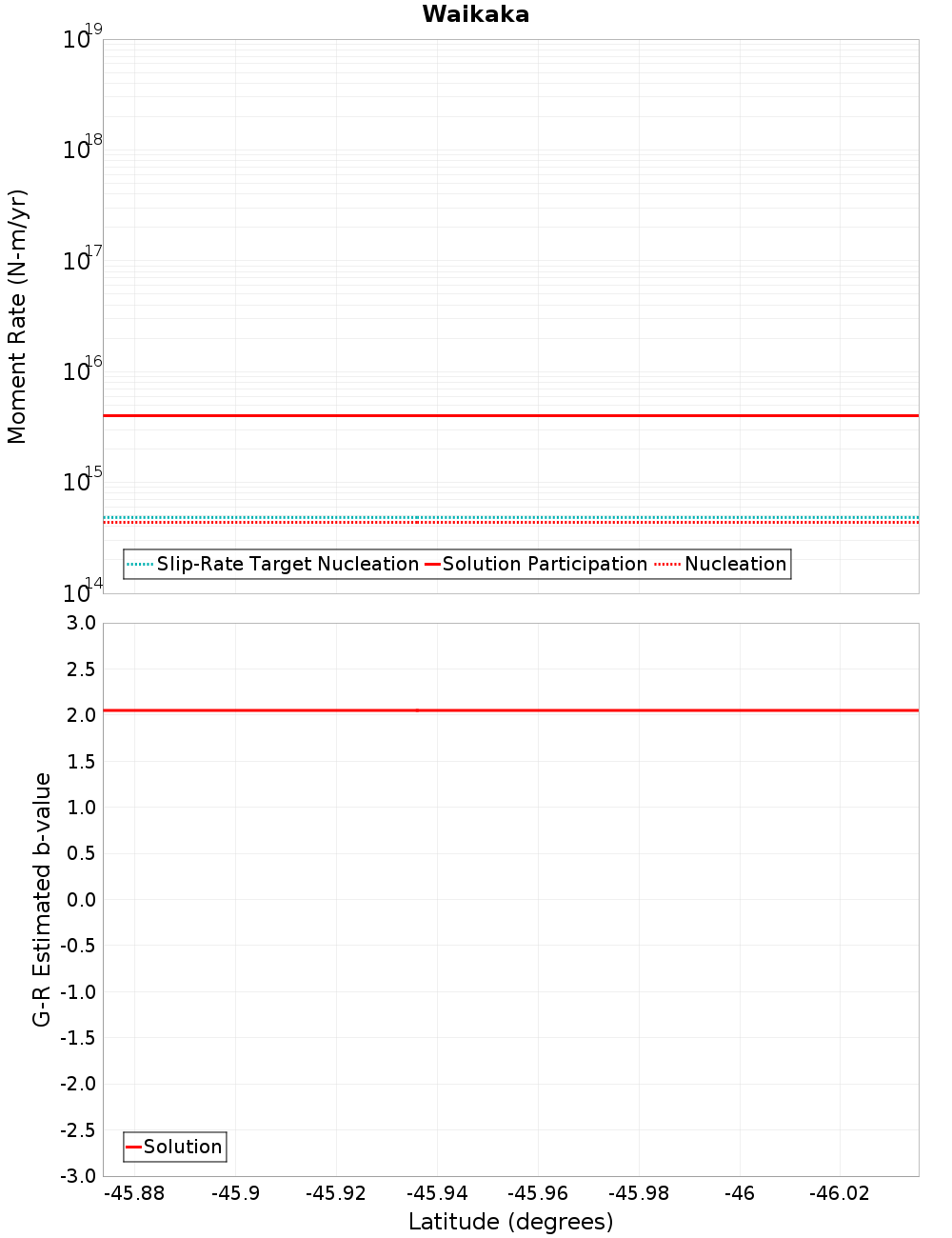

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Waikaia, 0.07 km away
Hedgehope, 0.17 km away
Wendon Valley, 0.2 km away
Hillfoot, 0.9 km away
Spylaw, 1.11 km away
Hokonui, 1.27 km away
Garvie, 4.16 km away
Mid Dome, 14.38 km away
Teviot, 15.95 km away
Old Man, 16.41 km away
Roaring Lion, 18.85 km away

Waikaia, 0.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	1.7004563E-6

Hedgehope, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Wendon Valley, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	1.8189269E-6

Hillfoot, 0.9 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Spylaw, 1.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hokonui, 1.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Garvie, 4.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?	true
Directly Connected?	true
Co-rupture Count	85
Co-rupture Rate	3.5536127E-6

Mid Dome, 14.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Teviot, 15.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	0.0

Old Man, 16.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?	true
Directly Connected?	false
Co-rupture Count	33
Co-rupture Rate	3.4229505E-8

Roaring Lion, 18.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?	true
Directly Connected?	false
Co-rupture Count	47
Co-rupture Rate	1.8189269E-6
