Wheao: South Details

PropertyValue
Rupture Count14,851
Ruptures Above Sect Min Mag14,847
Ruptures w/ Nonzero Rates4
Magnitude Range[6.91, 8.42]
Length Range[19, 602] km
Total Rate3.025325E-5 /yr
Multi-Fault Rate3.025325E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults87

Table Of Contents

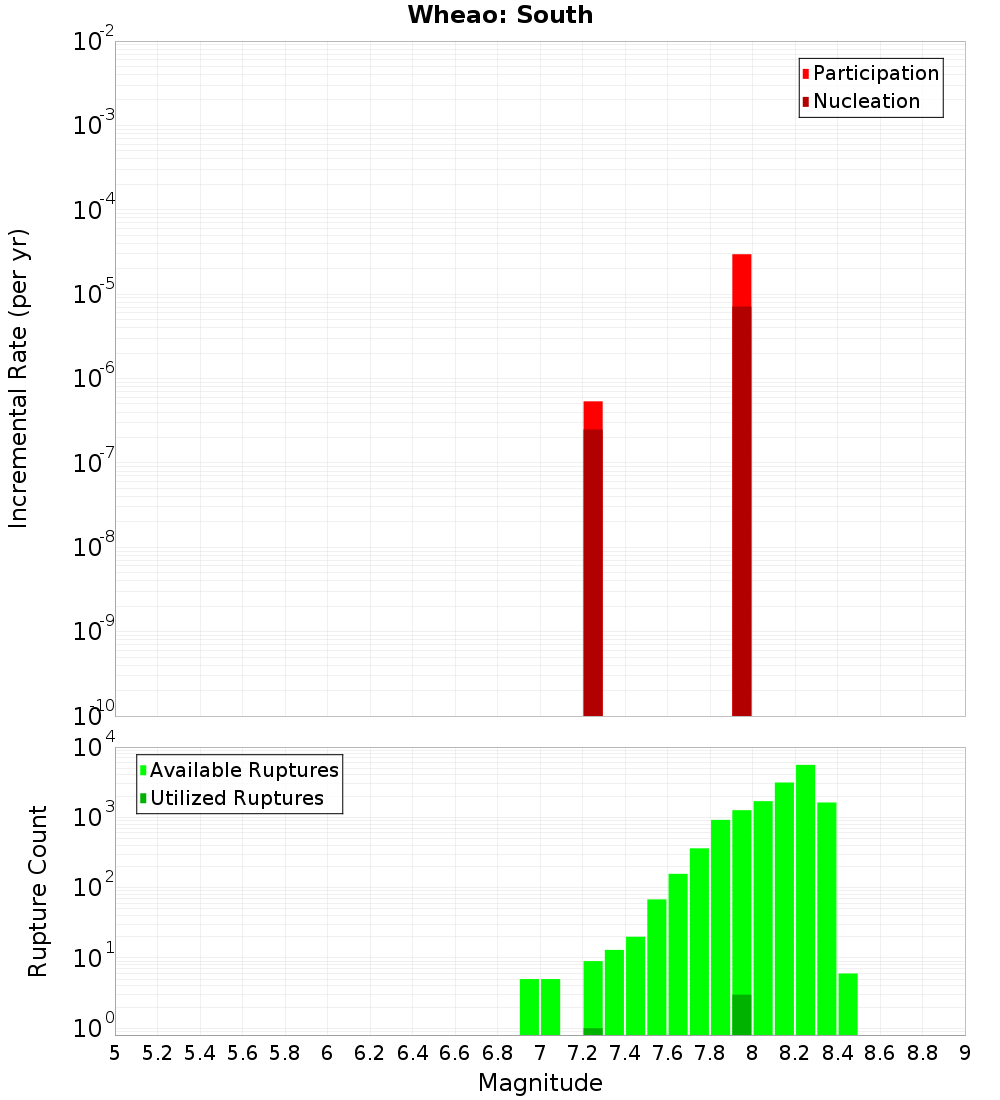

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

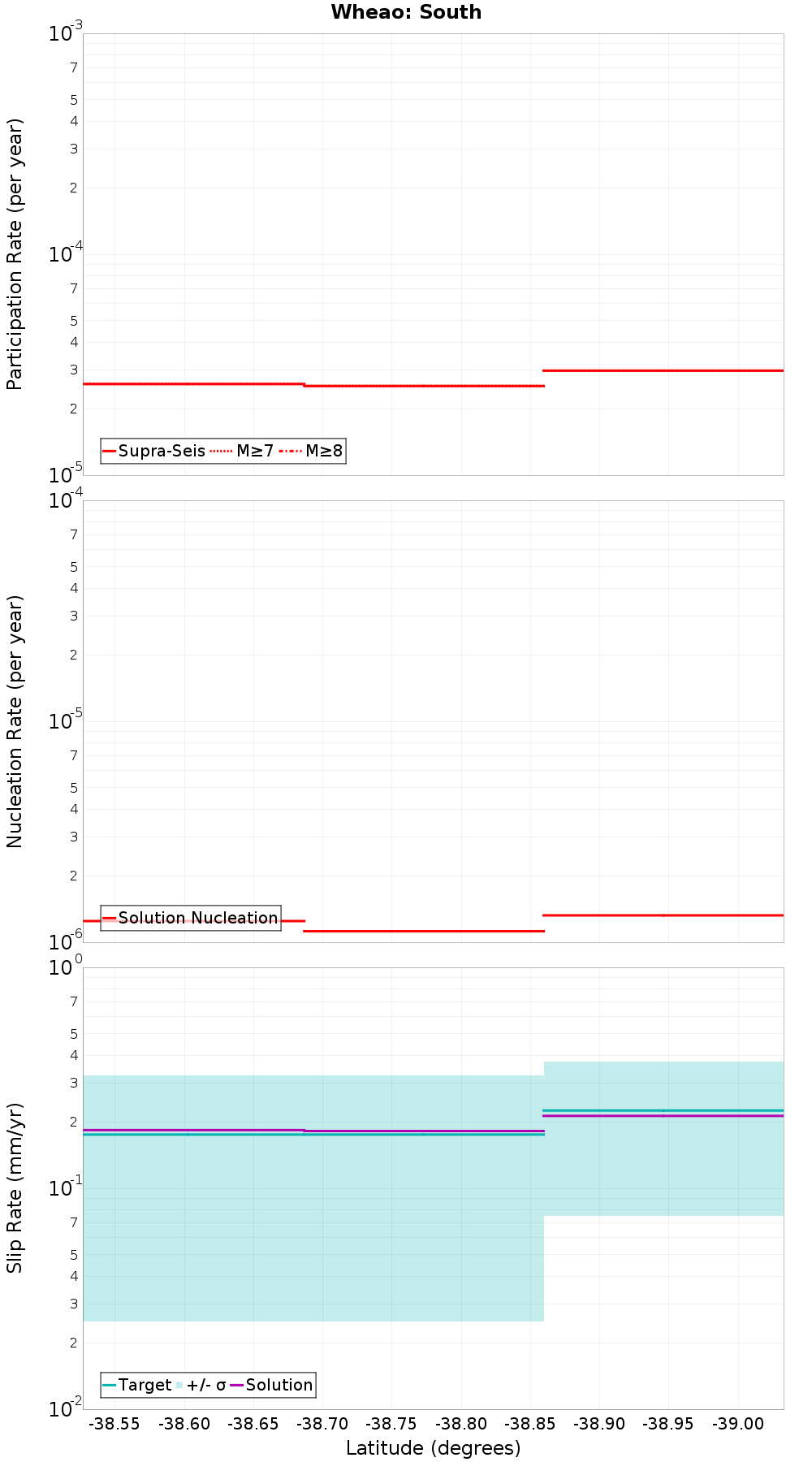

Along-Strike Values

(top)

Along-strike plot

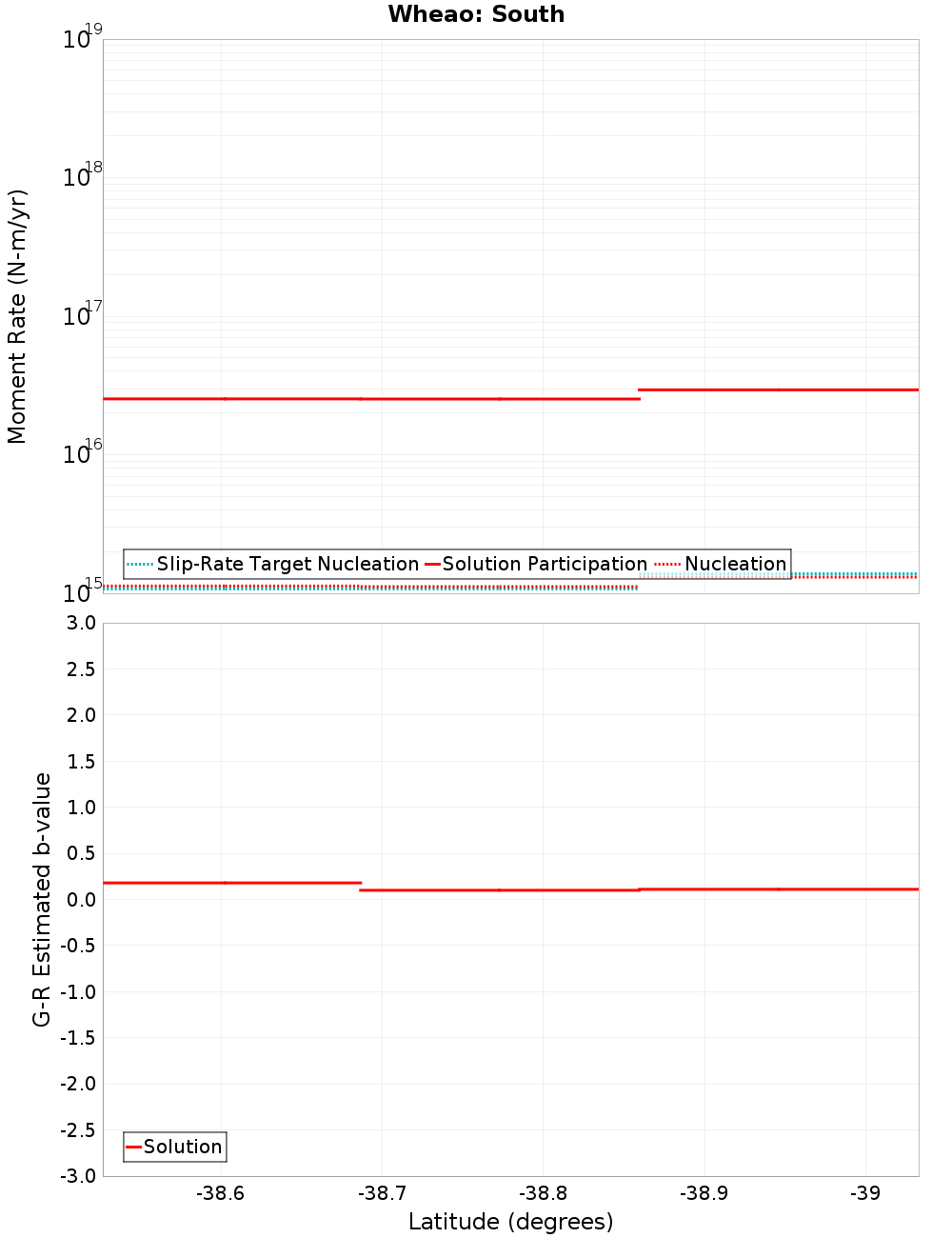

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Wheao: North, 0 km away
Waiohau: South, 0.45 km away
Te Whaiti South, 0.47 km away
Ruahine: North, 2.63 km away
Te Whaiti North, 11.11 km away
Waiohau: North, 11.29 km away
Mohaka: North, 13.51 km away
Whakatane: South, 14.53 km away
Waimana: South, 14.54 km away
Kaweka, 18.96 km away

Wheao: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?true
Directly Connected?true
Co-rupture Count10,868
Co-rupture Rate2.5862699E-5

Waiohau: South, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Whaiti South, 0.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?true
Directly Connected?true
Co-rupture Count2,545
Co-rupture Rate4.390551E-6

Ruahine: North, 2.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?true
Directly Connected?true
Co-rupture Count13,372
Co-rupture Rate0.0

Te Whaiti North, 11.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?true
Directly Connected?false
Co-rupture Count147
Co-rupture Rate5.363822E-7

Waiohau: North, 11.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?true
Directly Connected?false
Co-rupture Count12,572
Co-rupture Rate3.025325E-5

Mohaka: North, 13.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?true
Directly Connected?false
Co-rupture Count86
Co-rupture Rate0.0

Whakatane: South, 14.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimana: South, 14.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kaweka, 18.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjQuMFUyN2dm
Connected?true
Directly Connected?false
Co-rupture Count102
Co-rupture Rate0.0
