Edgecumbe Coastal Details

Property	Value
Rupture Count	18,602
Ruptures Above Sect Min Mag	18,544
Ruptures w/ Nonzero Rates	20
Magnitude Range	[6.14, 8.19]
Length Range	[7, 584] km
Total Rate	7.6260103E-4 /yr
Multi-Fault Rate	7.6260103E-4 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	91

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

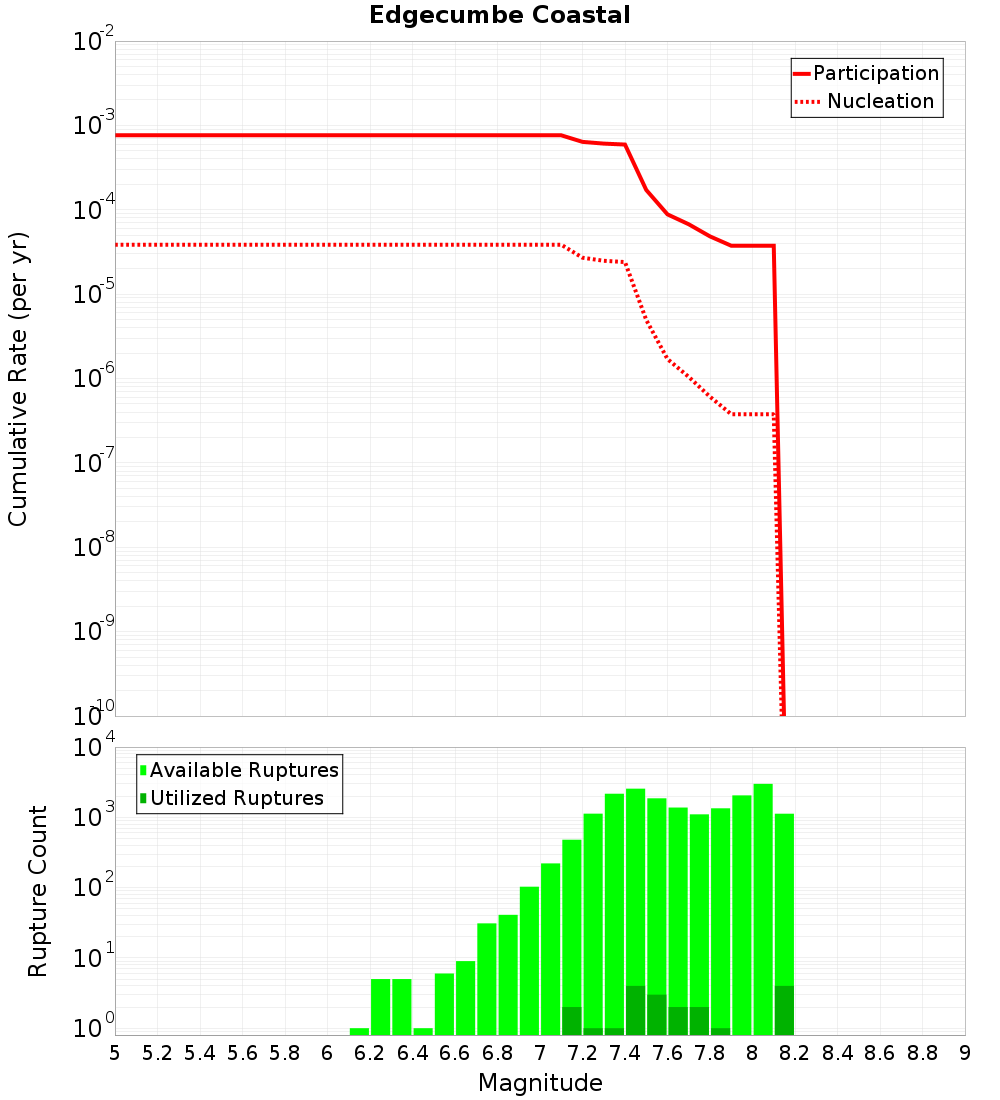

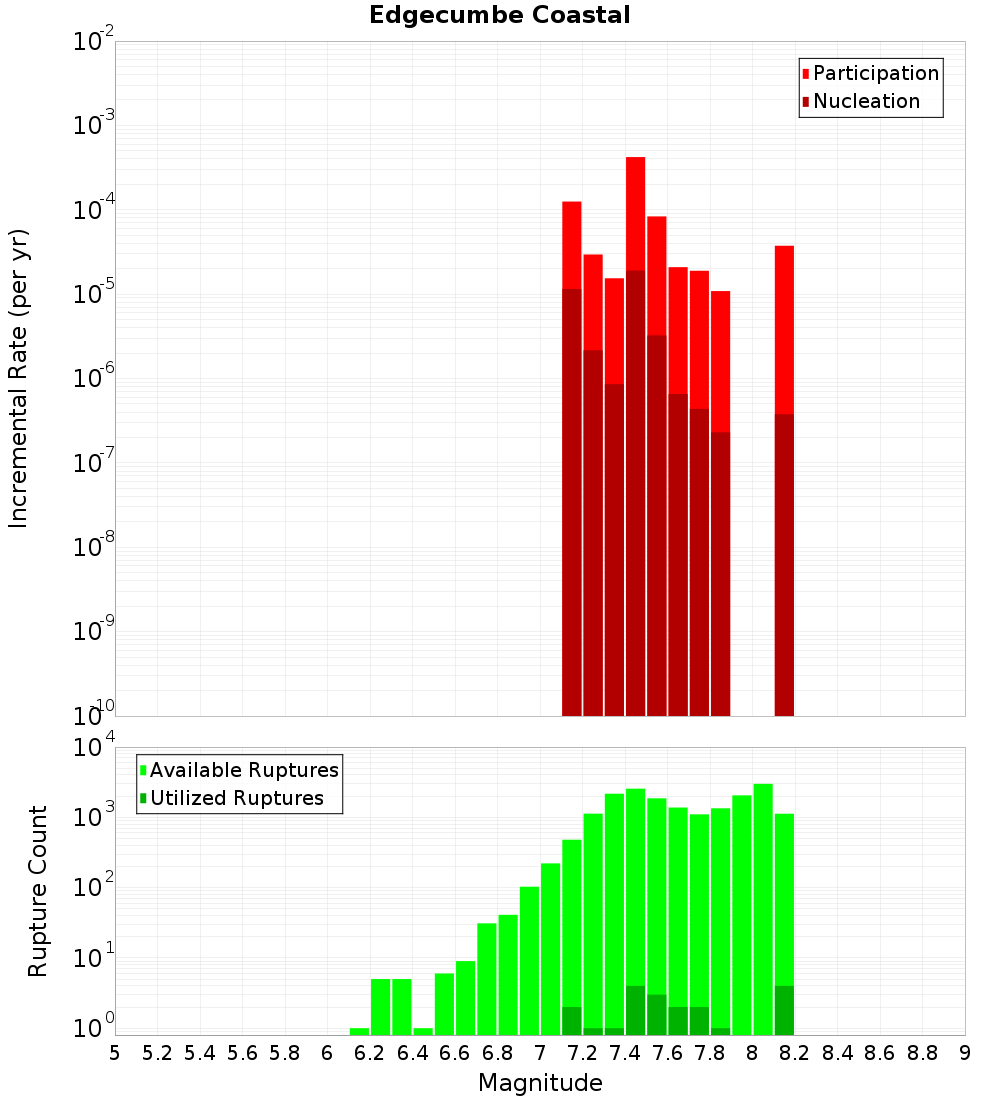

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

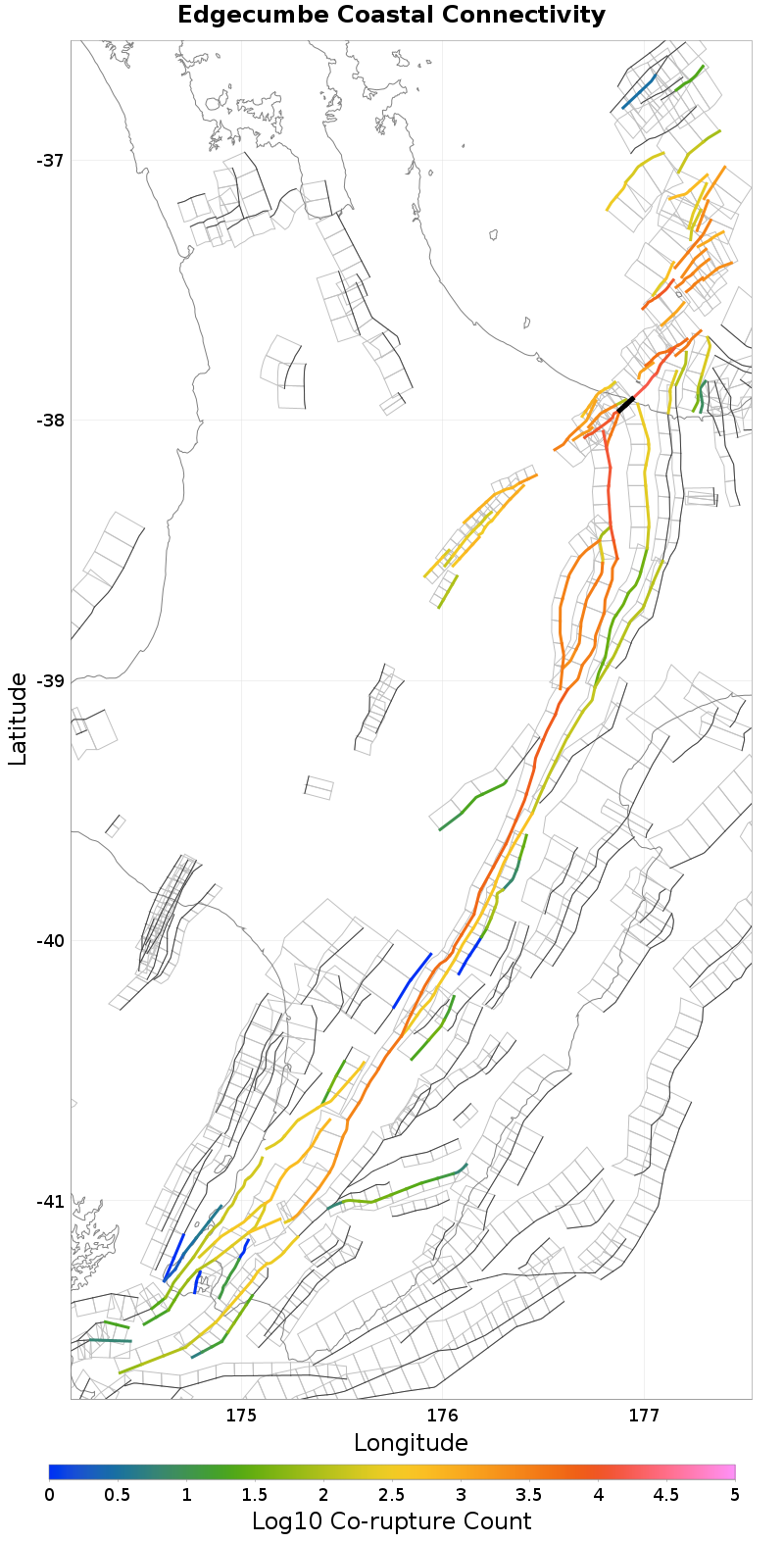

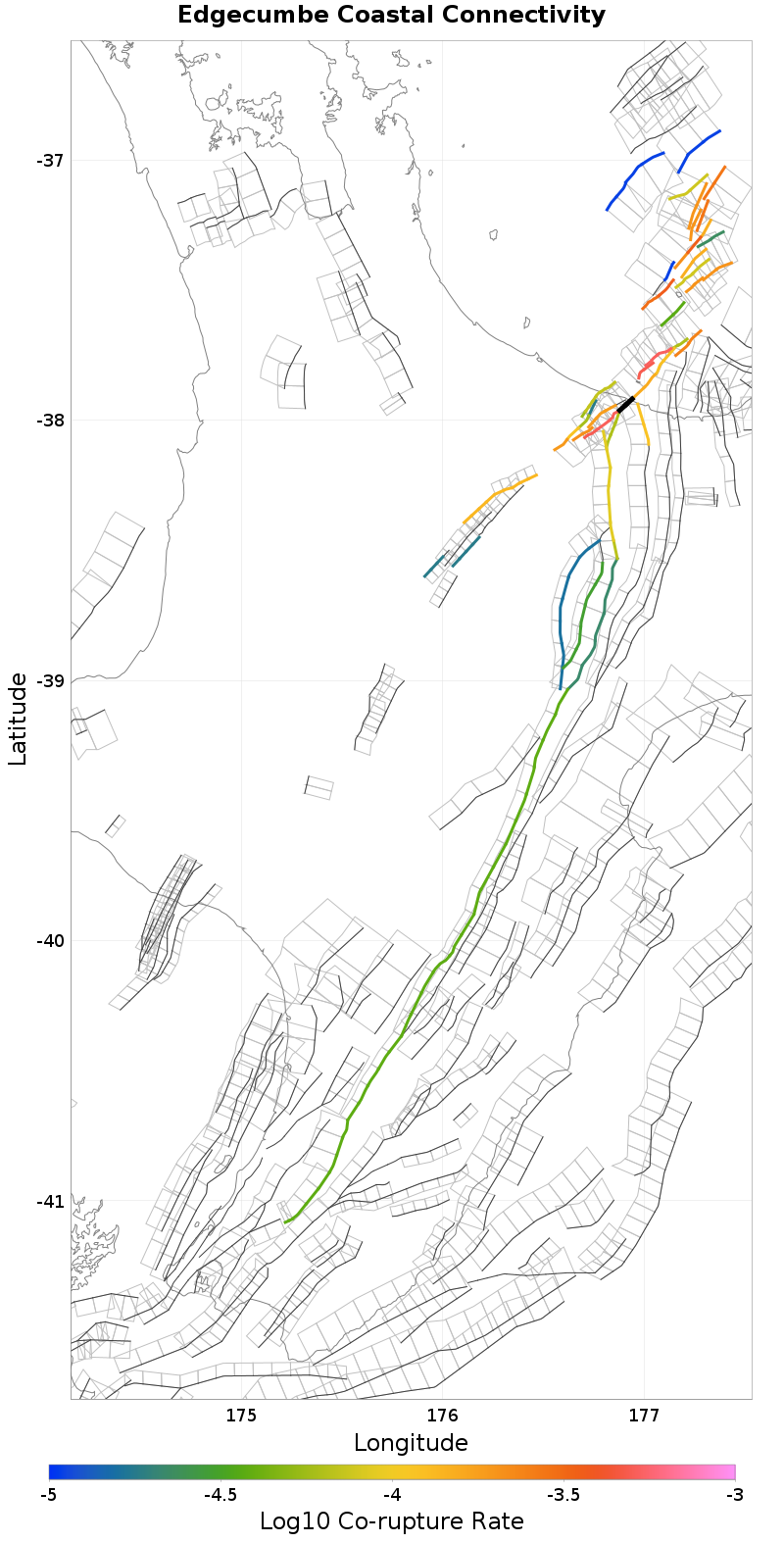

Connectivity

Nearby Sections

Fault Section
White Island 1, 0 km away
Edgecumbe 1987, 0 km away
Awakeri, 0 km away
Otakiri, 0.38 km away
Matata, 2.61 km away
Whakatane: North, 3.09 km away
Braemar, 4.61 km away
Rangitaiki 1, 8.8 km away
Waiohau: North, 11.47 km away
Rotoitipakau, 14.03 km away
Rangitaiki 2, 14.83 km away
Waimana: North, 15.94 km away
Waiotahi: North, 18.75 km away
Waimana - Waikaremoana, 19.37 km away

White Island 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjcuNVp3d2Nz
Connected?	true
Directly Connected?	true
Co-rupture Count	16,055
Co-rupture Rate	1.5575236E-4

Edgecumbe 1987, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjcuNVp3d2Nz
Connected?	true
Directly Connected?	true
Co-rupture Count	11,272
Co-rupture Rate	5.125989E-4

Awakeri, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjcuNVp3d2Nz
Connected?	true
Directly Connected?	true
Co-rupture Count	3,954
Co-rupture Rate	6.1478546E-5

Otakiri, 0.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjcuNVp3d2Nz
Connected?	true
Directly Connected?	true
Co-rupture Count	2,572
Co-rupture Rate	1.8150186E-4

Matata, 2.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjcuNVp3d2Nz
Connected?	true
Directly Connected?	true
Co-rupture Count	1,005
Co-rupture Rate	7.048989E-5

Whakatane: North, 3.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjcuNVp3d2Nz
Connected?	true
Directly Connected?	true
Co-rupture Count	278
Co-rupture Rate	1.1809278E-4

Braemar, 4.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjcuNVp3d2Nz
Connected?	true
Directly Connected?	true
Co-rupture Count	3,485
Co-rupture Rate	2.3177476E-4

Rangitaiki 1, 8.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjcuNVp3d2Nz
Connected?	true
Directly Connected?	true
Co-rupture Count	1,275
Co-rupture Rate	4.887559E-4

Waiohau: North, 11.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjcuNVp3d2Nz
Connected?	true
Directly Connected?	false
Co-rupture Count	12,604
Co-rupture Rate	8.813352E-5

Rotoitipakau, 14.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjcuNVp3d2Nz
Connected?	true
Directly Connected?	false
Co-rupture Count	1,616
Co-rupture Rate	2.1298461E-4

Rangitaiki 2, 14.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjcuNVp3d2Nz
Connected?	true
Directly Connected?	false
Co-rupture Count	4,845
Co-rupture Rate	5.2309694E-4

Waimana: North, 15.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjcuNVp3d2Nz
Connected?	true
Directly Connected?	false
Co-rupture Count	212
Co-rupture Rate	0.0

Waiotahi: North, 18.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjcuNVp3d2Nz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waimana - Waikaremoana, 19.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjcuNVp3d2Nz
Connected?	true
Directly Connected?	false
Co-rupture Count	106
Co-rupture Rate	0.0
