Tukituki Thrust Details

Property	Value
Rupture Count	278
Ruptures Above Sect Min Mag	264
Ruptures w/ Nonzero Rates	4
Magnitude Range	[6.58, 8.15]
Length Range	[17, 477] km
Total Rate	3.6348705E-4 /yr
Multi-Fault Rate	3.6348705E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	29

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

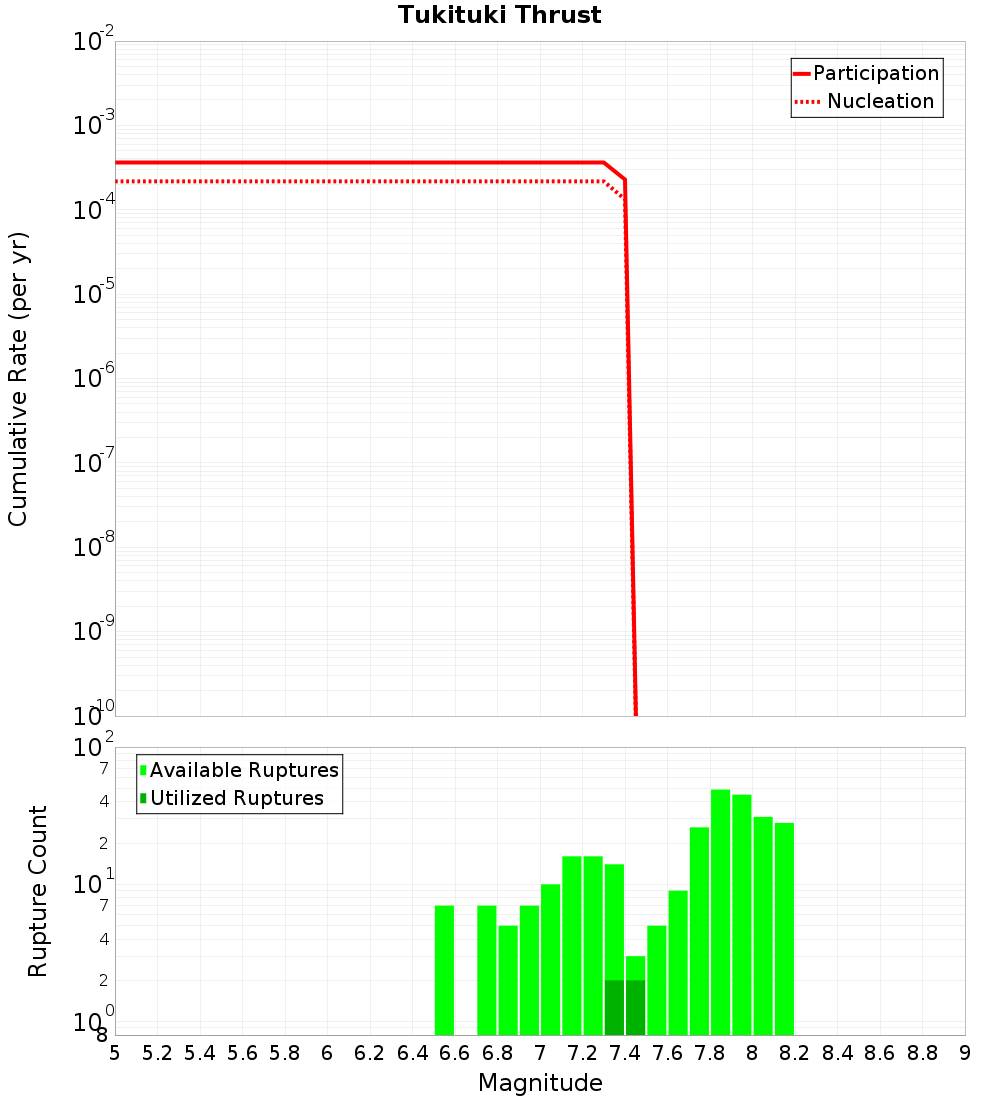

Magnitude-Frequency Distribution

Incremental	Cumulative

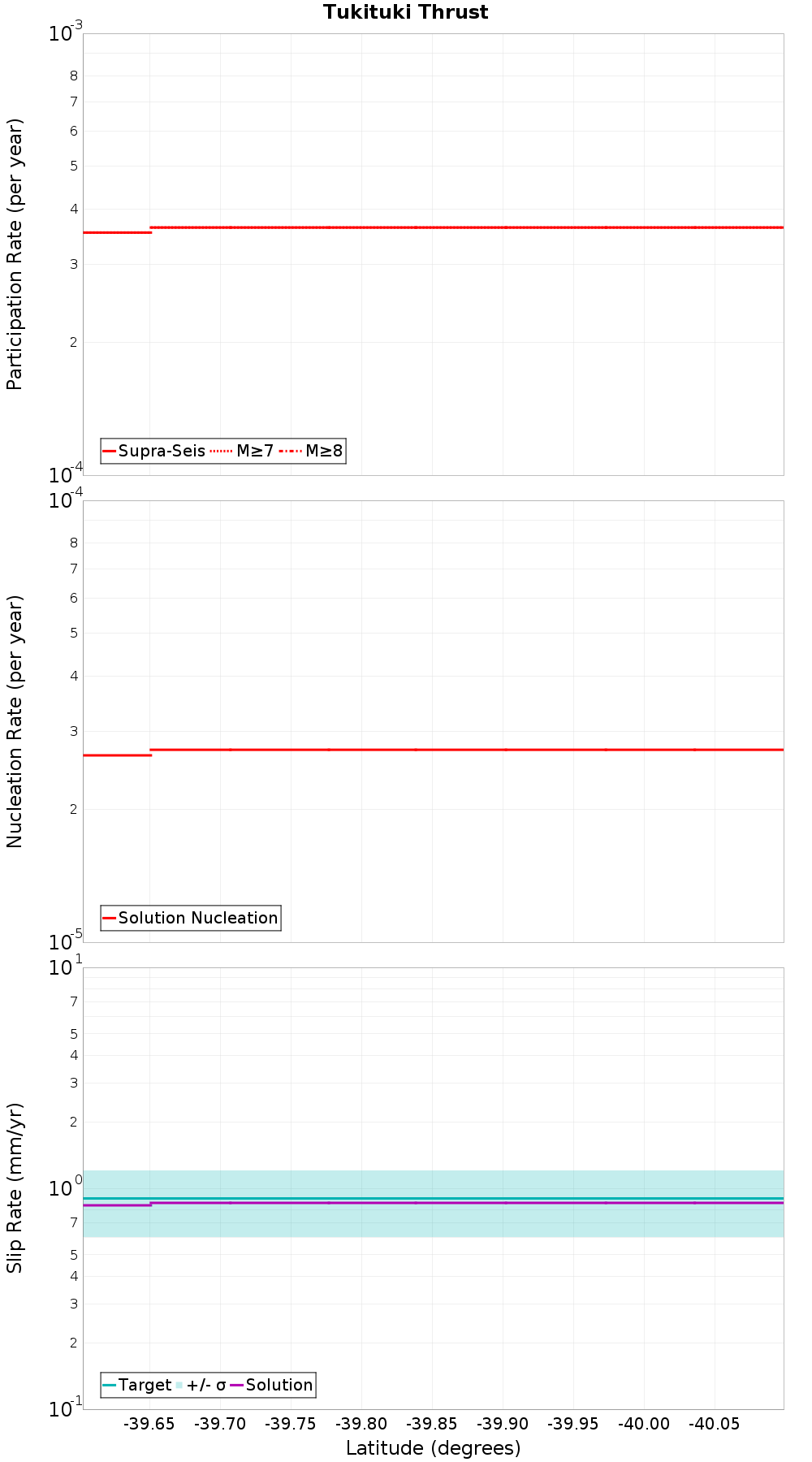

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Hawke Bay 8, 2.02 km away
Waipukurau - Poukawa, 3.54 km away
Awanui, 3.54 km away
Clear Hills - Waikopiro, 7.91 km away
Oruawharo - Mangatoro, 9.57 km away
Te Heka, 11.15 km away
Kidnappers Ridge, 11.4 km away
Waimarama 1 & 2, 13.11 km away
Waimarama 3 & 4, 16.21 km away
Ruataniwha, 18.16 km away
Kairakau South, 19.17 km away

Hawke Bay 8, 2.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjcuNVp3d2Nz
Connected?	true
Directly Connected?	true
Co-rupture Count	27
Co-rupture Rate	7.641774E-5

Waipukurau - Poukawa, 3.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjcuNVp3d2Nz
Connected?	true
Directly Connected?	true
Co-rupture Count	70
Co-rupture Rate	3.6348705E-4

Awanui, 3.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjcuNVp3d2Nz
Connected?	true
Directly Connected?	true
Co-rupture Count	196
Co-rupture Rate	0.0

Clear Hills - Waikopiro, 7.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjcuNVp3d2Nz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Oruawharo - Mangatoro, 9.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjcuNVp3d2Nz
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	2.375832E-4

Te Heka, 11.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjcuNVp3d2Nz
Connected?	true
Directly Connected?	true
Co-rupture Count	16
Co-rupture Rate	0.0

Kidnappers Ridge, 11.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjcuNVp3d2Nz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waimarama 1 & 2, 13.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjcuNVp3d2Nz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waimarama 3 & 4, 16.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjcuNVp3d2Nz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ruataniwha, 18.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjcuNVp3d2Nz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kairakau South, 19.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjcuNVp3d2Nz
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
