Alpine: George seaward Details
| Property | Value |
|---|---|
| Rupture Count | 63,157 |
| Ruptures Above Sect Min Mag | 63,156 |
| Ruptures w/ Nonzero Rates | 106 |
| Magnitude Range | [6.68, 8.54] |
| Length Range | [16, 1,156] km |
| Total Rate | 0.0020417476 /yr |
| Multi-Fault Rate | 0.0020417476 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 87 |
Table Of Contents
Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

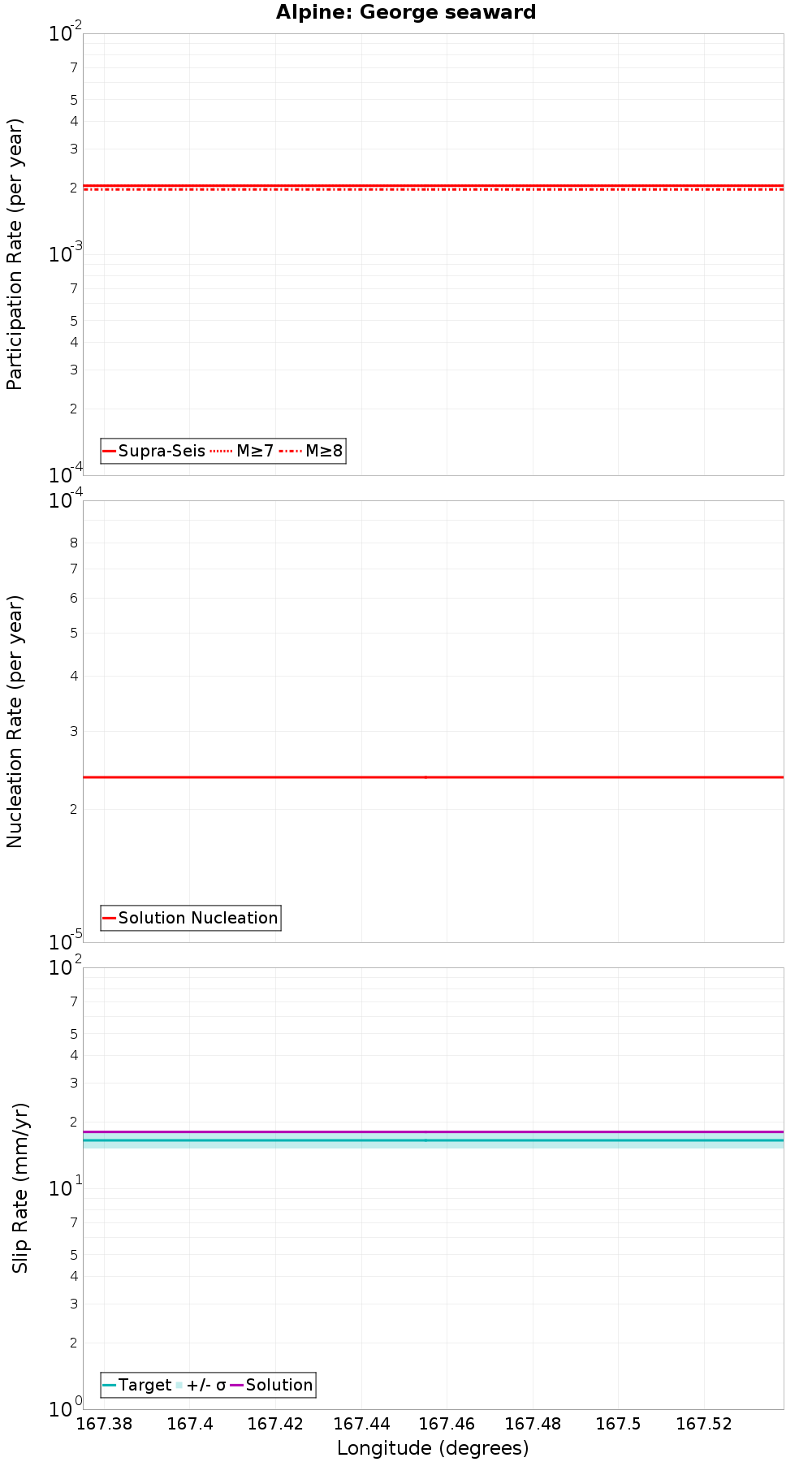

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Alpine: George to Jacksons, 0 km away |
| Alpine: George landward, 0 km away |
| Alpine: Caswell - South George, 0.03 km away |
| Madagascar, 0.27 km away |
| Central Wedge 1 & 2 & 3, 17.16 km away |
Alpine: George to Jacksons, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 62,917 |
| Co-rupture Rate | 0.0020417476 |
Alpine: George landward, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 791 |
| Co-rupture Rate | 0.0 |
Alpine: Caswell - South George, 0.03 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 62,243 |
| Co-rupture Rate | 0.0020417476 |
Madagascar, 0.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 174 |
| Co-rupture Rate | 0.0 |
Central Wedge 1 & 2 & 3, 17.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 308 |
| Co-rupture Rate | 0.0 |
