Alpine: Nancy Details

PropertyValue
Rupture Count63,289
Ruptures Above Sect Min Mag63,288
Ruptures w/ Nonzero Rates96
Magnitude Range[6.63, 8.54]
Length Range[12, 1,156] km
Total Rate0.0014674602 /yr
Multi-Fault Rate0.0014674602 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults91

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

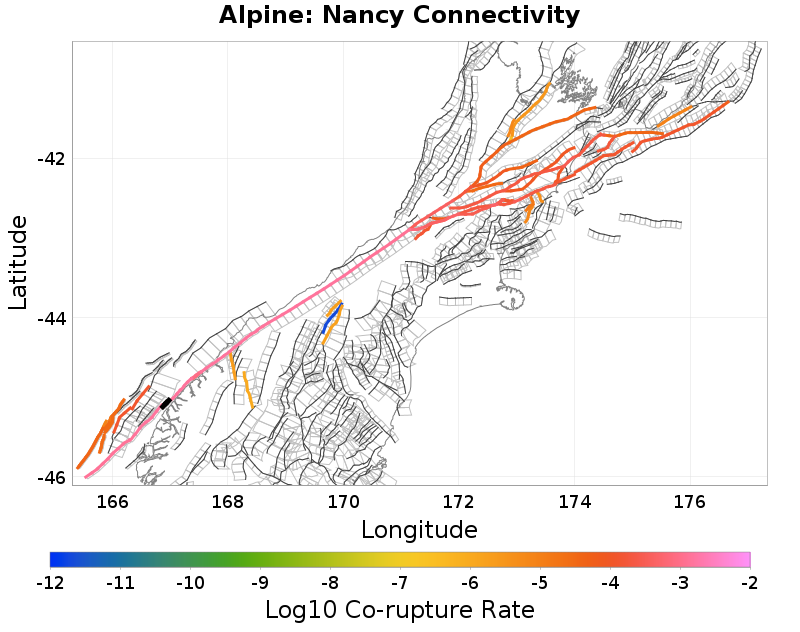

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Caswell, 0 km away
Alpine: Resolution - Dagg, 2.58 km away
Alpine: Resolution - Charles, 2.58 km away
Central Wedge 1 & 2 & 3, 3.81 km away
South Wedge 2, 7.19 km away
Central Wedge 4 - South Wedge 411, 8.78 km away
South Wedge 1, 10.3 km away
South Wedge 3-6-10, 18.23 km away

Alpine: Caswell, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?true
Co-rupture Count63,014
Co-rupture Rate0.0014674602

Alpine: Resolution - Dagg, 2.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?true
Co-rupture Count61,163
Co-rupture Rate0.0014674602

Alpine: Resolution - Charles, 2.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?true
Co-rupture Count376
Co-rupture Rate0.0

Central Wedge 1 & 2 & 3, 3.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?true
Co-rupture Count180
Co-rupture Rate0.0

South Wedge 2, 7.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?false
Co-rupture Count675
Co-rupture Rate0.0

Central Wedge 4 - South Wedge 411, 8.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?false
Co-rupture Count1,245
Co-rupture Rate1.2863587E-4

South Wedge 1, 10.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?false
Co-rupture Count1,968
Co-rupture Rate0.0

South Wedge 3-6-10, 18.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?false
Co-rupture Count2,560
Co-rupture Rate0.0
