Ariel Bank Details
| Property | Value |
|---|---|
| Rupture Count | 156 |
| Ruptures Above Sect Min Mag | 150 |
| Ruptures w/ Nonzero Rates | 6 |
| Magnitude Range | [6.49, 7.53] |
| Length Range | [13, 136] km |
| Total Rate | 8.91857E-4 /yr |
| Multi-Fault Rate | 8.91857E-4 /yr (100.00%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 8 |
Table Of Contents

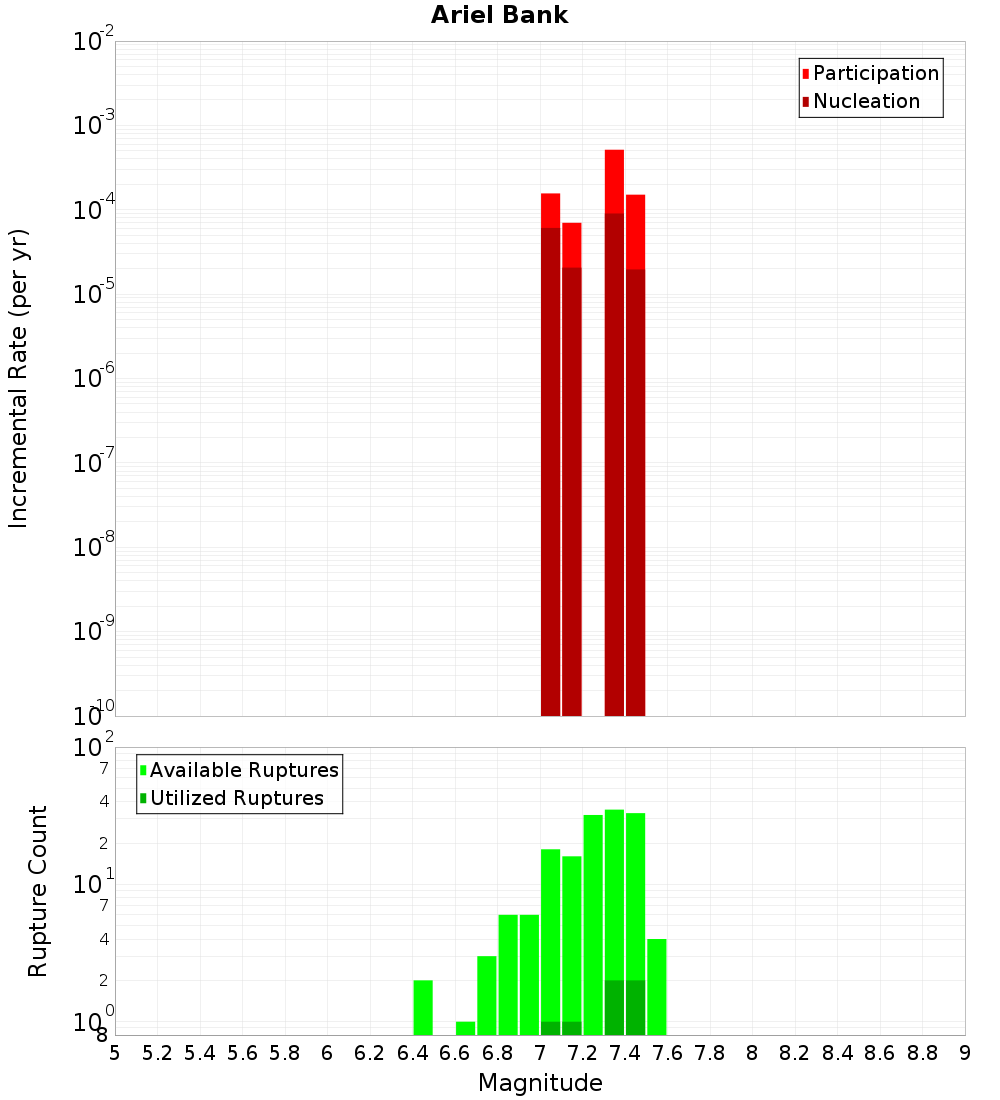

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

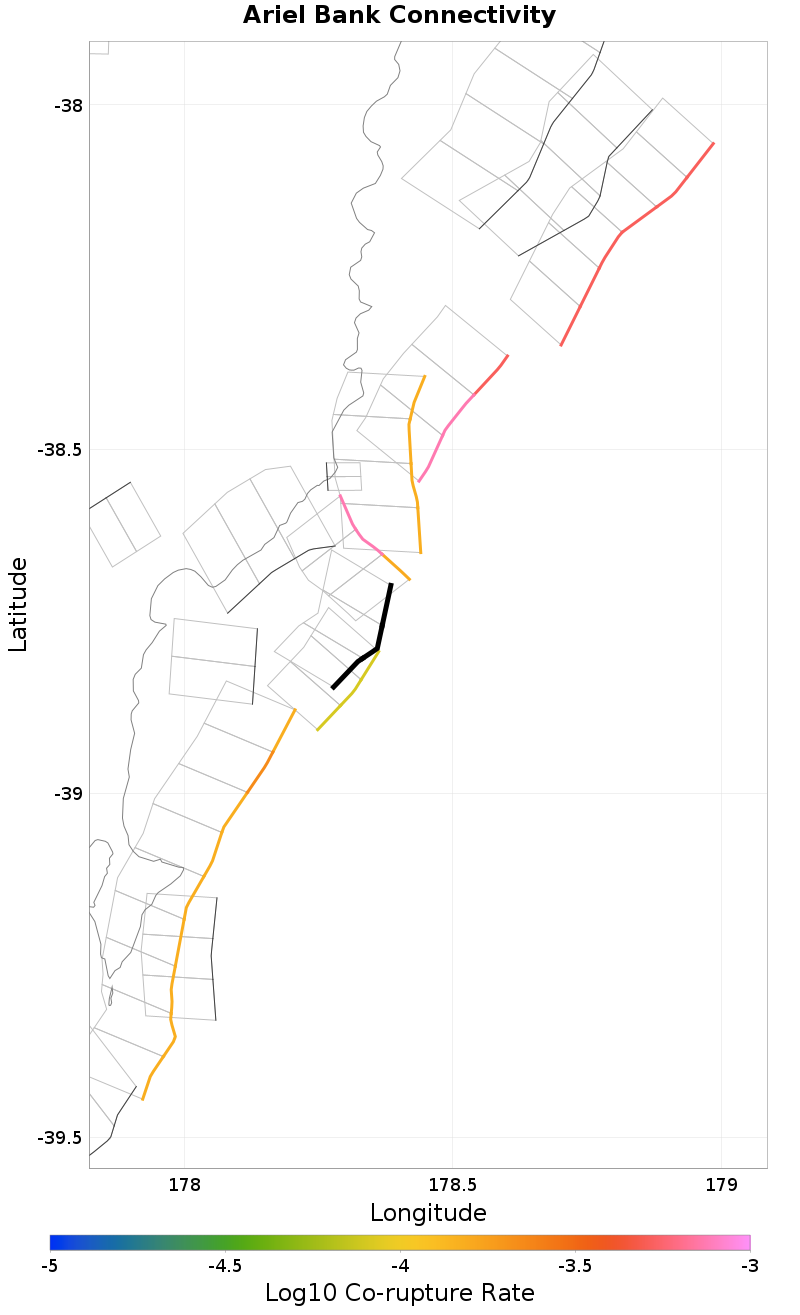

Connectivity
 |  |
|---|
Nearby Sections
Te Ikaarongamai, 0.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 33 |
| Co-rupture Rate | 7.4090285E-4 |
Ariel East, 0.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 41 |
| Co-rupture Rate | 8.091979E-5 |
Gable End North, 2.26 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 102 |
| Co-rupture Rate | 1.5095418E-4 |
Lachlan 3, 6.74 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 94 |
| Co-rupture Rate | 2.2102764E-4 |
Gable End South, 7.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Poverty Bay, 8.84 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 0.0 |
Pakarae, 10.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Ariel Bank 2, 17.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 68 |
| Co-rupture Rate | 7.4090285E-4 |
