Dunback Hill Details

PropertyValue
Rupture Count278
Ruptures Above Sect Min Mag277
Ruptures w/ Nonzero Rates5
Magnitude Range[7.04, 8.10]
Length Range[25, 266] km
Total Rate8.0331865E-6 /yr
Multi-Fault Rate8.0331865E-6 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults19

Table Of Contents

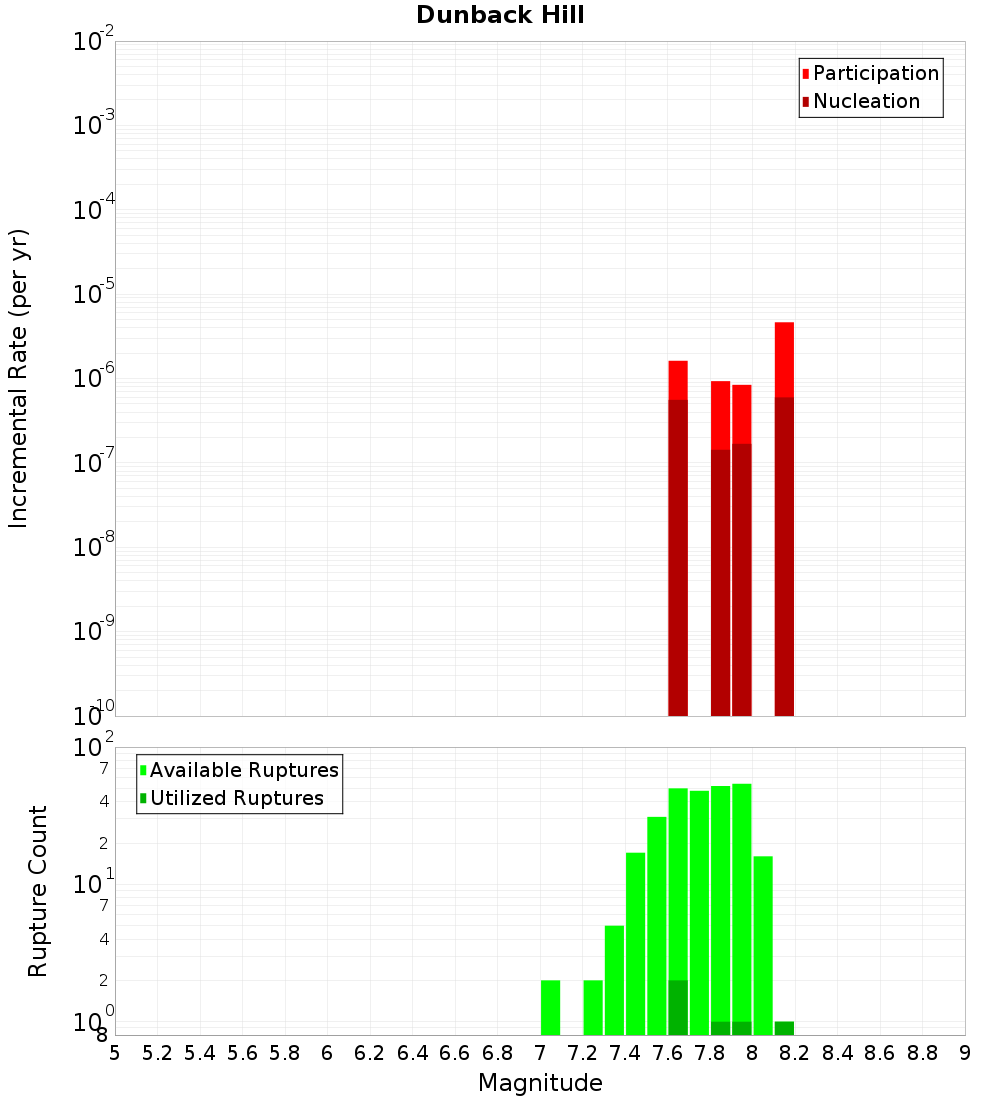

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

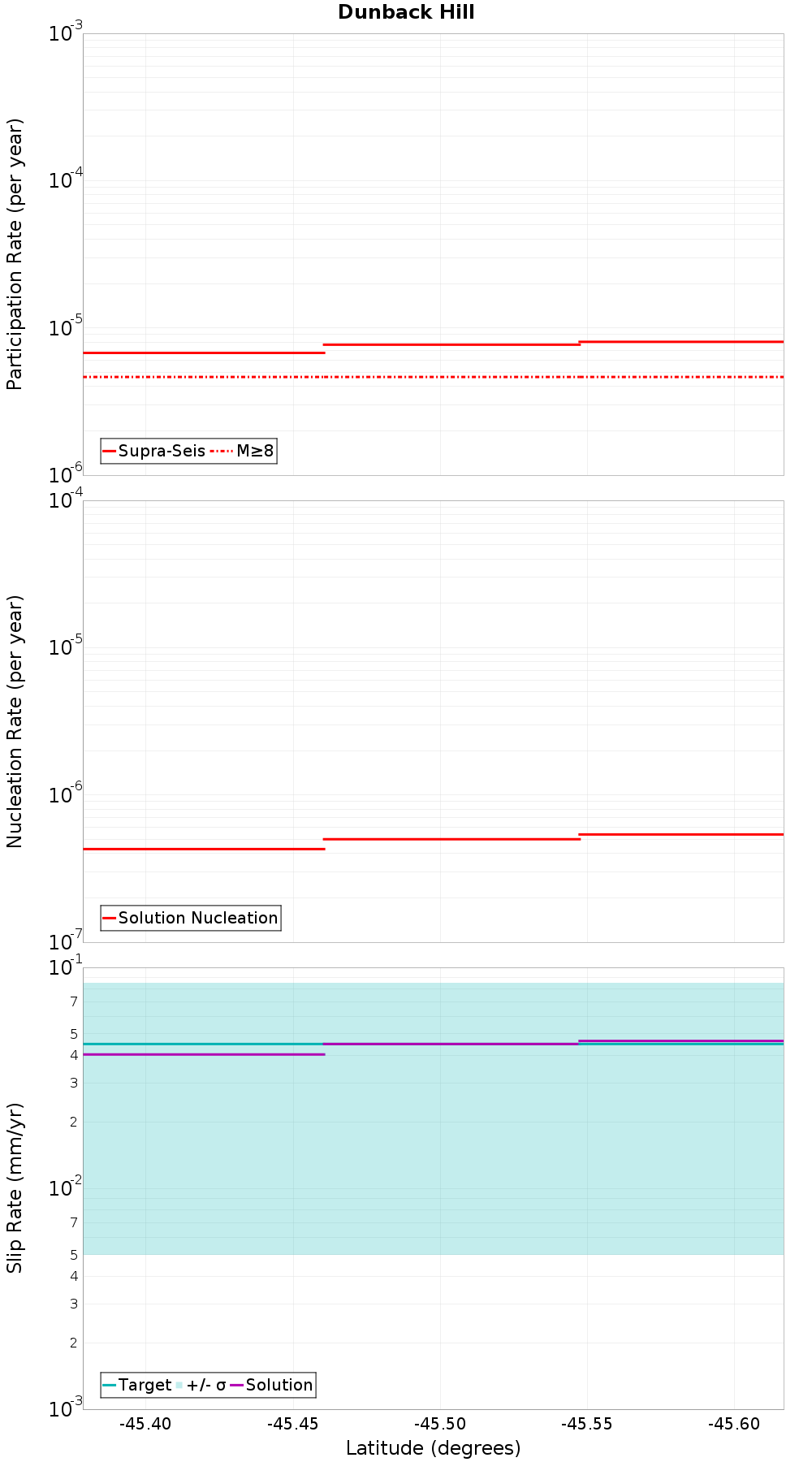

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waipiata, 0.64 km away
Murphys Creek, 2.53 km away
Flat Stream - Glenpark, 2.82 km away
Waihemo, 3.38 km away
Nichols Rock, 3.51 km away
Logan Burn, 3.65 km away
Billys Ridge, 5.53 km away
Ranfurly, 5.98 km away
Horse Flat, 9.23 km away
Pylap, 9.96 km away
Sliver Stream - Merton, 11.65 km away
Hyde North, 14.52 km away
Maungatua - North Taieri, 15.92 km away
Long Valley, 18.9 km away

Waipiata, 0.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?true
Co-rupture Count205
Co-rupture Rate6.7543365E-6

Murphys Creek, 2.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?true
Co-rupture Count32
Co-rupture Rate1.2788504E-6

Flat Stream - Glenpark, 2.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?true
Co-rupture Count29
Co-rupture Rate0.0

Waihemo, 3.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Nichols Rock, 3.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?true
Co-rupture Count224
Co-rupture Rate3.3946133E-6

Logan Burn, 3.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?false
Co-rupture Count59
Co-rupture Rate9.305132E-7

Billys Ridge, 5.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?false
Co-rupture Count23
Co-rupture Rate1.2742674E-6

Ranfurly, 5.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?false
Co-rupture Count58
Co-rupture Rate7.1916916E-6

Horse Flat, 9.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Pylap, 9.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Sliver Stream - Merton, 11.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hyde North, 14.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?false
Co-rupture Count56
Co-rupture Rate4.6385735E-6

Maungatua - North Taieri, 15.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?false
Co-rupture Count21
Co-rupture Rate0.0

Long Valley, 18.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
