Flaxmore - Waimea - Tahunanui Details

Property	Value
Rupture Count	2,244
Ruptures Above Sect Min Mag	2,237
Ruptures w/ Nonzero Rates	13
Magnitude Range	[6.95, 8.47]
Length Range	[23, 883] km
Total Rate	2.3764234E-4 /yr
Multi-Fault Rate	7.8416764E-5 /yr (33.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	41

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

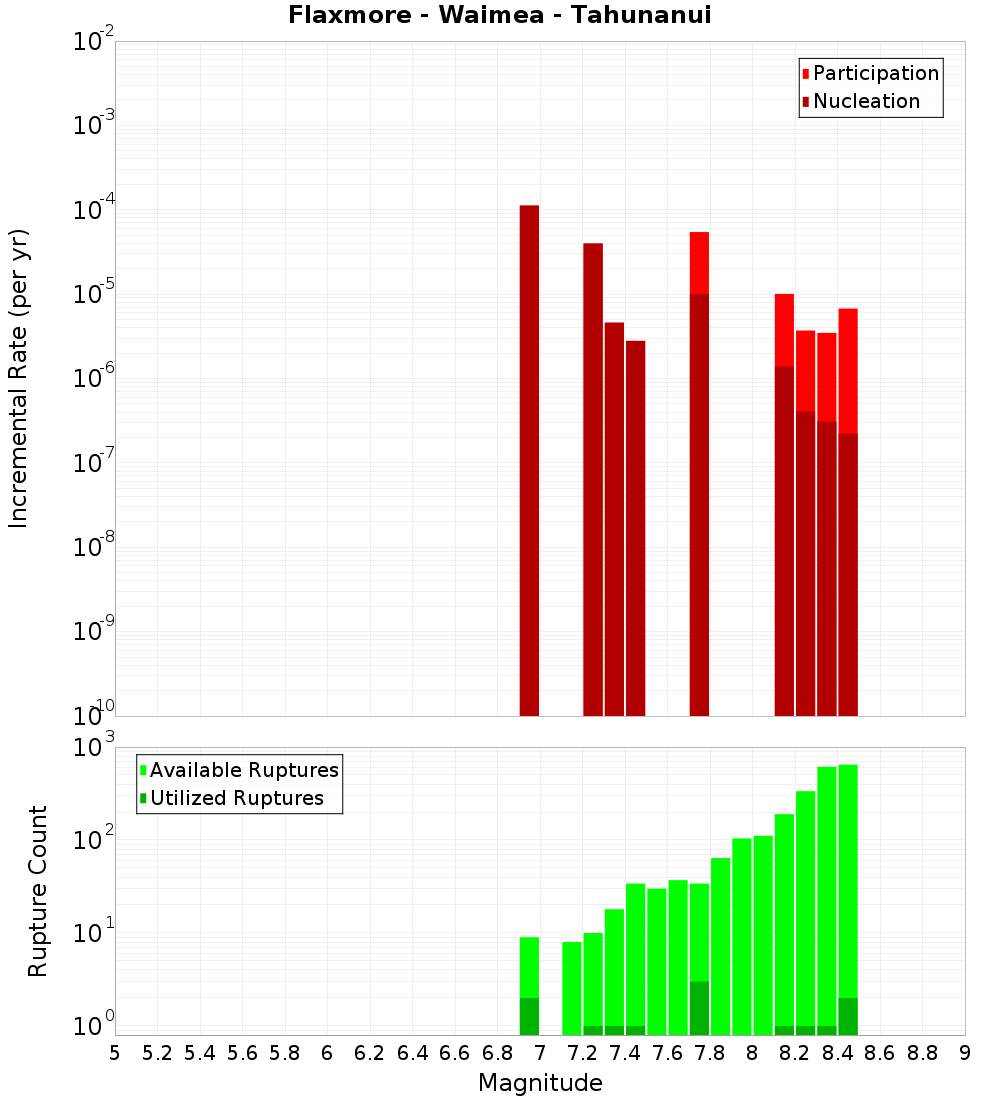

Magnitude-Frequency Distribution

Incremental	Cumulative

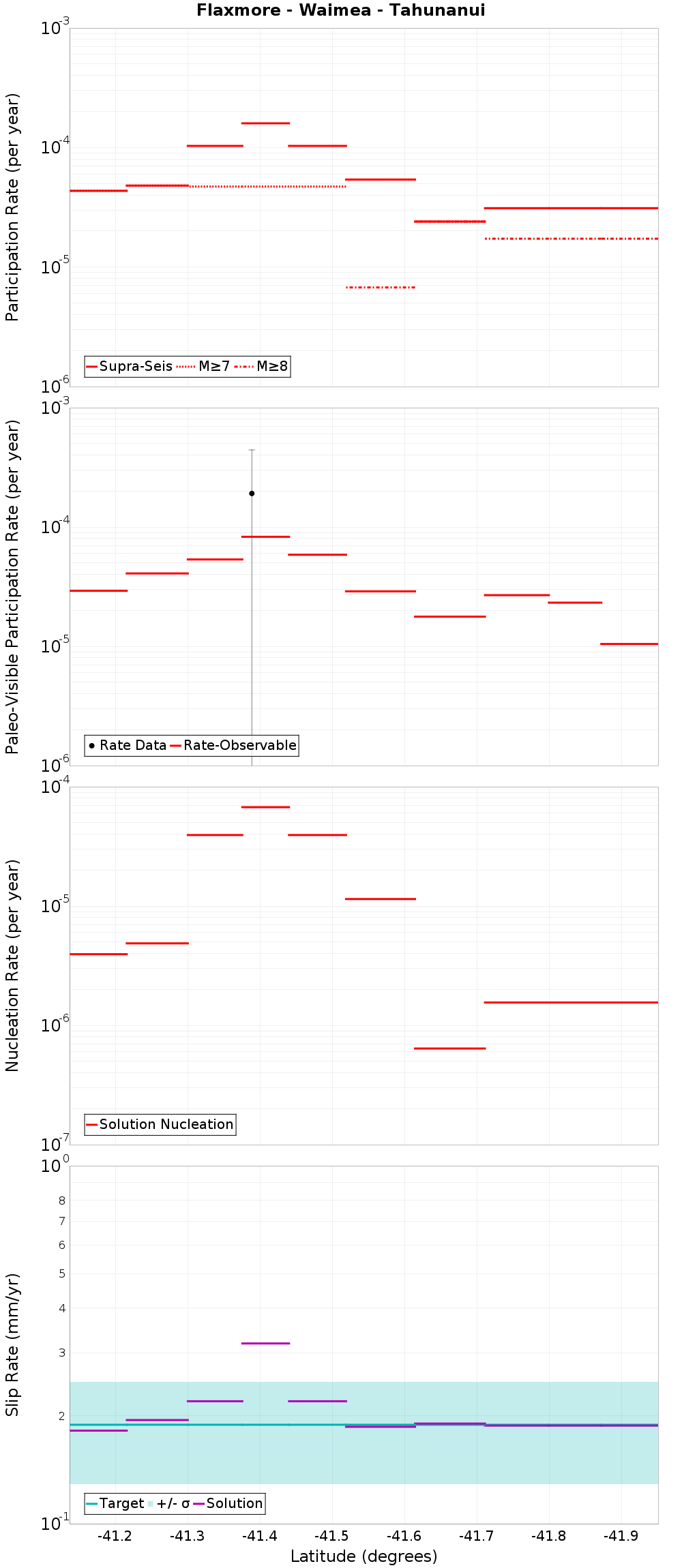

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Waimea Offshore, 0 km away
Wairau, 0.17 km away
Alpine: Springs Junction to Tophouse, 0.39 km away
Whangamoa, 2.28 km away
Tutaki, 2.98 km away
Surville, 8.82 km away
Ruby Bay - Moutere, 9.46 km away
Awatere: Southwest, 12.13 km away

Waimea Offshore, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	true
Directly Connected?	true
Co-rupture Count	13
Co-rupture Rate	4.0517793E-5

Wairau, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	true
Directly Connected?	true
Co-rupture Count	41
Co-rupture Rate	1.3805115E-5

Alpine: Springs Junction to Tophouse, 0.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	true
Directly Connected?	true
Co-rupture Count	2,130
Co-rupture Rate	2.4000792E-5

Whangamoa, 2.28 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Tutaki, 2.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Surville, 8.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	true
Directly Connected?	true
Co-rupture Count	15
Co-rupture Rate	9.306282E-8

Ruby Bay - Moutere, 9.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Awatere: Southwest, 12.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0
