Little Hillfoot Details
| Property | Value |
|---|---|
| Rupture Count | 27 |
| Ruptures Above Sect Min Mag | 26 |
| Ruptures w/ Nonzero Rates | 2 |
| Magnitude Range | [6.96, 8.07] |
| Length Range | [21, 213] km |
| Total Rate | 1.9219242E-5 /yr |
| Multi-Fault Rate | 1.3076458E-7 /yr (0.68%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 12 |
Table Of Contents

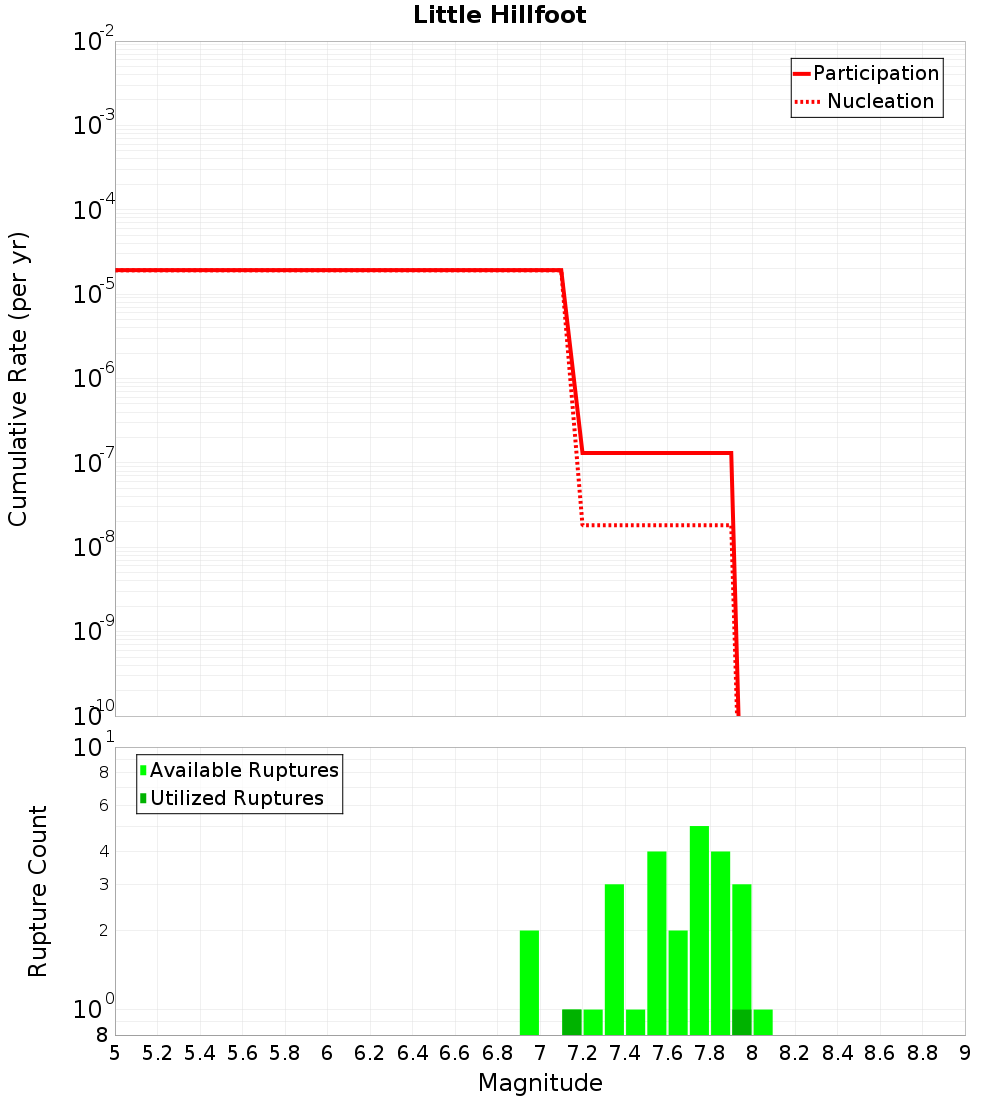

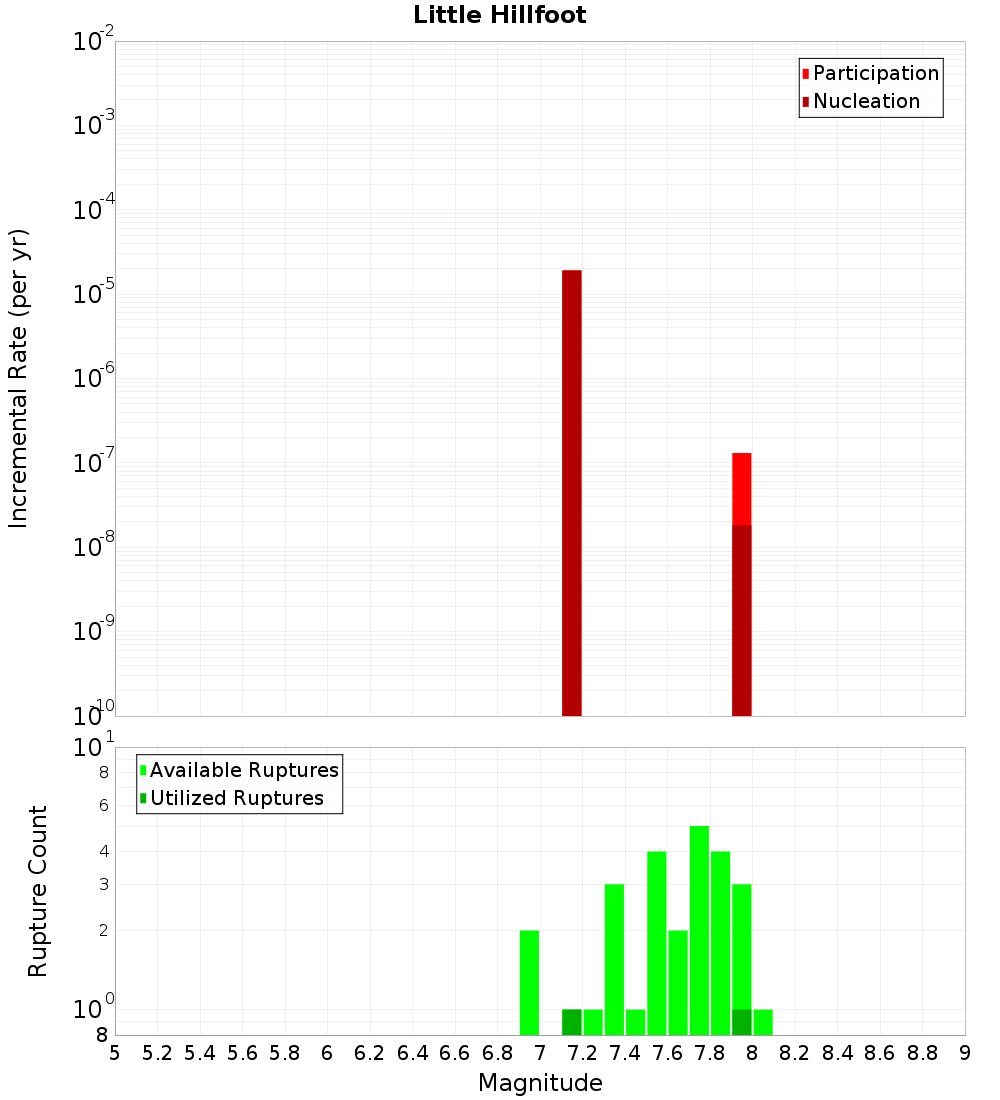

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

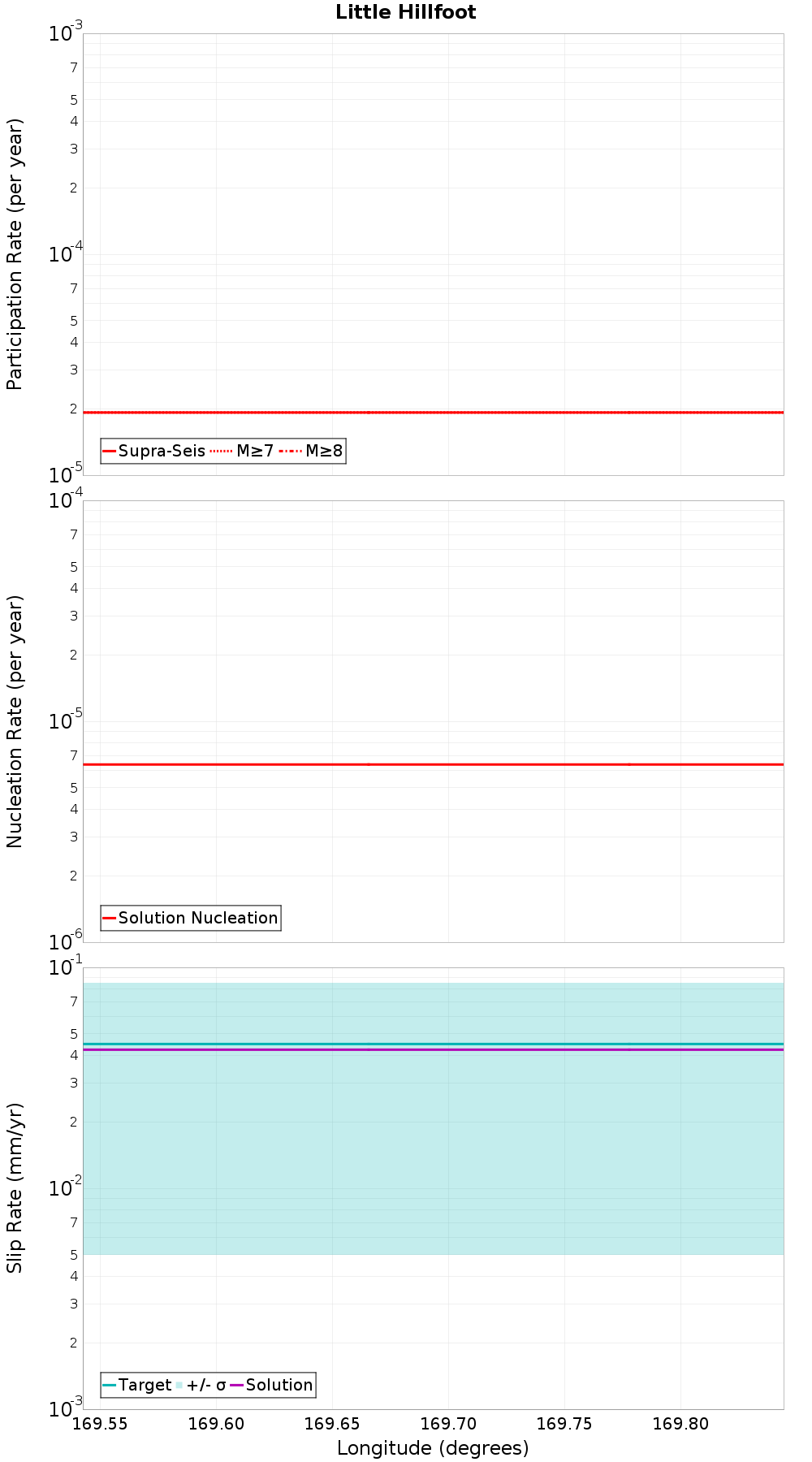

Along-Strike Values
Moment-Rates and b-Values

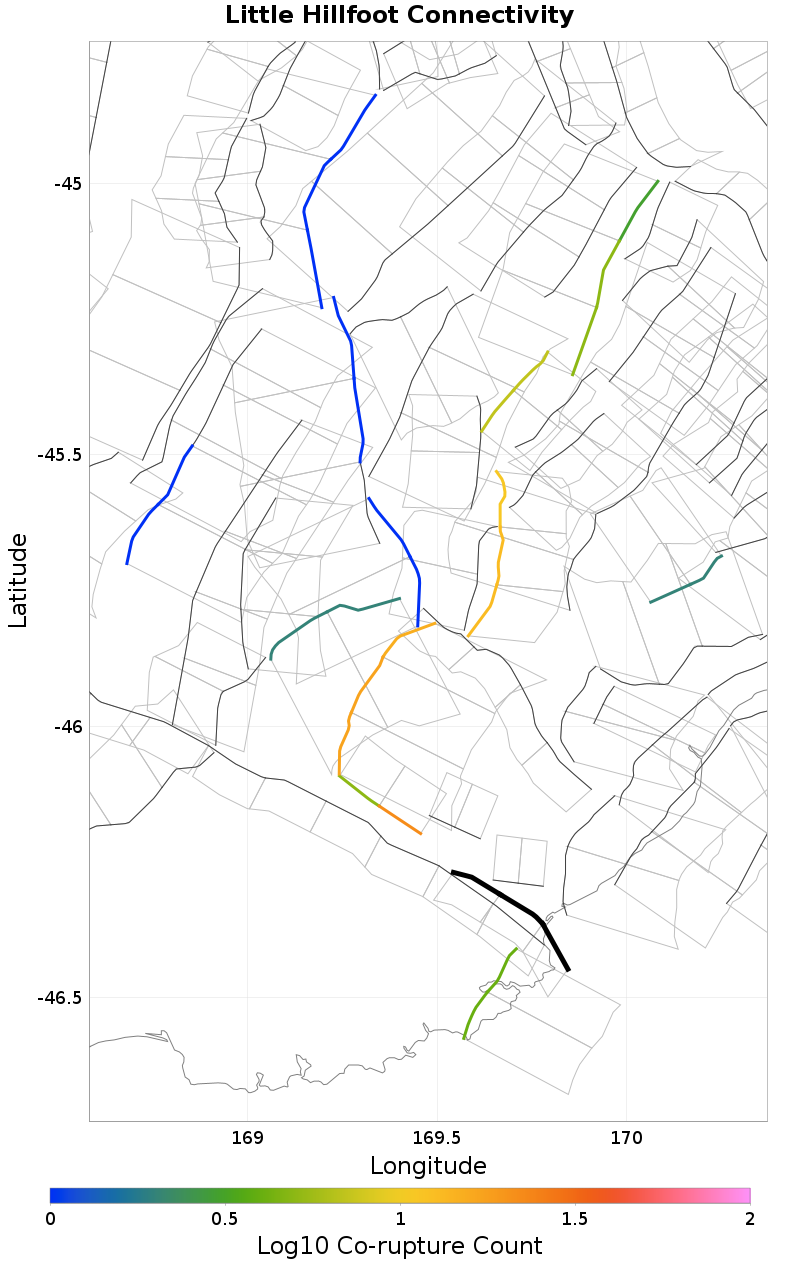

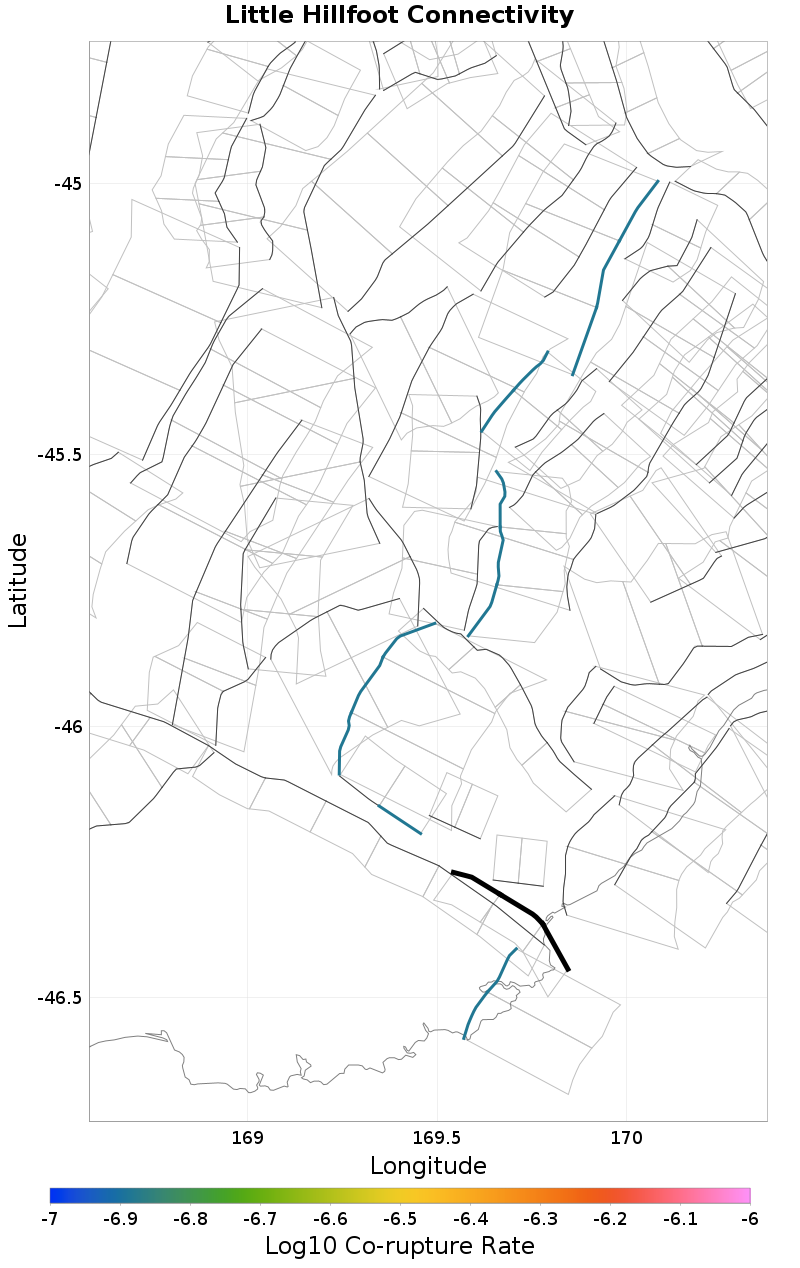

Connectivity
 |  |
|---|
Nearby Sections
Settlement, 0.3 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4 |
| Co-rupture Rate | 1.3076458E-7 |
Hillfoot, 0.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Otanomomo, 1.78 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Titri South, 5.15 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Clifton, 8.06 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Beacon Hill, 10.39 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 22 |
| Co-rupture Rate | 1.3076458E-7 |
Blue Mountain, 14.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 17 |
| Co-rupture Rate | 1.3076458E-7 |
Akatore, 16.66 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
