Maimai: North Details

PropertyValue
Rupture Count78
Ruptures Above Sect Min Mag76
Ruptures w/ Nonzero Rates10
Magnitude Range[6.74, 8.04]
Length Range[18, 313] km
Total Rate2.2266663E-4 /yr
Multi-Fault Rate2.2266663E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults7

Table Of Contents

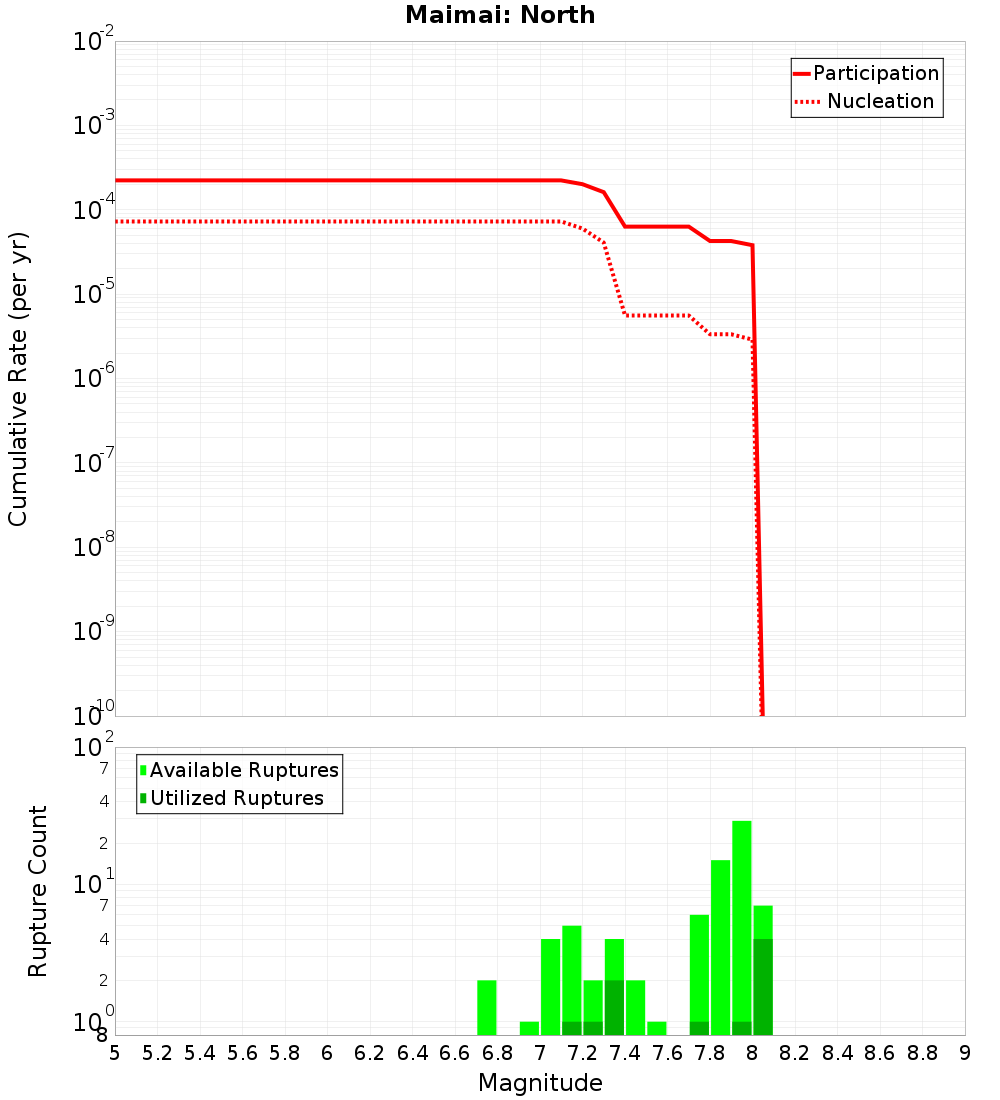

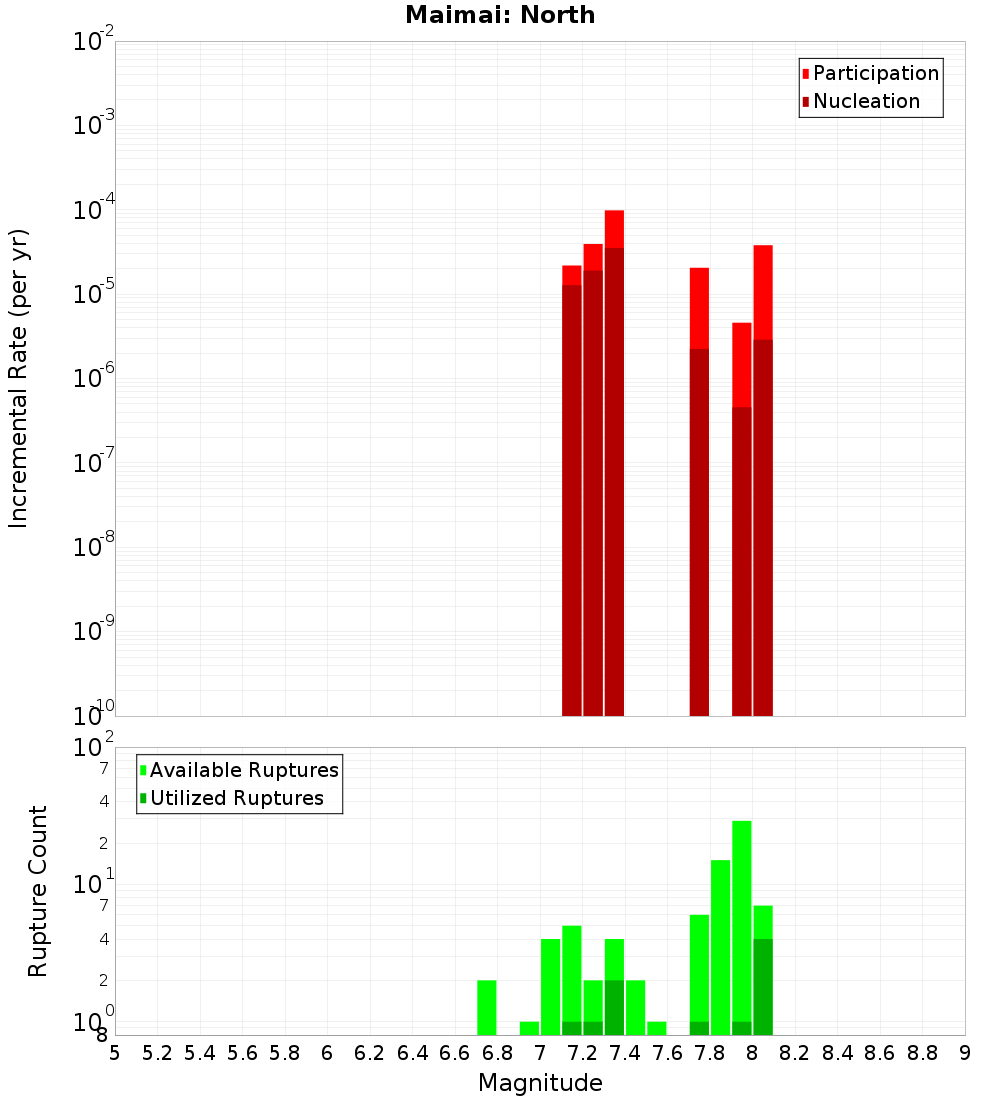

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

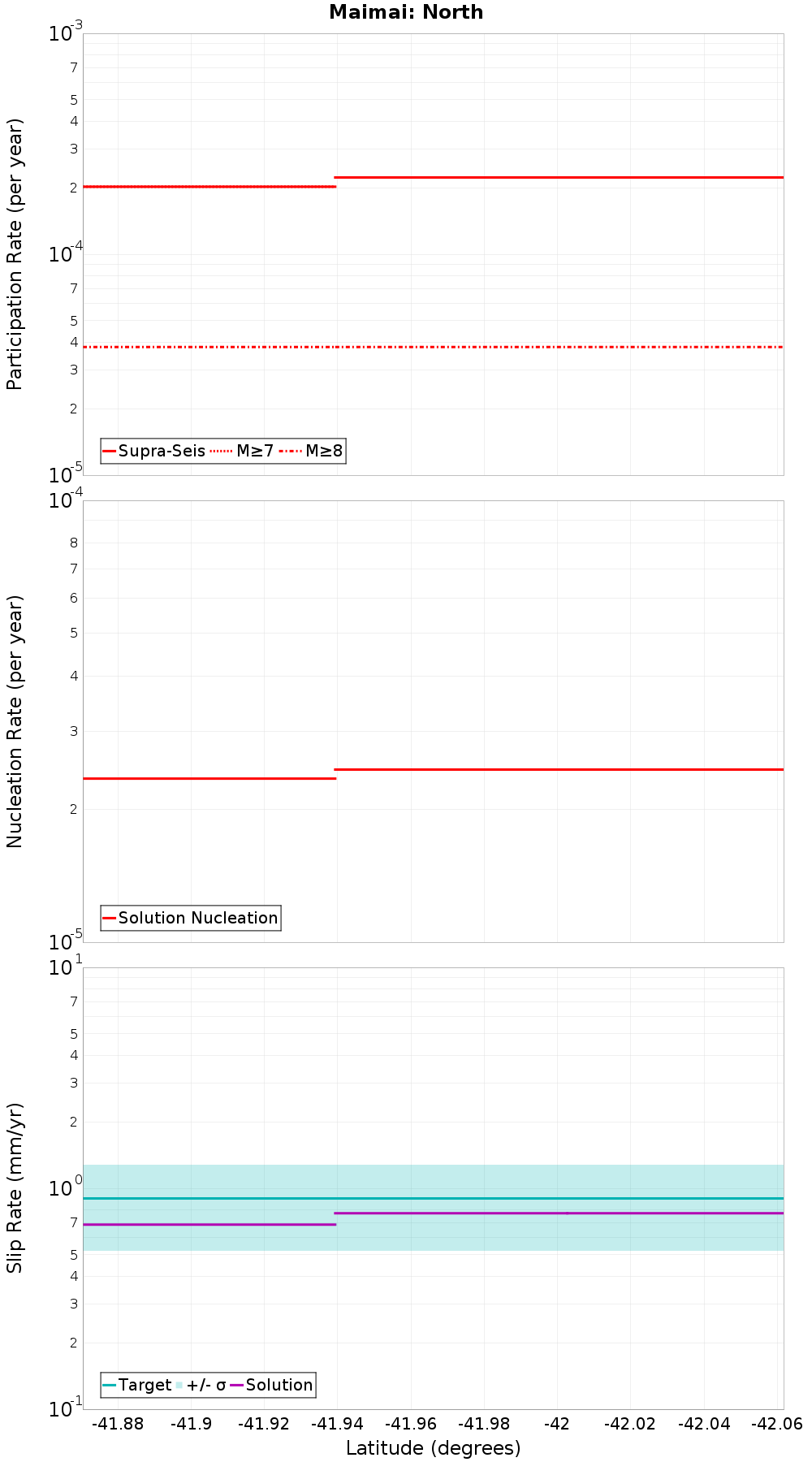

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Inangahua, 0 km away
Maimai, 0 km away
Paparoa West, 0.86 km away
Paparoa West: North, 2.22 km away
Lyell South, 7.01 km away
Lyell, 7.56 km away
Cape Foulwind 2, 14.37 km away
White Creek, 17.64 km away

Inangahua, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maimai, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?true
Co-rupture Count66
Co-rupture Rate1.6150984E-4

Paparoa West, 0.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?true
Co-rupture Count49
Co-rupture Rate1.3384837E-4

Paparoa West: North, 2.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?true
Co-rupture Count2
Co-rupture Rate8.8818255E-5

Lyell South, 7.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate2.0538664E-5

Lyell, 7.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate2.0538664E-5

Cape Foulwind 2, 14.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Creek, 17.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
