Matata Details

Property	Value
Rupture Count	8,948
Ruptures Above Sect Min Mag	8,816
Ruptures w/ Nonzero Rates	19
Magnitude Range	[5.67, 8.22]
Length Range	[5, 491] km
Total Rate	5.894565E-4 /yr
Multi-Fault Rate	5.894565E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	75

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

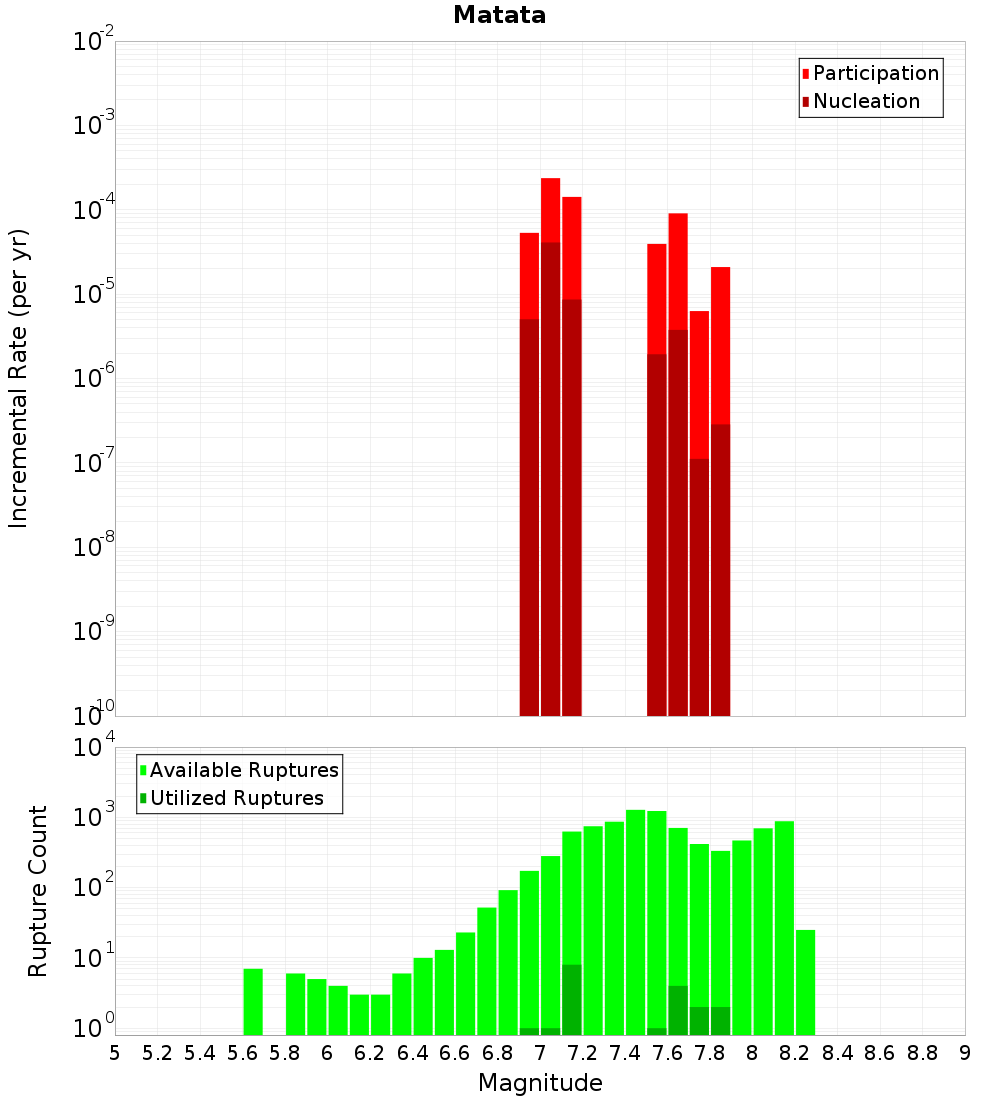

Magnitude-Frequency Distribution

Incremental	Cumulative

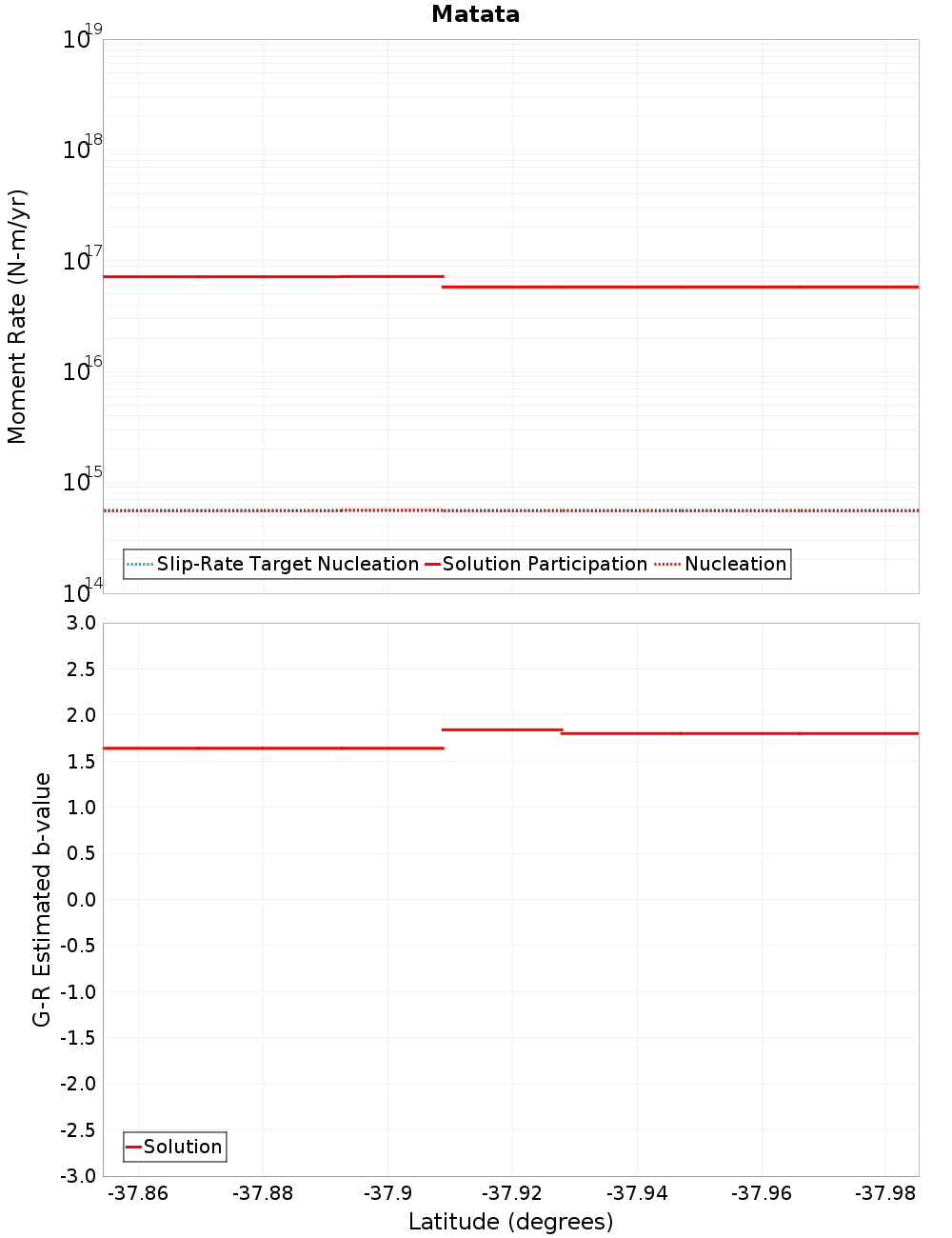

Along-Strike Values

Moment-Rates and b-Values

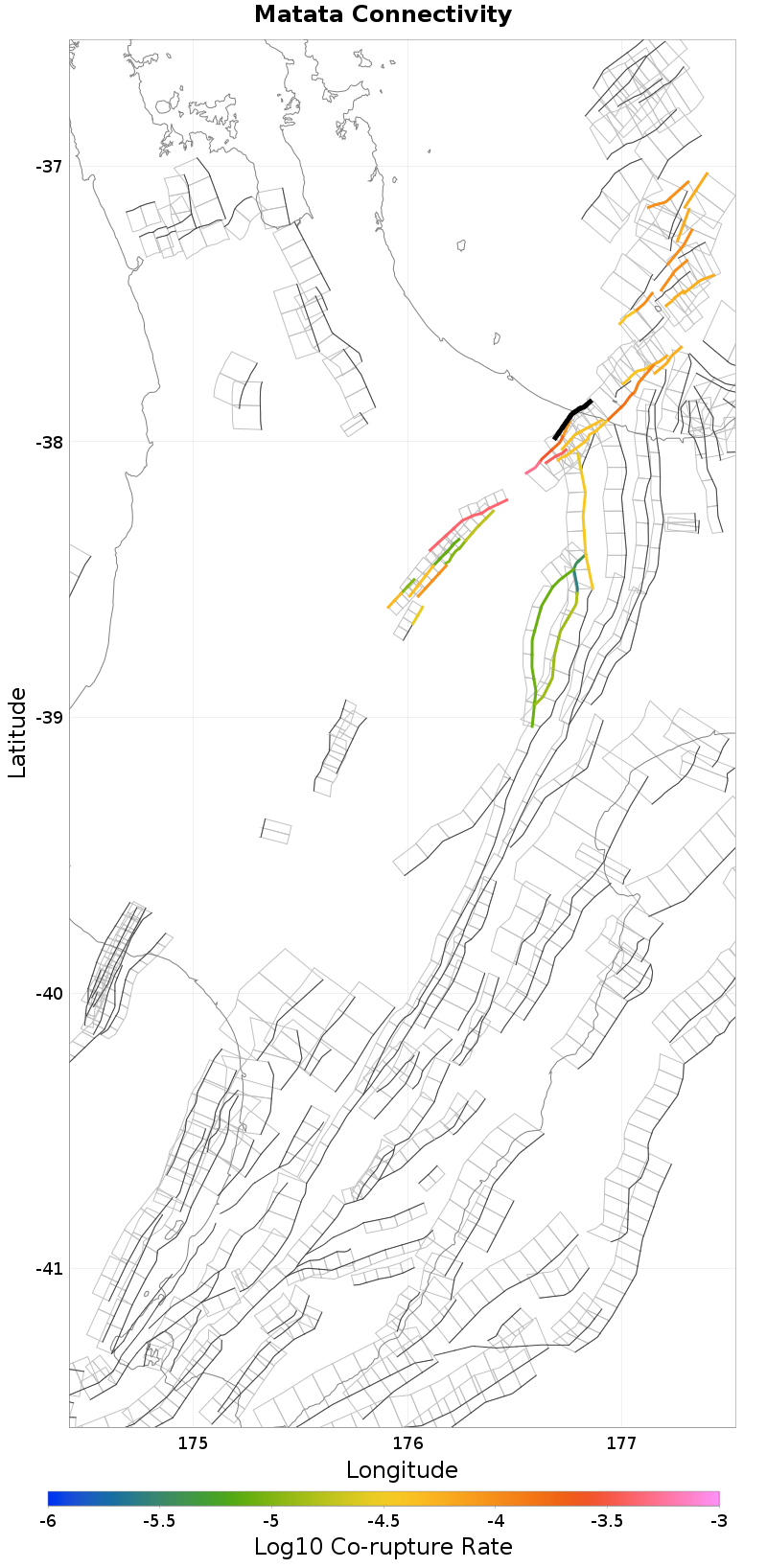

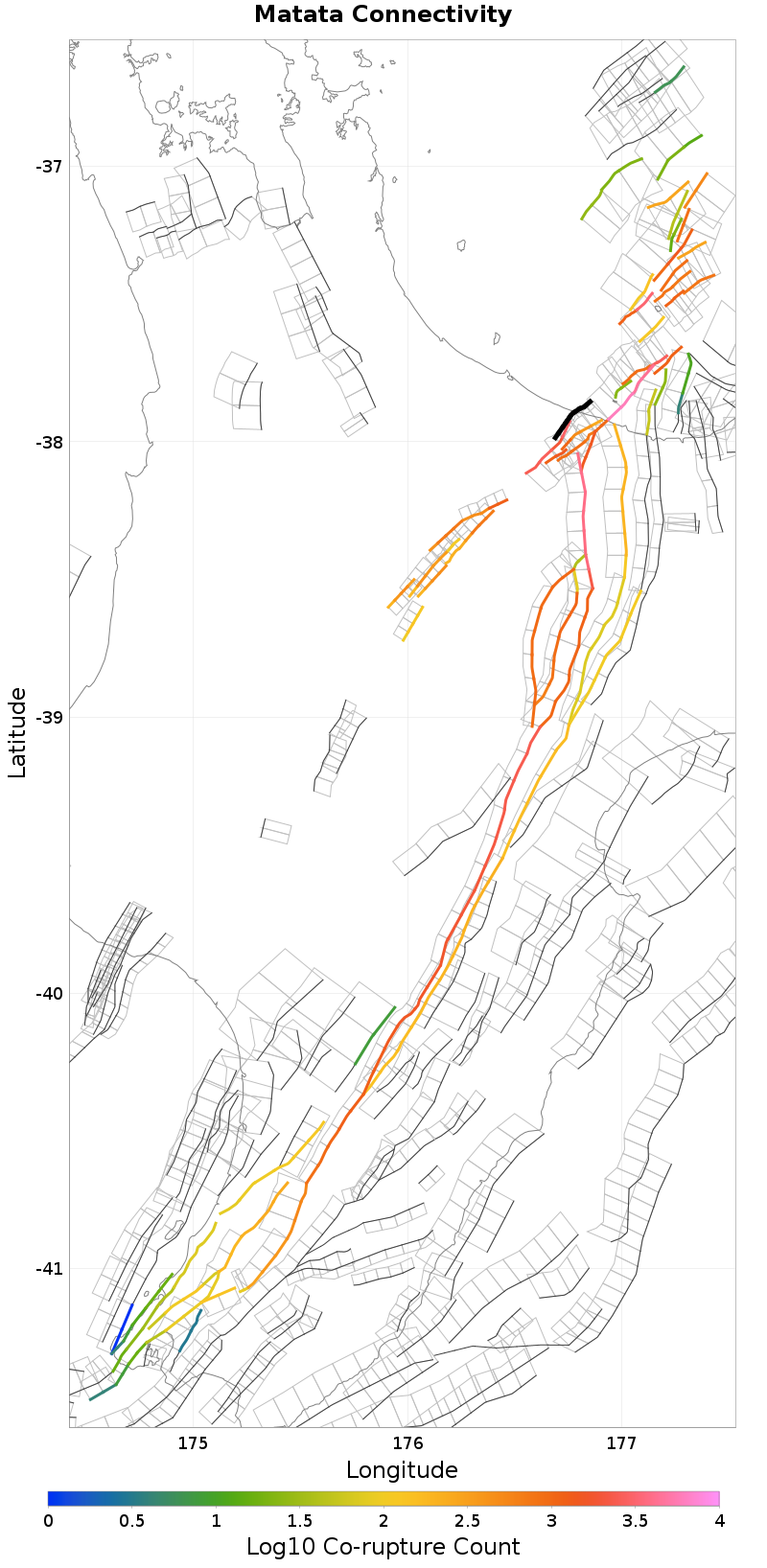

Connectivity

Nearby Sections

Fault Section
Braemar, 1.02 km away
Edgecumbe 1987, 1.15 km away
Edgecumbe Coastal, 2.61 km away
White Island 1, 2.62 km away
Otakiri, 4.47 km away
Awakeri, 5.43 km away
Rotoitipakau, 5.64 km away
Waiohau: North, 6.37 km away
Whakatane: North, 8.83 km away
Rangitaiki 1, 9.11 km away
Rangitaiki 2, 15.14 km away

Braemar, 1.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	true
Directly Connected?	true
Co-rupture Count	4,772
Co-rupture Rate	5.8086583E-4

Edgecumbe 1987, 1.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	true
Directly Connected?	true
Co-rupture Count	891
Co-rupture Rate	4.009793E-5

Edgecumbe Coastal, 2.61 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	true
Directly Connected?	true
Co-rupture Count	1,005
Co-rupture Rate	4.009793E-5

White Island 1, 2.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	true
Directly Connected?	true
Co-rupture Count	6,147
Co-rupture Rate	1.5722954E-4

Otakiri, 4.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	true
Directly Connected?	true
Co-rupture Count	1,064
Co-rupture Rate	4.1943484E-5

Awakeri, 5.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	true
Directly Connected?	true
Co-rupture Count	1,489
Co-rupture Rate	0.0

Rotoitipakau, 5.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	true
Directly Connected?	true
Co-rupture Count	1,447
Co-rupture Rate	3.808249E-4

Waiohau: North, 6.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	true
Directly Connected?	false
Co-rupture Count	3,990
Co-rupture Rate	3.5822228E-5

Whakatane: North, 8.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	true
Directly Connected?	false
Co-rupture Count	196
Co-rupture Rate	0.0

Rangitaiki 1, 9.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	true
Directly Connected?	false
Co-rupture Count	23
Co-rupture Rate	0.0

Rangitaiki 2, 15.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	true
Directly Connected?	false
Co-rupture Count	941
Co-rupture Rate	3.9365907E-5
