Mohaka: North Details

PropertyValue
Rupture Count31,195
Ruptures Above Sect Min Mag31,192
Ruptures w/ Nonzero Rates21
Magnitude Range[6.98, 8.42]
Length Range[24, 758] km
Total Rate4.5873222E-4 /yr
Multi-Fault Rate4.5873222E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults121

Table Of Contents

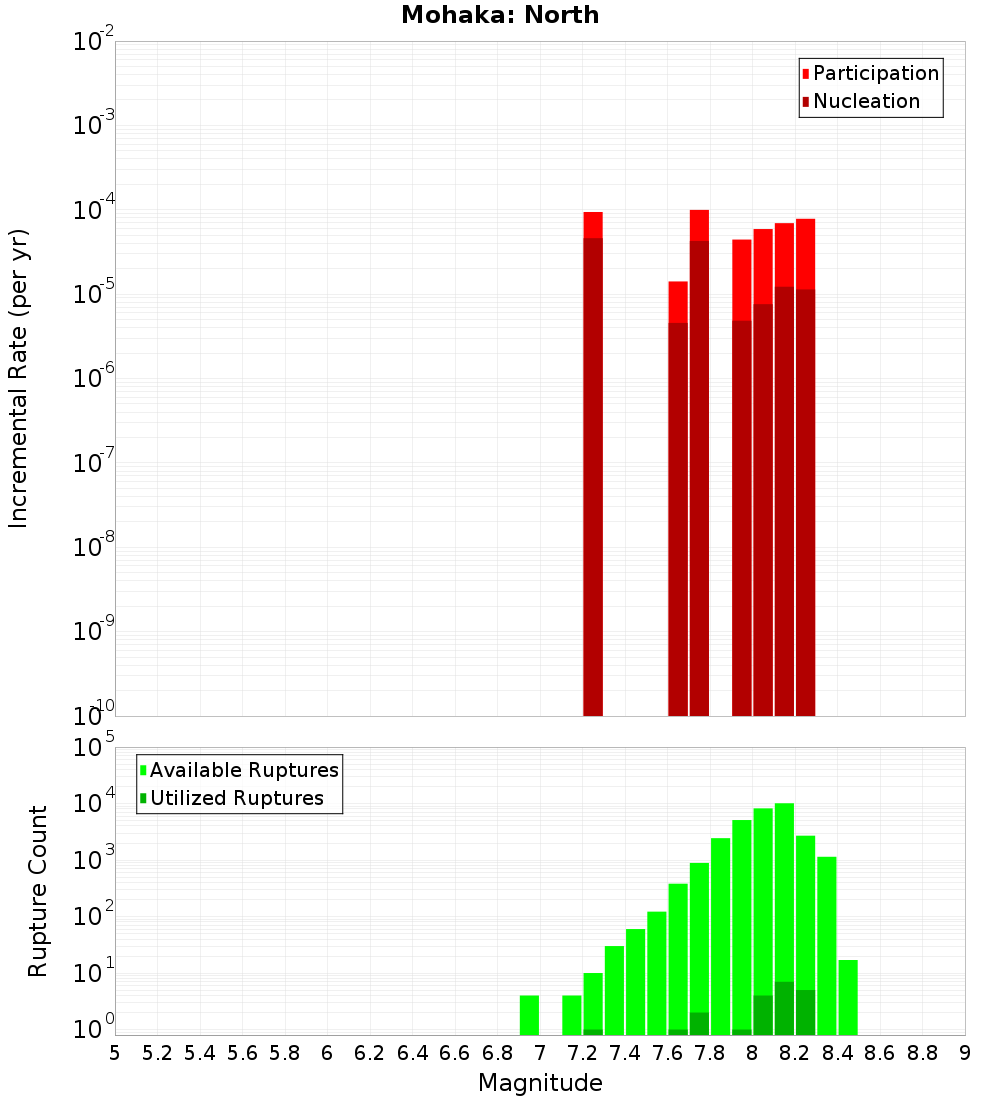

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

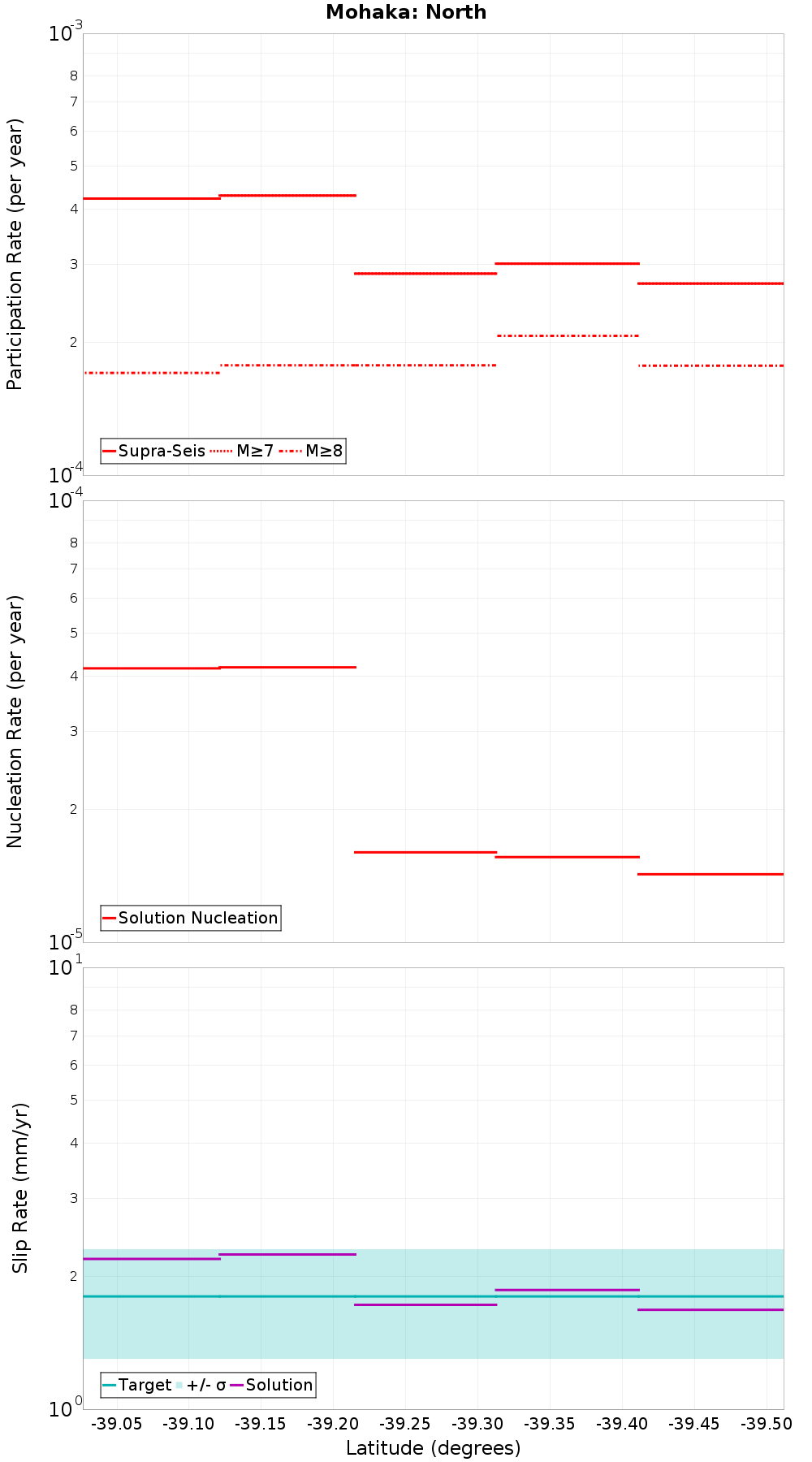

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

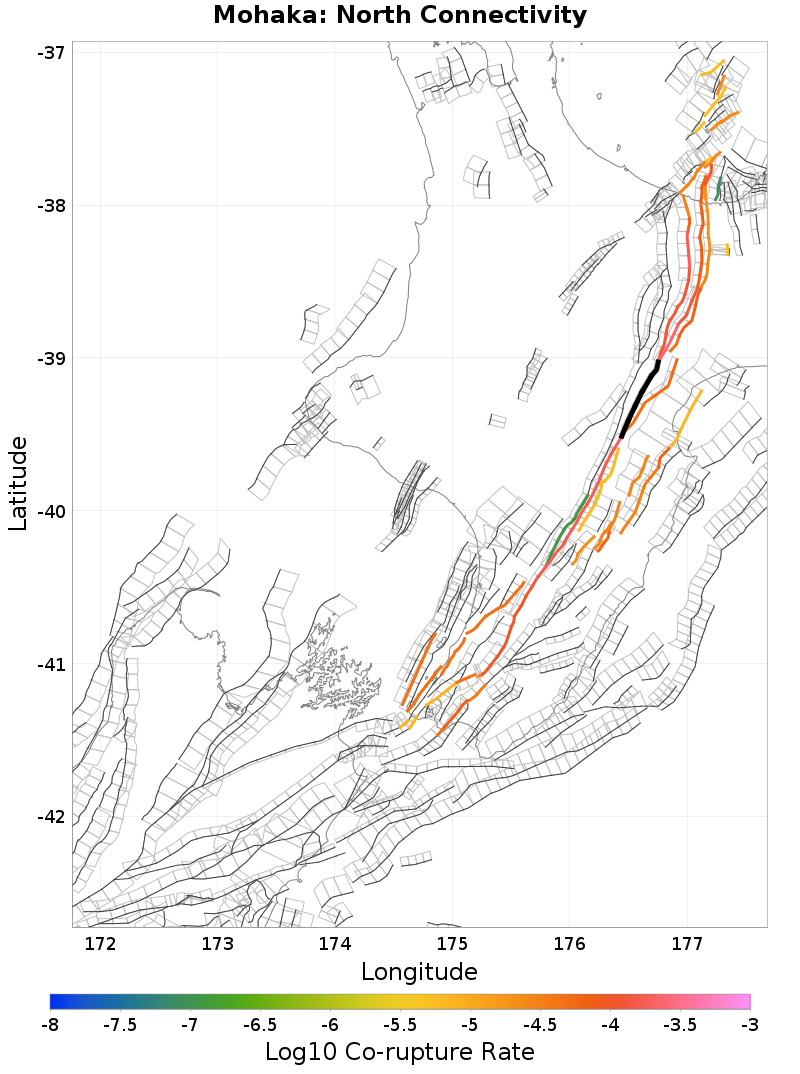

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Mohaka: South, 0 km away
Whakatane: South, 0 km away
Waimana: South, 0 km away
Patoka - Rangiora, 0.47 km away
Ruahine: North, 5.2 km away
Ruahine: Central, 7.58 km away
Awanui, 7.77 km away
Waiohau: South, 8.12 km away
Wakarara, 9.63 km away
Kaweka, 10.6 km away
Waiotahi: South, 11.46 km away
Wheao: South, 13.51 km away
Te Heka, 14.7 km away
Te Whaiti South, 15.34 km away
Hawke Bay 1, 18.61 km away

Mohaka: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?true
Co-rupture Count33,046
Co-rupture Rate1.8301688E-4

Whakatane: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?true
Co-rupture Count5,741
Co-rupture Rate1.1981723E-4

Waimana: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?true
Co-rupture Count18,259
Co-rupture Rate2.5836928E-4

Patoka - Rangiora, 0.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?true
Co-rupture Count627
Co-rupture Rate5.6339704E-5

Ruahine: North, 5.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?false
Co-rupture Count313
Co-rupture Rate0.0

Ruahine: Central, 7.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?false
Co-rupture Count1,120
Co-rupture Rate0.0

Awanui, 7.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?true
Co-rupture Count1,037
Co-rupture Rate6.5937216E-5

Waiohau: South, 8.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?false
Co-rupture Count27
Co-rupture Rate0.0

Wakarara, 9.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?false
Co-rupture Count6,036
Co-rupture Rate6.1244127E-6

Kaweka, 10.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waiotahi: South, 11.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?true
Co-rupture Count6,231
Co-rupture Rate7.0340466E-5

Wheao: South, 13.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?false
Co-rupture Count86
Co-rupture Rate0.0

Te Heka, 14.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?false
Co-rupture Count189
Co-rupture Rate2.9728844E-5

Te Whaiti South, 15.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?false
Co-rupture Count31
Co-rupture Rate0.0

Hawke Bay 1, 18.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate0.0
