Mt Lawry Details

Property	Value
Rupture Count	11
Ruptures Above Sect Min Mag	10
Ruptures w/ Nonzero Rates	3
Magnitude Range	[6.77, 7.92]
Length Range	[16, 210] km
Total Rate	4.5163728E-5 /yr
Multi-Fault Rate	4.5163728E-5 /yr (100.00%)
Directly-Connected Faults	1
All Co-Rupturing Faults	8

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

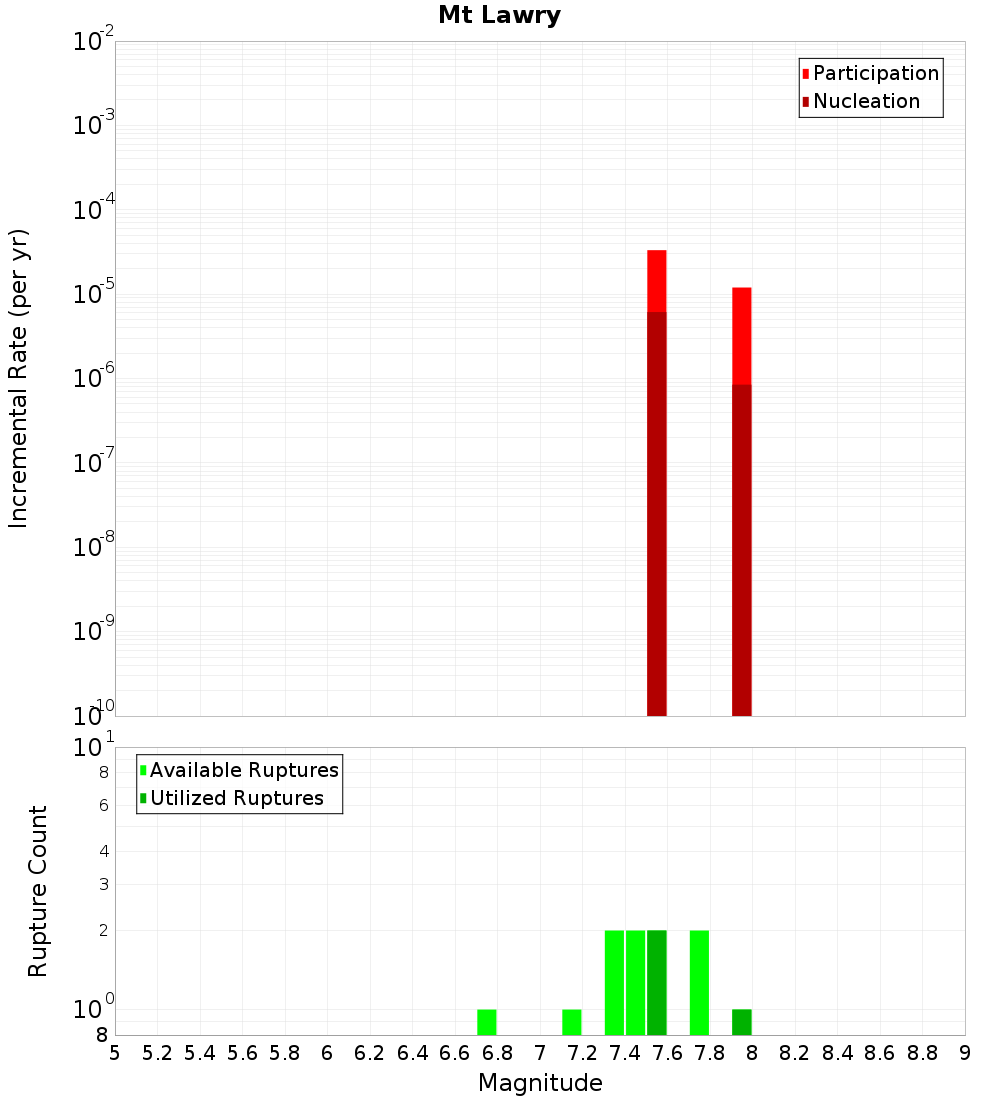

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Starvation - Ashley, 0.19 km away
Springbank, 0.45 km away
Knowles Top, 1.37 km away
Mt Arden, 5.15 km away
Doctors, 7.57 km away
Boby Stream, 8.54 km away
Pancake, 9.43 km away
Lees Valley, 11.49 km away
AmberBlyth, 14.29 km away
Hororata, 17.55 km away
Esk South, 18.95 km away
Kowai - View Hill, 19.14 km away
Kaiwara South, 19.49 km away

Starvation - Ashley, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	true
Directly Connected?	true
Co-rupture Count	10
Co-rupture Rate	4.5163728E-5

Springbank, 0.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Knowles Top, 1.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mt Arden, 5.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Doctors, 7.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Boby Stream, 8.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Pancake, 9.43 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Lees Valley, 11.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

AmberBlyth, 14.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hororata, 17.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	3.318607E-5

Esk South, 18.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kowai - View Hill, 19.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Kaiwara South, 19.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
