Northern Ohariu Details

PropertyValue
Rupture Count10,617
Ruptures Above Sect Min Mag10,614
Ruptures w/ Nonzero Rates15
Magnitude Range[6.81, 8.28]
Length Range[19, 540] km
Total Rate2.1959096E-4 /yr
Multi-Fault Rate2.1959096E-4 /yr (100.00%)
Directly-Connected Faults6
All Co-Rupturing Faults88

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

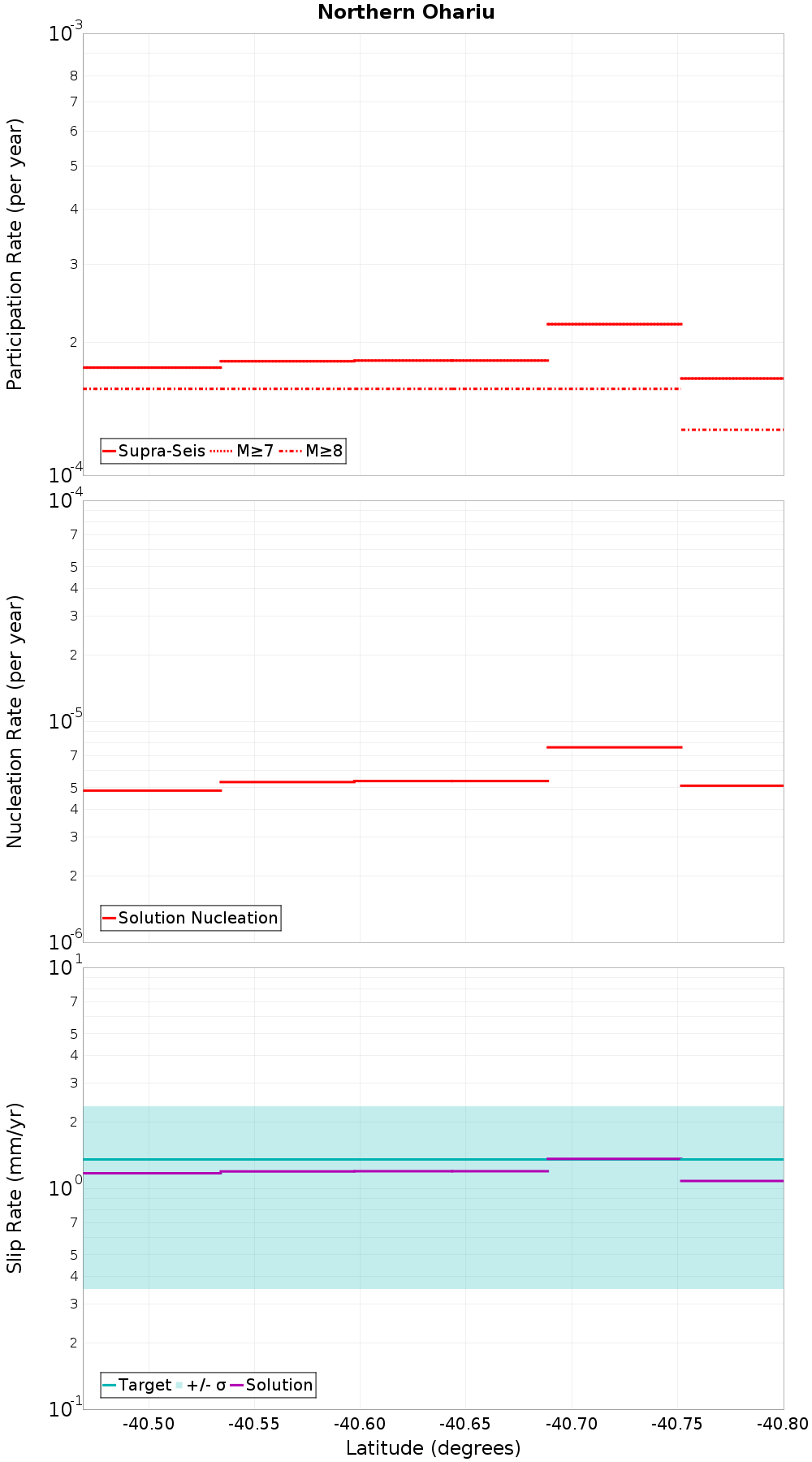

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

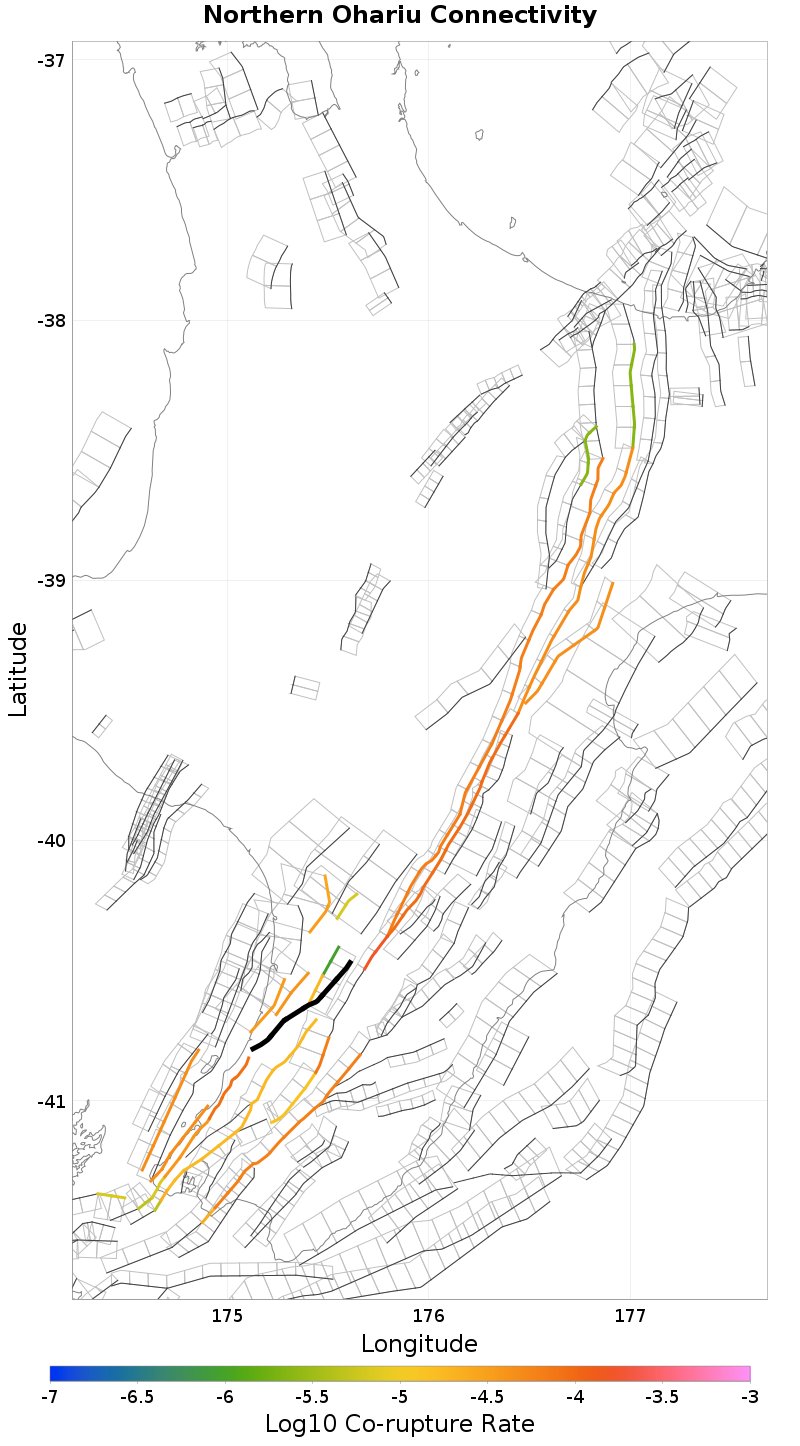

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Tokomaru, 0.09 km awayRangitikei Offshore 1, 13.65 km away
Wellington: Tararua 3, 1.64 km awayOnepoto, 15.04 km away
Wellington: Pahiatua, 3.03 km awayPahiatua, 15.16 km away
Levin Anticline, 4.08 km awayHimatangi, 15.18 km away
Ohariu, 4.32 km awayMascarin, 17.61 km away
Poroutawhao, 6.82 km awayWellington: Tararua 2, 17.76 km away
Otaki Forks: 2, 7.03 km awayFisherman 3, 18.1 km away
Otaki Forks: 1, 7.35 km awayMohaka: South, 18.27 km away
Otaheke North, 11.55 km awayRuahine: South, 18.38 km away
Otaheke South, 11.86 km awayTaonui, 19.61 km away
Pohangina, 13.14 km awayFisherman 2, 19.86 km away

Tokomaru, 0.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?true
Co-rupture Count149
Co-rupture Rate1.8327875E-5

Wellington: Tararua 3, 1.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?true
Co-rupture Count1,144
Co-rupture Rate7.757081E-5

Wellington: Pahiatua, 3.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?true
Co-rupture Count10,172
Co-rupture Rate1.5681068E-4

Levin Anticline, 4.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?true
Co-rupture Count40
Co-rupture Rate3.9857583E-5

Ohariu, 4.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?true
Co-rupture Count7,589
Co-rupture Rate8.5652646E-5

Poroutawhao, 6.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?true
Co-rupture Count102
Co-rupture Rate3.469466E-5

Otaki Forks: 2, 7.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?false
Co-rupture Count109
Co-rupture Rate1.7420285E-5

Otaki Forks: 1, 7.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?false
Co-rupture Count220
Co-rupture Rate1.7420285E-5

Otaheke North, 11.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaheke South, 11.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?false
Co-rupture Count45
Co-rupture Rate0.0

Pohangina, 13.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?false
Co-rupture Count150
Co-rupture Rate0.0

Rangitikei Offshore 1, 13.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Onepoto, 15.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Pahiatua, 15.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Himatangi, 15.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mascarin, 17.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?false
Co-rupture Count8
Co-rupture Rate0.0

Wellington: Tararua 2, 17.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?false
Co-rupture Count440
Co-rupture Rate1.3927713E-5

Fisherman 3, 18.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mohaka: South, 18.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?false
Co-rupture Count6,616
Co-rupture Rate9.087958E-5

Ruahine: South, 18.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?false
Co-rupture Count4,844
Co-rupture Rate6.604662E-5

Taonui, 19.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate6.5593727E-6

Fisherman 2, 19.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
