Rotoitipakau Details

Property	Value
Rupture Count	4,890
Ruptures Above Sect Min Mag	4,854
Ruptures w/ Nonzero Rates	11
Magnitude Range	[6.27, 8.24]
Length Range	[10, 525] km
Total Rate	6.1423157E-4 /yr
Multi-Fault Rate	6.1423157E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	77

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

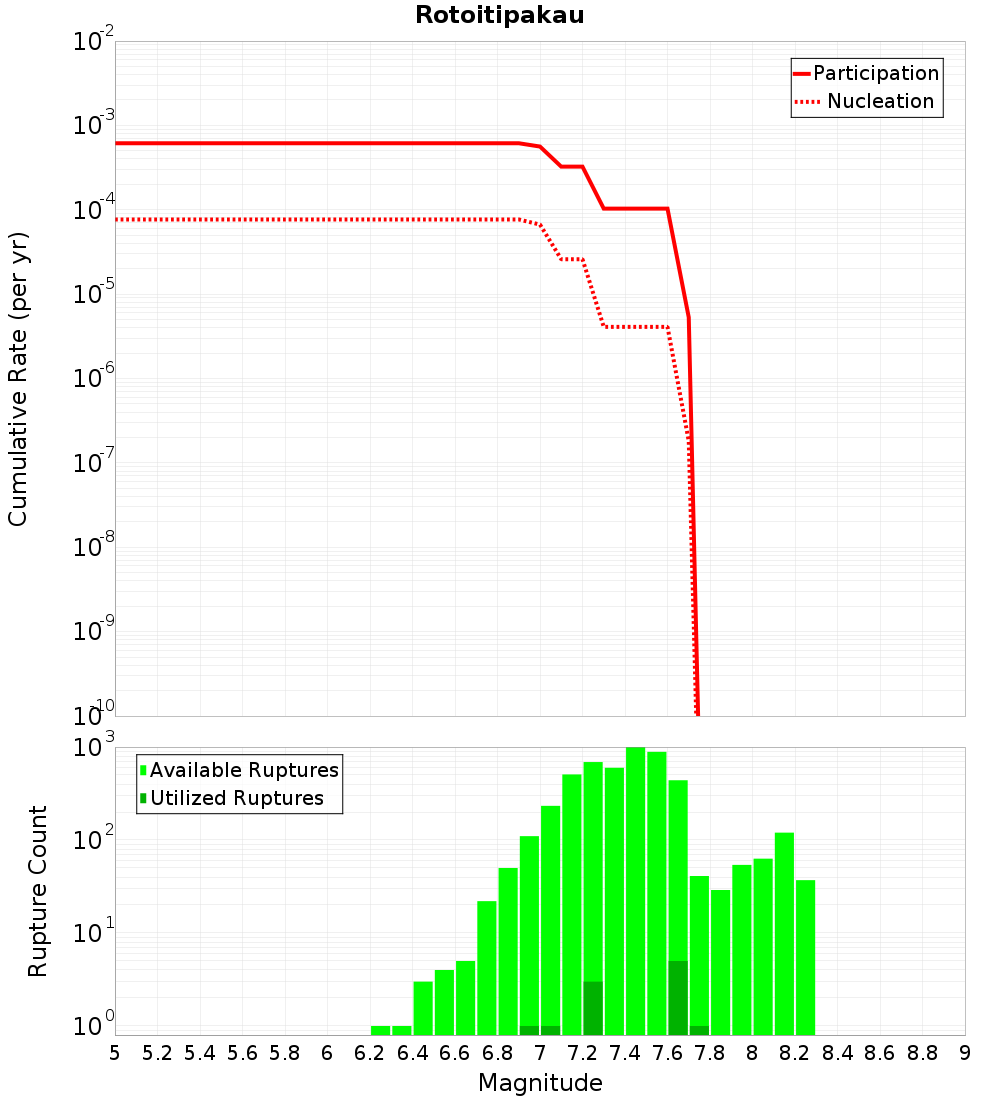

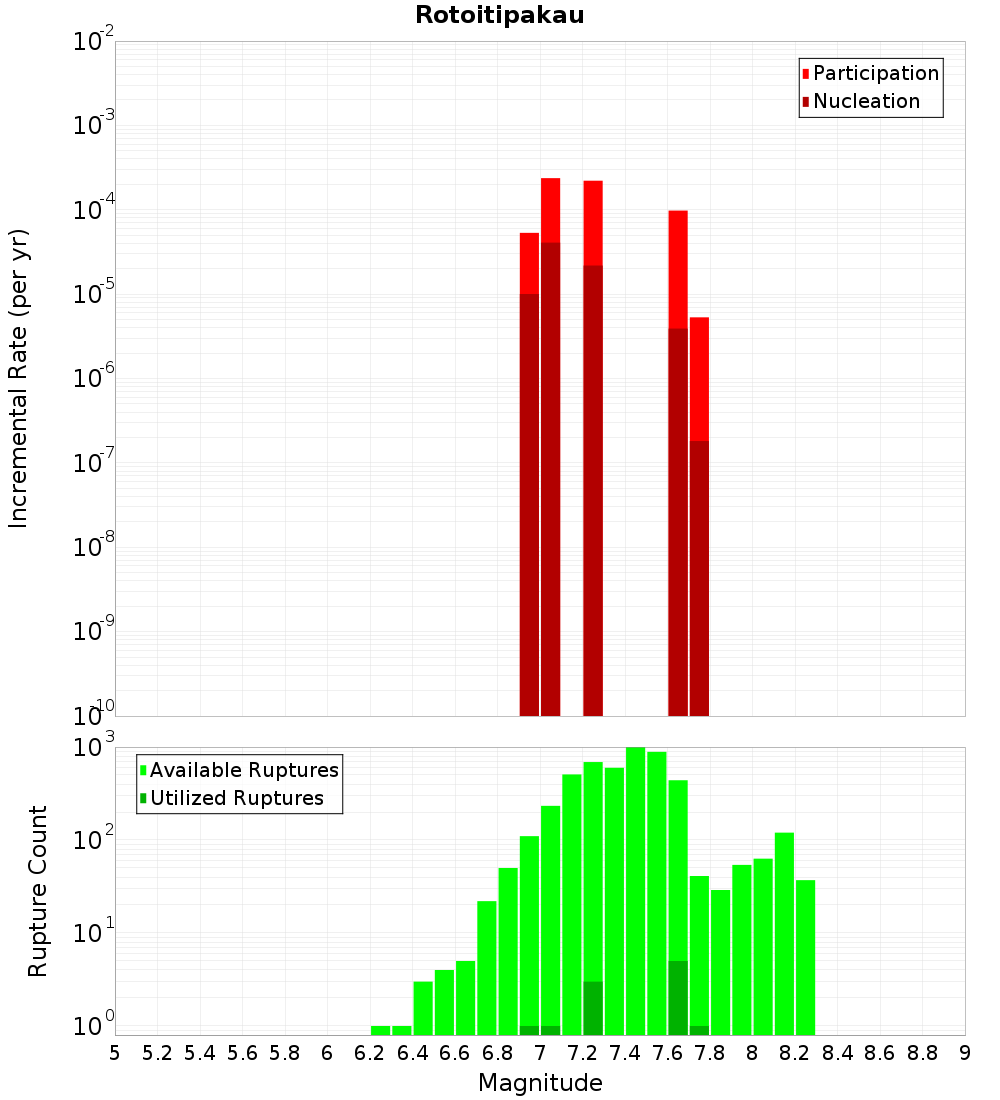

Magnitude-Frequency Distribution

Incremental	Cumulative

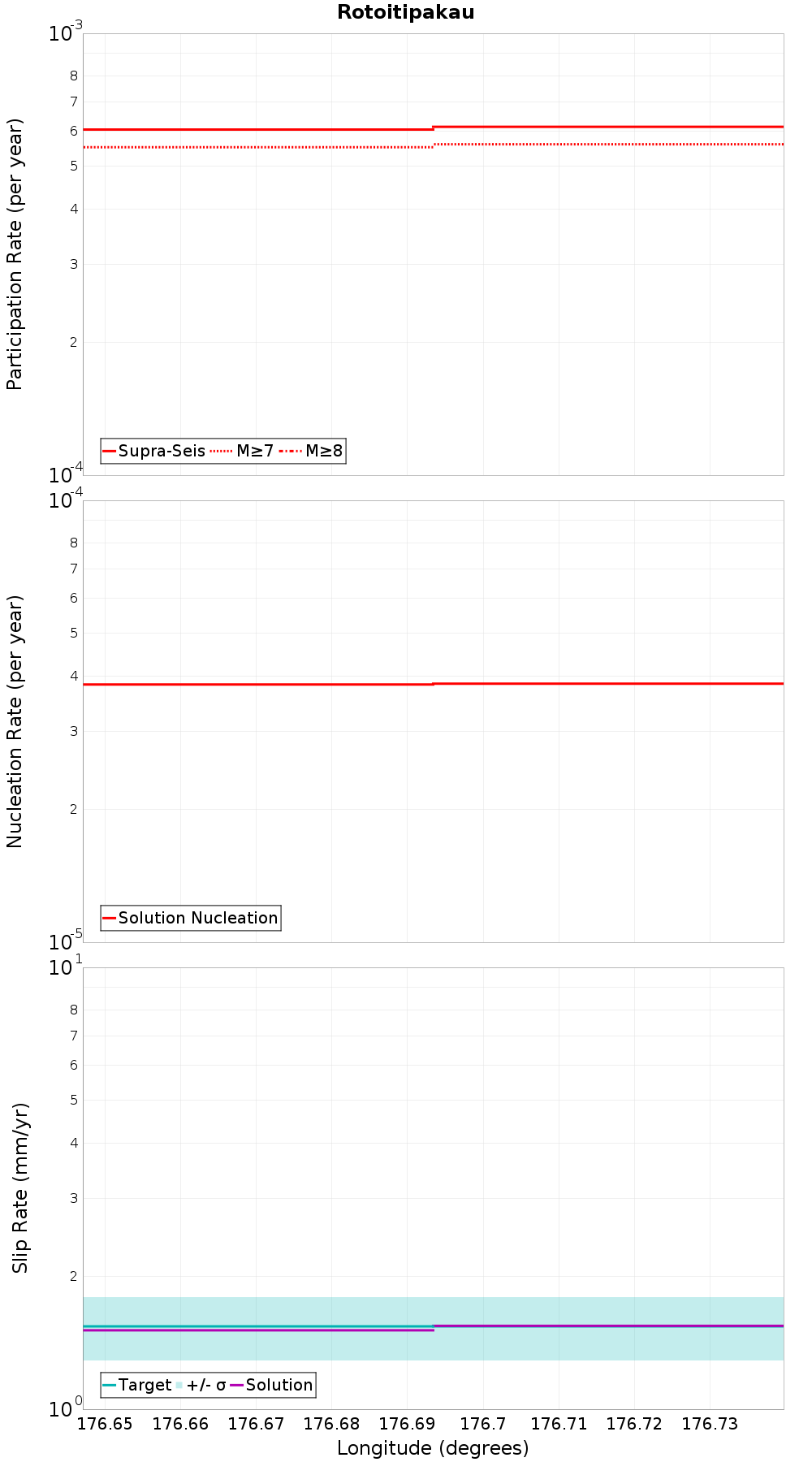

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Braemar, 0.14 km away
Otakiri, 0.23 km away
Awakeri, 0.24 km away
Edgecumbe 1987, 0.37 km away
Waiohau: North, 0.38 km away
Matata, 5.64 km away
Edgecumbe Coastal, 14.03 km away
Whakatane: North, 14.47 km away

Braemar, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	true
Directly Connected?	true
Co-rupture Count	4,536
Co-rupture Rate	5.931859E-4

Otakiri, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	true
Directly Connected?	true
Co-rupture Count	2,388
Co-rupture Rate	2.7535018E-4

Awakeri, 0.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	true
Directly Connected?	true
Co-rupture Count	268
Co-rupture Rate	0.0

Edgecumbe 1987, 0.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	true
Directly Connected?	true
Co-rupture Count	659
Co-rupture Rate	4.009793E-5

Waiohau: North, 0.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	true
Directly Connected?	true
Co-rupture Count	528
Co-rupture Rate	8.590694E-6

Matata, 5.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	true
Directly Connected?	true
Co-rupture Count	1,447
Co-rupture Rate	3.808249E-4

Edgecumbe Coastal, 14.03 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	true
Directly Connected?	false
Co-rupture Count	1,616
Co-rupture Rate	2.2284965E-4

Whakatane: North, 14.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt
Connected?	true
Directly Connected?	false
Co-rupture Count	70
Co-rupture Rate	2.2095171E-4
