Wairata Details
| Property | Value |
|---|---|
| Rupture Count | 1,031 |
| Ruptures Above Sect Min Mag | 1,030 |
| Ruptures w/ Nonzero Rates | 3 |
| Magnitude Range | [6.45, 8.19] |
| Length Range | [7, 441] km |
| Total Rate | 9.9221514E-5 /yr |
| Multi-Fault Rate | 9.9221514E-5 /yr (100.00%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 50 |
Table Of Contents

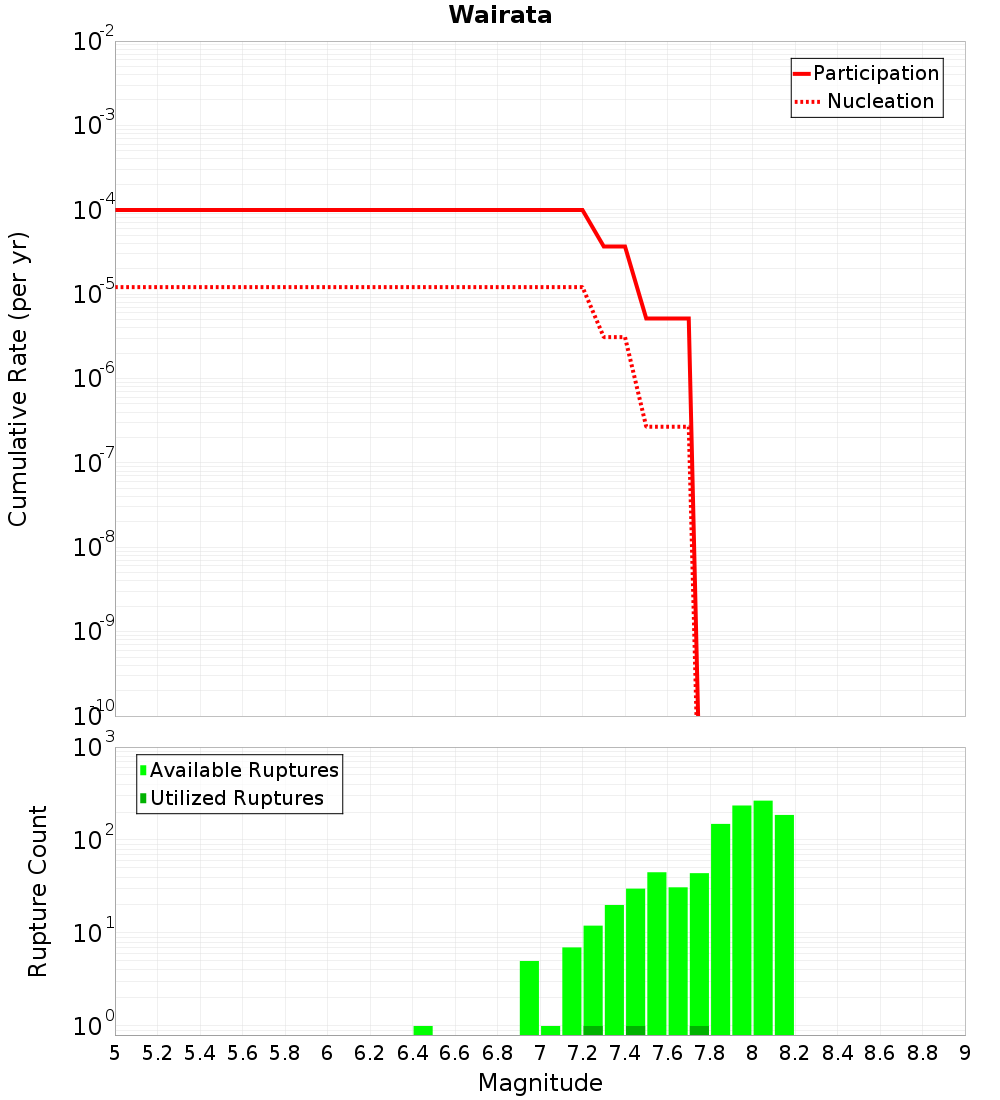

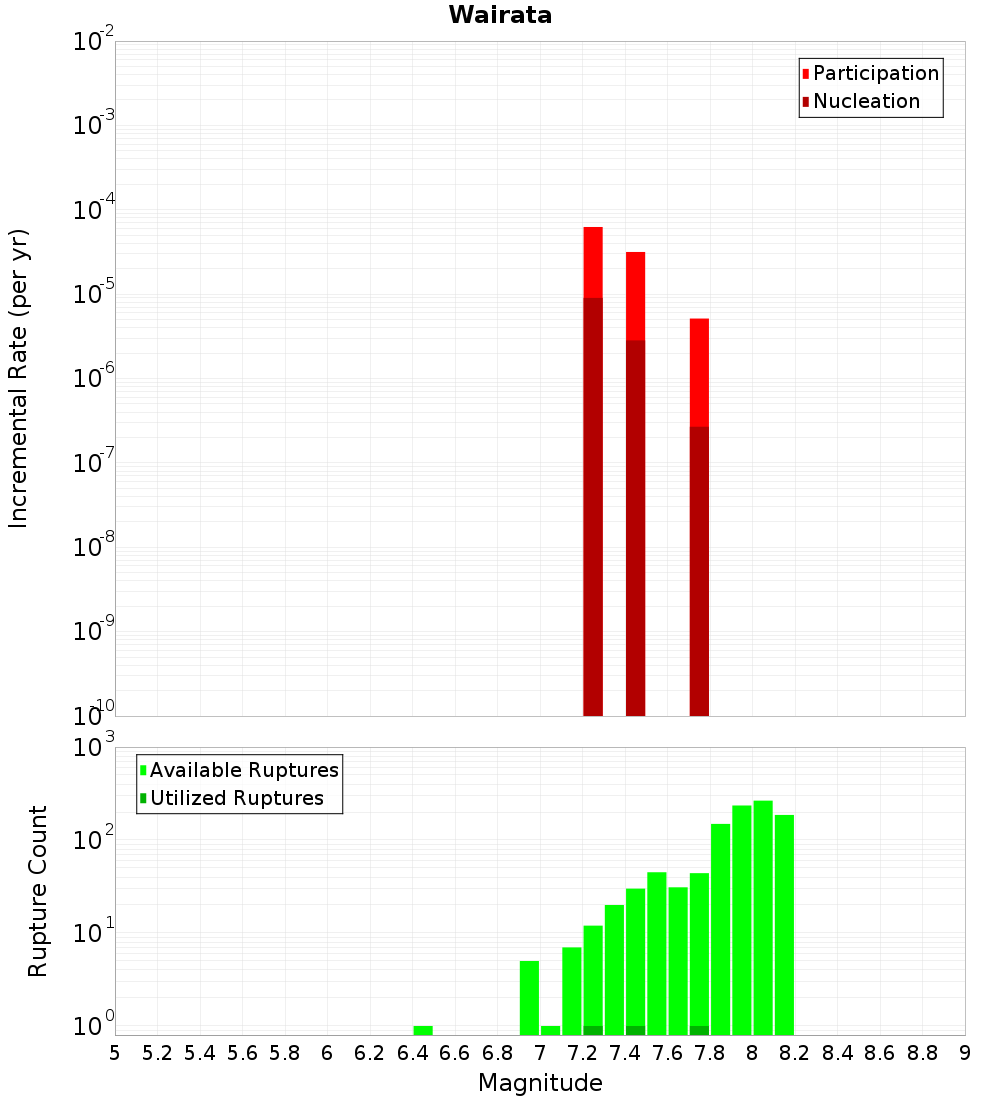

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

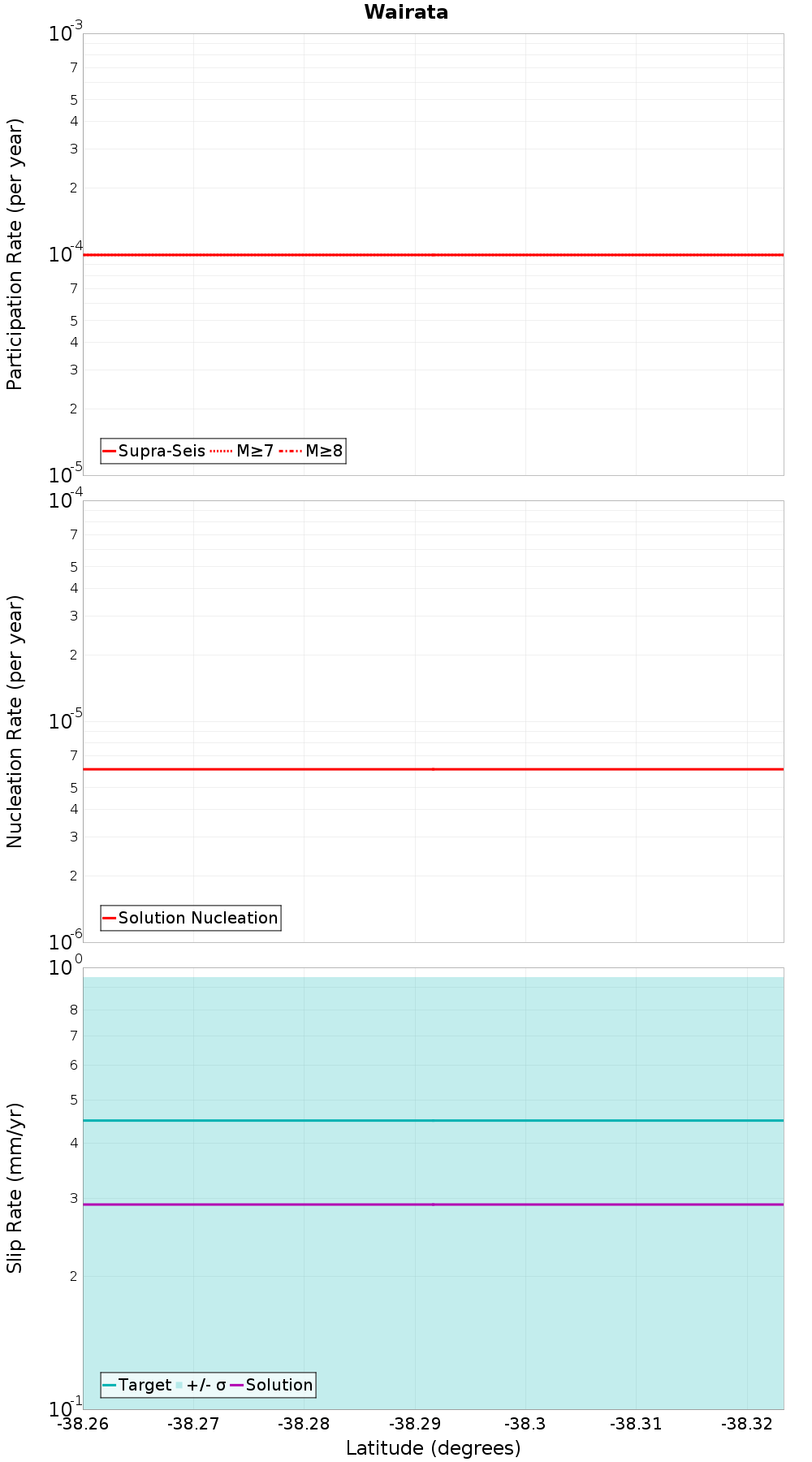

Along-Strike Values

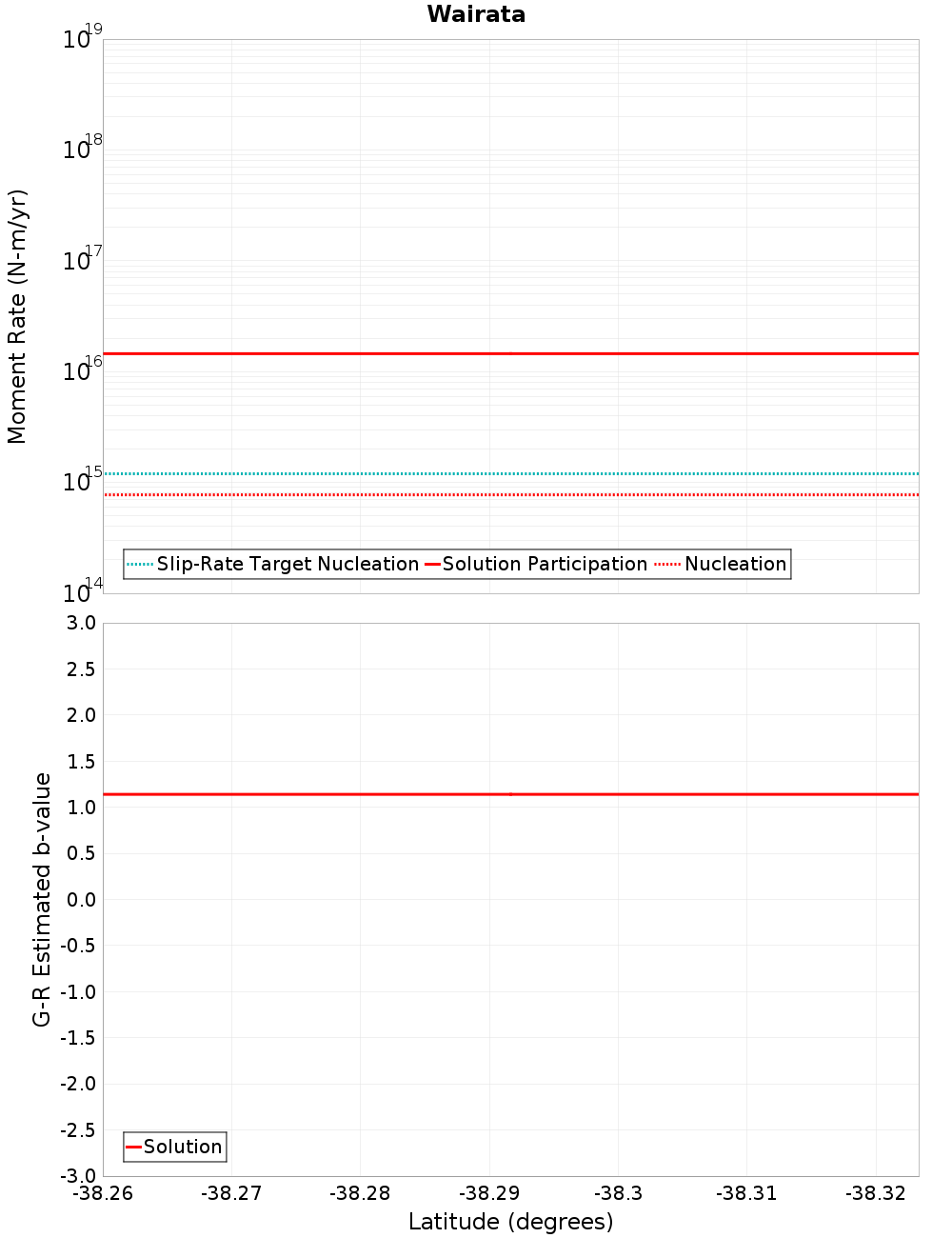

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Raukumara 9, 0.96 km away |
| Waiotahi: North, 4.18 km away |
| Kotare - Moutuhora, 9.2 km away |
| Waimana: North, 12.04 km away |
Raukumara 9, 0.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waiotahi: North, 4.18 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 895 |
| Co-rupture Rate | 5.1362736E-6 |
Kotare - Moutuhora, 9.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waimana: North, 12.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjguMEV5UlBt | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 494 |
| Co-rupture Rate | 9.408524E-5 |
