Springbank Details

PropertyValue
Rupture Count90
Ruptures Above Sect Min Mag90
Ruptures w/ Nonzero Rates2
Magnitude Range[6.88, 7.88]
Length Range[21, 234] km
Total Rate4.8252063E-5 /yr
Multi-Fault Rate4.8252063E-5 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults11

Table Of Contents

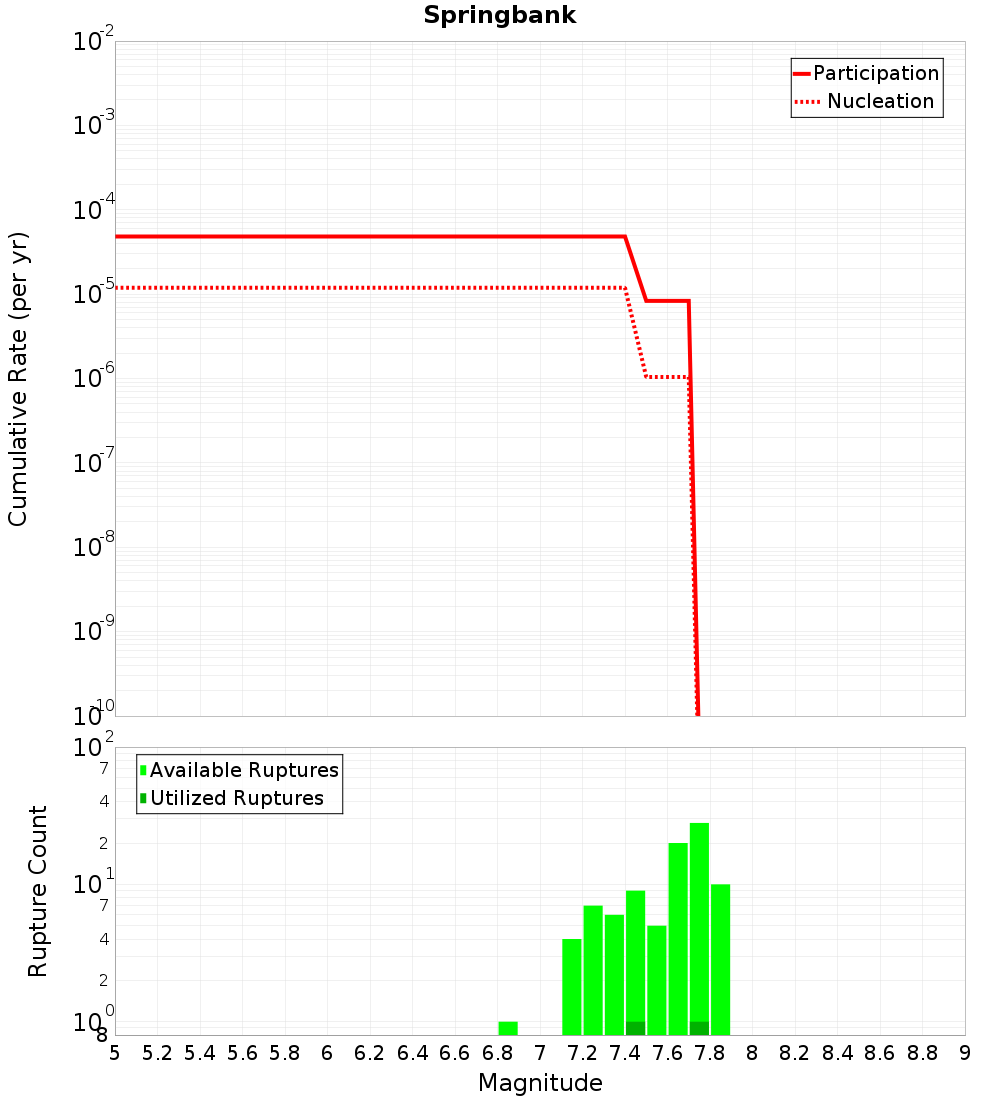

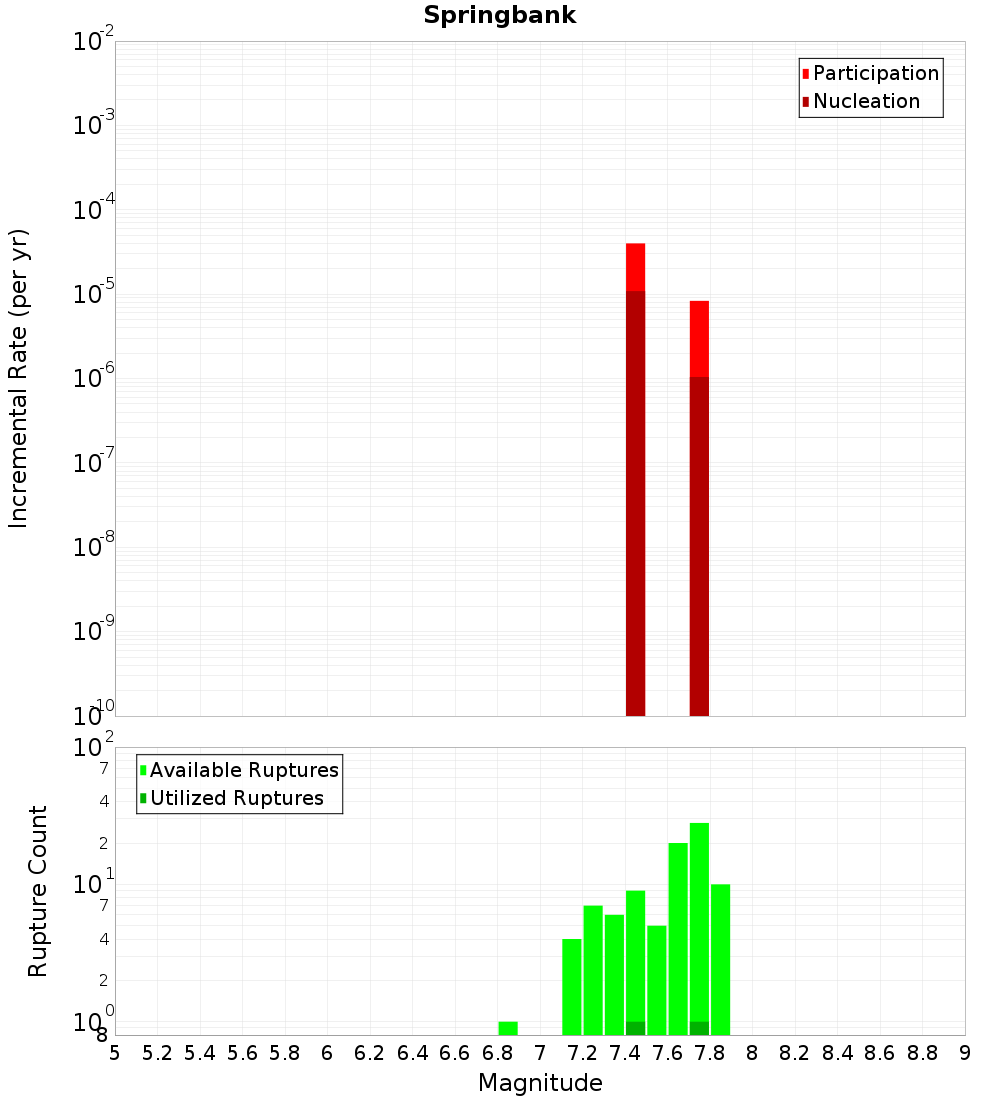

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

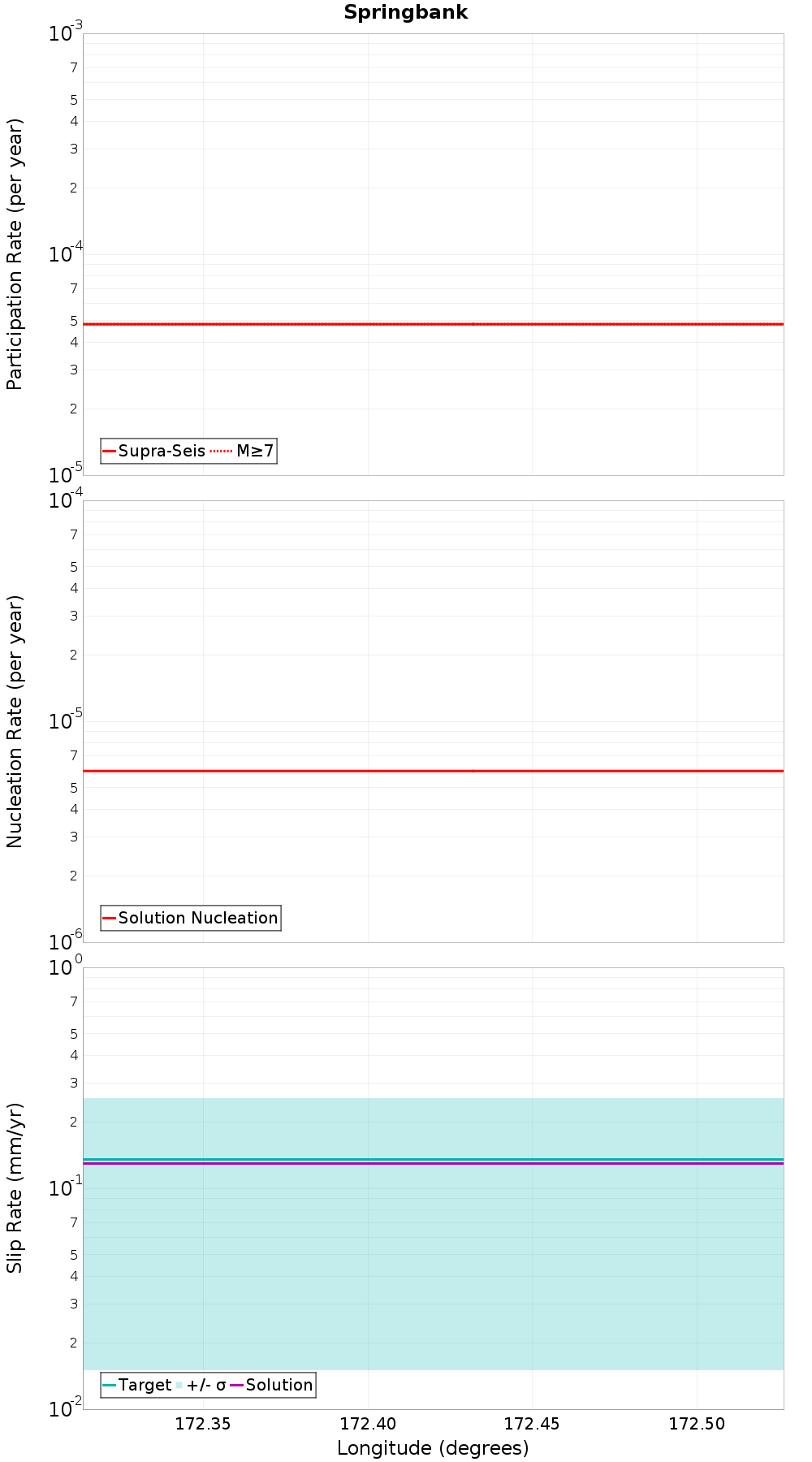

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

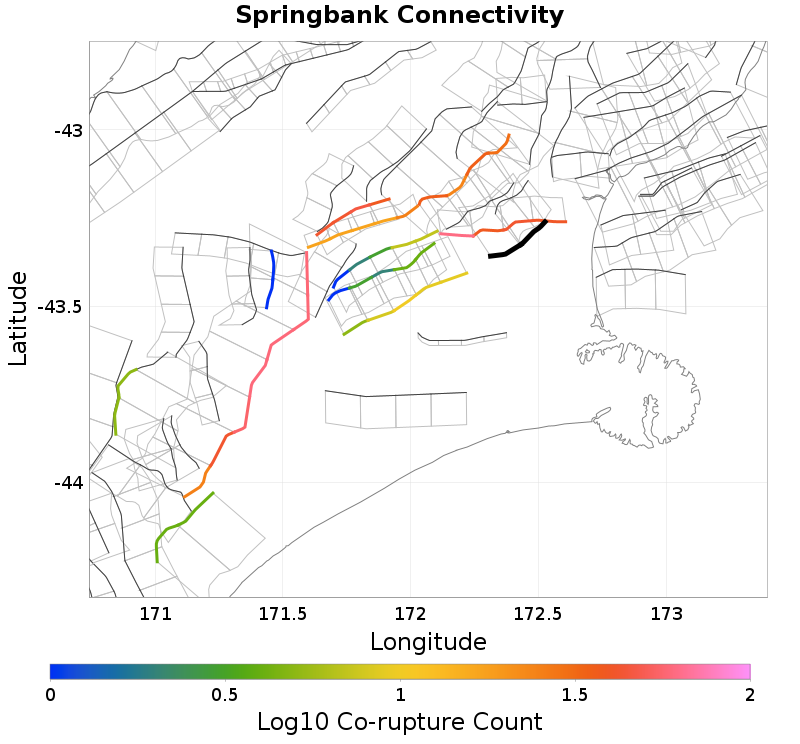

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Starvation - Ashley, 0.18 km awayKowai - View Hill, 10.45 km away
Lees Valley, 0.21 km awayMt Arden, 11.61 km away
Pancake, 0.23 km awayDoctors, 12.28 km away
Mt Lawry, 0.45 km awayHigh Peak - Sheffield, 13.42 km away
Esk South, 4.43 km awayAmberBlyth, 15.08 km away
Knowles Top, 7.78 km awayPorters Pass, 16.56 km away
Hororata, 7.88 km awayPegasus Bay, 17.58 km away
Boby Stream, 10.41 km awayWaikuku, 17.74 km away

Starvation - Ashley, 0.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjkuNUp4Yjl6
Connected?true
Directly Connected?true
Co-rupture Count68
Co-rupture Rate3.9925897E-5

Lees Valley, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjkuNUp4Yjl6
Connected?true
Directly Connected?true
Co-rupture Count60
Co-rupture Rate8.326164E-6

Pancake, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjkuNUp4Yjl6
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mt Lawry, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjkuNUp4Yjl6
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Esk South, 4.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjkuNUp4Yjl6
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Knowles Top, 7.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjkuNUp4Yjl6
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hororata, 7.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjkuNUp4Yjl6
Connected?true
Directly Connected?false
Co-rupture Count12
Co-rupture Rate0.0

Boby Stream, 10.41 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjkuNUp4Yjl6
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kowai - View Hill, 10.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjkuNUp4Yjl6
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate3.9925897E-5

Mt Arden, 11.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjkuNUp4Yjl6
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Doctors, 12.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjkuNUp4Yjl6
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

High Peak - Sheffield, 13.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjkuNUp4Yjl6
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate0.0

AmberBlyth, 15.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjkuNUp4Yjl6
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Porters Pass, 16.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjkuNUp4Yjl6
Connected?true
Directly Connected?false
Co-rupture Count25
Co-rupture Rate8.326164E-6

Pegasus Bay, 17.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjkuNUp4Yjl6
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waikuku, 17.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMjkuNUp4Yjl6
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
