Calypso 2 Details

PropertyValue
Rupture Count1,781
Ruptures Above Sect Min Mag1,779
Ruptures w/ Nonzero Rates7
Magnitude Range[6.51, 8.13]
Length Range[14, 504] km
Total Rate7.4052205E-4 /yr
Multi-Fault Rate7.4052205E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults54

Table Of Contents

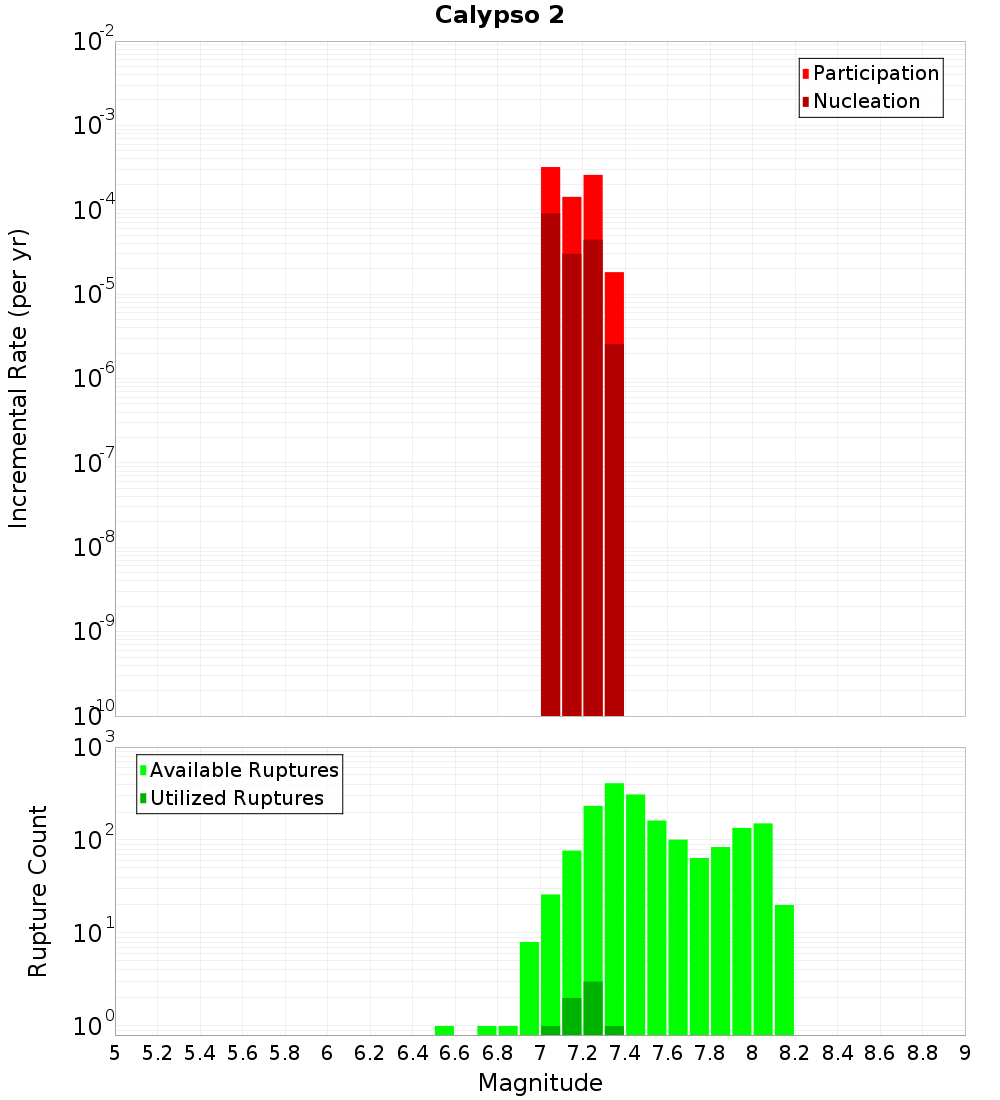

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Whakaari 4, 0.19 km awayVolkner 4, 12.19 km away
Te Arawa 1, 1.54 km awayTuatoru 2, 12.9 km away
Tuatoru 1, 3.86 km awayRangitaiki 1, 14.74 km away
Te Arawa 2, 6.98 km awayWaimana - Waikaremoana, 14.96 km away
Rangitaiki 2, 8.03 km awayOpotiki 3, 16.56 km away
Ohiwa 1, 8.32 km awayOhae 1, 17.8 km away
White Island 1, 8.93 km awayTe Arawa 3, 18.58 km away
Volkner 3, 9.1 km awayHariki, 18.86 km away
White Island 2, 10.05 km away

Whakaari 4, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?true
Directly Connected?false
Co-rupture Count600
Co-rupture Rate1.8220844E-5

Te Arawa 1, 1.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?true
Directly Connected?true
Co-rupture Count1,161
Co-rupture Rate5.0955504E-4

Tuatoru 1, 3.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?true
Directly Connected?true
Co-rupture Count465
Co-rupture Rate2.30967E-4

Te Arawa 2, 6.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?true
Directly Connected?false
Co-rupture Count38
Co-rupture Rate1.1509495E-4

Rangitaiki 2, 8.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?true
Directly Connected?true
Co-rupture Count1,060
Co-rupture Rate5.2764644E-5

Ohiwa 1, 8.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

White Island 1, 8.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?true
Directly Connected?false
Co-rupture Count1,569
Co-rupture Rate0.0

Volkner 3, 9.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Island 2, 10.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?true
Directly Connected?false
Co-rupture Count580
Co-rupture Rate0.0

Volkner 4, 12.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?true
Directly Connected?false
Co-rupture Count65
Co-rupture Rate1.1509495E-4

Tuatoru 2, 12.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?true
Directly Connected?false
Co-rupture Count172
Co-rupture Rate1.340929E-4

Rangitaiki 1, 14.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?true
Directly Connected?false
Co-rupture Count143
Co-rupture Rate5.2764644E-5

Waimana - Waikaremoana, 14.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 3, 16.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?true
Directly Connected?false
Co-rupture Count51
Co-rupture Rate0.0

Ohae 1, 17.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 3, 18.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?true
Directly Connected?false
Co-rupture Count35
Co-rupture Rate5.7266245E-4

Hariki, 18.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
