Cheeseman Details

Property	Value
Rupture Count	232
Ruptures Above Sect Min Mag	229
Ruptures w/ Nonzero Rates	1
Magnitude Range	[6.57, 7.95]
Length Range	[17, 313] km
Total Rate	3.9651113E-5 /yr
Multi-Fault Rate	3.9651113E-5 /yr (100.00%)
Directly-Connected Faults	2
All Co-Rupturing Faults	23

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

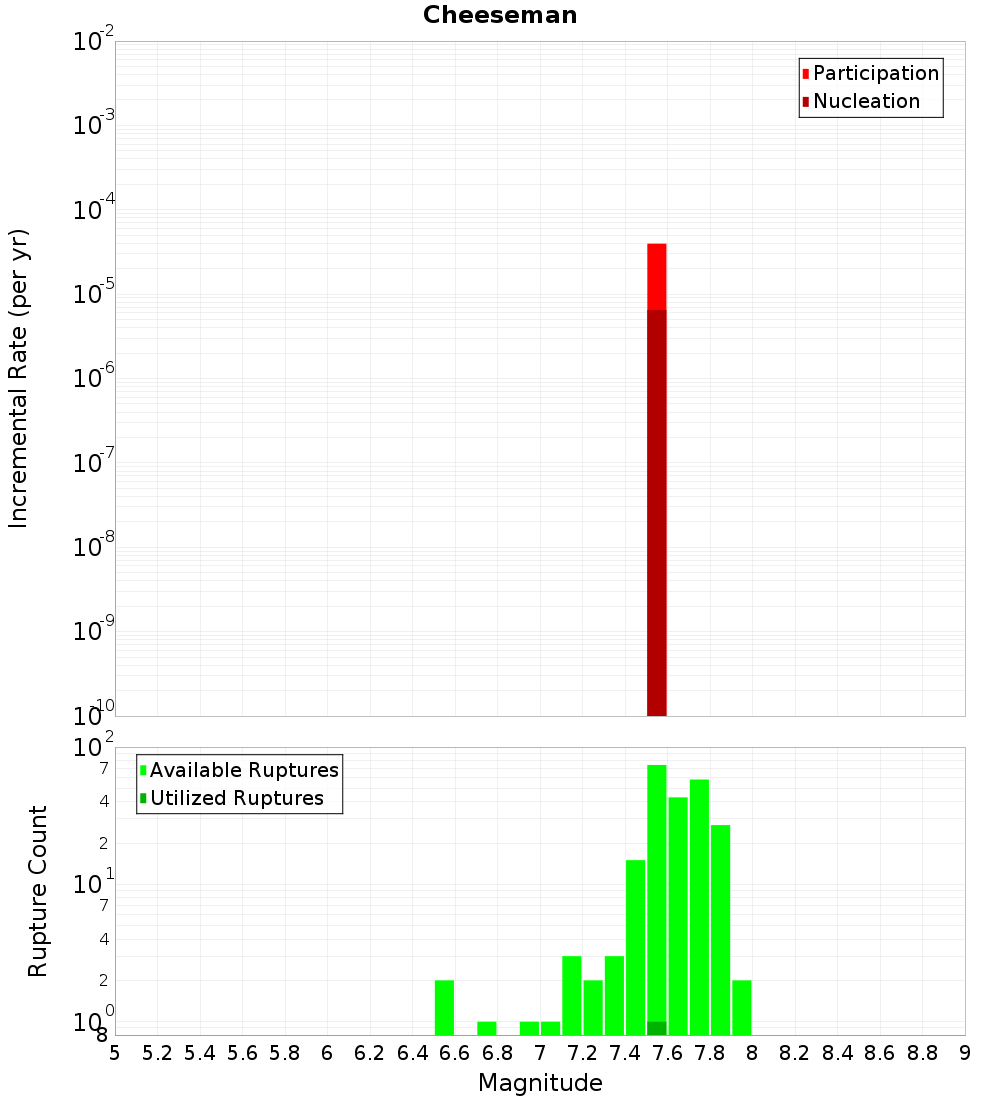

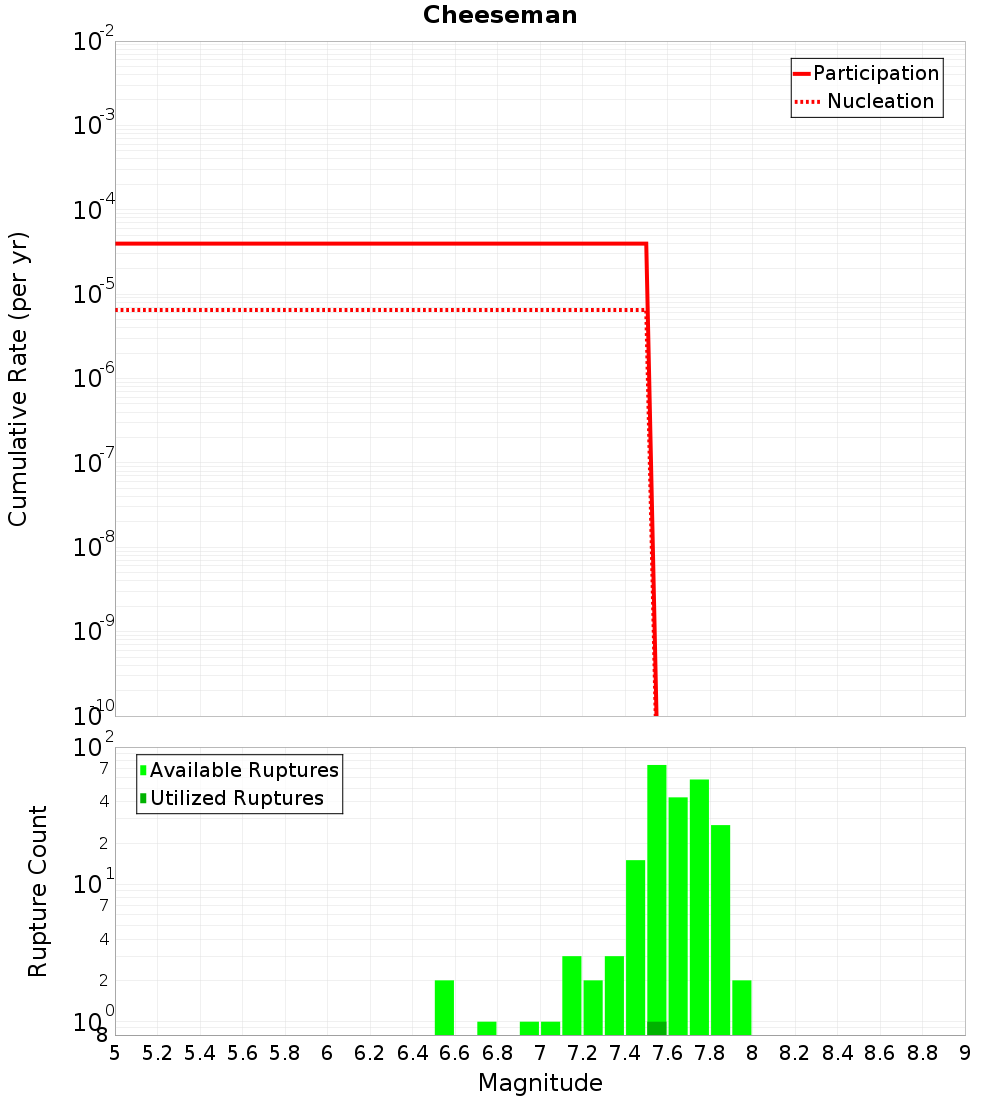

Magnitude-Frequency Distribution

Incremental	Cumulative

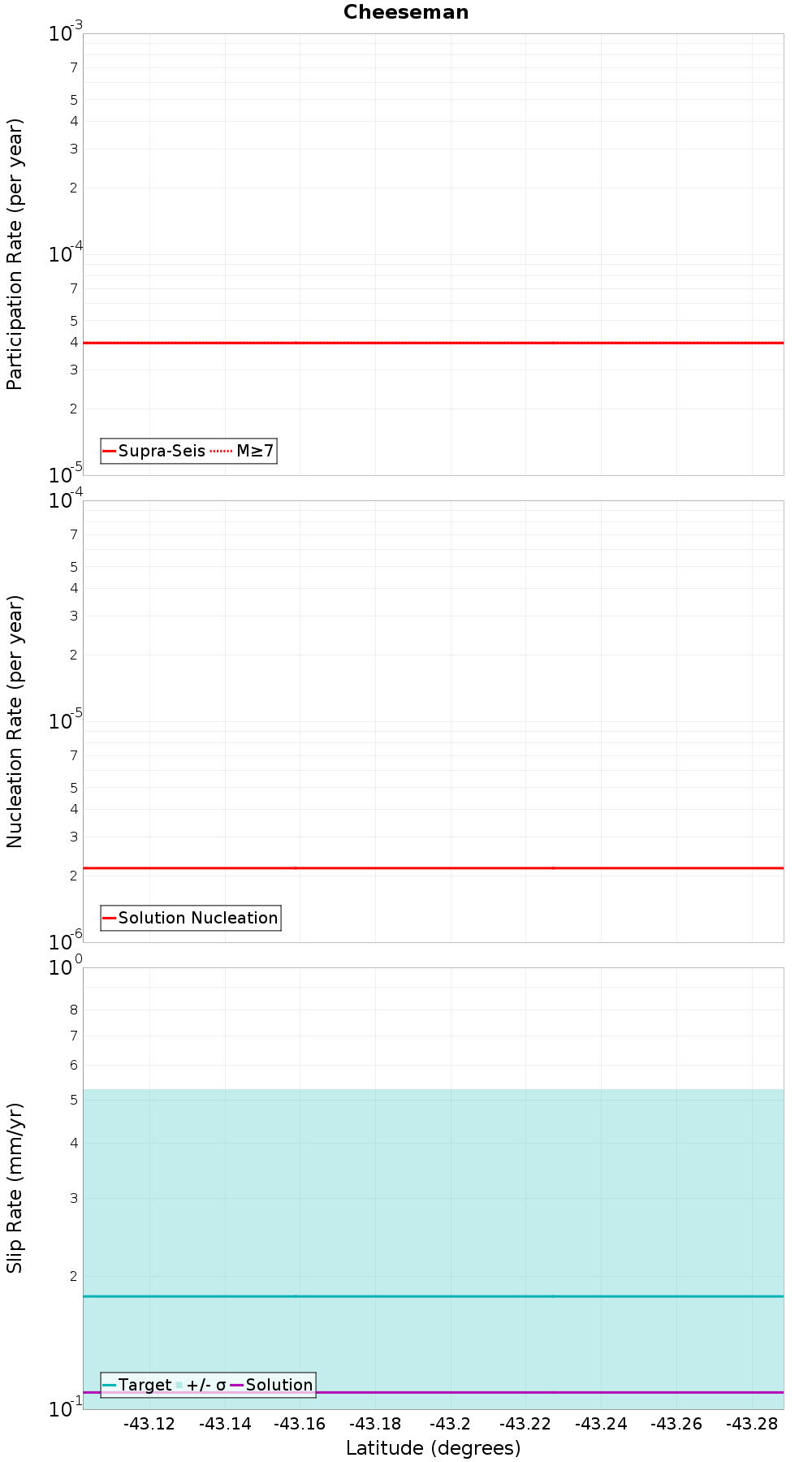

Along-Strike Values

Moment-Rates and b-Values

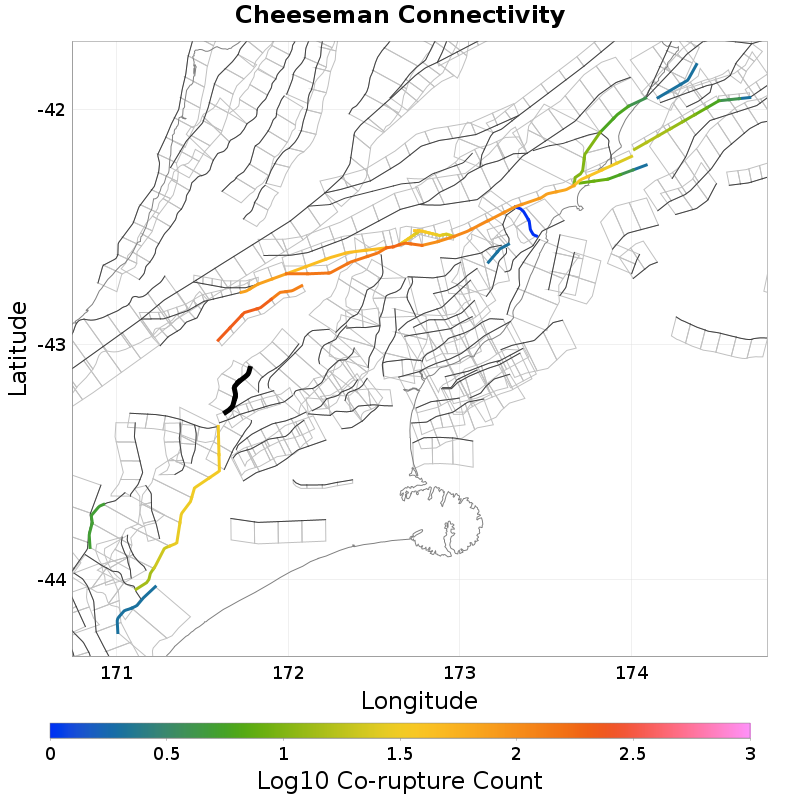

Connectivity

Nearby Sections

Fault Section
Torlesse, 0.65 km away
Porters Pass, 3.58 km away
Sailor, 4.41 km away
Hutt Peel, 7.5 km away
Double Hill, 7.96 km away
Poulter, 9.19 km away
Big Ben, 9.72 km away
Esk South, 10.29 km away
Redcliffe, 14.95 km away
Kowai - View Hill, 15.66 km away

Torlesse, 0.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Porters Pass, 3.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Sailor, 4.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hutt Peel, 7.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	true
Directly Connected?	true
Co-rupture Count	33
Co-rupture Rate	0.0

Double Hill, 7.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Poulter, 9.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	true
Directly Connected?	true
Co-rupture Count	215
Co-rupture Rate	3.9651113E-5

Big Ben, 9.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Esk South, 10.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Redcliffe, 14.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kowai - View Hill, 15.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
