Patoka - Rangiora Details

Property	Value
Rupture Count	2,651
Ruptures Above Sect Min Mag	2,648
Ruptures w/ Nonzero Rates	7
Magnitude Range	[6.83, 8.22]
Length Range	[22, 589] km
Total Rate	2.1069357E-4 /yr
Multi-Fault Rate	2.1069357E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	76

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

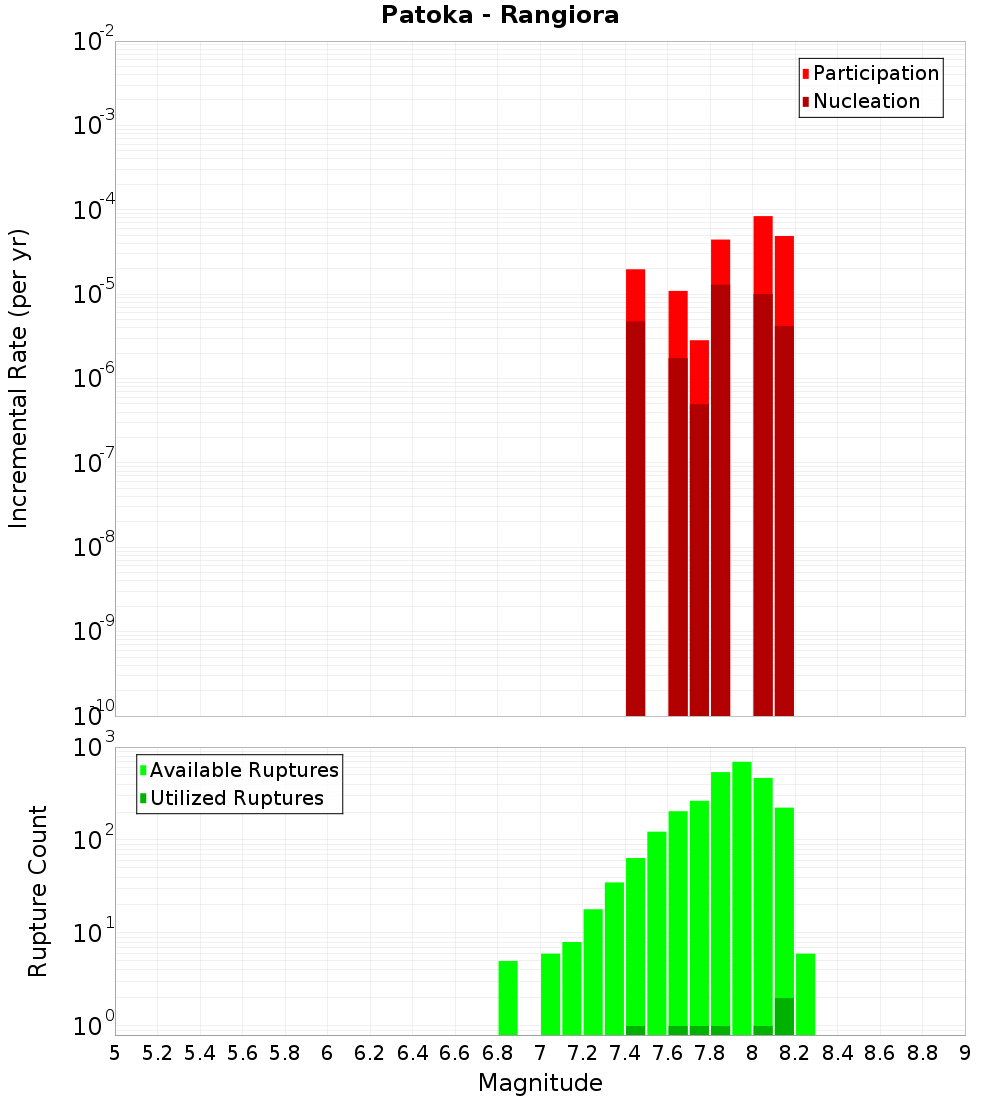

Magnitude-Frequency Distribution

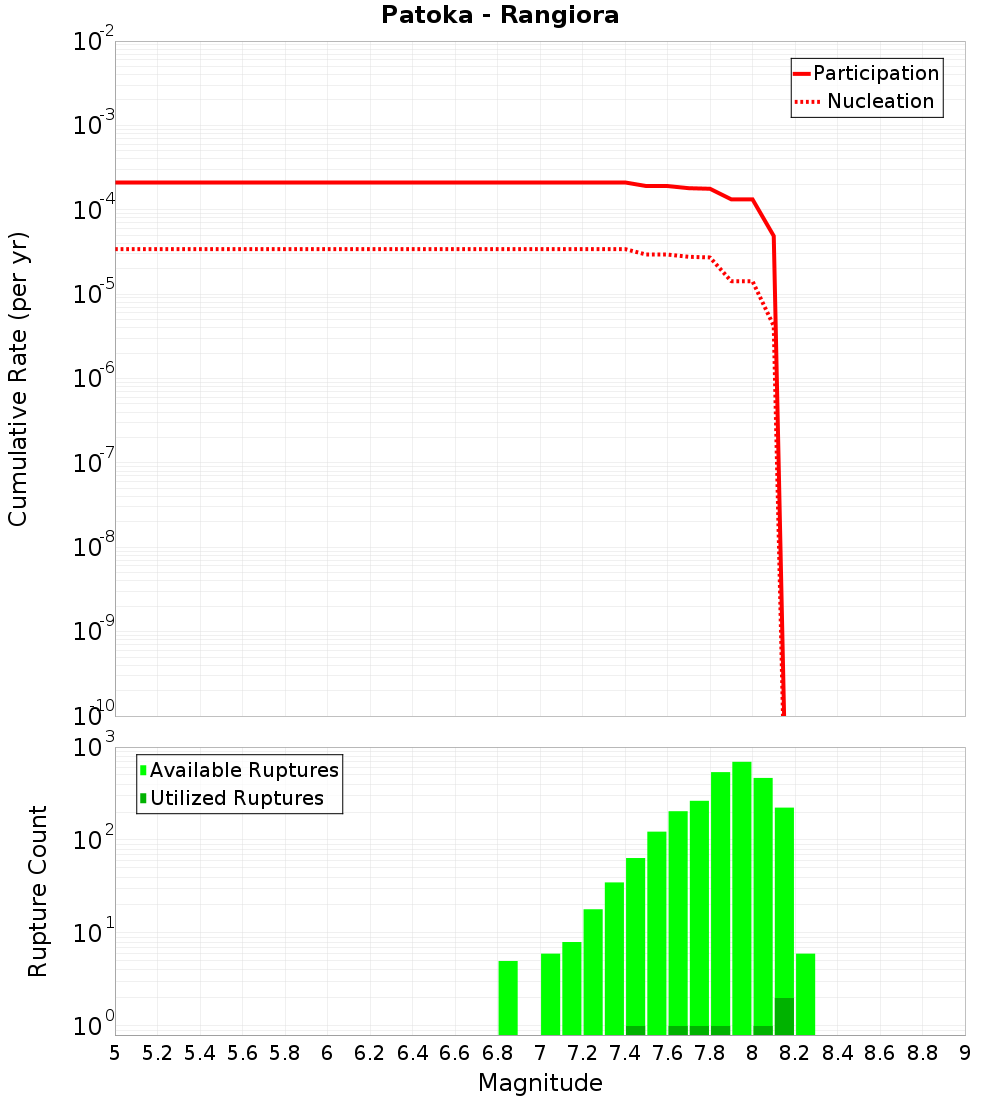

Incremental	Cumulative

Along-Strike Values

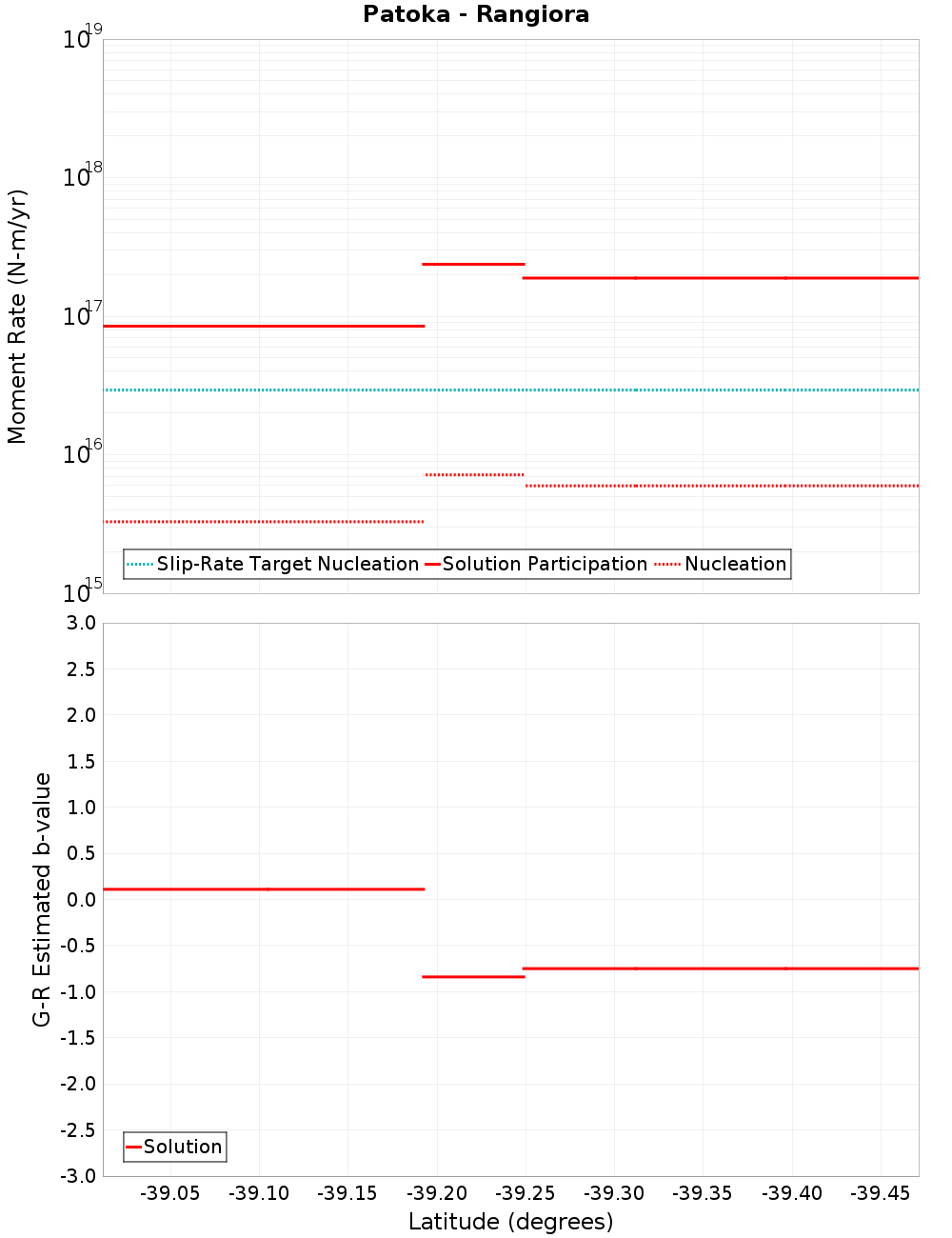

Moment-Rates and b-Values

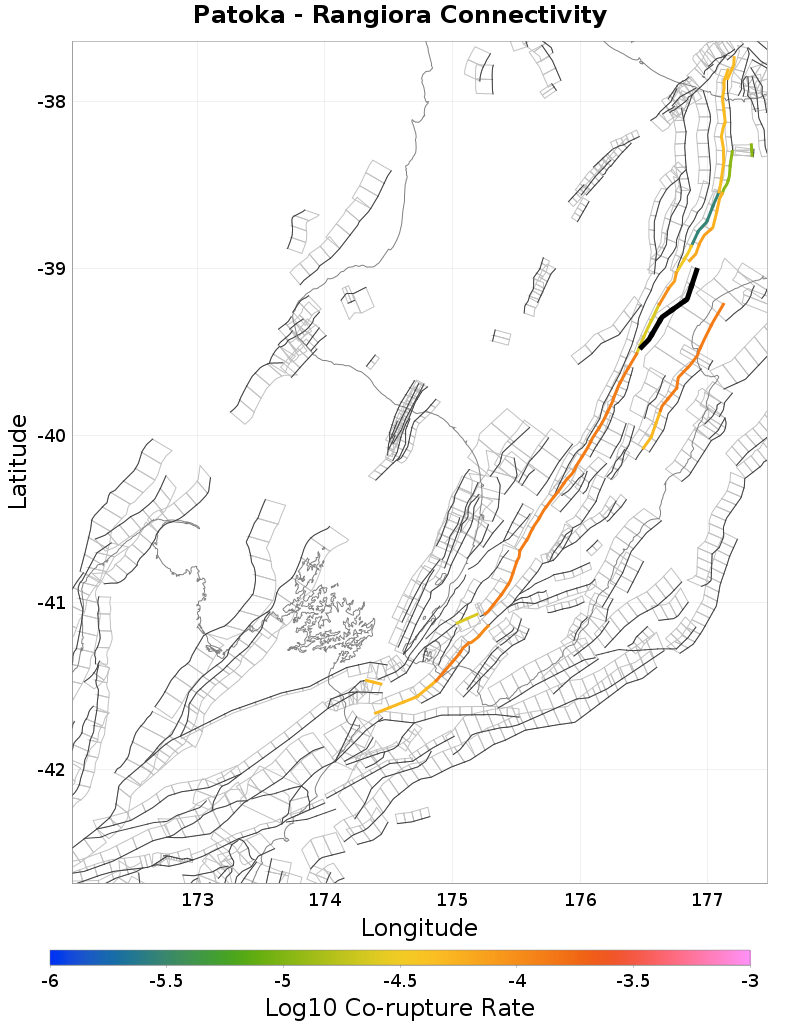

Connectivity

Nearby Sections

Fault Section
Awanui, 0.4 km away
Mohaka: North, 0.47 km away
Mohaka: South, 5.52 km away
Ruahine: North, 6.53 km away
Waiotahi: South, 7.71 km away
Hawke Bay 1, 8.15 km away
Waimana: South, 10.75 km away
Whakatane: South, 12.36 km away
Ruahine: Central, 12.66 km away
Wakarara, 14.99 km away
Kaweka, 15.89 km away
Te Heka, 17.85 km away
Waiohau: South, 19.65 km away

Awanui, 0.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	true
Directly Connected?	true
Co-rupture Count	657
Co-rupture Rate	1.3288007E-4

Mohaka: North, 0.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	true
Directly Connected?	true
Co-rupture Count	637
Co-rupture Rate	1.0174921E-4

Mohaka: South, 5.52 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	true
Directly Connected?	true
Co-rupture Count	2,558
Co-rupture Rate	1.3288007E-4

Ruahine: North, 6.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	true
Directly Connected?	false
Co-rupture Count	26
Co-rupture Rate	0.0

Waiotahi: South, 7.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	true
Directly Connected?	false
Co-rupture Count	82
Co-rupture Rate	7.497074E-5

Hawke Bay 1, 8.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	true
Directly Connected?	true
Co-rupture Count	48
Co-rupture Rate	0.0

Waimana: South, 10.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	true
Directly Connected?	false
Co-rupture Count	52
Co-rupture Rate	3.3473545E-5

Whakatane: South, 12.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	0.0

Ruahine: Central, 12.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	true
Directly Connected?	false
Co-rupture Count	95
Co-rupture Rate	0.0

Wakarara, 14.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	true
Directly Connected?	false
Co-rupture Count	78
Co-rupture Rate	0.0

Kaweka, 15.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Heka, 17.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	true
Directly Connected?	false
Co-rupture Count	58
Co-rupture Rate	0.0

Waiohau: South, 19.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	true
Directly Connected?	false
Co-rupture Count	8
Co-rupture Rate	0.0
