Stonewall Details

PropertyValue
Rupture Count55
Ruptures Above Sect Min Mag51
Ruptures w/ Nonzero Rates3
Magnitude Range[6.70, 7.65]
Length Range[19, 142] km
Total Rate2.4319452E-5 /yr
Multi-Fault Rate2.4319452E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults11

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

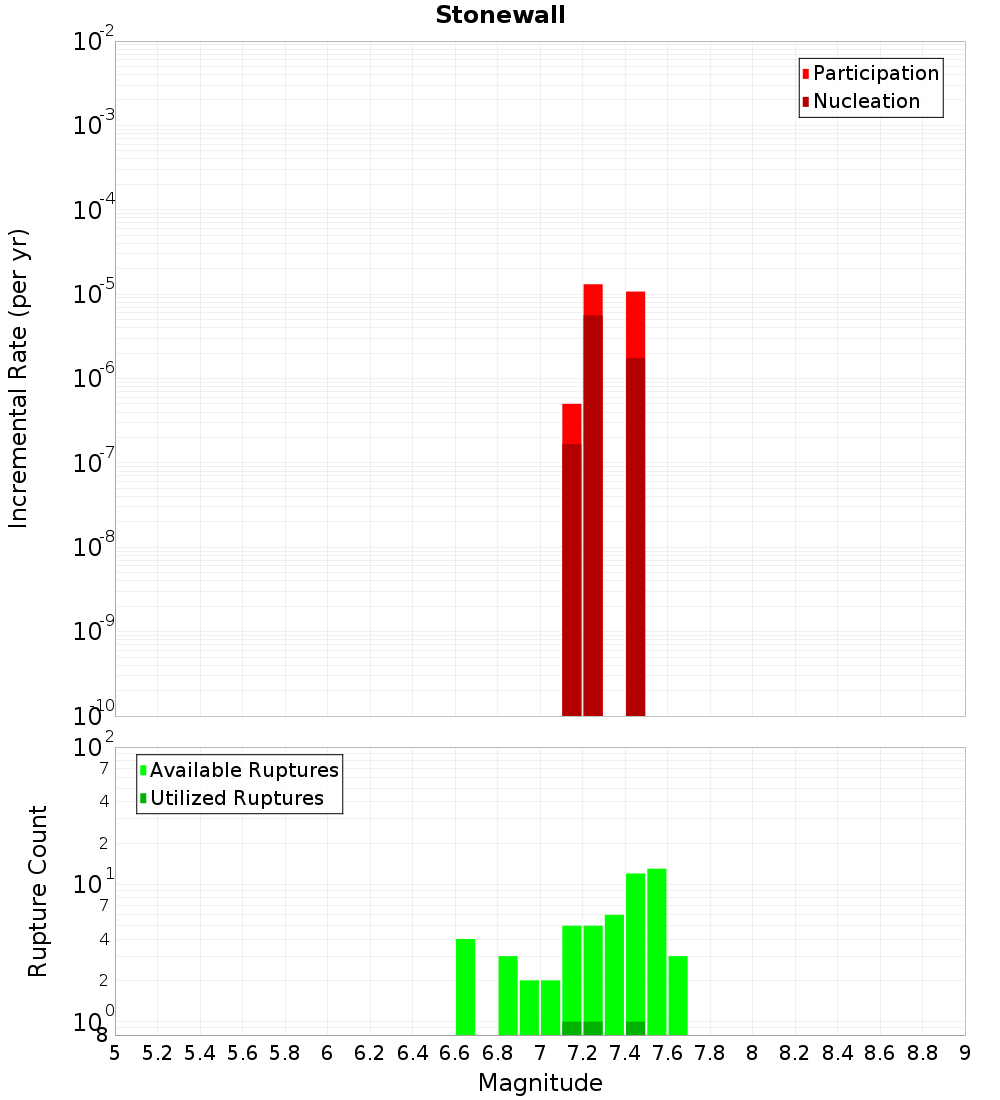

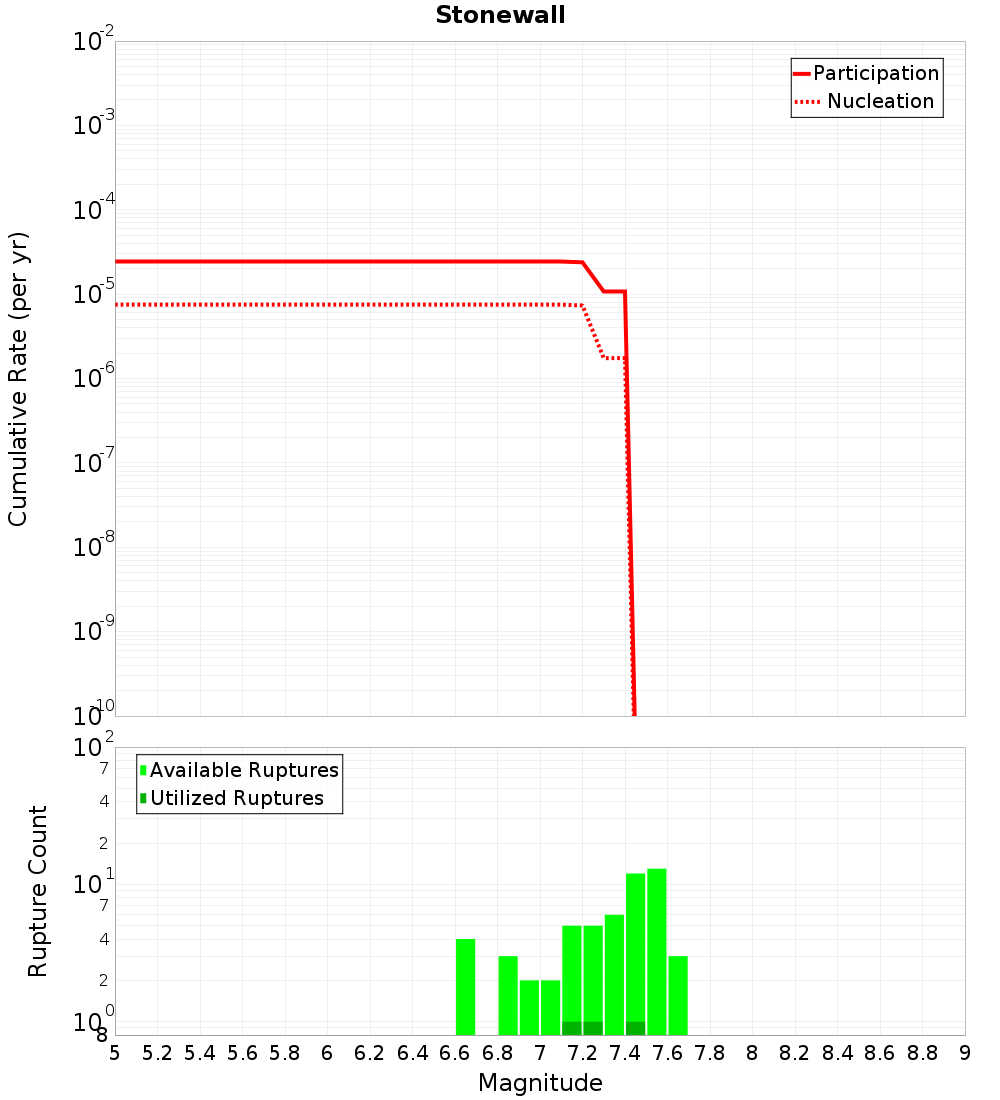

Incremental PlotCumulative Plot

Along-Strike Values

(top)

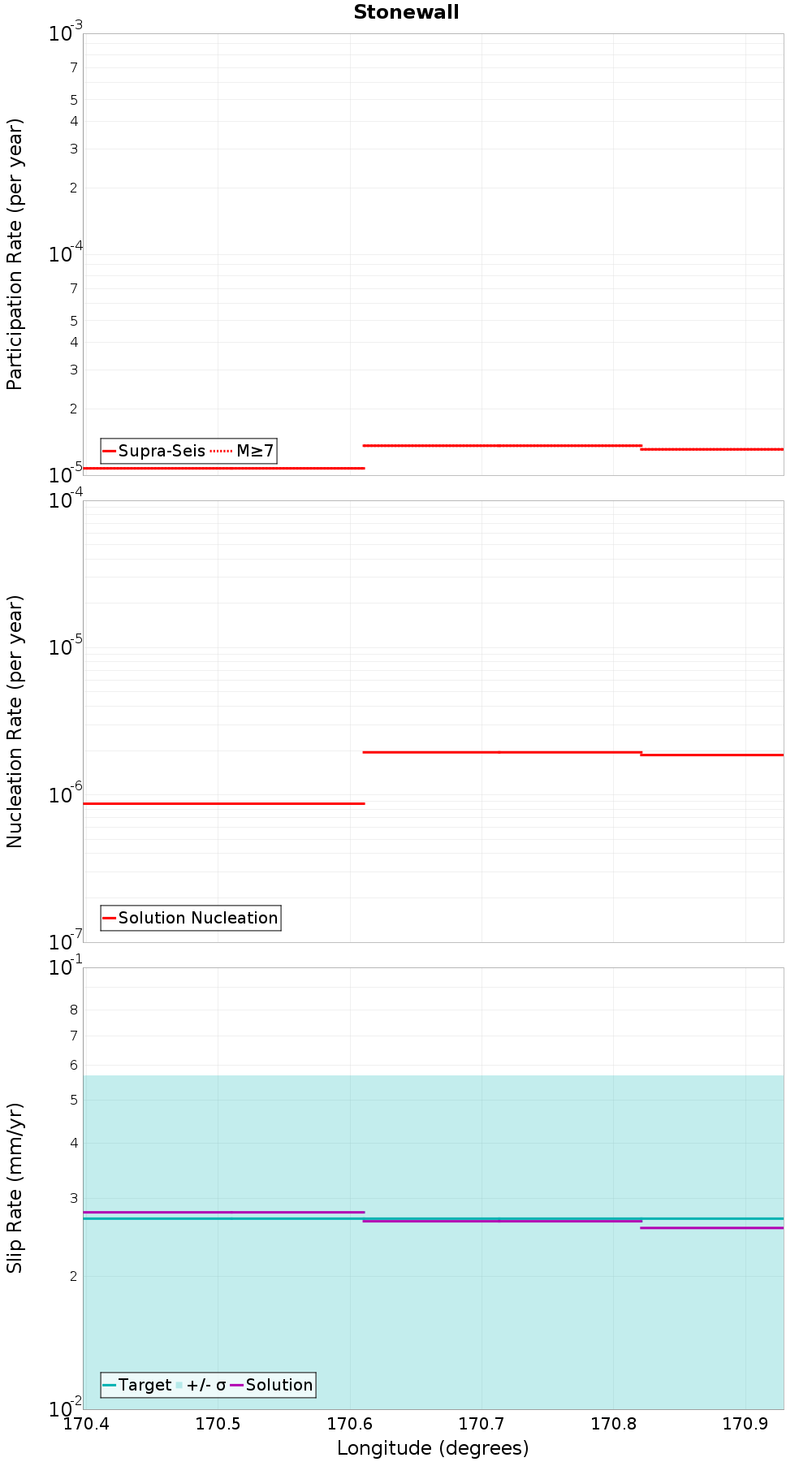

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waimate, 0.23 km away
Campbell Hills, 0.24 km away
Hunters, 0.25 km away
Dryburgh, 0.31 km away
Waitaki, 0.64 km away
Black Hill, 0.69 km away
Awahokomo, 0.84 km away
Kirkliston, 1.94 km away
Waitangi, 3.51 km away
Fern Gully, 6.14 km away
Middle Range, 9.96 km away
Mt Sutton, 13.56 km away
Awamoa, 14.16 km away
Chamberlain, 14.75 km away
Gibson, 17.07 km away

Waimate, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Campbell Hills, 0.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?true
Directly Connected?true
Co-rupture Count2
Co-rupture Rate1.3589279E-5

Hunters, 0.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Dryburgh, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waitaki, 0.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?true
Directly Connected?true
Co-rupture Count21
Co-rupture Rate1.0730173E-5

Black Hill, 0.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Awahokomo, 0.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kirkliston, 1.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?true
Directly Connected?true
Co-rupture Count35
Co-rupture Rate1.0730173E-5

Waitangi, 3.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Fern Gully, 6.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Middle Range, 9.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Mt Sutton, 13.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Awamoa, 14.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate1.0730173E-5

Chamberlain, 14.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Gibson, 17.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
