Torlesse Details

PropertyValue
Rupture Count216
Ruptures Above Sect Min Mag210
Ruptures w/ Nonzero Rates5
Magnitude Range[6.43, 7.88]
Length Range[13, 234] km
Total Rate5.4198434E-4 /yr
Multi-Fault Rate5.4198434E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults13

Table Of Contents

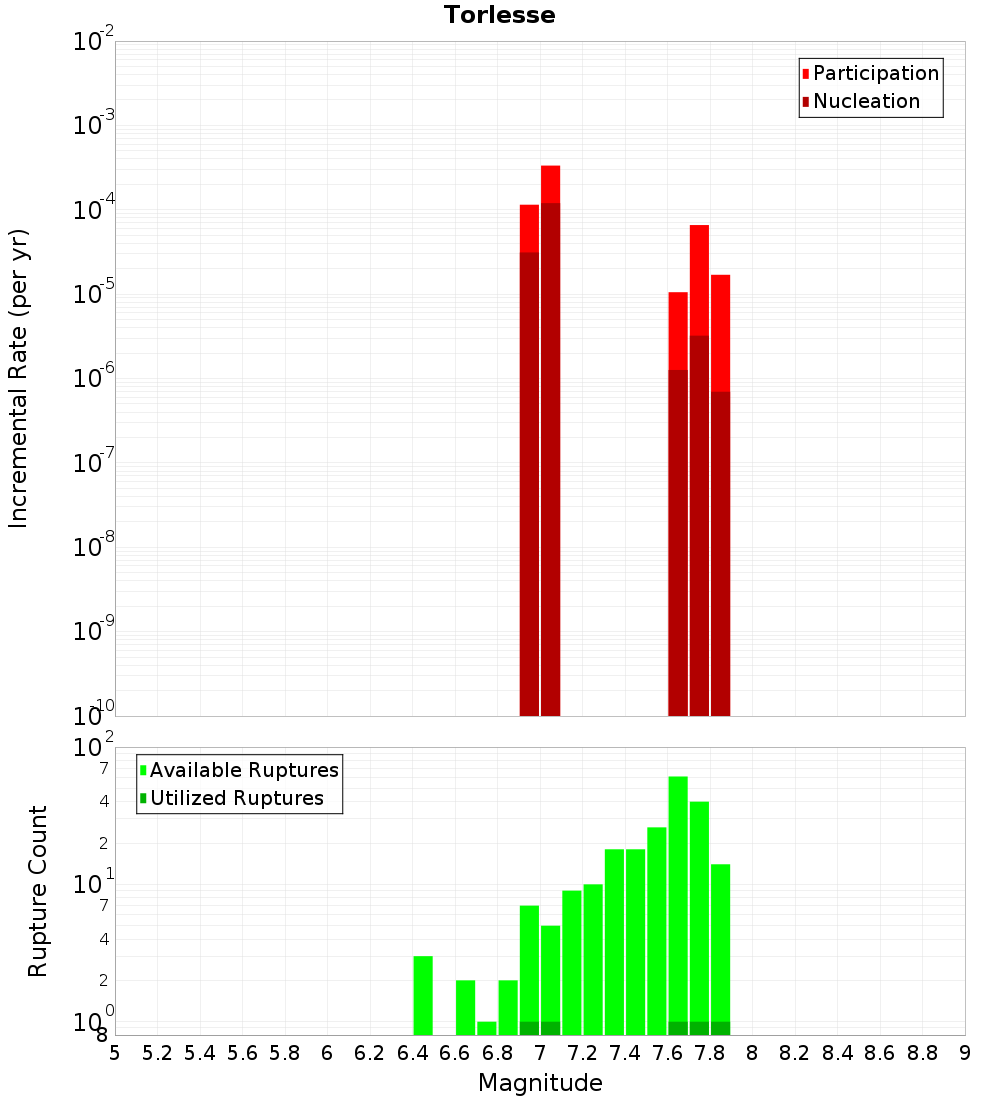

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

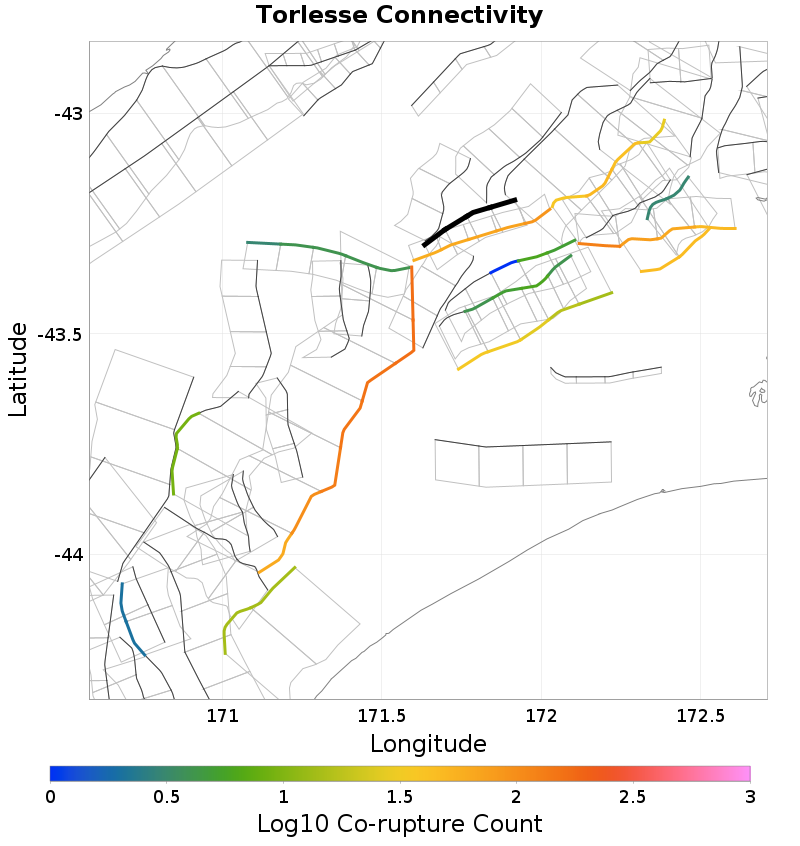

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Porters Pass, 0.35 km away
Big Ben, 0.47 km away
Esk South, 0.55 km away
Cheeseman, 0.65 km away
Sailor, 1.39 km away
Hutt Peel, 6.37 km away
Double Hill, 6.89 km away
Lees Valley, 9.42 km away
Hororata, 10.38 km away
Knowles Top, 11.11 km away
Starvation - Ashley, 12.46 km away
Kowai - View Hill, 13.54 km away
Redcliffe, 15.35 km away
High Peak - Sheffield, 17.33 km away

Porters Pass, 0.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?true
Directly Connected?true
Co-rupture Count88
Co-rupture Rate5.3144566E-4

Big Ben, 0.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Esk South, 0.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cheeseman, 0.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Sailor, 1.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hutt Peel, 6.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?true
Directly Connected?true
Co-rupture Count163
Co-rupture Rate9.335603E-5

Double Hill, 6.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

Lees Valley, 9.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?true
Directly Connected?false
Co-rupture Count65
Co-rupture Rate0.0

Hororata, 10.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?true
Directly Connected?true
Co-rupture Count35
Co-rupture Rate0.0

Knowles Top, 11.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Starvation - Ashley, 12.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?true
Directly Connected?true
Co-rupture Count130
Co-rupture Rate8.281736E-5

Kowai - View Hill, 13.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Redcliffe, 15.35 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

High Peak - Sheffield, 17.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0
