Uruti Basin Details

Property	Value
Rupture Count	17,430
Ruptures Above Sect Min Mag	17,274
Ruptures w/ Nonzero Rates	17
Magnitude Range	[5.94, 8.18]
Length Range	[8, 691] km
Total Rate	8.683502E-4 /yr
Multi-Fault Rate	8.683502E-4 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	55

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

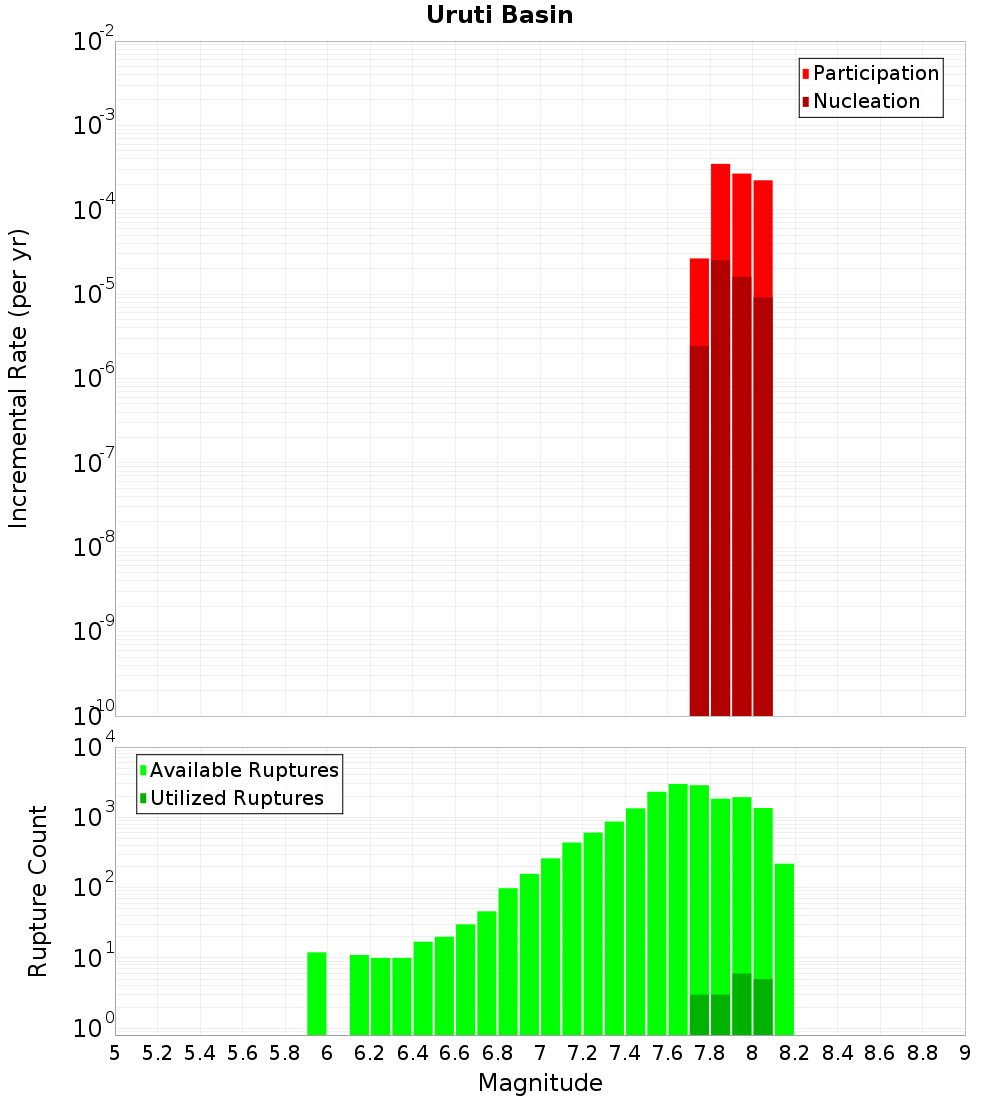

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Uruti Ridge 2, 0 km away
Uruti East - PorWest 1, 0.19 km away
Opouawe - Uruti, 0.2 km away
Uruti Basin 2, 0.22 km away
Honeycomb, 0.51 km away
Palliser - Kaiwhata, 1.36 km away
Pahaua, 1.79 km away
Whareama Bank, 3.51 km away
Riversdale, 8.5 km away
Uruti Point, 17.49 km away
Uruti North, 18.96 km away

Uruti Ridge 2, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	true
Directly Connected?	true
Co-rupture Count	7,763
Co-rupture Rate	3.744159E-4

Uruti East - PorWest 1, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	true
Directly Connected?	true
Co-rupture Count	10,058
Co-rupture Rate	3.4129518E-4

Opouawe - Uruti, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	true
Directly Connected?	true
Co-rupture Count	5,897
Co-rupture Rate	5.6297453E-5

Uruti Basin 2, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	true
Directly Connected?	true
Co-rupture Count	477
Co-rupture Rate	5.2922773E-5

Honeycomb, 0.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	true
Directly Connected?	true
Co-rupture Count	2,211
Co-rupture Rate	2.2906599E-4

Palliser - Kaiwhata, 1.36 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	true
Directly Connected?	true
Co-rupture Count	9,745
Co-rupture Rate	5.6769315E-4

Pahaua, 1.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	true
Directly Connected?	true
Co-rupture Count	2,026
Co-rupture Rate	2.6690133E-4

Whareama Bank, 3.51 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Riversdale, 8.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	true
Directly Connected?	true
Co-rupture Count	28
Co-rupture Rate	0.0

Uruti Point, 17.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	true
Directly Connected?	false
Co-rupture Count	455
Co-rupture Rate	0.0

Uruti North, 18.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	true
Directly Connected?	false
Co-rupture Count	2,056
Co-rupture Rate	2.0723089E-4
