Whangamata West Details

Property	Value
Rupture Count	3,161
Ruptures Above Sect Min Mag	2,738
Ruptures w/ Nonzero Rates	35
Magnitude Range	[5.95, 7.52]
Length Range	[8, 181] km
Total Rate	0.0011445895 /yr
Multi-Fault Rate	0.0011445895 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	22

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

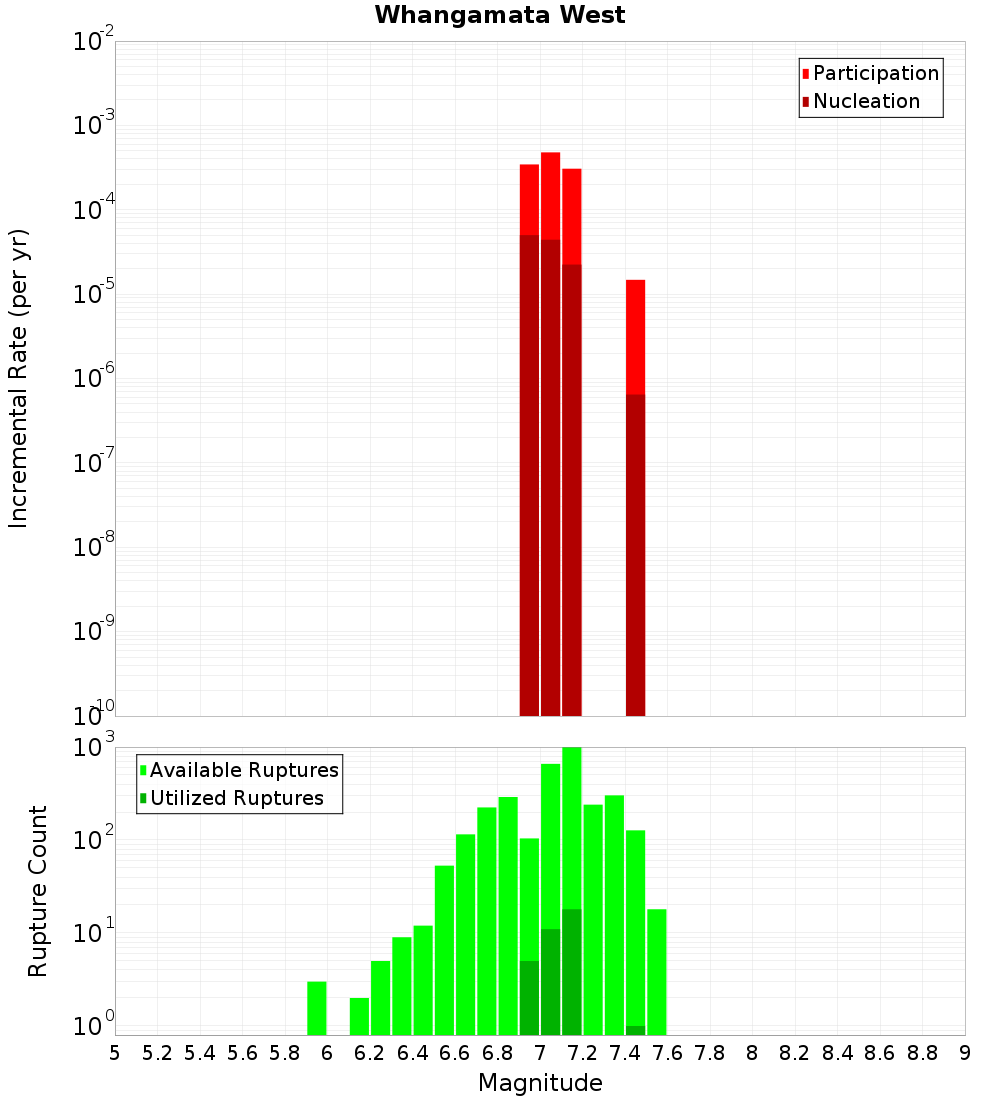

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

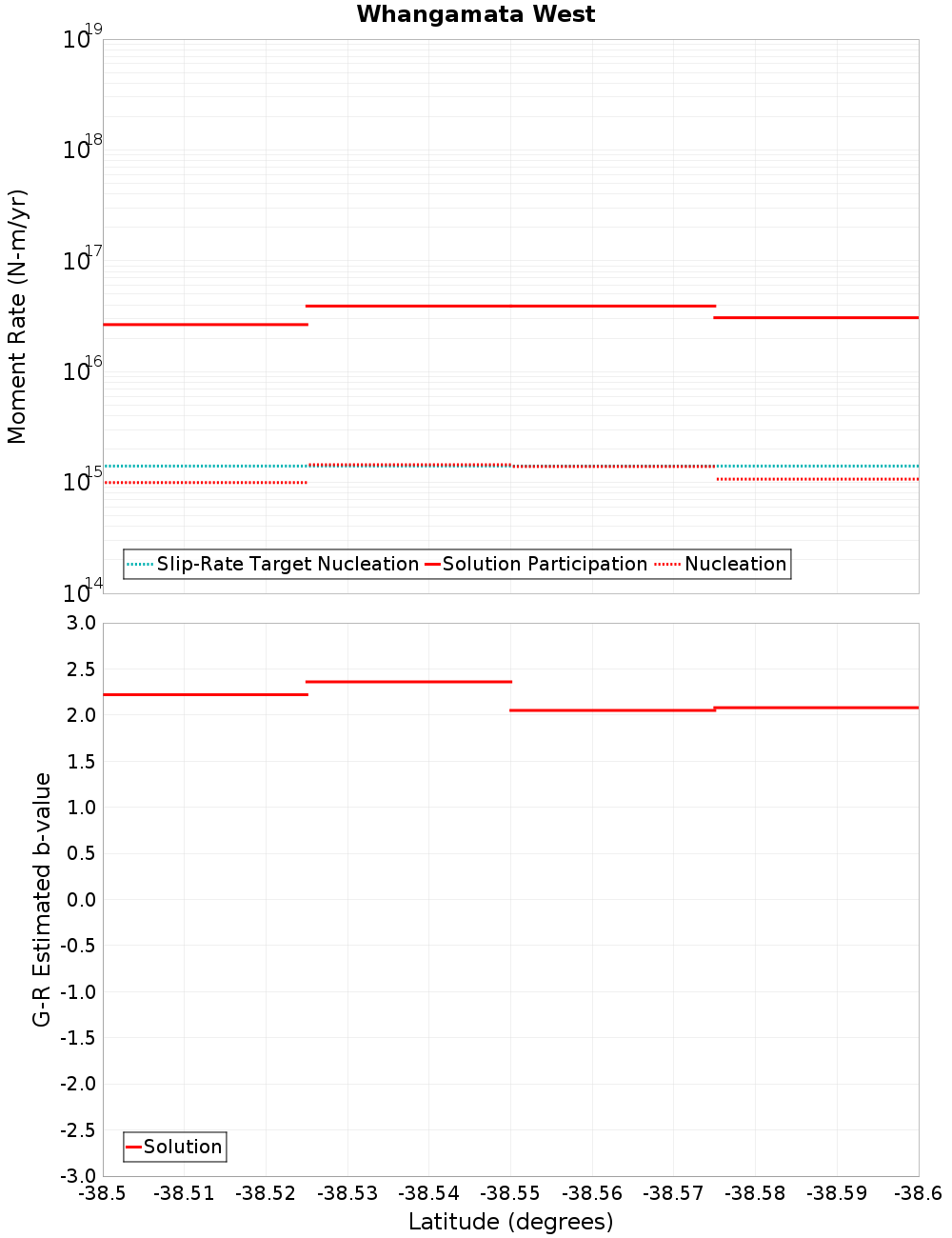

Moment-Rates and b-Values

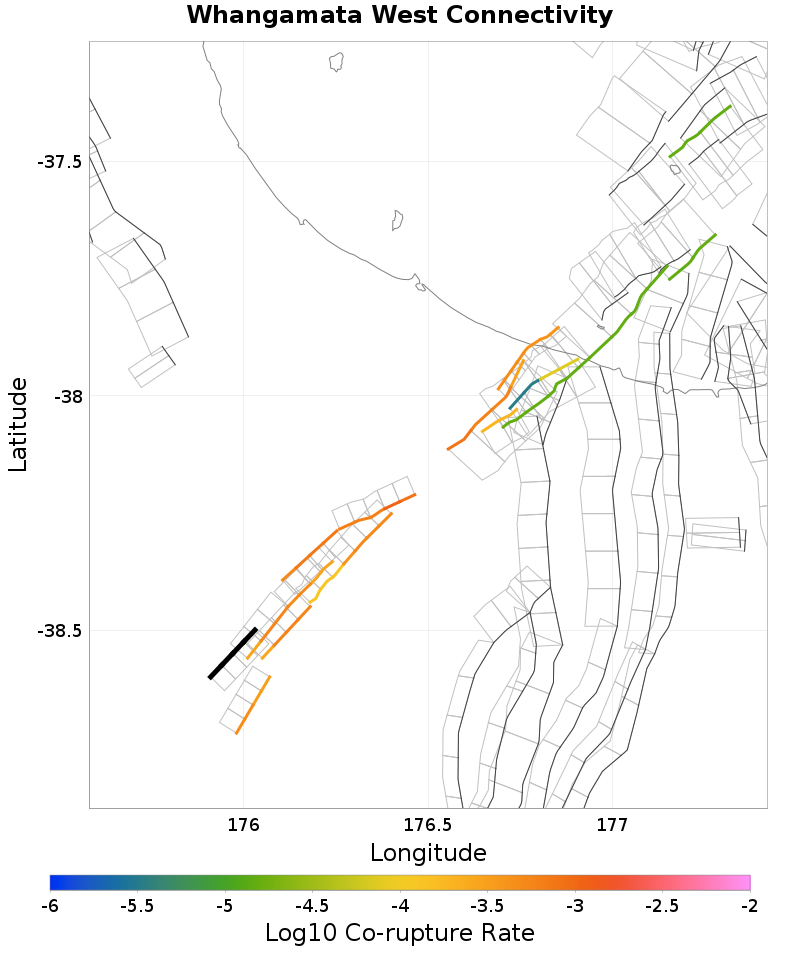

Connectivity

Nearby Sections

Fault Section
Puketerata, 0.11 km away
Orakeikorako, 0.34 km away
Kaiapo, 0.92 km away
Puketerata North, 9.6 km away
Maleme, 13.07 km away
Paeroa, 13.84 km away

Puketerata, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	true
Directly Connected?	true
Co-rupture Count	1,737
Co-rupture Rate	5.639185E-4

Orakeikorako, 0.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	true
Directly Connected?	true
Co-rupture Count	1,617
Co-rupture Rate	5.823315E-4

Kaiapo, 0.92 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	true
Directly Connected?	true
Co-rupture Count	925
Co-rupture Rate	6.0627755E-4

Puketerata North, 9.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	true
Directly Connected?	false
Co-rupture Count	1,151
Co-rupture Rate	4.932194E-4

Maleme, 13.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	true
Directly Connected?	false
Co-rupture Count	1,887
Co-rupture Rate	7.3345663E-4

Paeroa, 13.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzMzYuME5FUFB0
Connected?	true
Directly Connected?	false
Co-rupture Count	1,994
Co-rupture Rate	5.1365193E-4
