BooBoo Details

PropertyValue
Rupture Count20,425
Ruptures Above Sect Min Mag20,399
Ruptures w/ Nonzero Rates38
Magnitude Range[6.59, 8.52]
Length Range[15, 977] km
Total Rate0.0012616626 /yr
Multi-Fault Rate0.0012616626 /yr (100.00%)
Directly-Connected Faults8
All Co-Rupturing Faults121

Table Of Contents

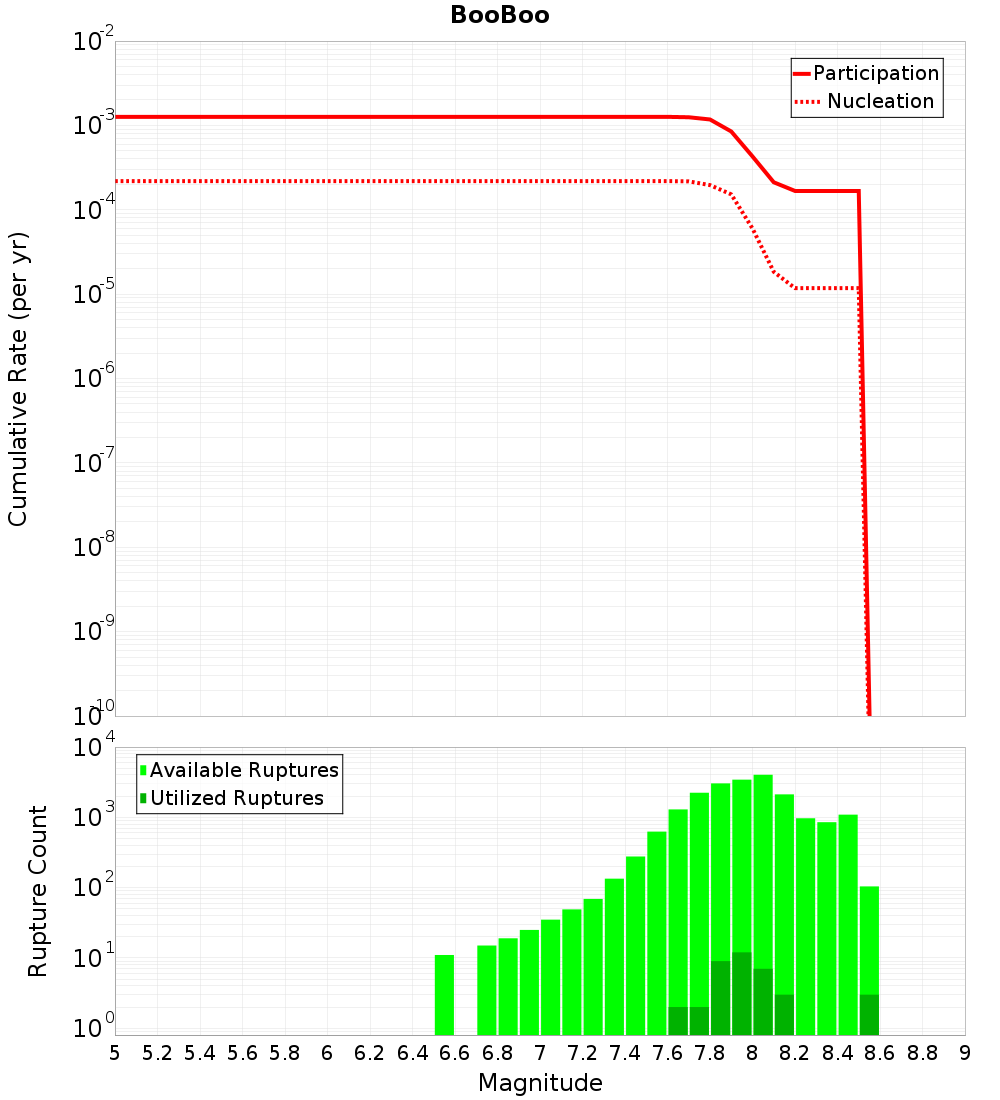

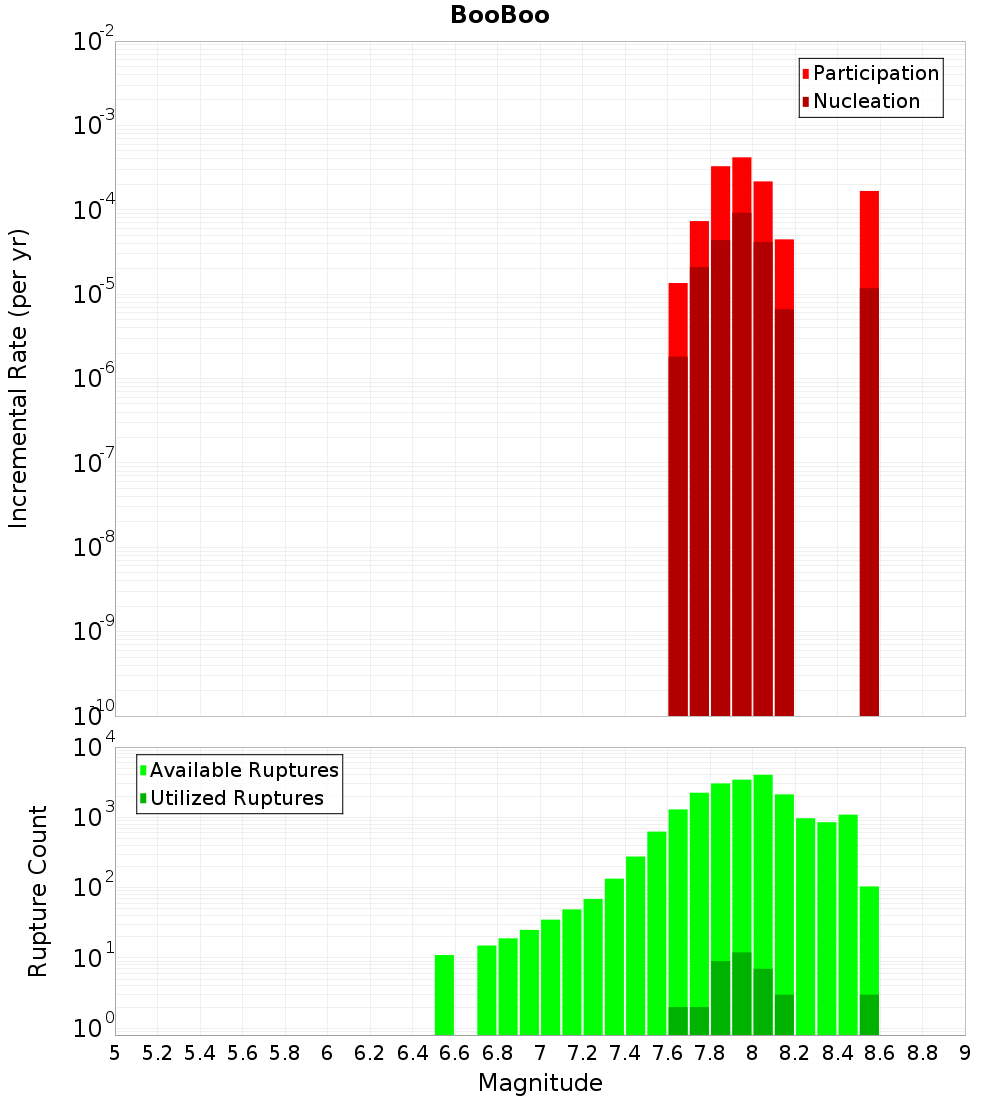

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

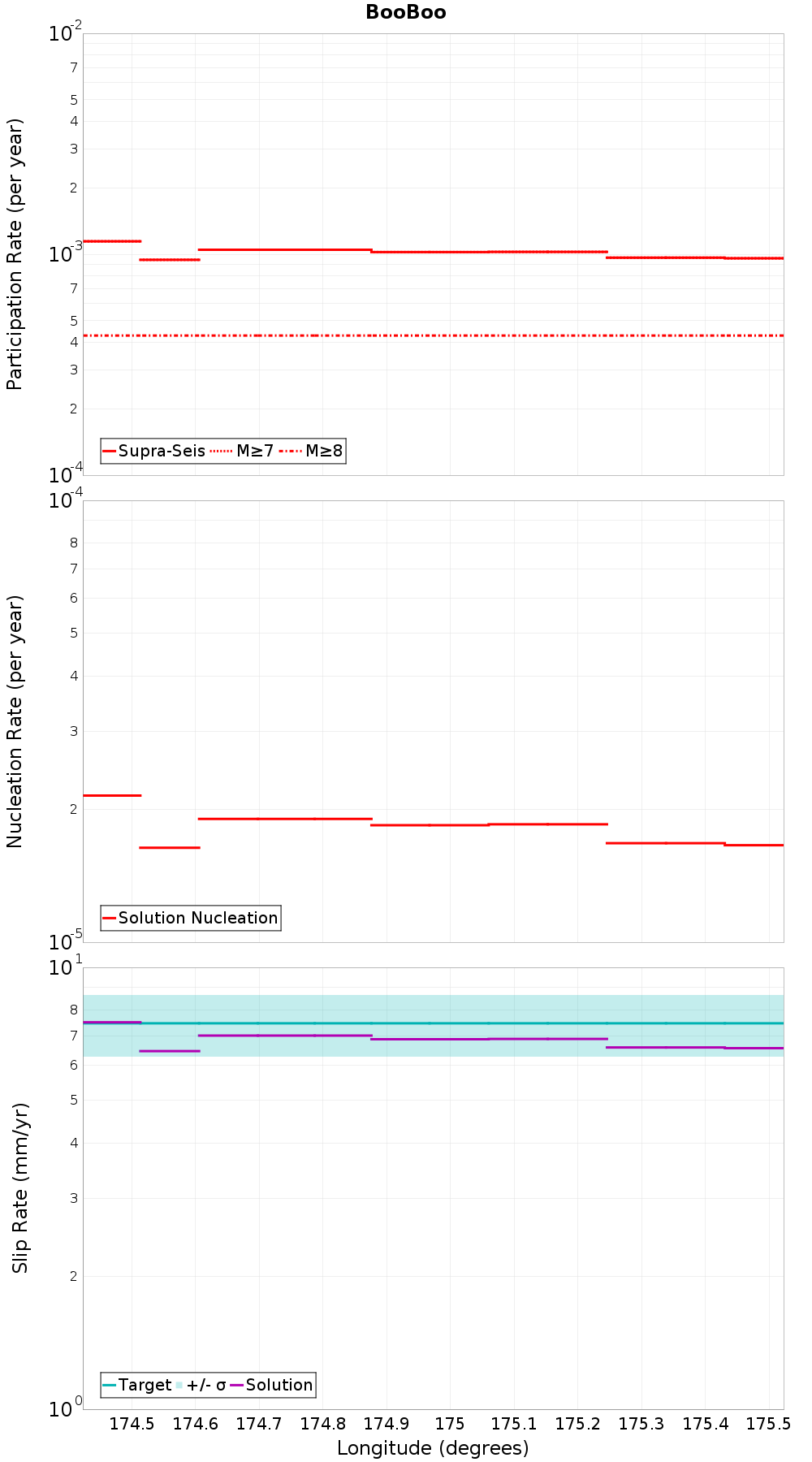

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Opouawe - Uruti, 0.14 km awayWharekauhau, 10.68 km away
Campbell Bank, 0.23 km awayDry River - Huangarua: 1, 10.96 km away
Needles, 0.24 km awayCloudy 3, 12.92 km away
Pahaua, 1.46 km awayTe Rapa 2, 13.57 km away
Palliser - Kaiwhata, 4.22 km awayWairarapa: 1, 14.97 km away
Wairarapa: Needles, 5.59 km awayVernon 3, 15.88 km away
Vernon 4, 6.76 km awayChancet, 15.89 km away
Otaraia, 7.01 km awayCloudy 1, 16.86 km away
London Hill, 7.46 km awayCloudy 2, 16.93 km away
Upper Slope, 9 km awayWharanui, 17.67 km away
Needles East 2, 10.51 km awayVernon 2, 18.95 km away

Opouawe - Uruti, 0.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?true
Directly Connected?true
Co-rupture Count4,091
Co-rupture Rate0.0

Campbell Bank, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?true
Directly Connected?true
Co-rupture Count685
Co-rupture Rate2.0053616E-4

Needles, 0.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?true
Directly Connected?true
Co-rupture Count13,670
Co-rupture Rate0.0011438666

Pahaua, 1.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?true
Directly Connected?true
Co-rupture Count2,399
Co-rupture Rate5.5374338E-5

Palliser - Kaiwhata, 4.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?true
Directly Connected?true
Co-rupture Count9,338
Co-rupture Rate7.2242395E-4

Wairarapa: Needles, 5.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?true
Directly Connected?true
Co-rupture Count379
Co-rupture Rate0.0

Vernon 4, 6.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaraia, 7.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?true
Directly Connected?false
Co-rupture Count549
Co-rupture Rate3.0401505E-5

London Hill, 7.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?true
Directly Connected?false
Co-rupture Count215
Co-rupture Rate8.063294E-8

Upper Slope, 9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?true
Directly Connected?true
Co-rupture Count946
Co-rupture Rate1.0425179E-4

Needles East 2, 10.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?true
Directly Connected?false
Co-rupture Count433
Co-rupture Rate4.083805E-6

Wharekauhau, 10.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?true
Directly Connected?true
Co-rupture Count1,217
Co-rupture Rate2.4825225E-5

Dry River - Huangarua: 1, 10.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?true
Directly Connected?false
Co-rupture Count65
Co-rupture Rate3.908307E-5

Cloudy 3, 12.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

Te Rapa 2, 13.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?true
Directly Connected?false
Co-rupture Count990
Co-rupture Rate0.0

Wairarapa: 1, 14.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?true
Directly Connected?false
Co-rupture Count561
Co-rupture Rate0.0

Vernon 3, 15.88 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Chancet, 15.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?true
Directly Connected?false
Co-rupture Count286
Co-rupture Rate0.0

Cloudy 1, 16.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cloudy 2, 16.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Wharanui, 17.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Vernon 2, 18.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjYzNDMuMEVEamtr
Connected?true
Directly Connected?false
Co-rupture Count95
Co-rupture Rate4.083805E-6
